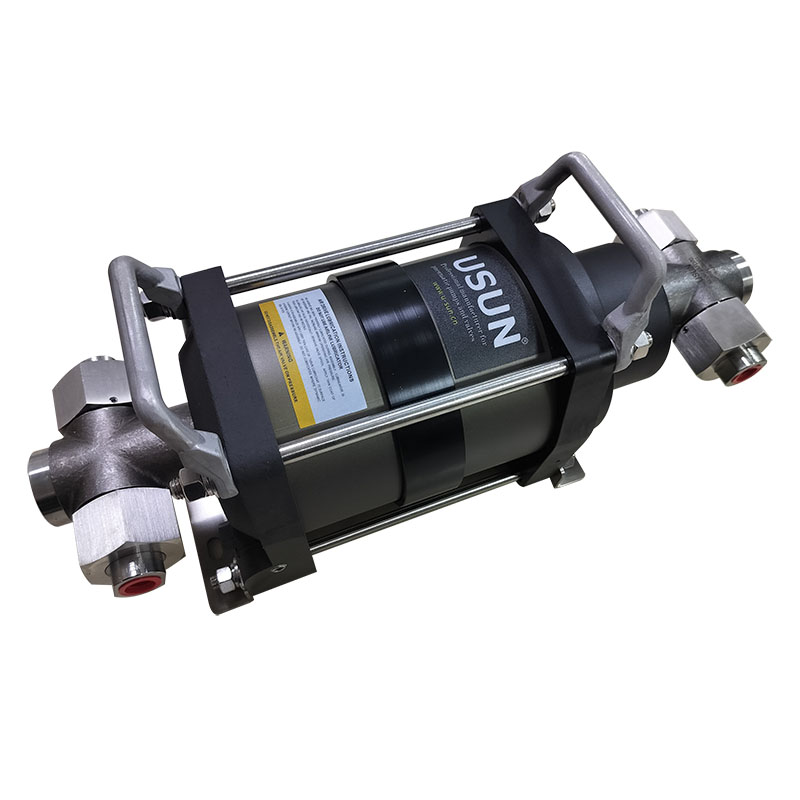

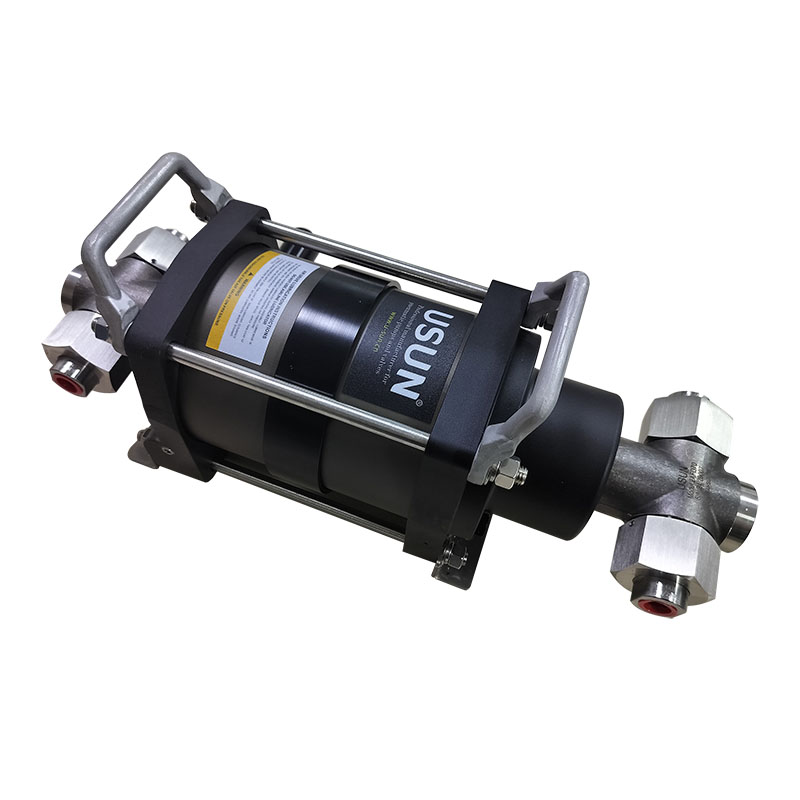

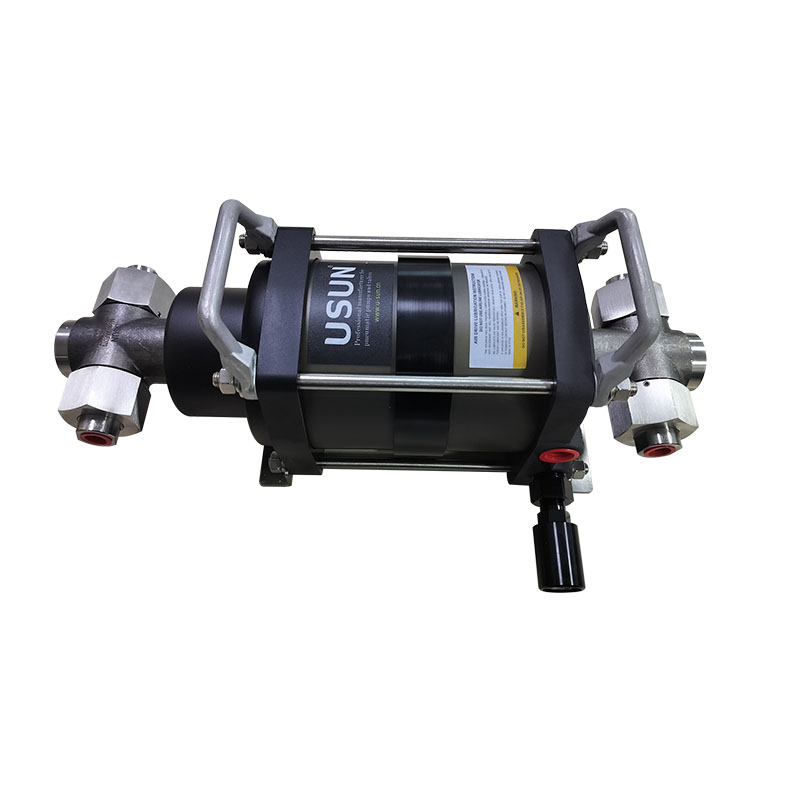

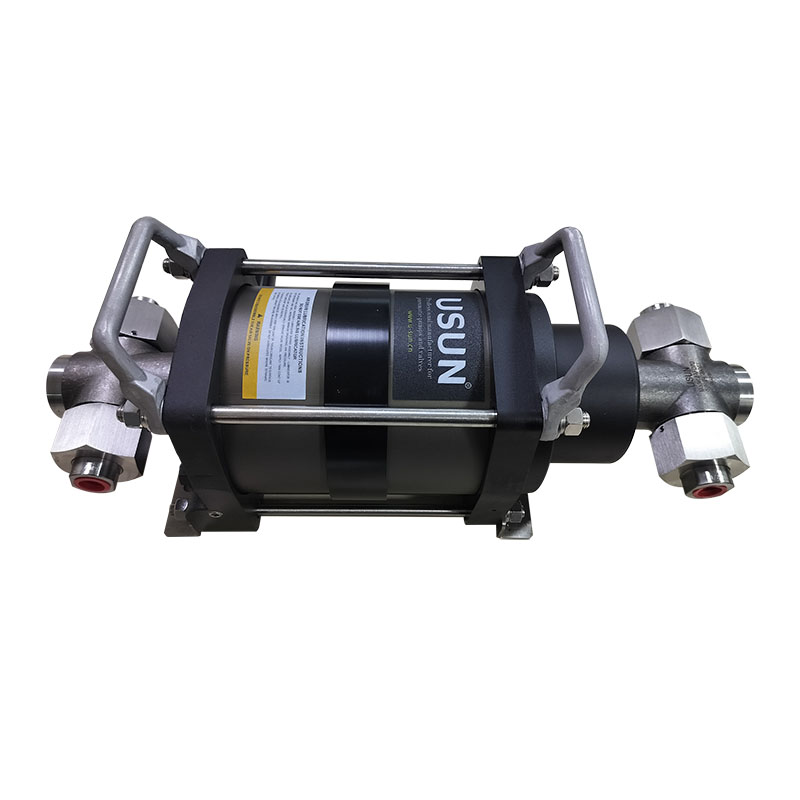

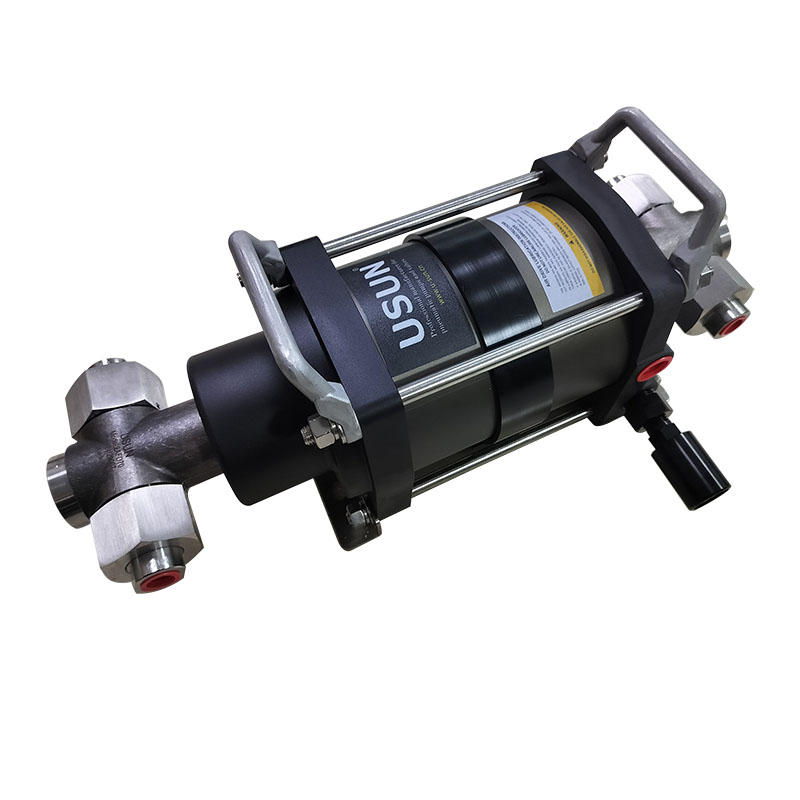

Hot sale USUN Model:2AFD middle size Double action double drive high pressure air water testing pump

Usun Model :2AFD  6inch diameter driven  middle size double action double drive  air driven liquid pressure testing pump

General Information for Air driven liquid pumps

USUN air driven liquid  pumps are ratio devices that utilize low pressure compressed air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.

Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data indicates exact ratios.

The outlet stall pressure is easy to set by adjusting the air drive pressure through a simple air pressure regulator.

By multiplying the pressure ratio by the available shop air pressure, the nominal liquid pressure can be calculated.

1.  AIR DRIVE SECTION

The air drive section consists of a light weight piston complete with seals running inside an aluminum barrel.

The diameter of the air piston is 80mm. When compressed air is supplied to the pump the air pushes the air

piston down on a compression stroke( forces fluid out of the liquid end).

Under the control of pilot pins (poppet valve) triggered at each end of the stroke.

2. HYDRAULIC SECTION (Wetted End)

The hydraulic section of an air driven liquid pump consists of 4 main pieces, the hydraulic body,the piston/plunger,

the check valves and the main high pressure seal.

The hydraulic piston/plunger is  directly linked to the air piston and it is housed inside the hydraulic body and its

movement up and down creates the liquid flow into and out of the pump through the check valves.

The check valves are spring loaded and on the suction stroke the inlet check valve opens to the maximum allowing

fluid into the hydraulic body and on the compression stroke the inlet check valve closes and the discharge check valve opens forcing the pumped fluid into the process.

The main high pressure seal is located within the hydraulic body and the piston/plunger seals against this during operation.

There are different materials and designs of high pressure seals depending on the fluid being pumped and the maximum pressures of the pump, however the standard seals are suitable for both water and hydraulic fluid use.

Typical applications for air driven Liquid pumps

Key features

One model available in 8 ratios

Compatibility with a variety of liquids

Safe pneumatic operation

Aluminum bodies and wetted materials of carbon steel or stainless steel

Rugged,compact,reliable and easy maintenance proven design

High quality seals, long service life available

No need for air line lubrication

Wide application with large range of pressure ratio

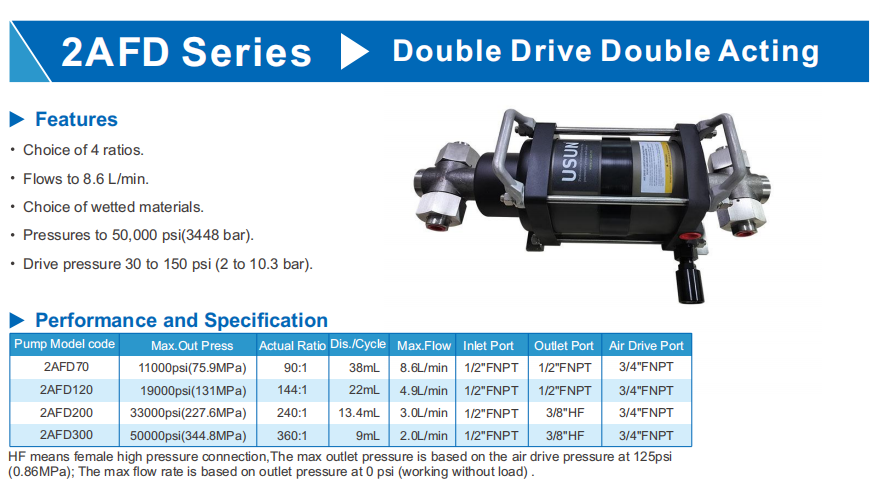

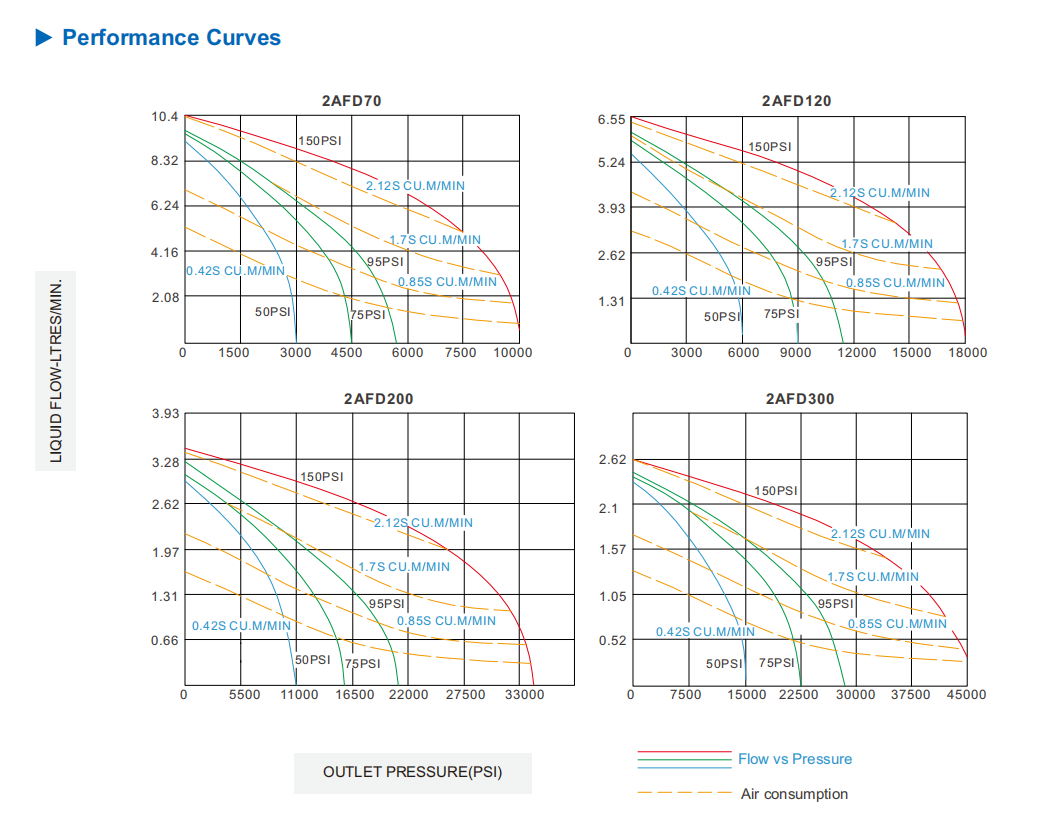

 Main technical data

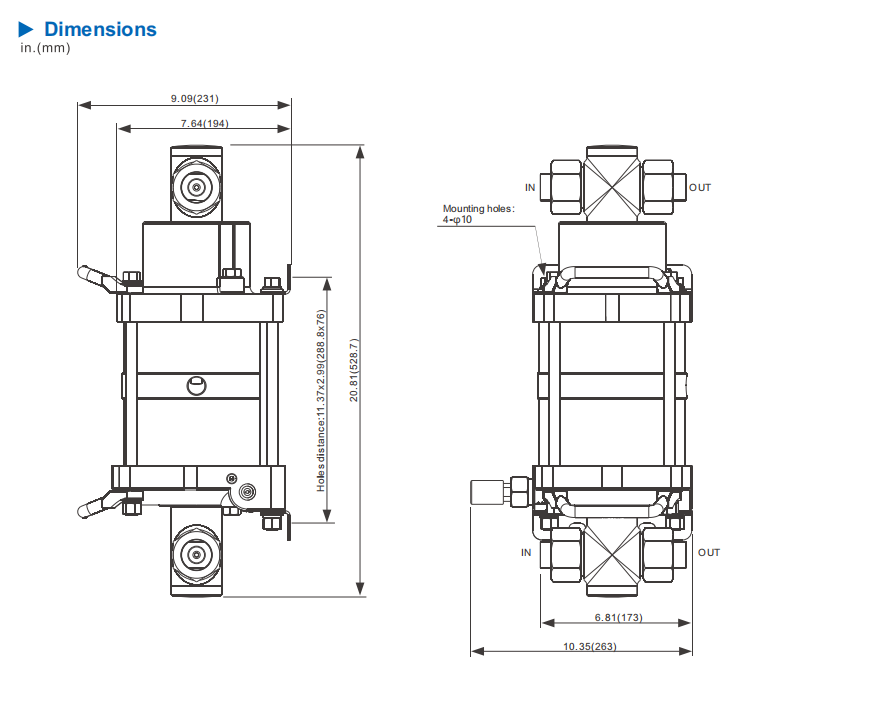

Typical diagram of such air driven hydraulic pumps
