ES-83.5-6000-0.08/3-S31603
USUN
Model:ES-83.5-6000-0.08/3-S31603

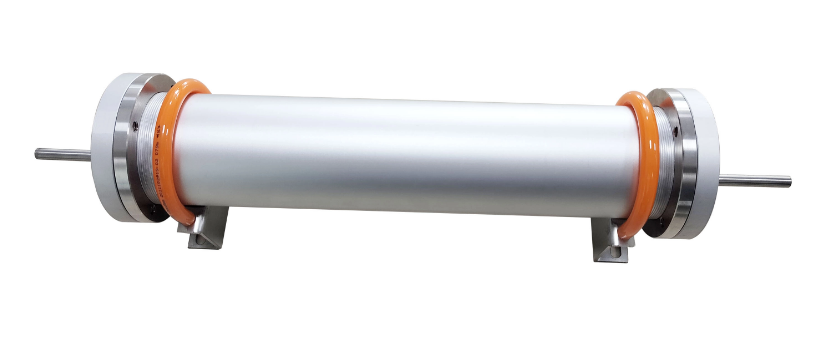

Model:ES-83.5-6000-0.08/3-S31603 Stainless Steel ES Series High Pressure Cooler for Hydrogen Gas Service
Features:
1)Maximum working pressure: 60000 psi (4137 bar).
2)The cooling pipeline is made of S31603 stainless steel, with anti- corrosion properties, High energy can be used for cooling corrosive media.
3)The high-pressure part is made of stainless steel, while thelow- pressure part is made of aluminum alloy.
4)Used in high-pressure media, corrosive media, and high-purity media that require cooling.
5)The heat exchange medium can be water or compressed air, which is more environmentally friendly.
6)The length of the standard product medium pipeline is a fixed length. If special lengths are required, please specify when ordering.
Typical technical data for air driven gas booster pump
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such Pneumatic driven gas booster pump
Model:ES-83.5-6000-0.08/3-S31603 Stainless Steel ES Series High Pressure Cooler for Hydrogen Gas Service
Features:
1)Maximum working pressure: 60000 psi (4137 bar).
2)The cooling pipeline is made of S31603 stainless steel, with anti- corrosion properties, High energy can be used for cooling corrosive media.
3)The high-pressure part is made of stainless steel, while thelow- pressure part is made of aluminum alloy.
4)Used in high-pressure media, corrosive media, and high-purity media that require cooling.
5)The heat exchange medium can be water or compressed air, which is more environmentally friendly.
6)The length of the standard product medium pipeline is a fixed length. If special lengths are required, please specify when ordering.
Typical technical data for air driven gas booster pump
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such Pneumatic driven gas booster pump
