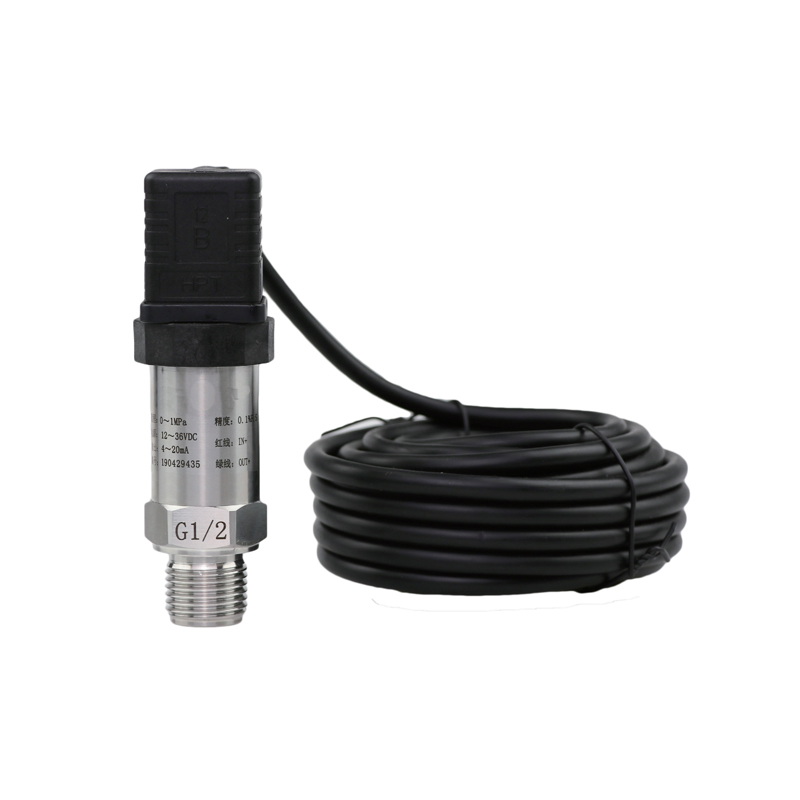

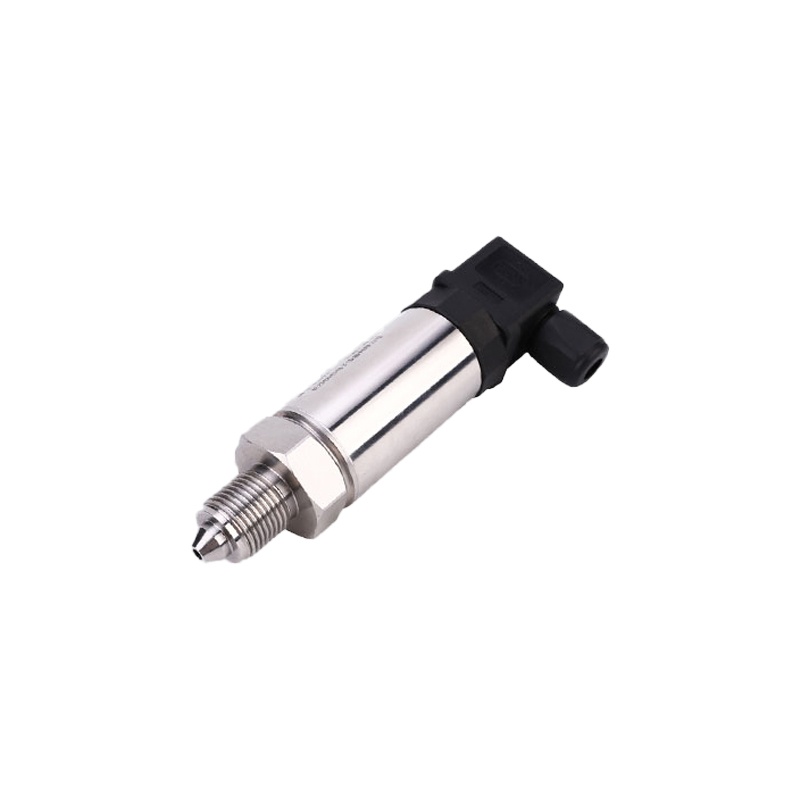

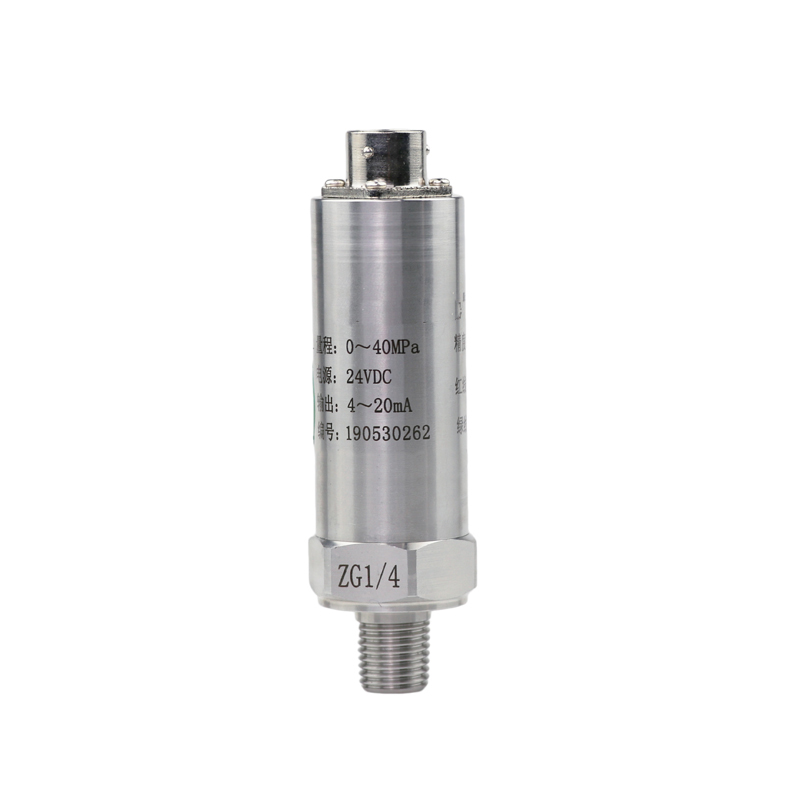

T232E Series Stainless Steel Good Stability Ultra High Pressure Transmitter/Sensor for Static Pressure Machine And Water Jet Equipment

T232E Series Stainless Steel Good Stability Ultra High Pressure Transmitter/Sensor for Static Pressure Machine And Water Jet Equipment

The ultra-high pressure transmitter is made of rare metal alloy material, processed by special technology, integrated design, all stainless steel welded packaging shell, laser resistance temperature compensation, and equipped with high-performance digital processing circuit. It has undergone high and low temperature aging and long-term fatigue testing before leaving the factory, with good long-term stability and long working life, maintaining safe and stable operation in the ultra-high pressure range.

Product features

★ Traditional products, mature and reliable

★ All stainless steel welded packaging

★High and low temperature aging

★Good stability

★ Long working life

Main technical parameters:

1. Medium: Water, hydraulic oil, etc.

  2.Range:0~250MPa, 300MPa, 400MPa, 450MPa,500MPa, 600MPa, 800MPa, 1000MPa 1200MPa.

  3.Power supply:10-32VDC

  4.Output:4~20mA、0~5VDC、0~10VDC

  5.Install thread:M20 × 1.5 conical surface, M22 × 1.5 conical surface,3/4-16UNF with 58 degree cone

  6.Electrical interface:Husman, aviation plug, direct outgoing line

  7.Accuracy:0.5%FS、0.25%FS

  8.Long-term stability:≤± 0.5% FS/year

  9.Working medium temperature:-35~+85℃

  10.Working environment temperature:-30~+75℃

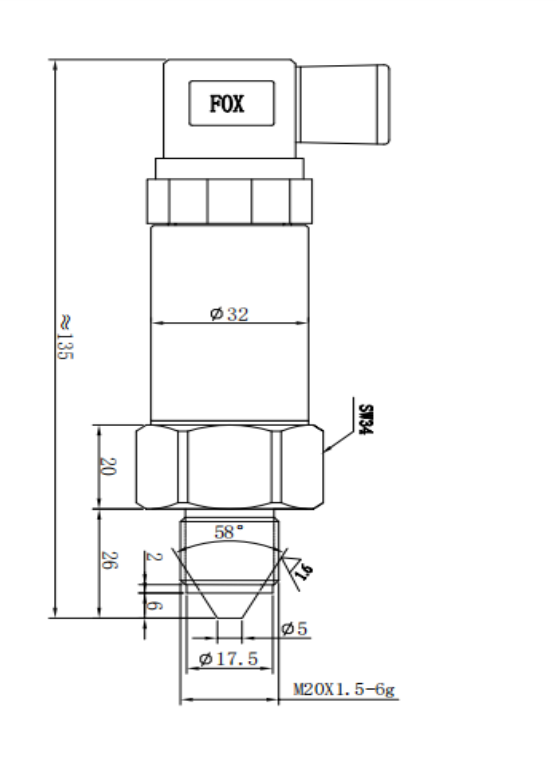

Product dimension drawing:

Unit：mm
