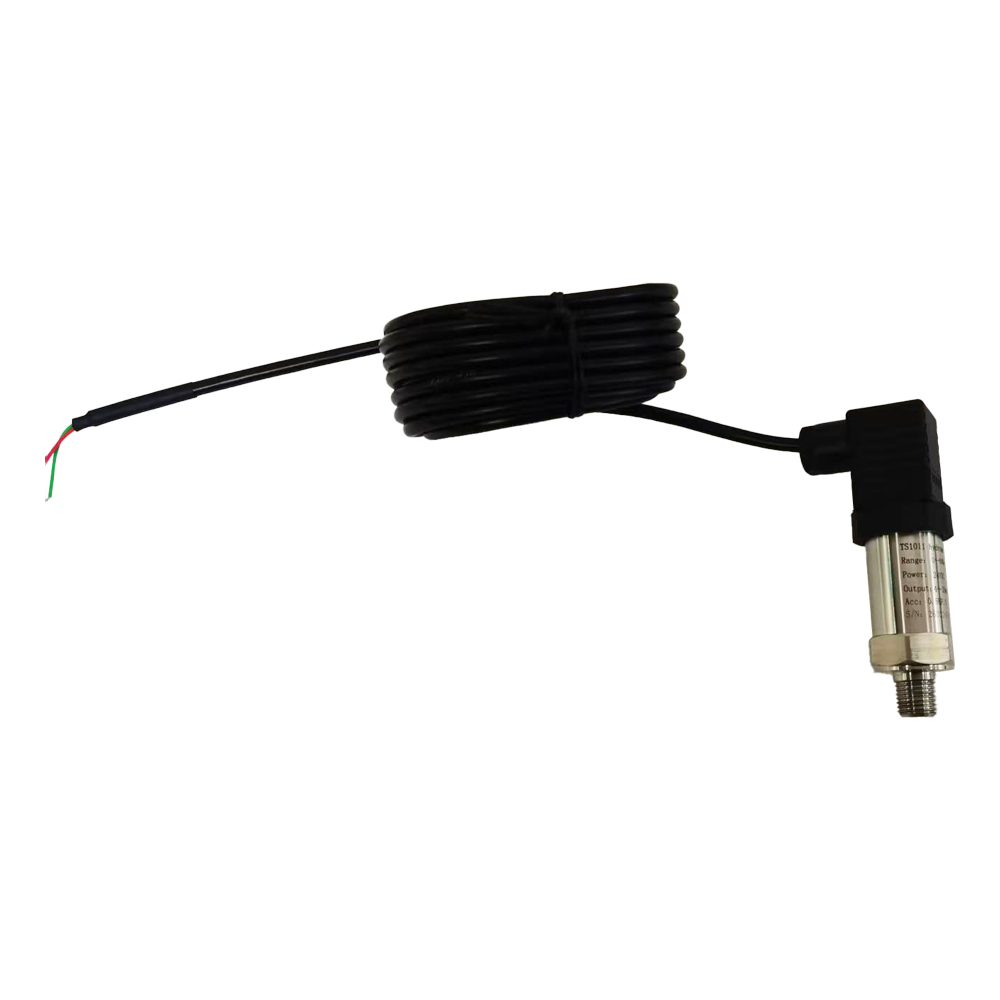

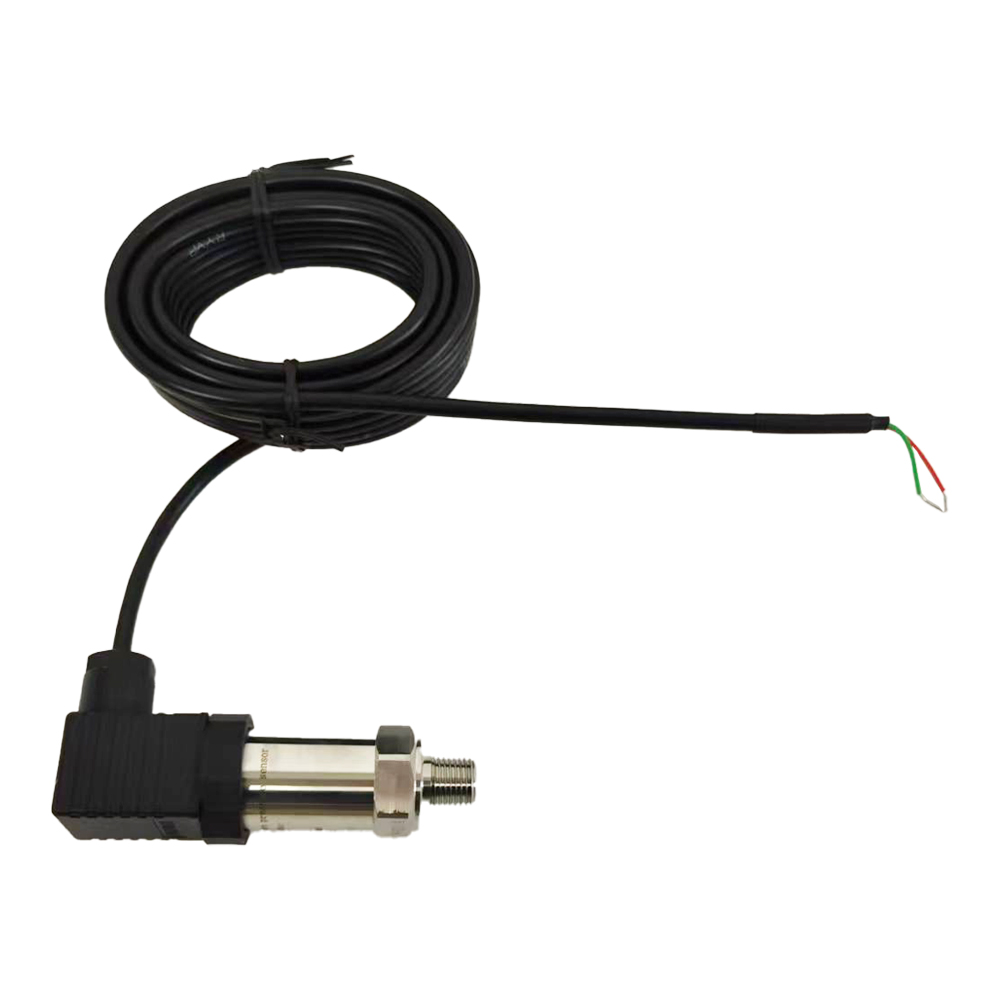

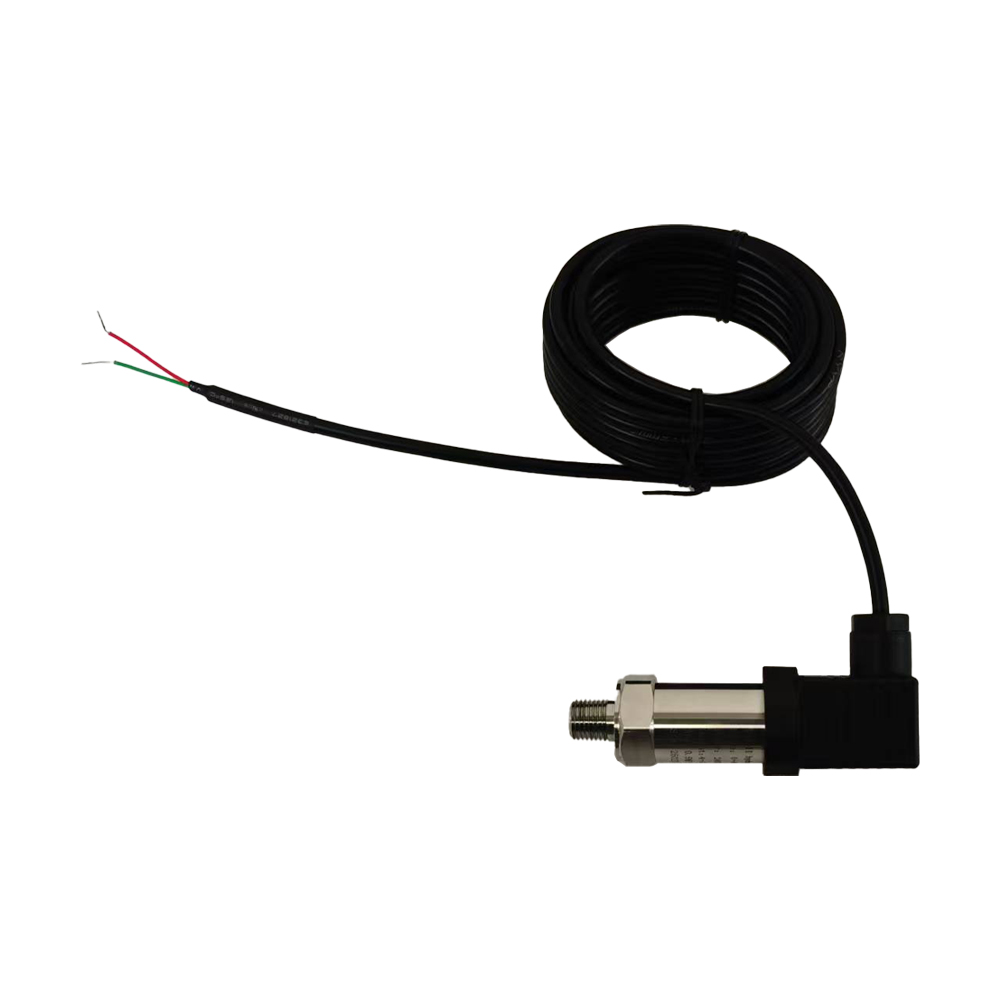

TS Series Stainless Steel High Pressure Sensor/Transmitter for Static Pressure Machine And Water Jet Equipment

TS Series Stainless Steel High Pressure Sensor/Transmitter for Static Pressure Machine And Water Jet Equipment

The TS110 series, developed from the TS108 high-precision pressure sensor production line, features advanced solid-state voltage stabilization, precise temperature compensation, and  stress-free encapsulation. Designed for both positive and  negative pressure measurements of gases and liquids  compatible with silicon and  stainless steel, these sensors can be equipped with LED or LCD displays for real-time calibration and on-site monitoring.

Product features

★Wide measurement range with high cost-performance ratio.

★The silicon pressure-resistance sensitive chip is selected for its high precision and good stability.

★ The housing is constructed entirely of stainless steel with diverse interface configurations.

★Multiple output signal formats with optional field display.

★Design of Anti-frequency and Anti-radiation Frequency Signal Interference.

★ Reverse polarity and over voltage protection.

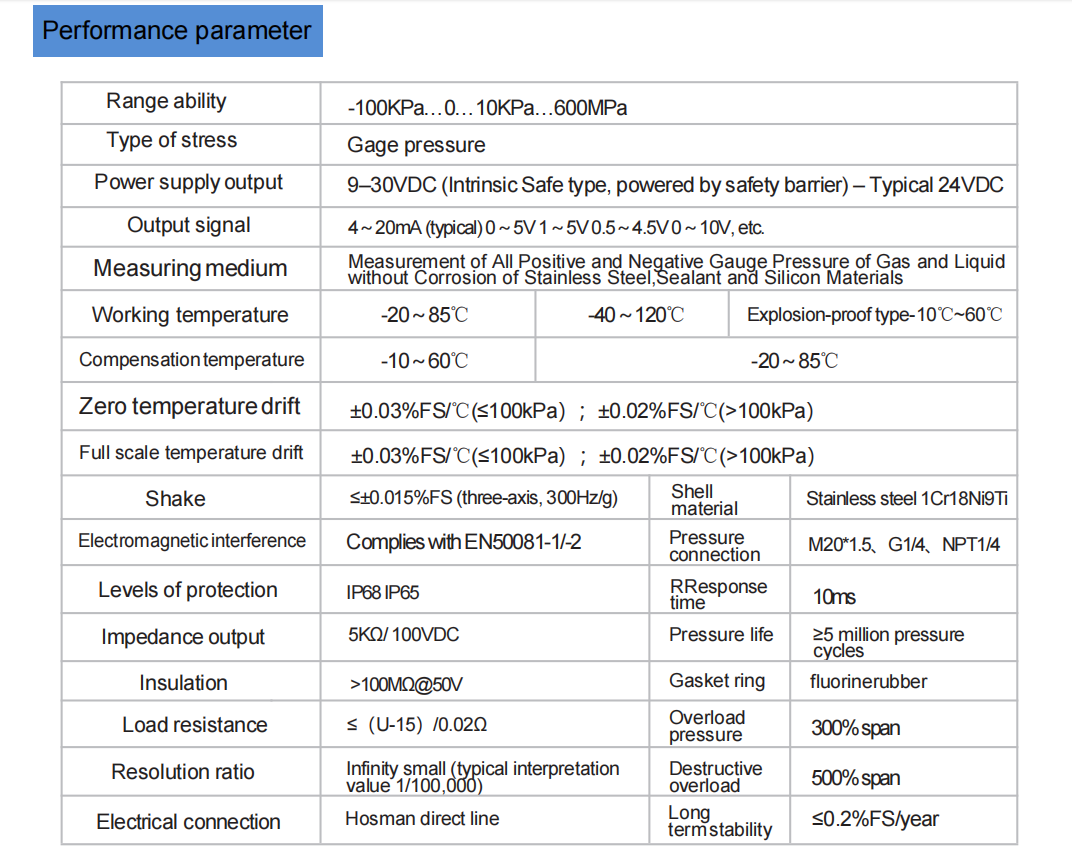

Main technical parameters:

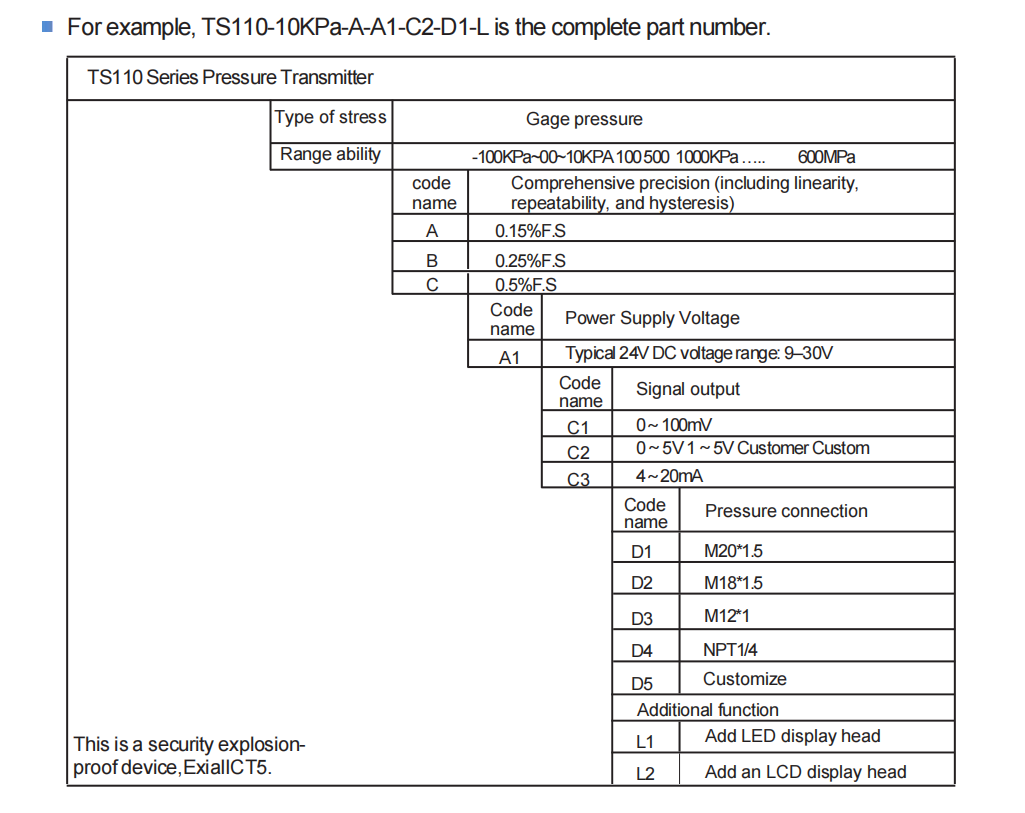

Model selection:

Selection tips:

1.For transmitters with LCD or LED displays, the power supply must be at least 20VDC, and the operating      temperature range is-20 to 60C.

2.The explosion-proof model ExiallCT5, designated as G in the selection criteria, requires power supply through a safety barrier.
