Model :S
USUN

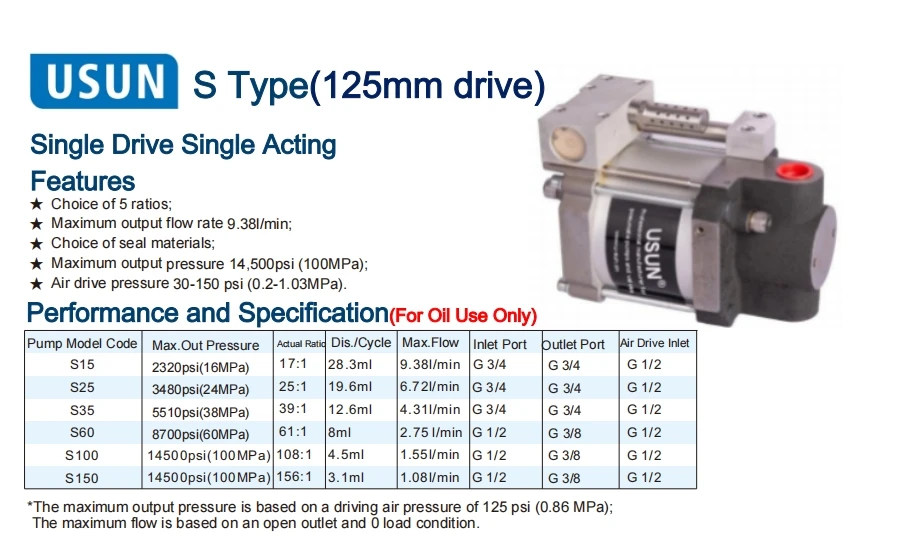

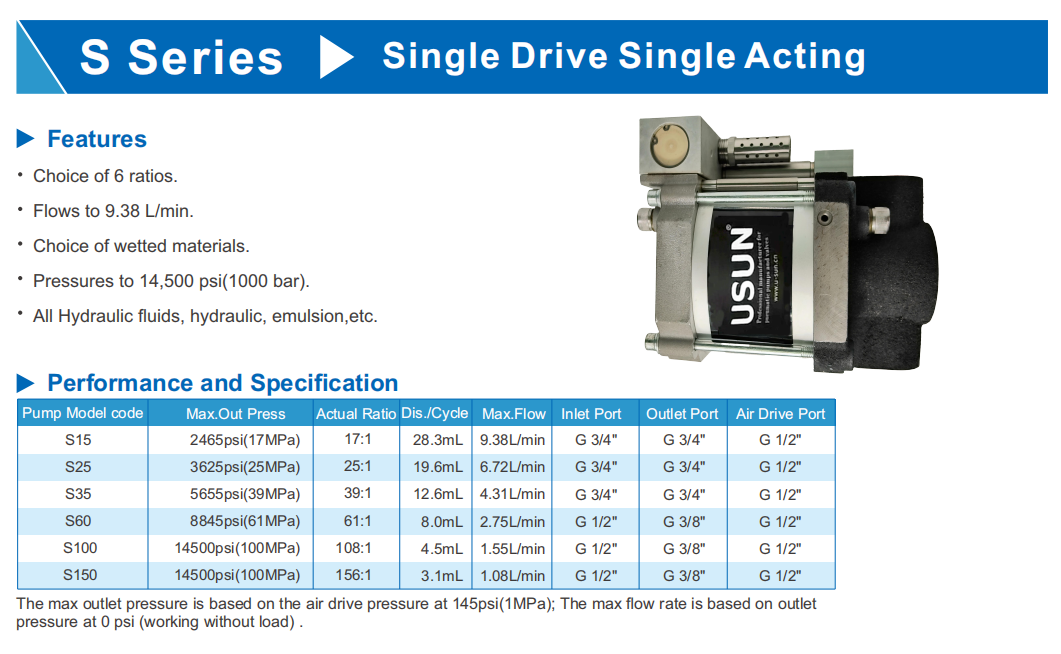

Model :S15/S25/S35/S60/S100/S150

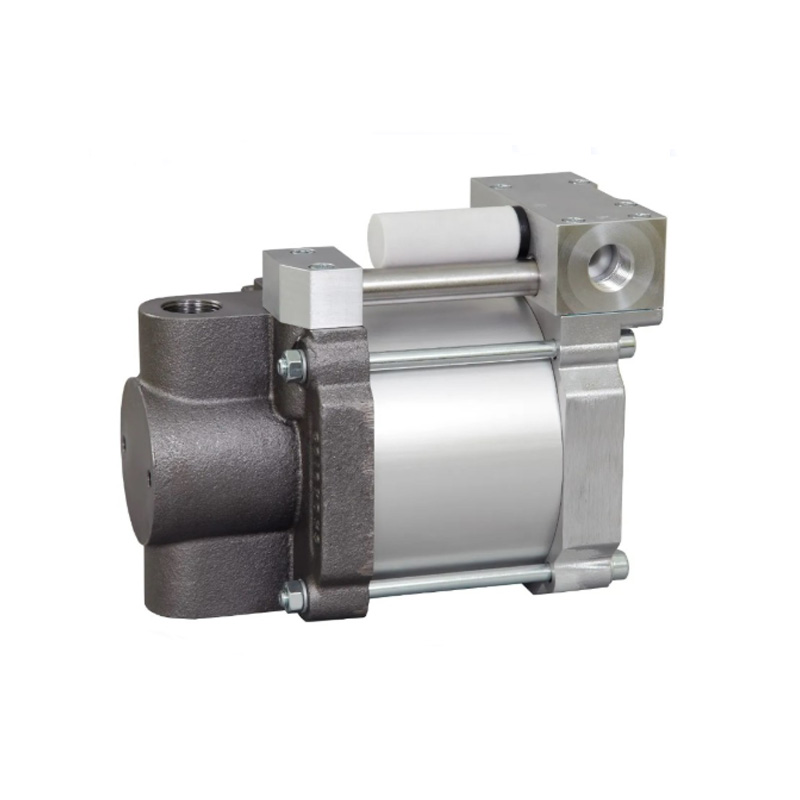

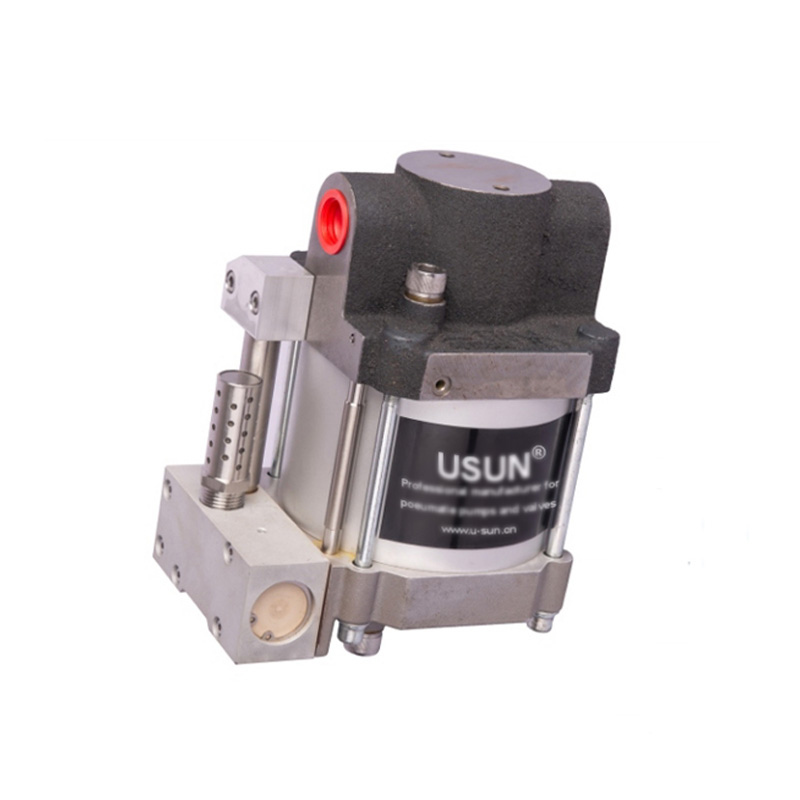

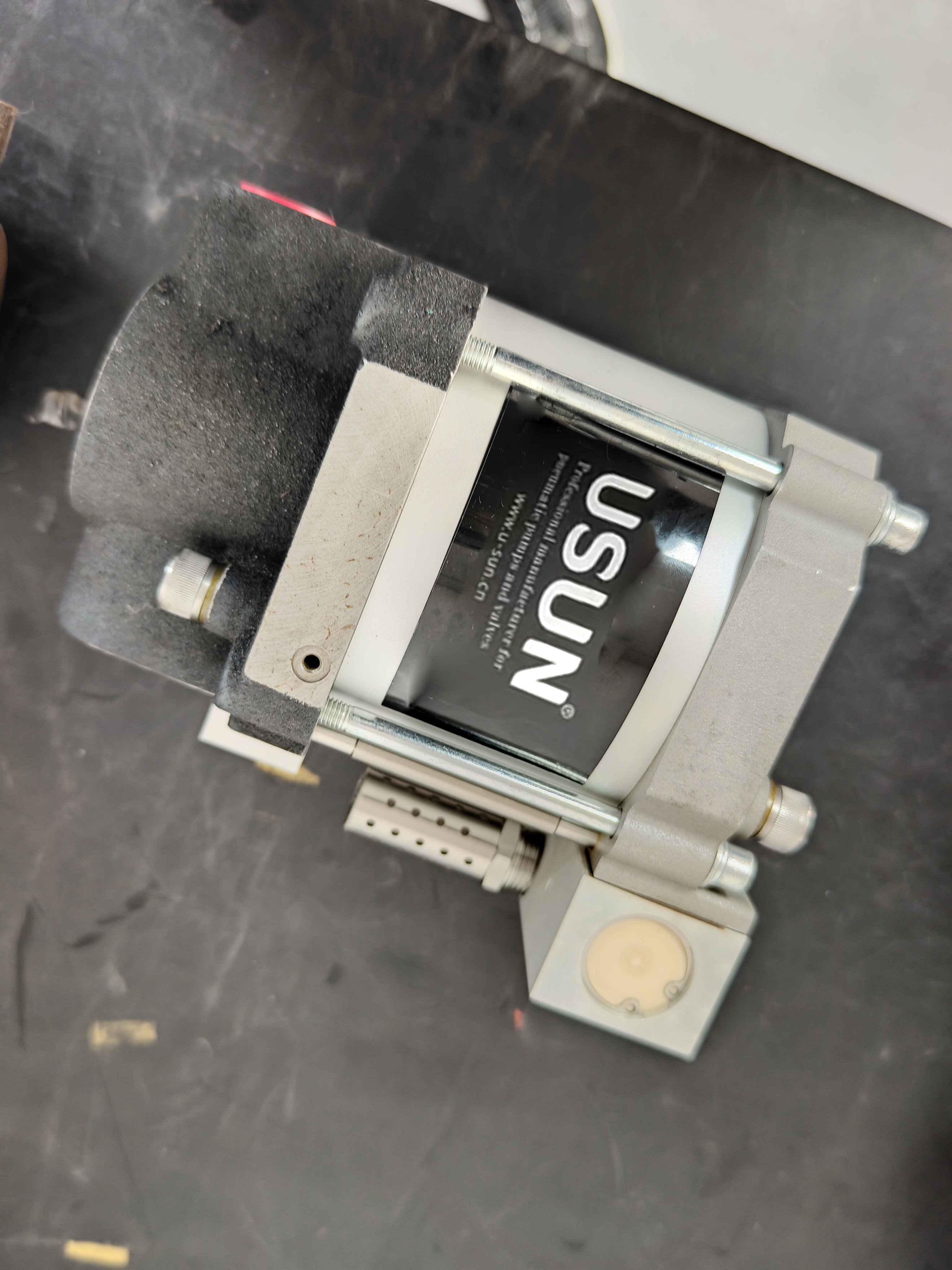

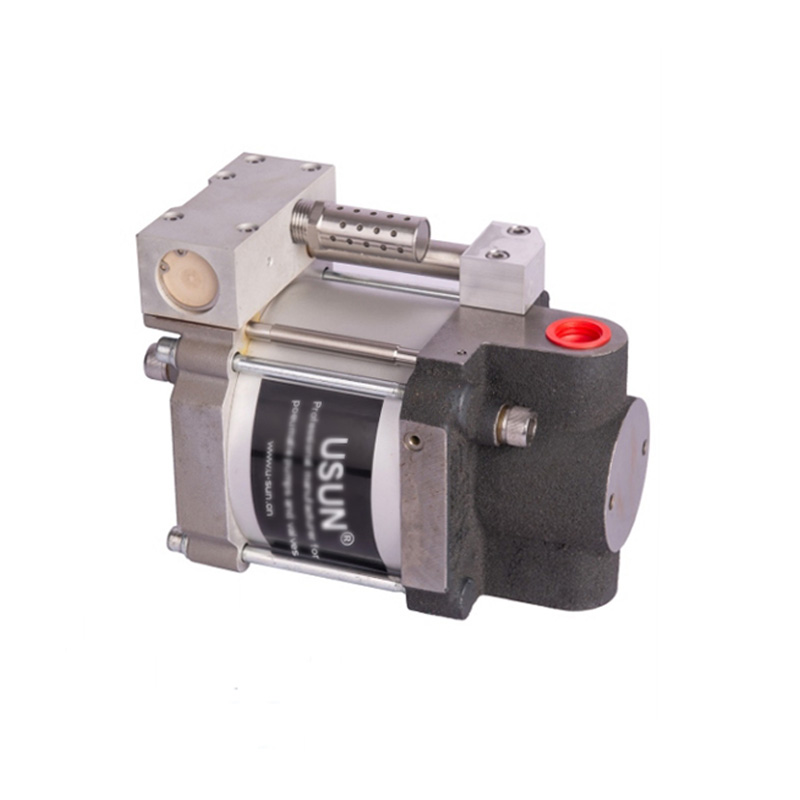

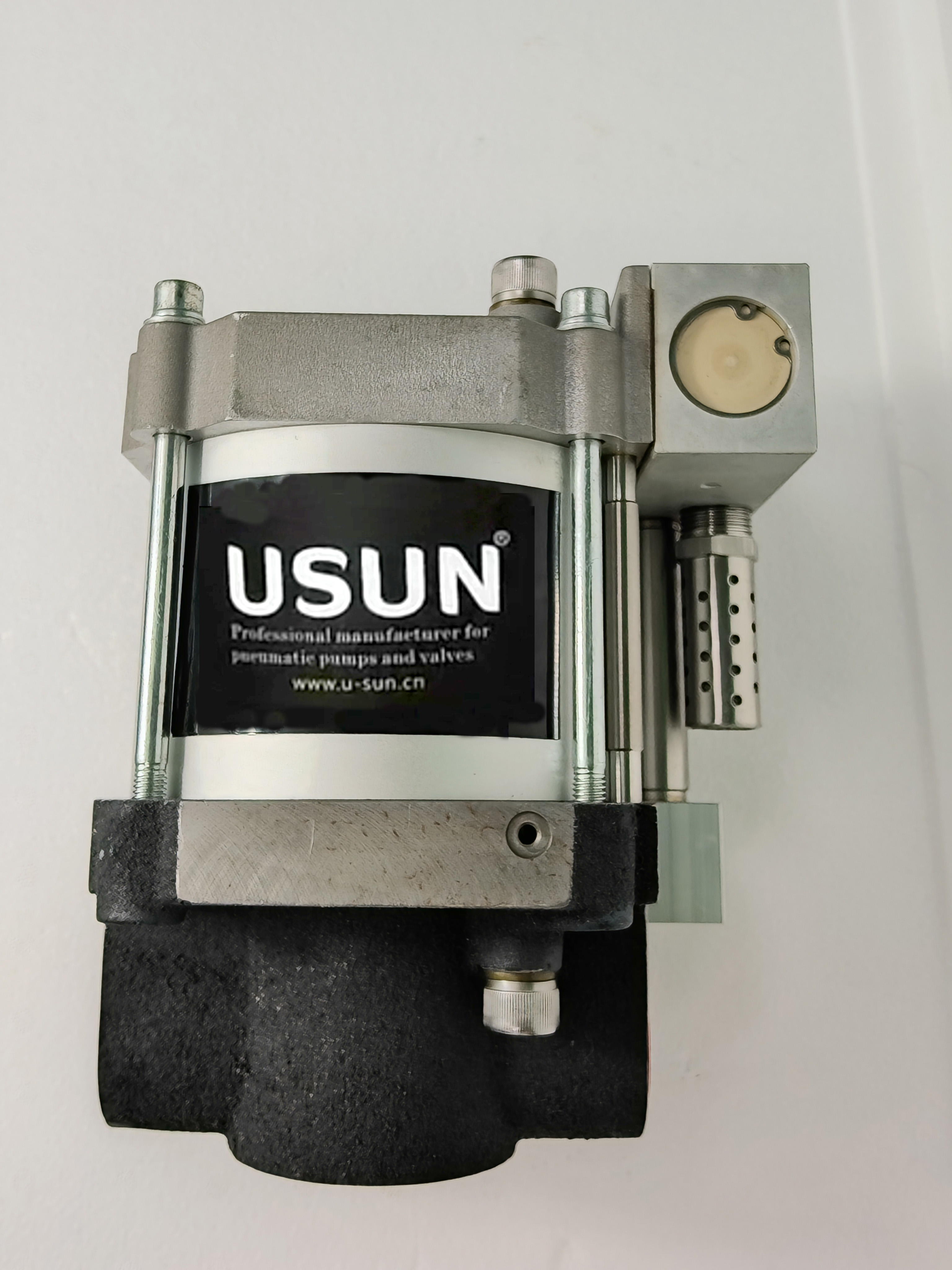

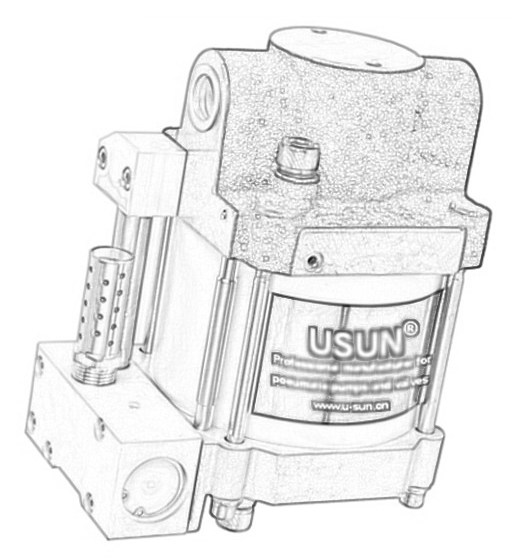

Usun Model : S type Similar Maximator High pressure pneumatic driven oil pressure transfer pump ( For Oil service Only )
Product information
S pumps are single acting types with single air drive head. They are compact and lightweight for simple installation in both static and portable applications. They will operate at an air pressure as low as 14.5 psi (1 bar) due to minimal internal friction. S pumps are ideal for applications demanding fast response time.
1)Cast iron bodies, tool steel plungers and polyurethane seals;
2)Pumps come standard with side inlet only ;
3)Ideal for portable power packs;
4)For air drive pressure from 1 bar (14.5 psi) to 10 bar (145 psi) maximum.
Options for S Series:
1)Special inlet and outlet ports (i. e. NPT): Order code: S35(D) – NPT;
2)Special seal material to handle special fluids: Order code: See fluid compatibility guide;
3)Air control unit for S series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: S35(D) with C1.5;
4)Other options available on request.
Product features
S pumps are single acting, single air drive head types.
1)Single acting;
2)Single air drive head;
3)Pressures to 1,000 bar (14,500 psi);
4)They are suitable for use in zone 1, category 2G/2D IIB TX explosion-proof areas (Temperature class depending on medium temperature).
Examplesof application for the S Series hydraulic pumps include:
1)Lifting & Clamping: Hydraulic systems for lifting and shifting loads, lifting tables, aircraft jacking.
2)Hydraulic applications: Clamping devices, punching & pin presses, chucks, actuation of cylinders.
3)Presses: Cold isostatic presses, filter presses, hydraulic presses, pressure generation for presses and press overload protection.
4)Tooling and Tightening:actuating cropping, crimping, cable shears and pipe bending tools, roller tensioning and torque wrenches.
5)Lubrication systems.
