Model :HI60145-NC
USUN
Model :HI60145-NC

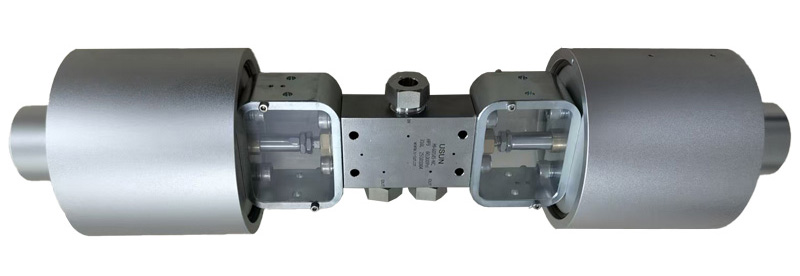

USUN Brand Model: HI60145-NC 60000PSI 9/16''O.D. Ultra High Pressure Normal Closed Stent Air Operated Needle Valve
HI type Air Driven Needle Valves features
Pneumatic valve actuators are al piston type design, reliable operation, long life.
Mounted on manual valves to provide remote control.
Separated stem design, easy to adjust the stroke and replace the stem.
The actuator is made of anodized alumina, which has good corrosion resistance and is more portable.
Main technical parameters
Actuator maximum allowable working pressure: 100 psi (6.89bar).
Allowable piston temperature range: -29C~ 93℃(-20F ~ 200F).
Maximum working pressure: 60,000 psi (4,137 bar)
Working medium: gas, oil and water.
Standard operating temperature:-50C~200C(-58F ~ 392F).

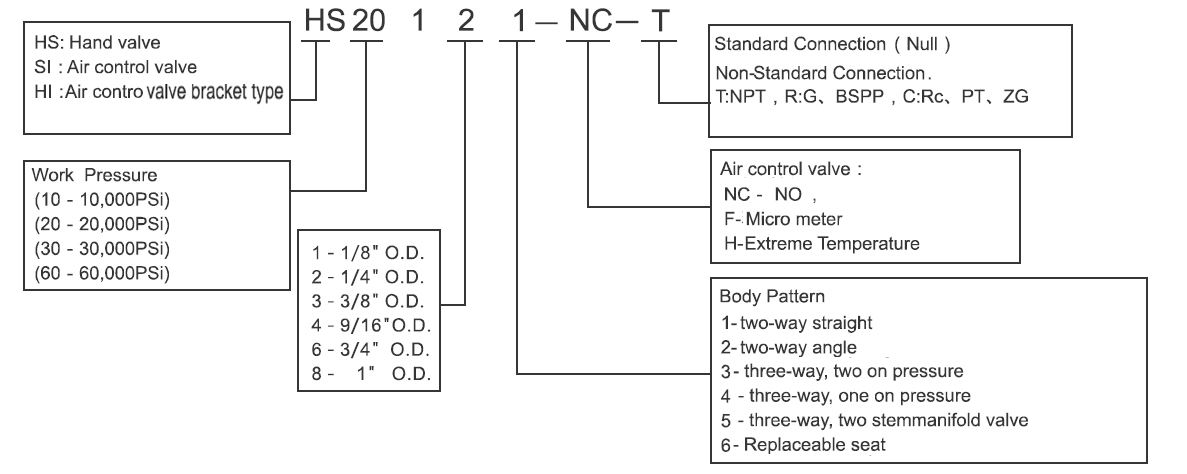

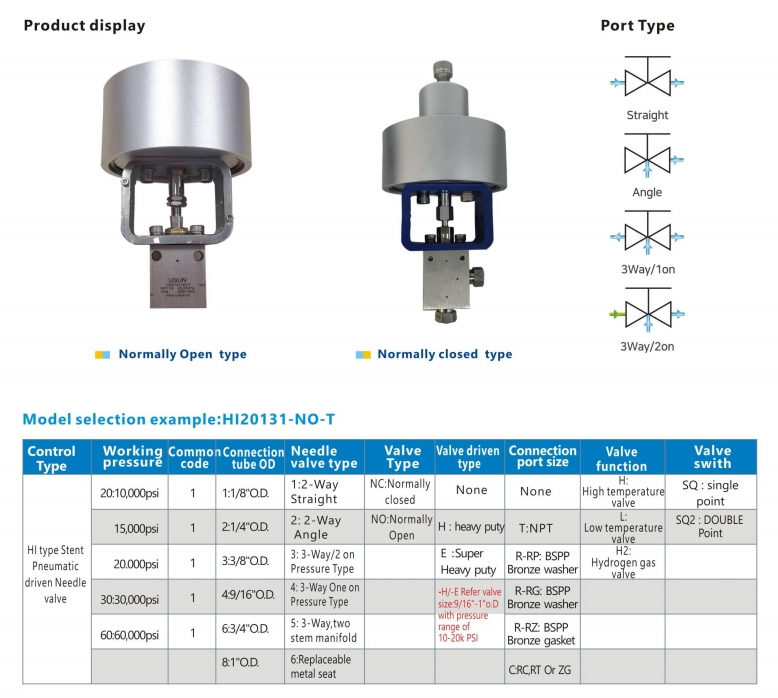

Product model information

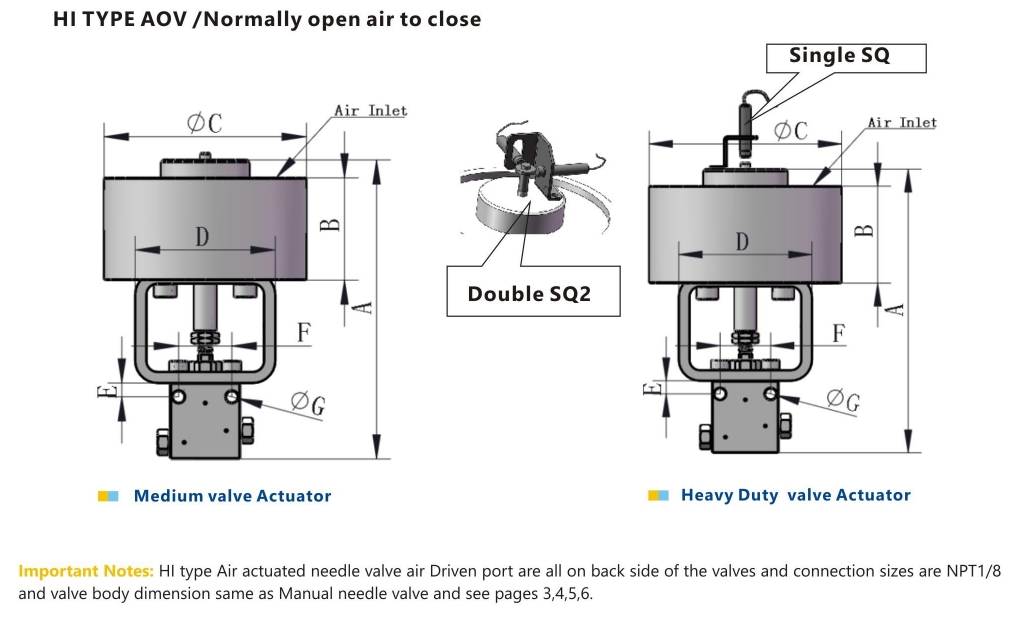

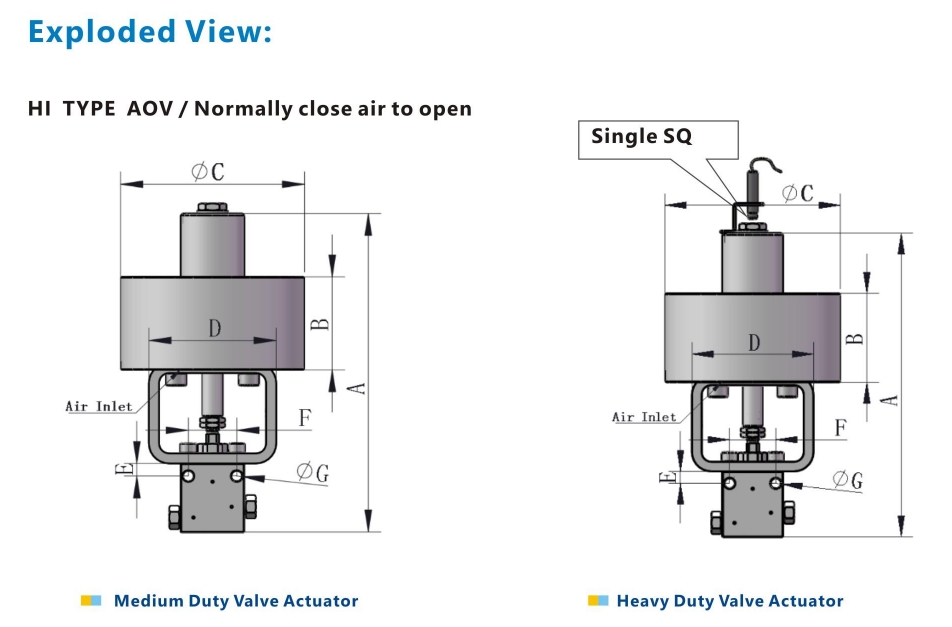

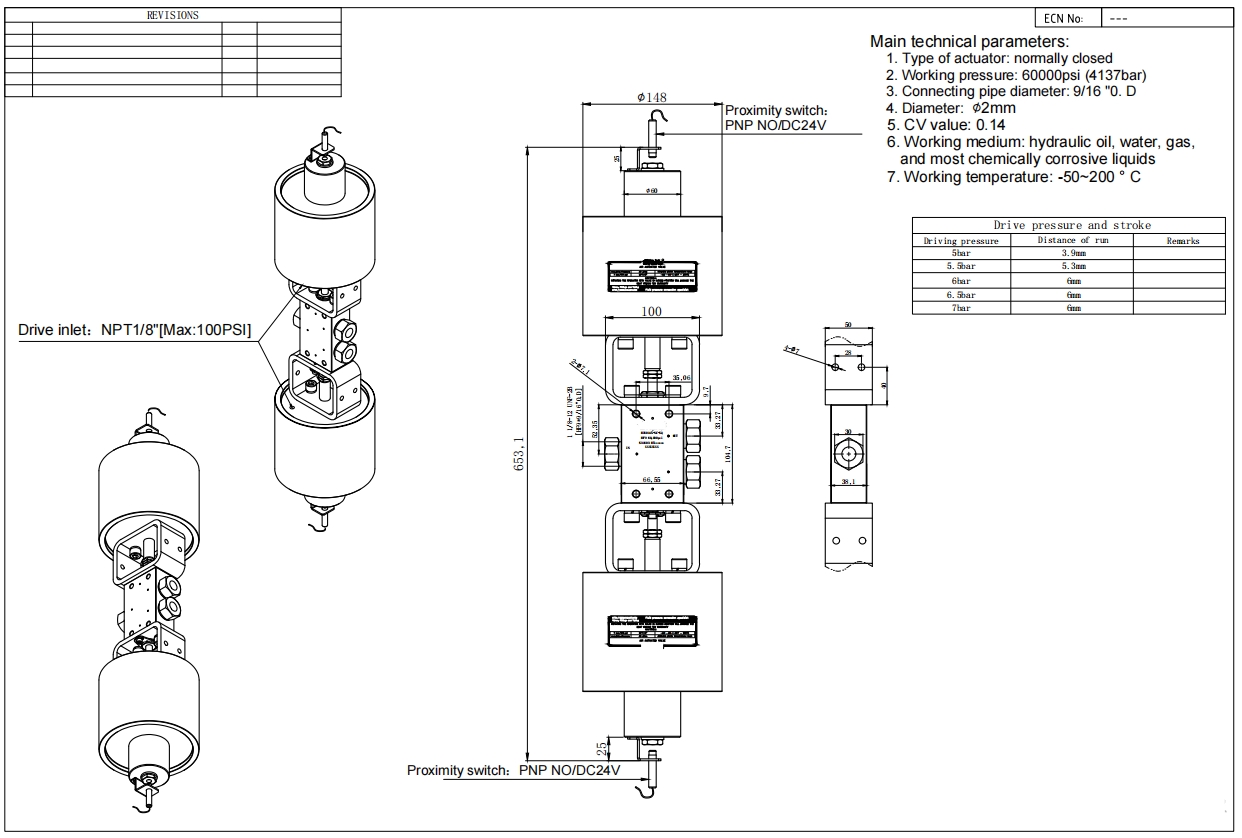

Product structure

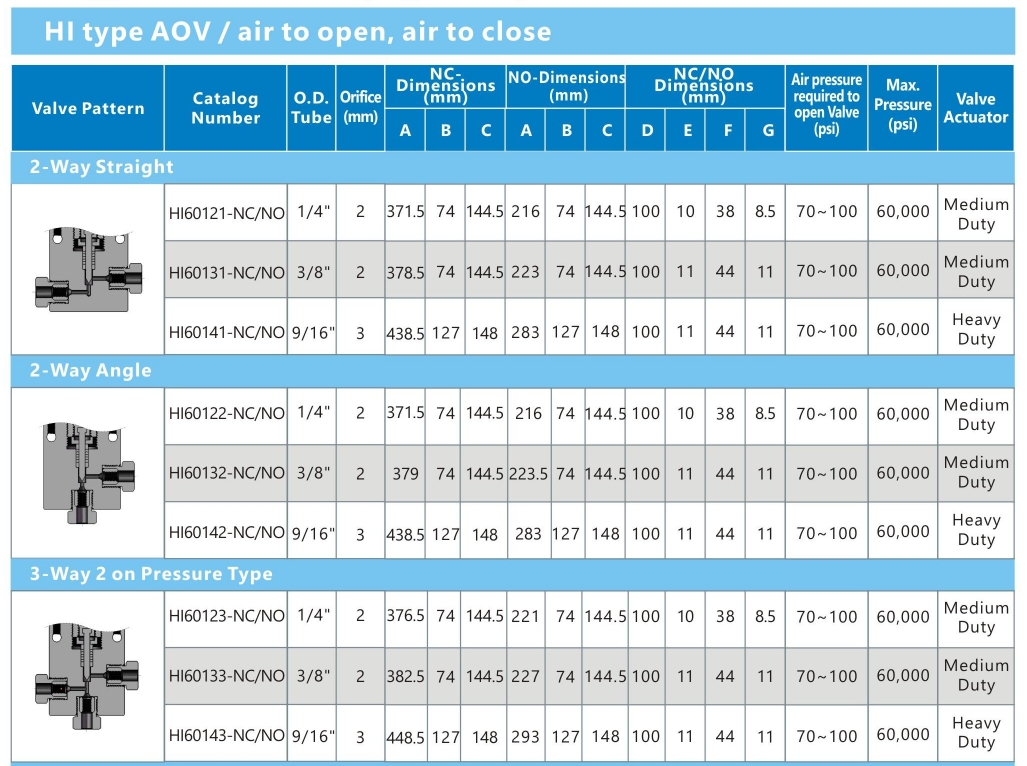

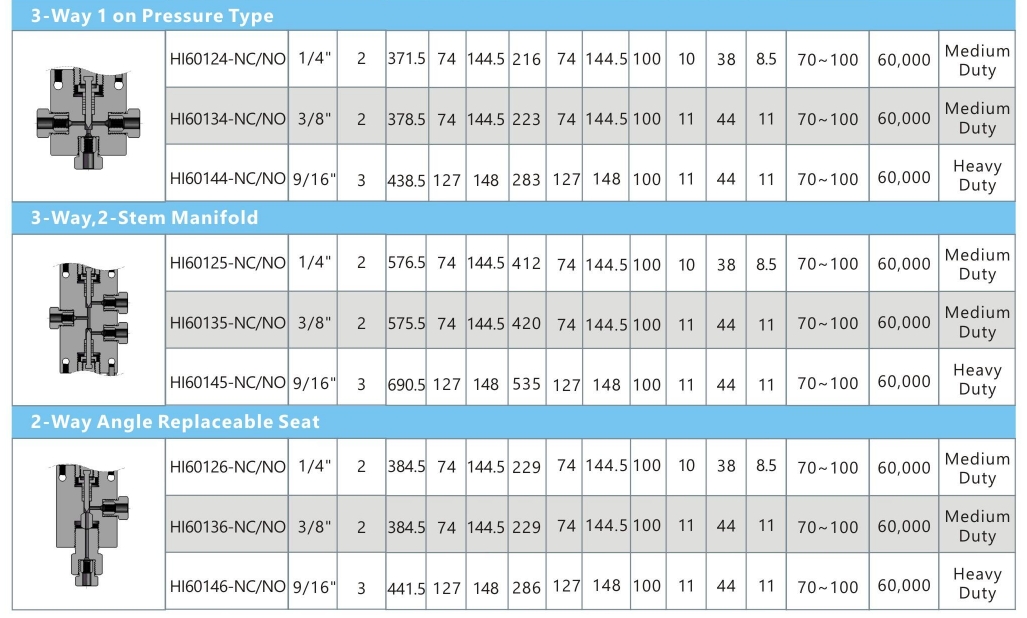

Product specifications
