​USUN Brand Model :PGV5SSFNPT4 Similar Tescom Stainless Steel 316 NPT1/4'' Max.1500PSI Back Pressure Valve for Control in Gas And Liquid Pipelines Backflow

USUN Brand Model :PGV5SSFNPT4  Similar Tescom Stainless Steel 316 NPT1/4''Max.1500PSI Back Pressure Valve for Control in Gas And  Liquid Pipelines backflow

    Back pressure valves are commonly used for fluid control in gas and liquid pipelines such as electronics, semiconductors, petrochemicals, and biopharmaceuticals. They mainly play a stabilizing role in pipelines, and commonly used systems include reaction vessels, fluid metering and dosing systems, hydraulic control systems, chemical reaction conditions, and critical state control. The set pressure can be adjusted by rotating the back pressure valve handle, and clockwise rotation of the back pressure valve handle can increase the set pressure of the back pressure valve; Turning the handle of the back pressure valve counterclockwise will lower the set pressure of the back pressure valve. When the system pressure is higher than the setpressure of the back pressure valve, the system pressure will be discharged from the back pressure valve discharge port (outlet).

   Back pressure range:200~20000psig, 200~10000psig, 50~6000psig, 25~4000psig15~2500Psig10~1500psig,      0~800psig 0~500psig 0~300psig

Back Pressure valve Features

• 316 stainless steel and 17-4PH SS material components

• Sensitivepiston sensingdesign

• A filter needs to be installed at the entrance

• Adjustable back pressure

Technical date:

1.Back pressure range:10~1500psig;

2.Applicable temperature:-29℃-75℃ (-85F-167F);

3.Port: NPT1/4" female thread.

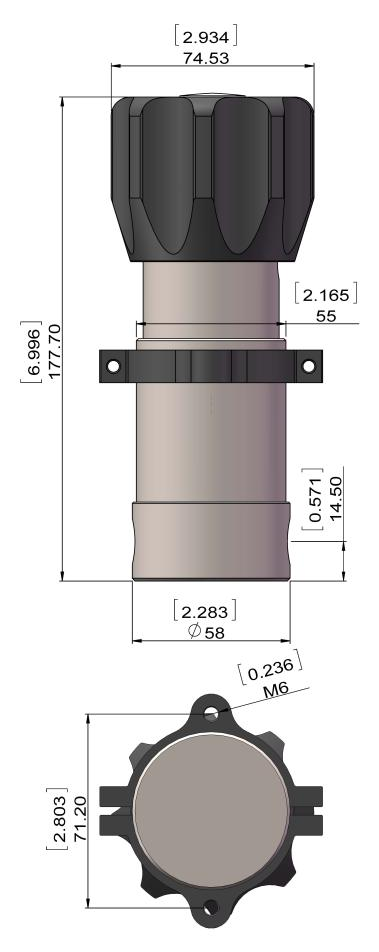

Technical drawing for such back pressure valve

Product ordering information

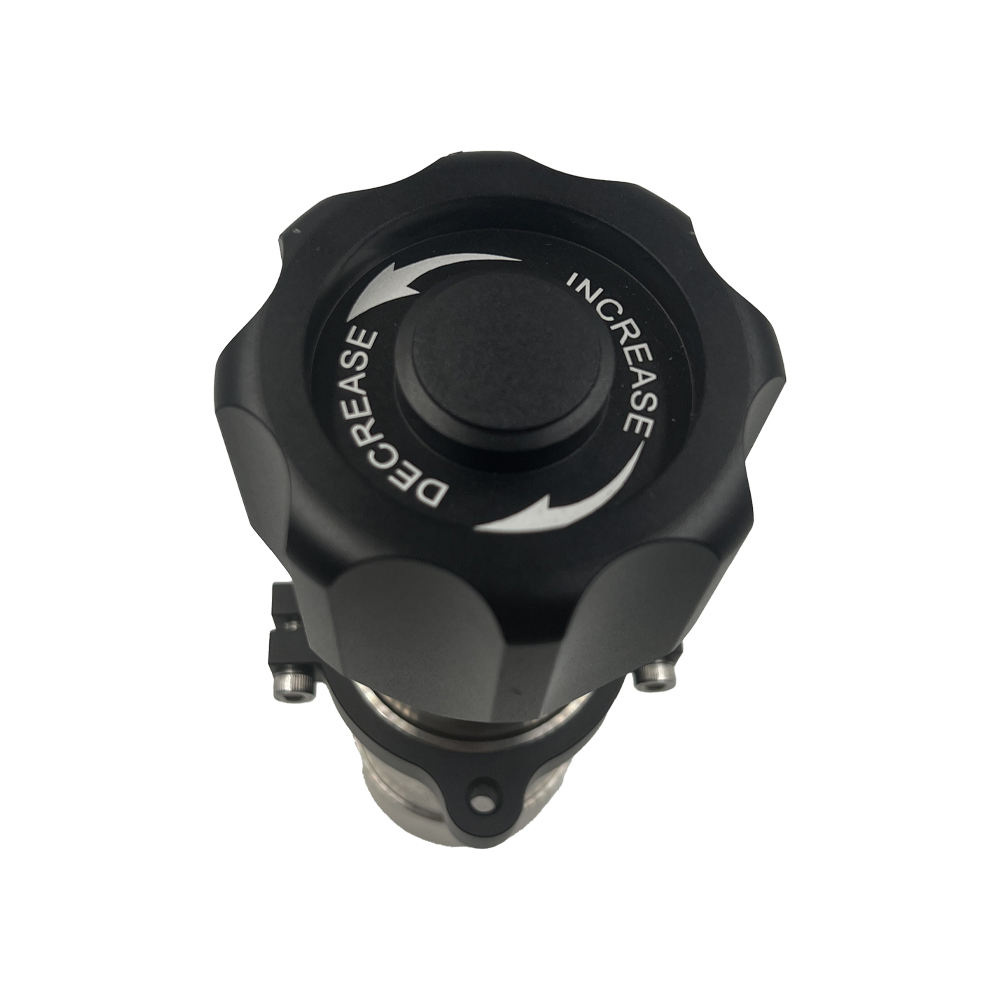

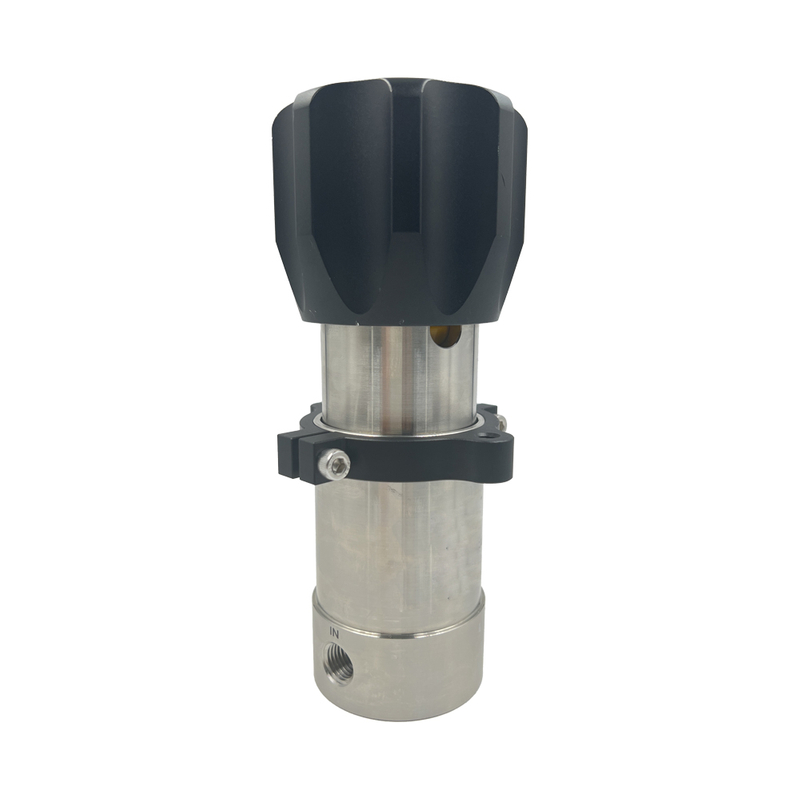

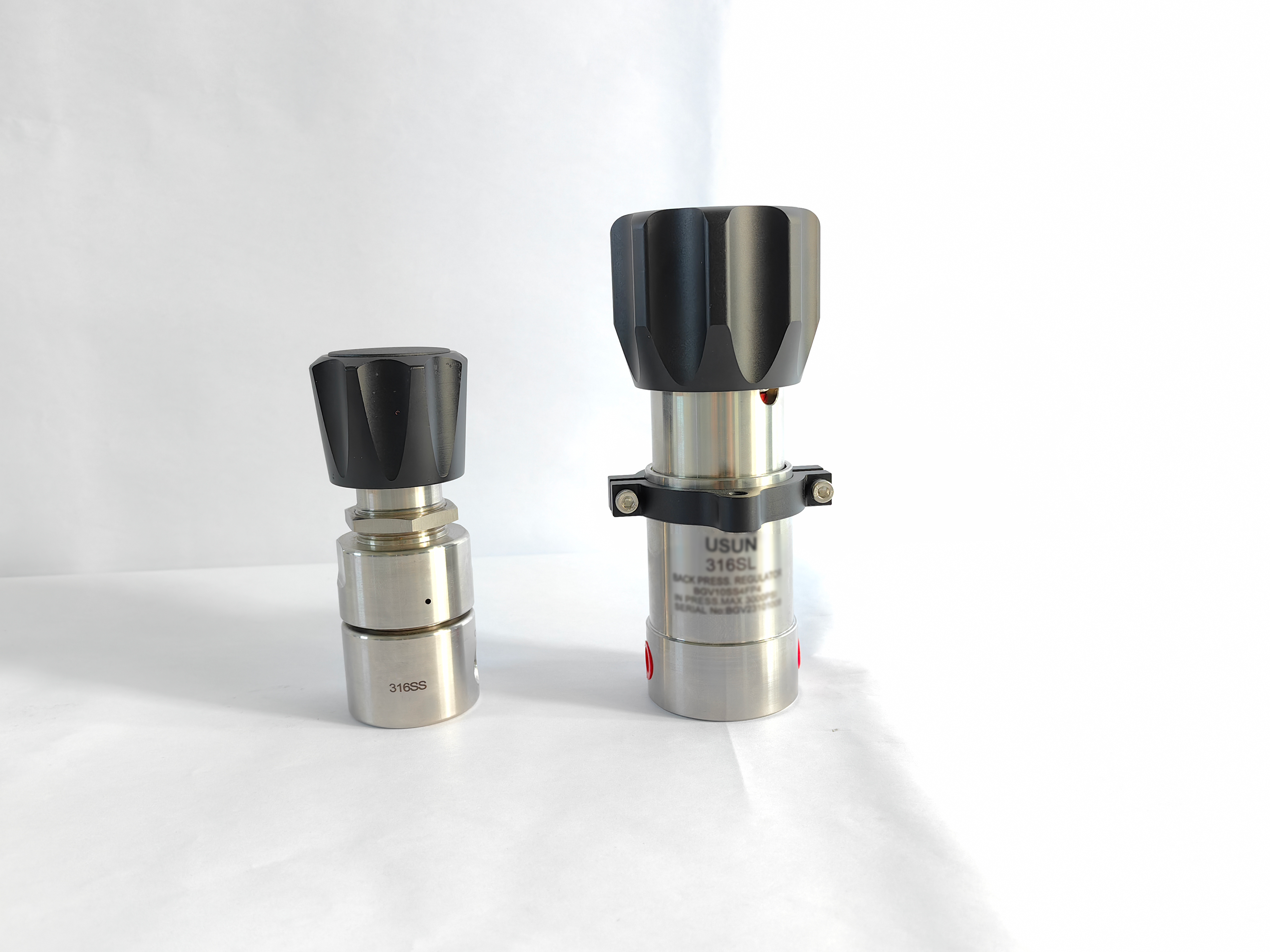

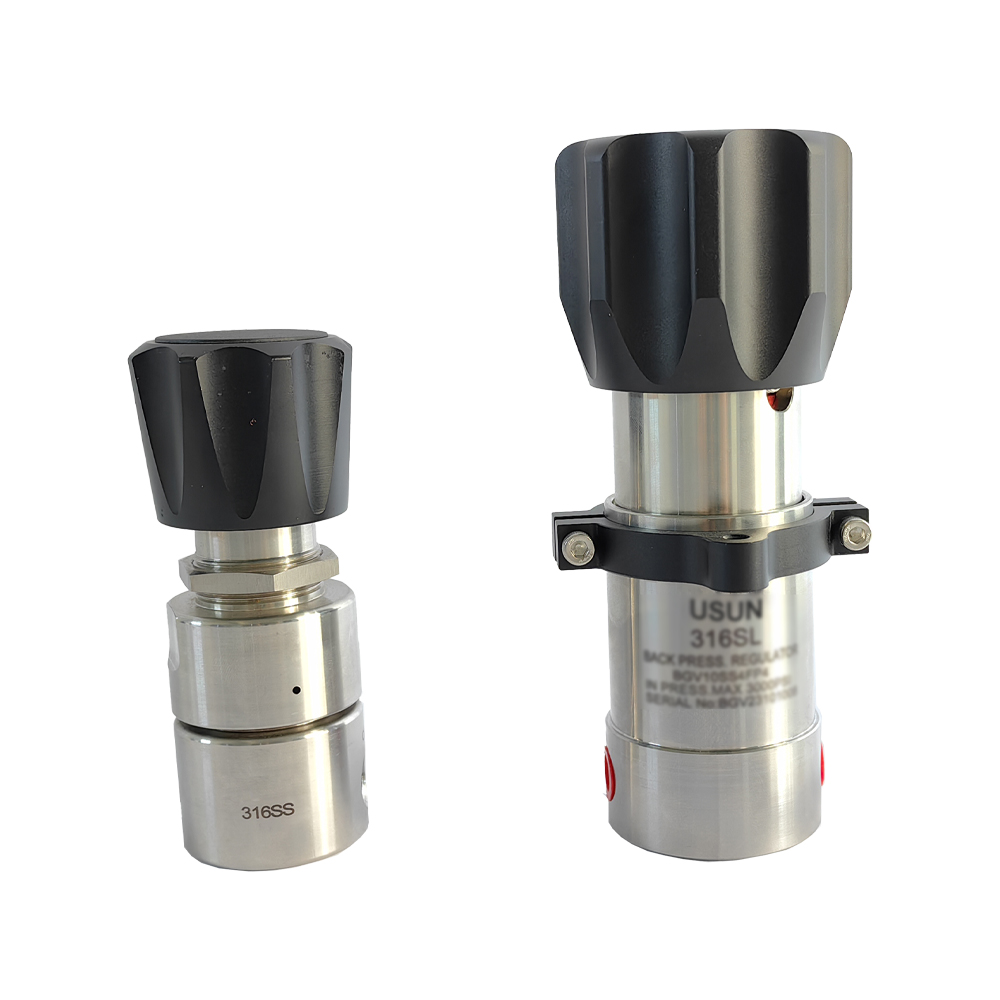

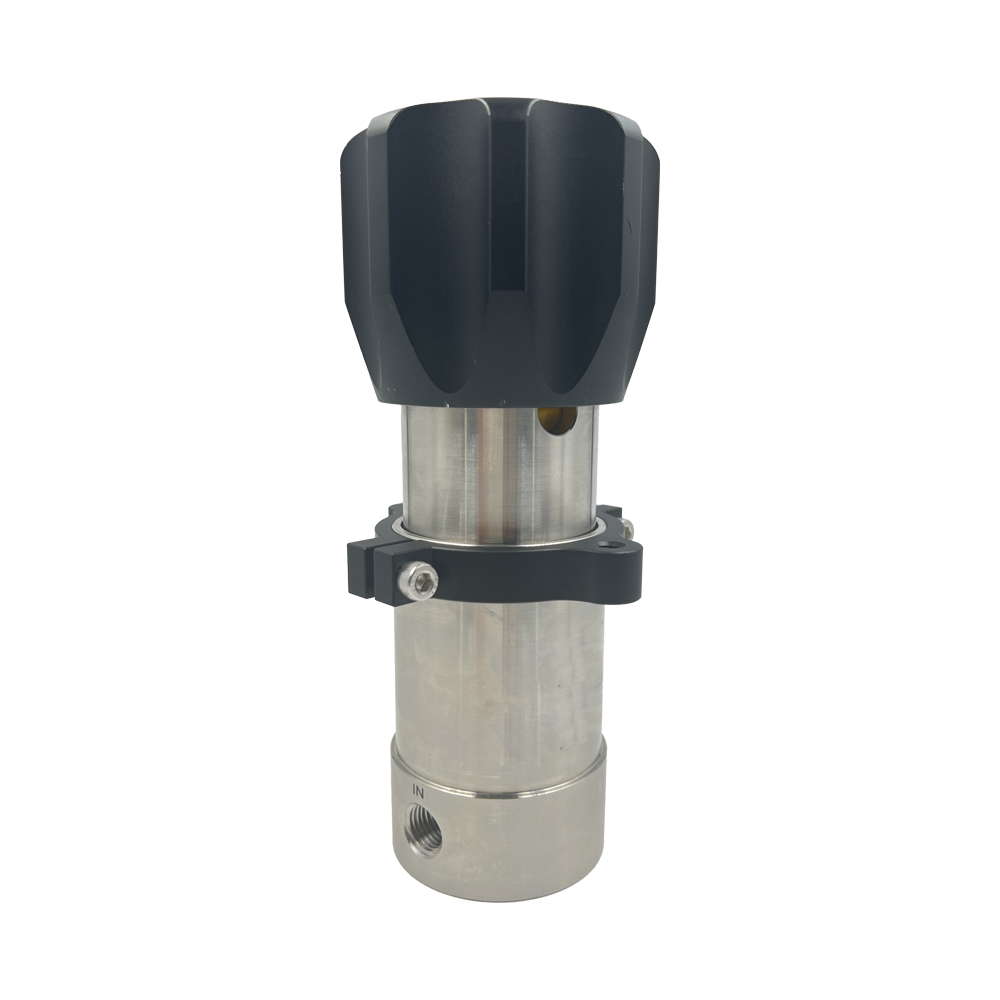

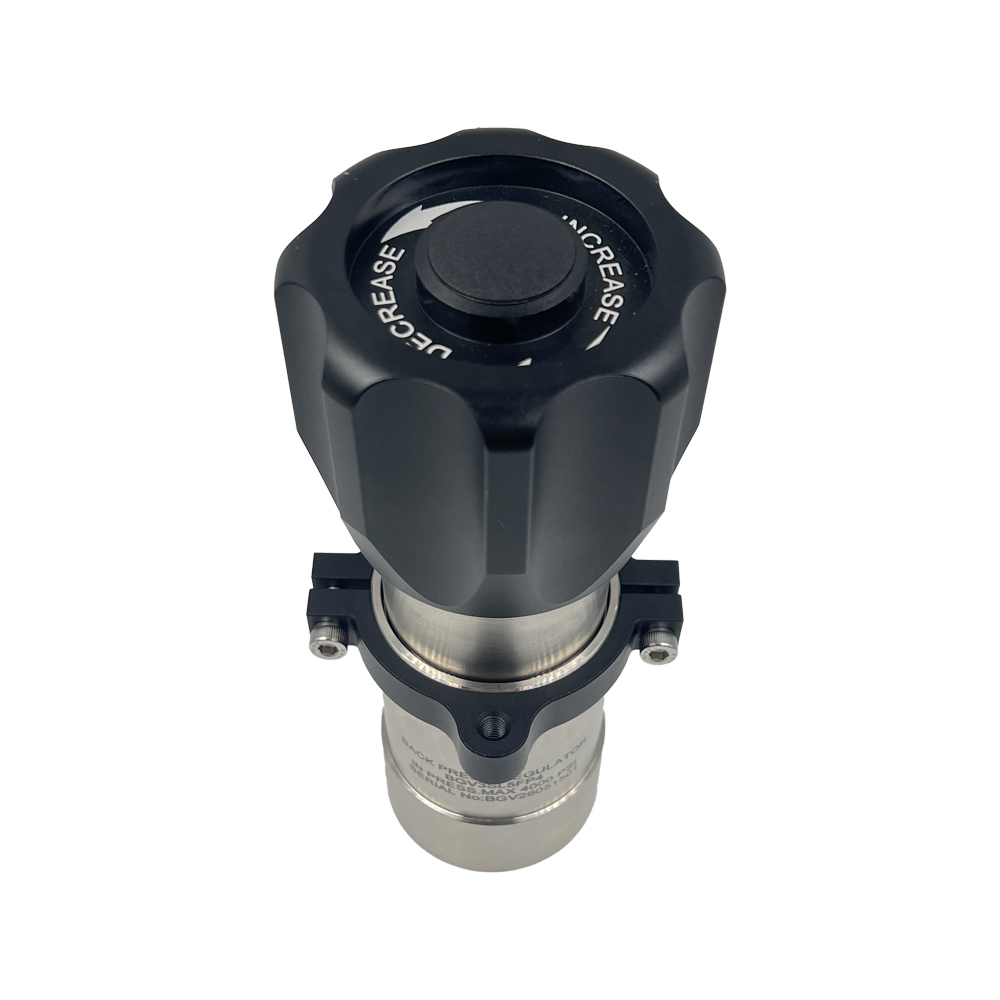

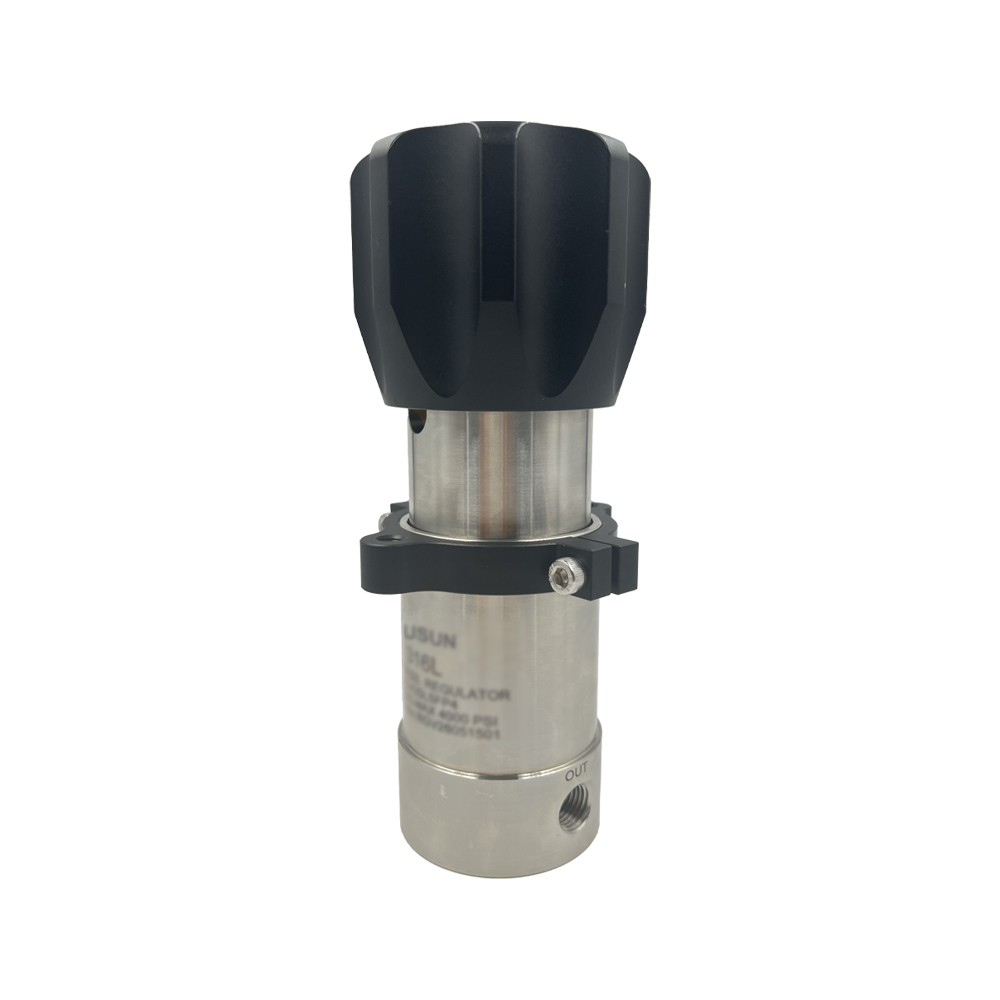

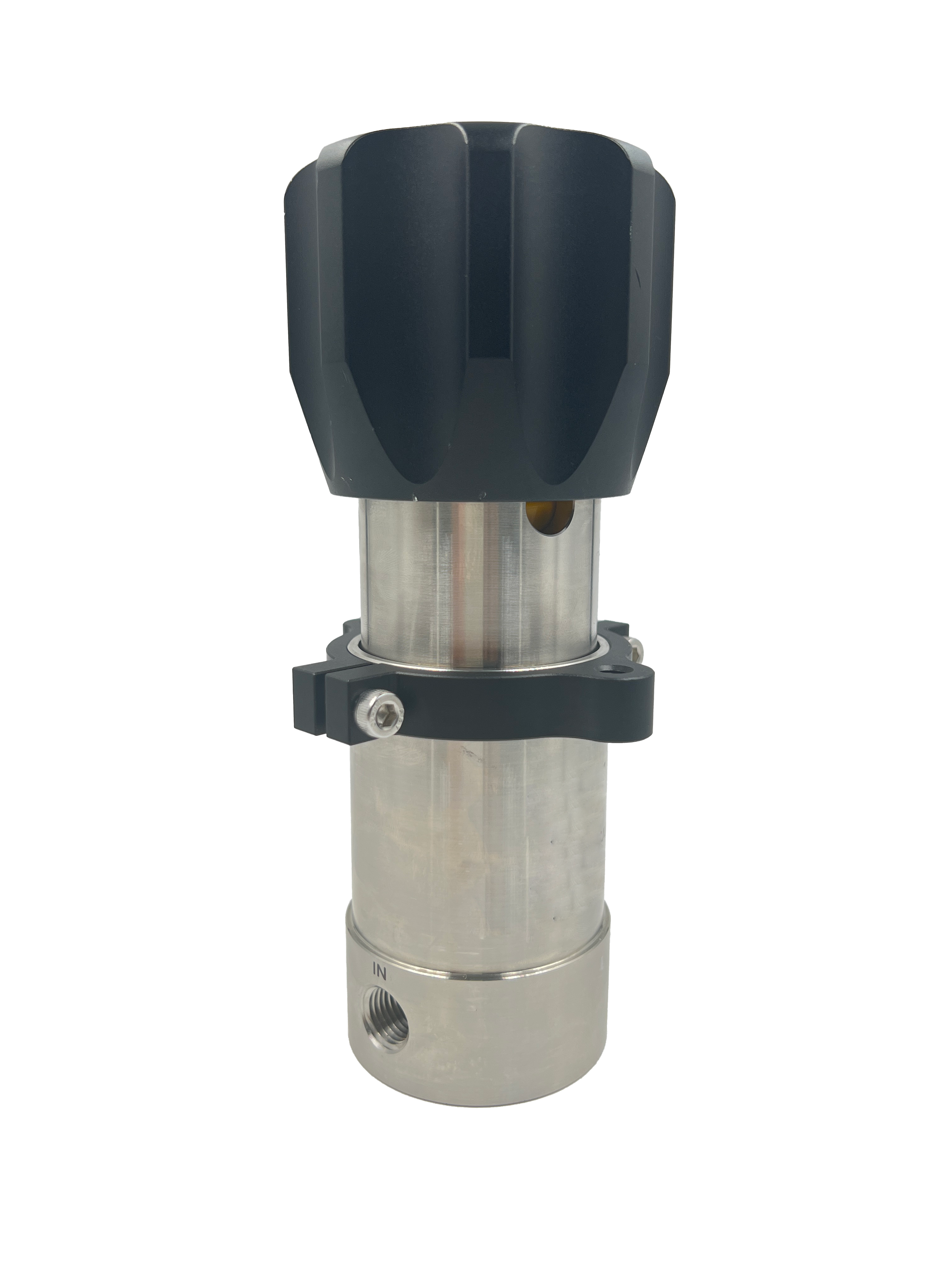

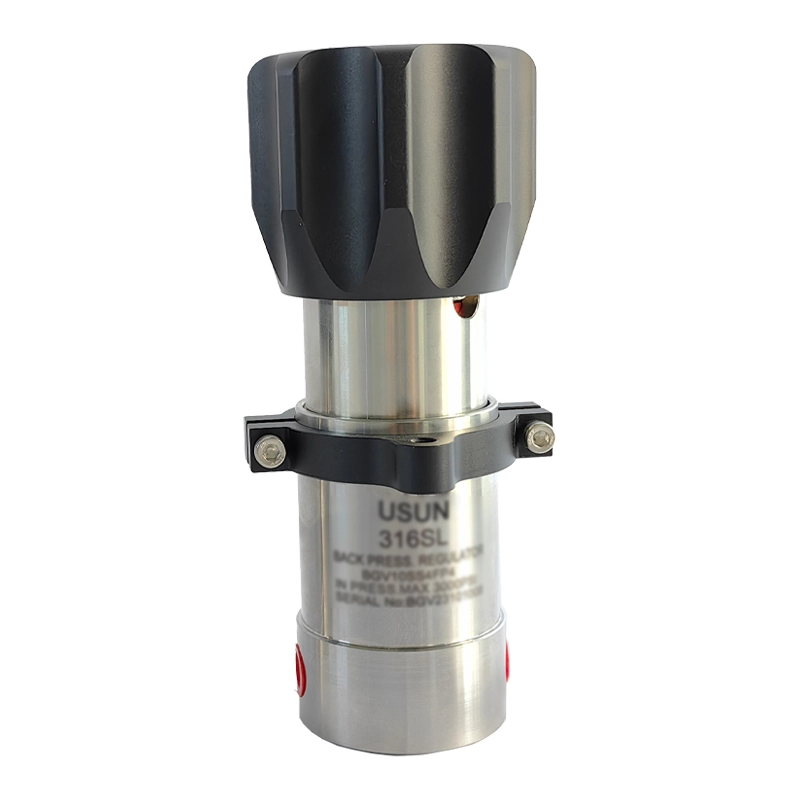

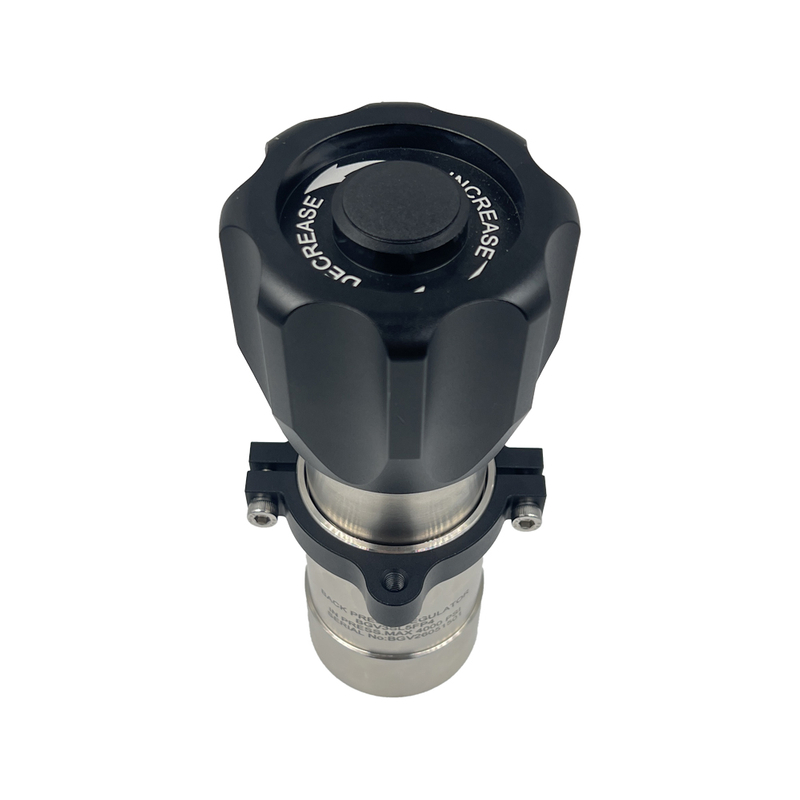

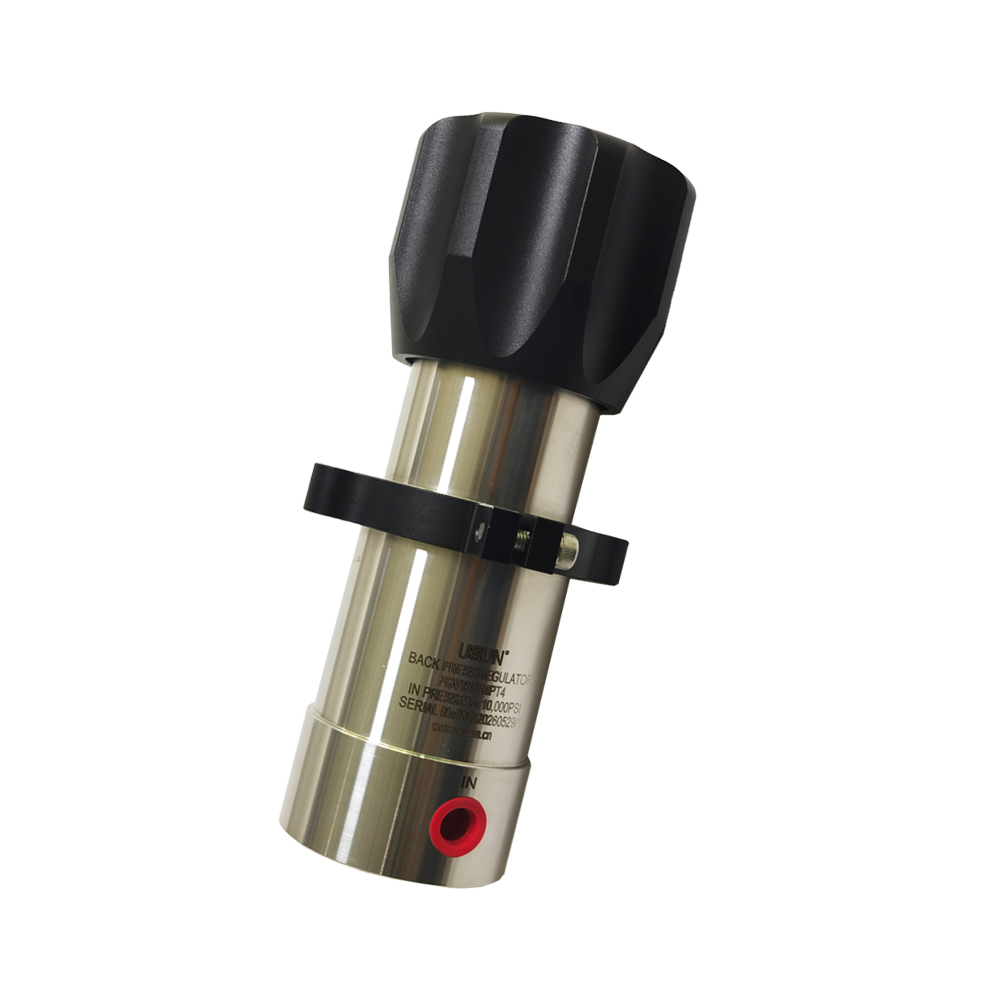

Real pictures of such Back Pressure valve
