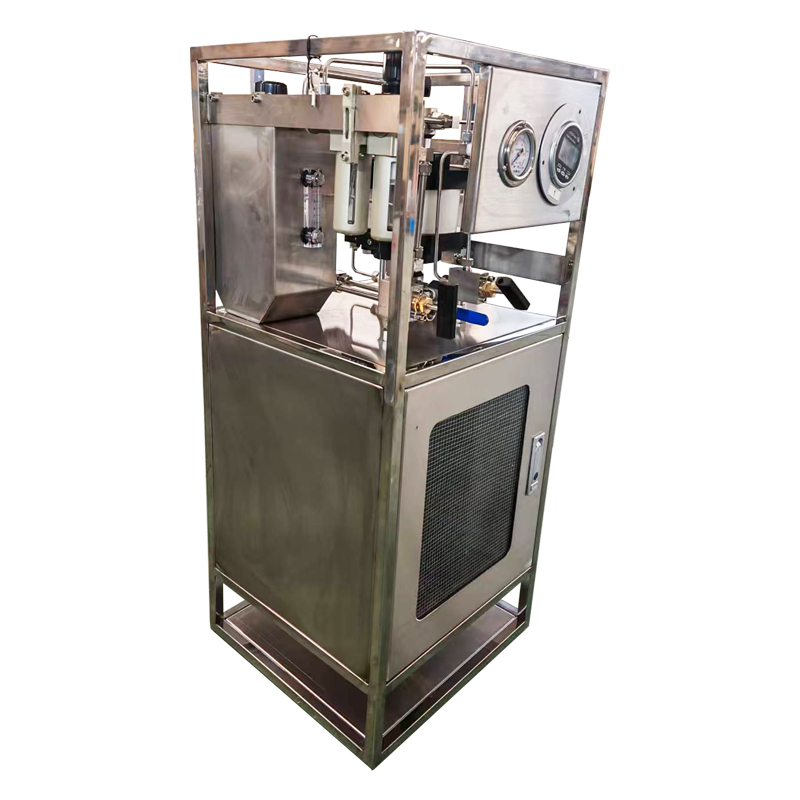

US-BPT-AHD175-MC
USUN
US-BPT-AHD175-MC
Applicable for :high pressure hose/tube/pipe and so on
Test medium: oil or water or other hydraulic liquid
The moel significance and model series
US-BPT-AHD175-MC
US-USUN Brand
BPT------- Burst pressure test machine
AHD175------ AHD type pump ratio of 175:1
MC------- Manual Control
Note: The maximum test pressure we could provide is 140Mpa (1400 bar).
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems

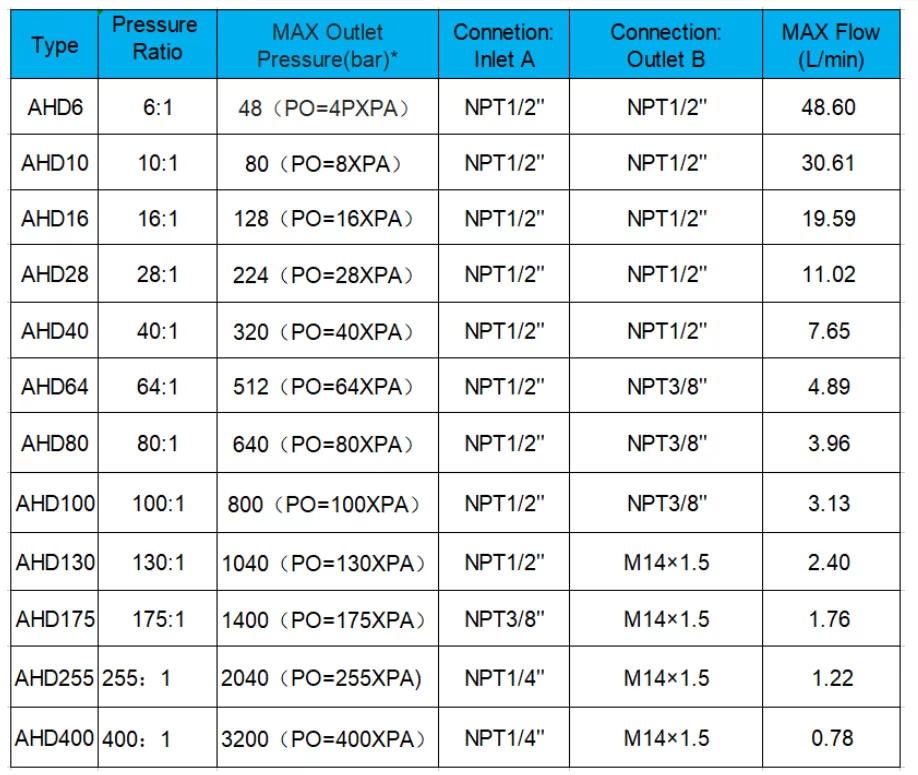

Main technical of pump inside parameter
* The pressure ratio is driven piston/hydraulic plunger ratio.
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
Product burst pressure testing bench diagram
Product outline drawing

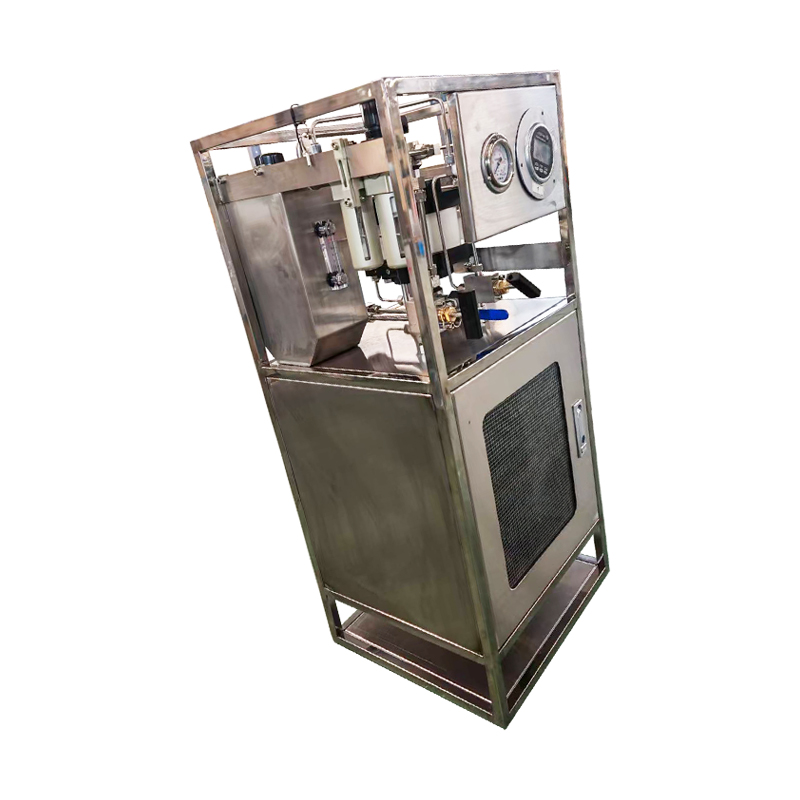

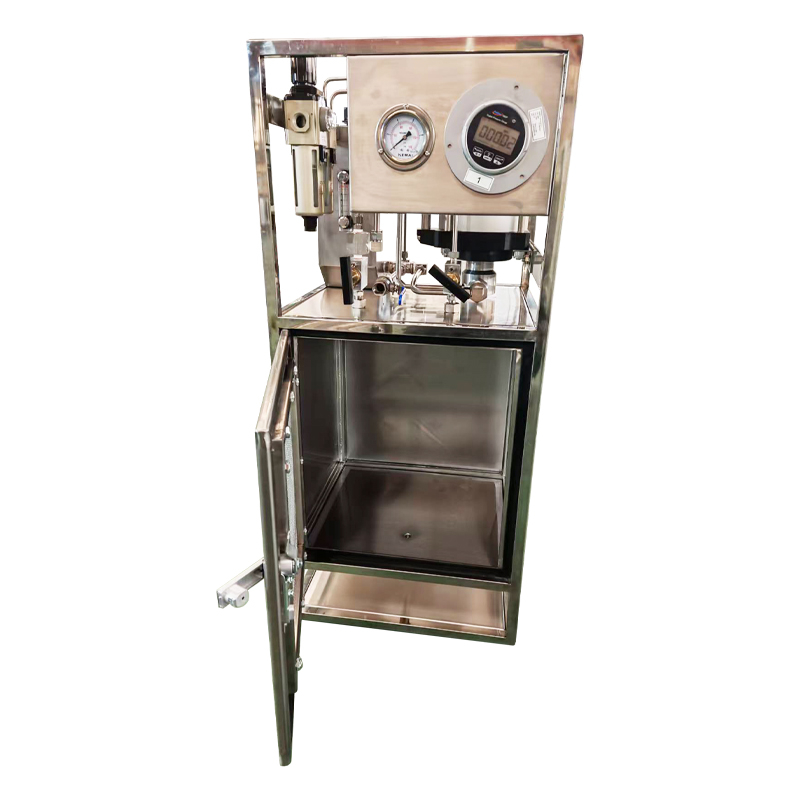

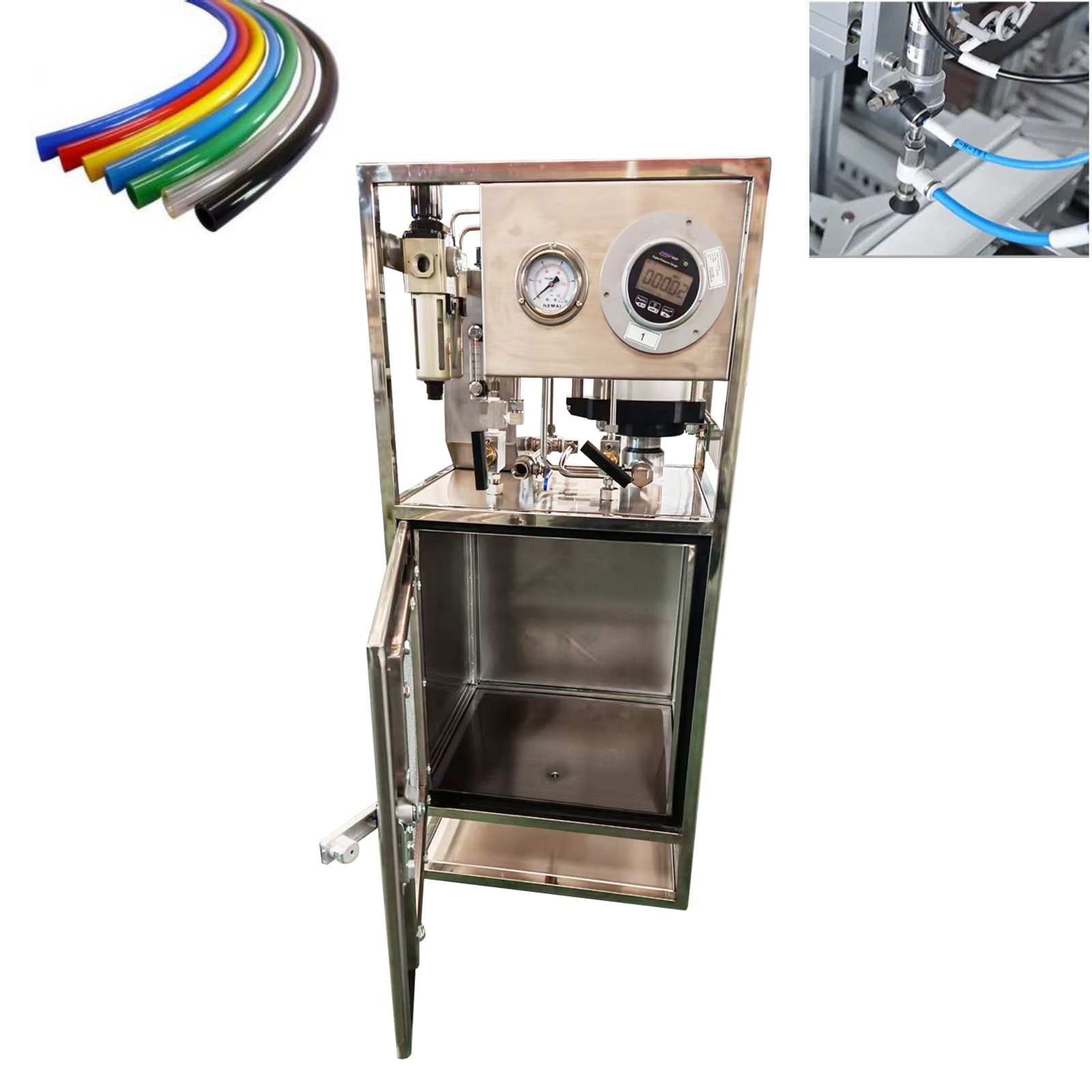

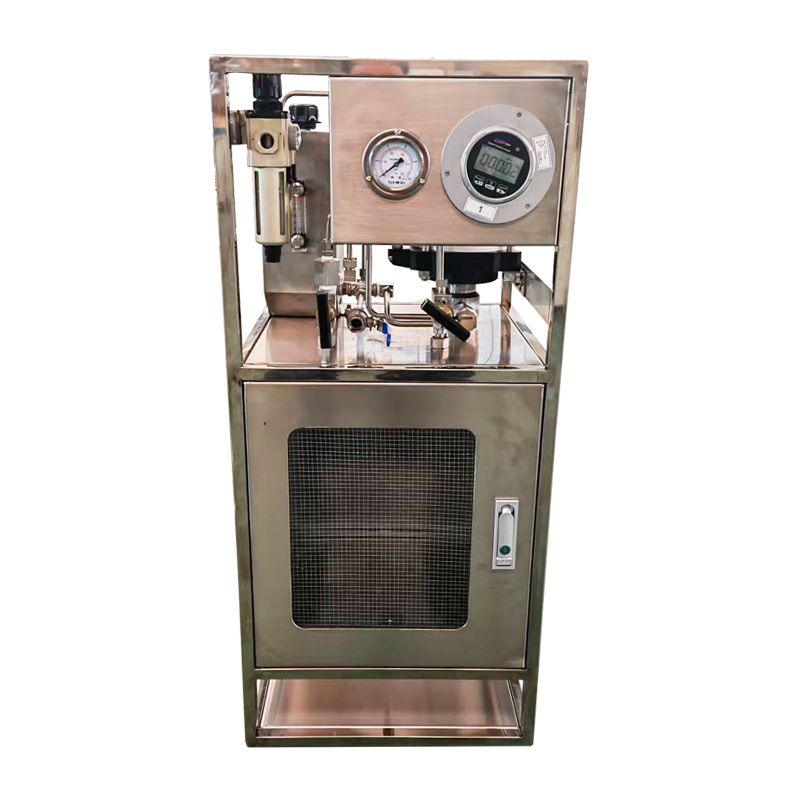

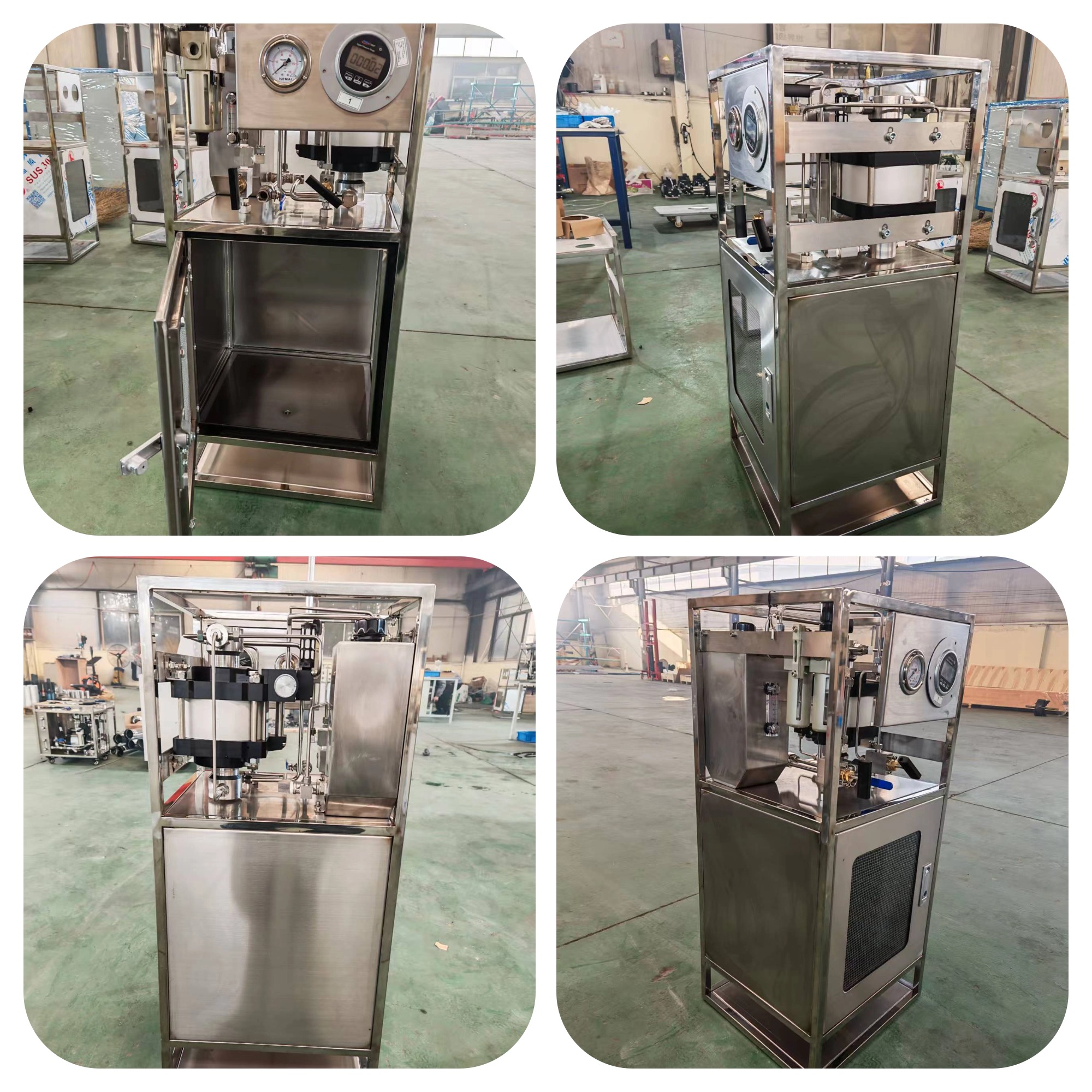

Product real photos
