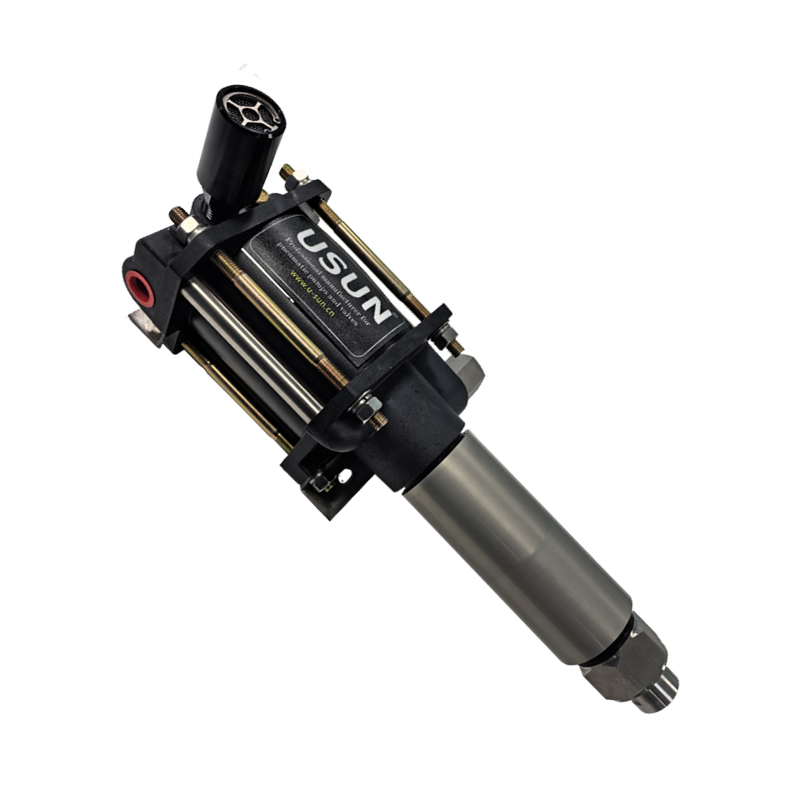

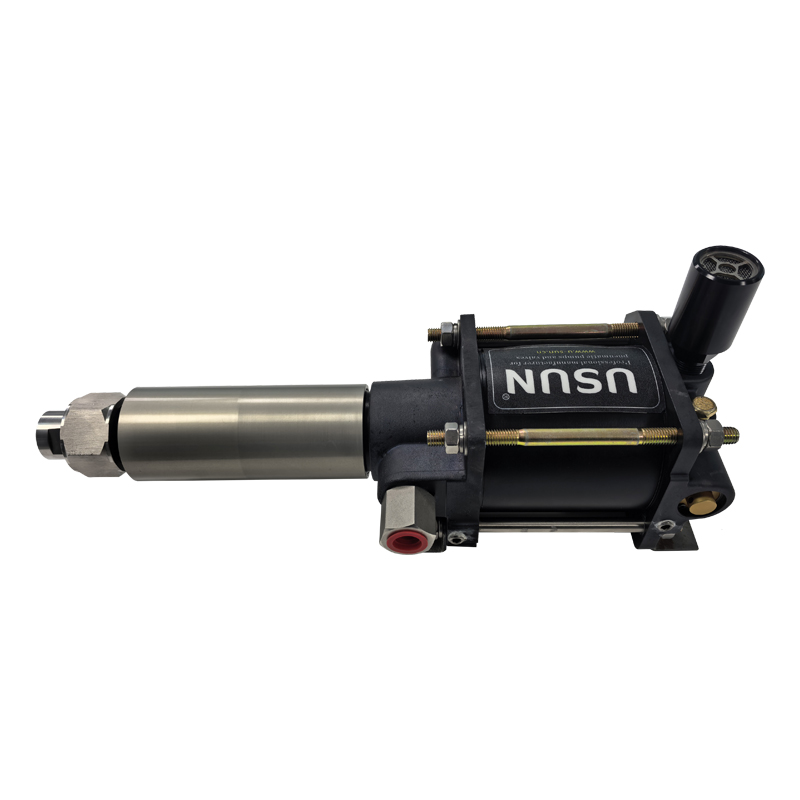

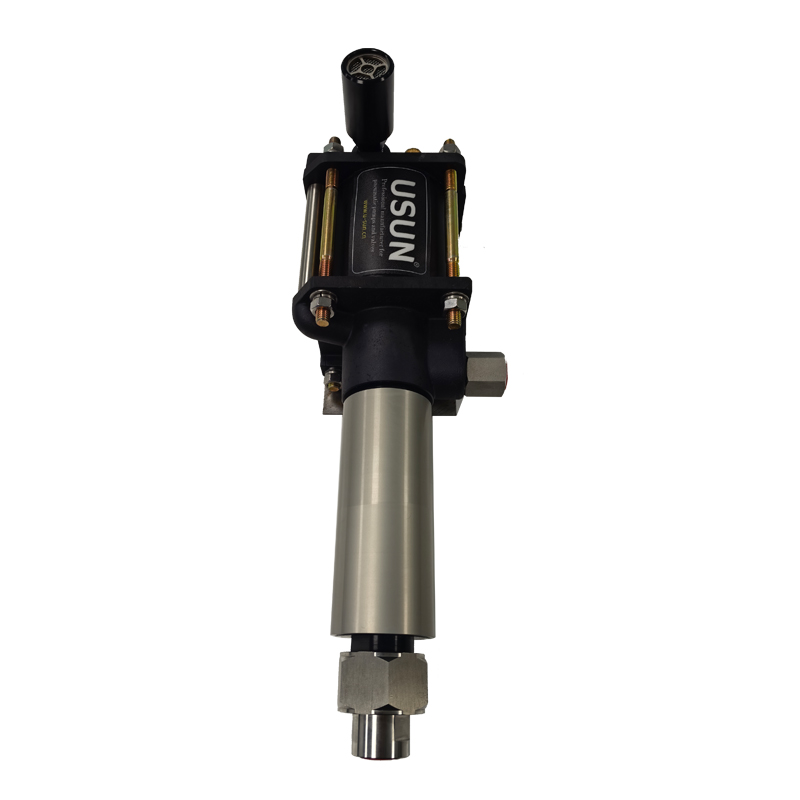

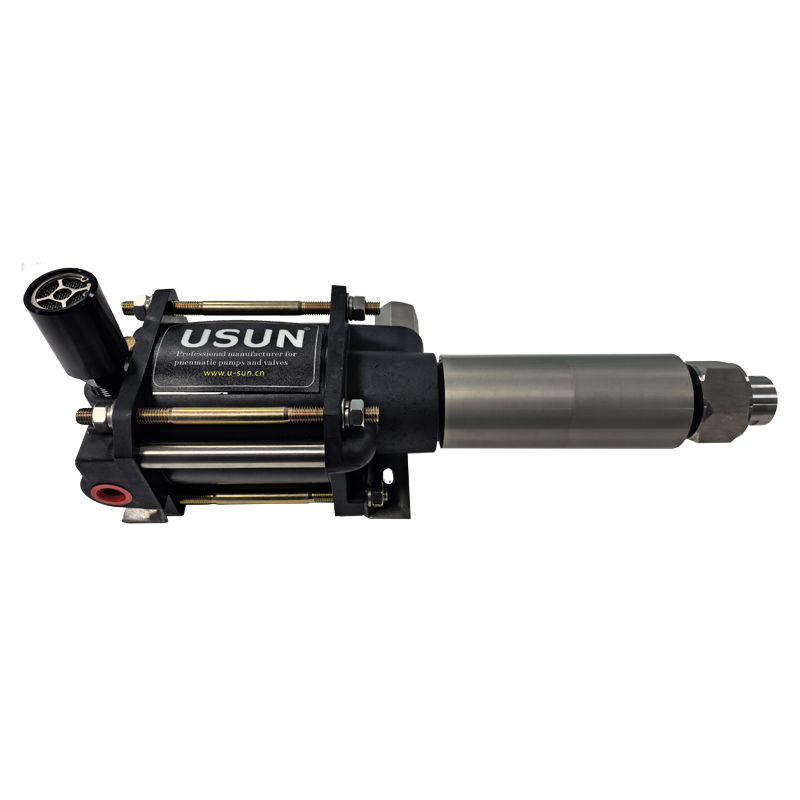

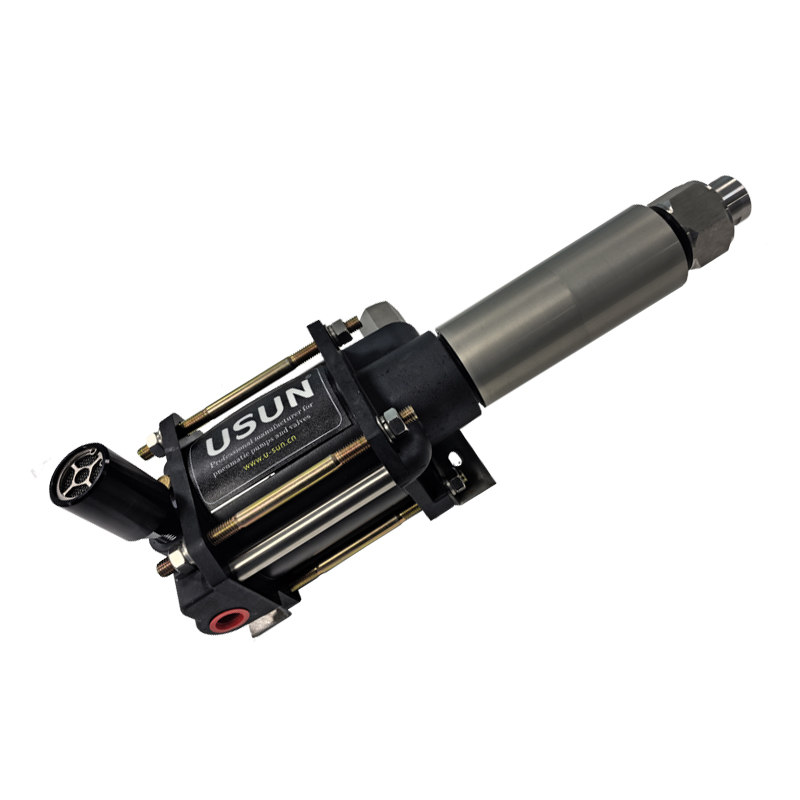

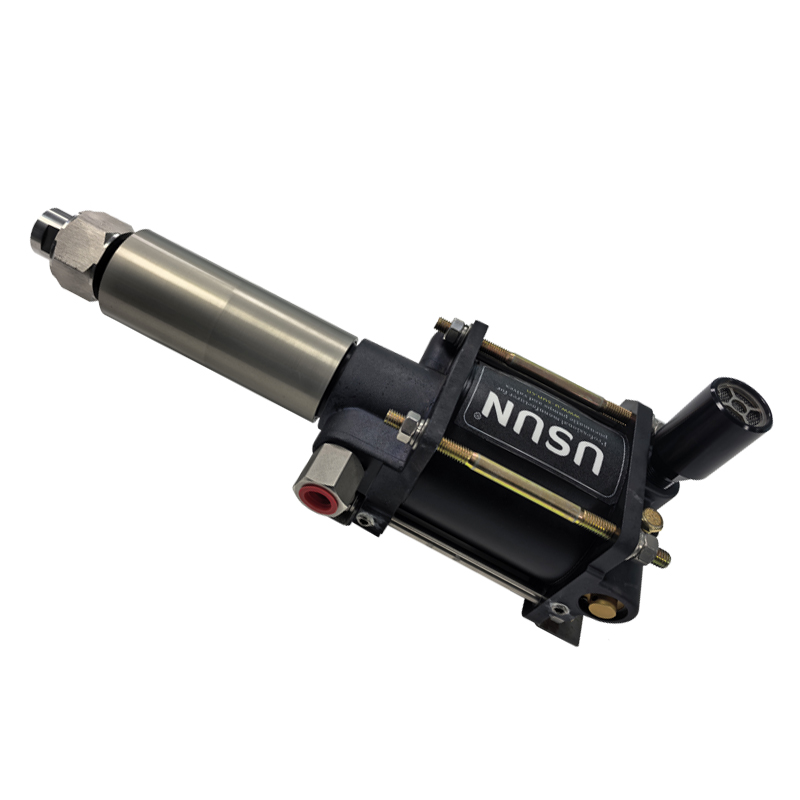

USUN Brand Model:ZB06-D Similar Haskel 59015 High Pressure Air Driven Positive Pneumatic Refrigerant Booster Pump

USUN Brand Model:ZB06-D  Similar Haskel 59015 High Pressure Air Driven Positive  Pneumatic Refrigerant Booster Pump

USUN Refrigerant Recovery Pumps transfer refrigerants across all pressure ranges up to 1,200 psi,

including pulling a vacuum down to 27” Hg to remove all remnants from the supply bottle.

With plenty leverage to condensate the common refrigerant without a condenser, these high-pressure

pumps efficiently pump the liquid first, then the vapor, then vacuum to 23”-27” HG - with one pump.

Their flexibility enables users to speed completely variable from zero to maximum lbs (kg)/minute,

stall against load, start against load and run dry, with no need for unloaders or bypass valving.

Application : Designed for recovery or recharge of refrigerants. Usun refrigerant pumps are safe,

proven reliable and energy saving for recovery or recharge of fuids, regardless of phase – liquid or gas.

Item Number	ZB06-D pneumatic driven refrigerant booster pump
Action type	Single air driven,double action
Dealing with air source	Dry and clean air filtered regulator with size port of G1/2''
lubrication	Yes and Non-lubrication for oxygen gas
Operating temperature	-4 to 65 degrees for air driven section and Maximum 115 degress for high pressure gas barrel
Theory of operation	The gas booster consist of  a large reciprcating air driven piston directly and coupled by a connecting rod to small area gas piston.The gas piston operates in a high pressure gas barrel section and each gas barrel end contains high pressure inlet and outlet check valves
Air pressure range	Compressed air 3-8 Bar
Suitable Refrigerant for pump	R-12, R-22, R-32, R-123, R-134A, R-1230   R-254, R-290, R-404, R-407, R-410, R-500, R-502, FM200, HFO-1234YF
Installation	Any

Features and Benefits

1.Flexibility-Add gages and hoses to suit your application.

2.Cool Operation-No heat generated during liquid transfer.Minor warming during vapor transfer.

Norefrigerant heating from the motor.
3.Safety-Pneumatically driven.Operates from an air hose like an air tool.No electrica hazard.
4.Portability-An integral pump with linear air motor assembly weighing from 13Ibs(6kg)to 24 Ibs(11kg).
5.Clean-No lubrication required in the gas section.Nothing is added to the refrigerant,liquid or vapor.
6.ATEX certified version available.

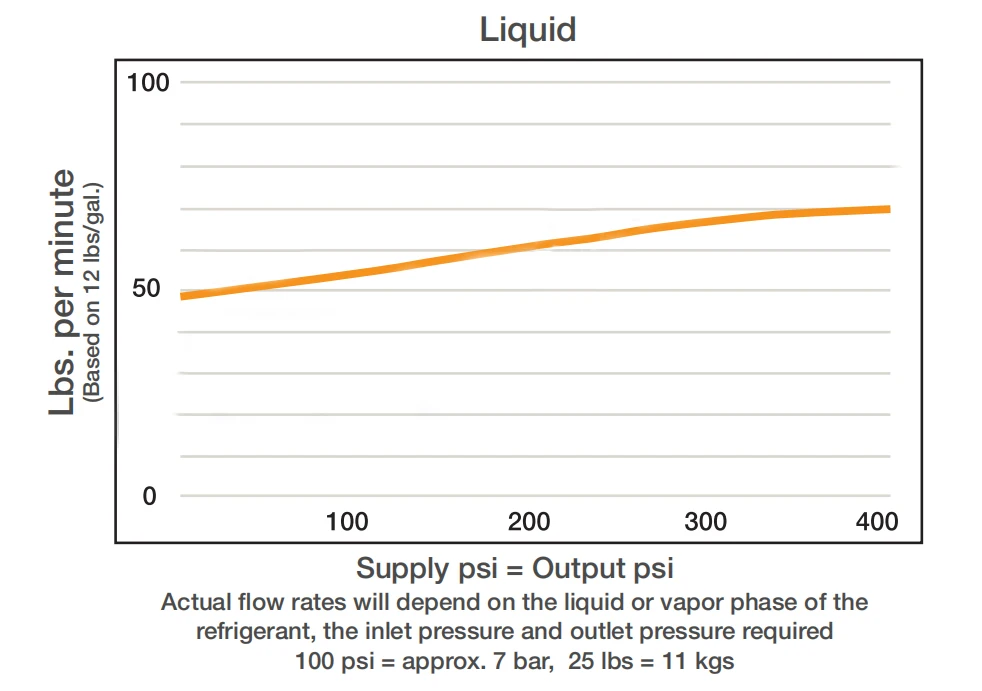

Approximate Performance Capability

1.  Air Drive Input: Data assumes approximately 100 psi (7 bar) at 40 scfm (1.132 Nm3/min)(10 HP compressor.

Smaller air drive compressors will produce proportionally lower output rates) e.g.  If air source is a 1 HP, 100 psi (7 bar)   compressor output rates will be about 10% above.

2.  Suction of Plumbing: Data assumes 3/8 NPT inlet piping without restrictions. In many refrigerant recovery applications, severe restriction of inlet supply cannot be avoided and will starve the pump    reducing output rates.

3.  Safety and Relief Valves are recommended downstream since either pump at stall is capable of intensifying output pressures beyond   normal refrigerant piping and receiving working pressure.

Main technical parameter

Compatibility Table

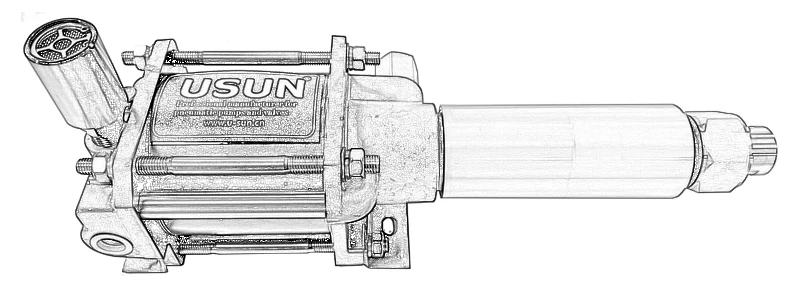

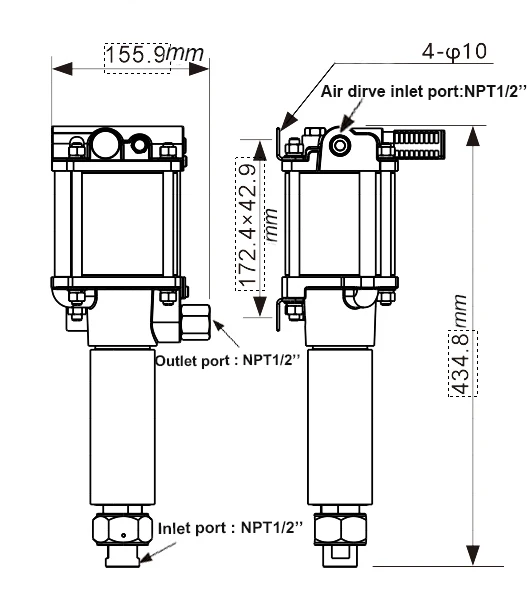

Product outview drawing
