Model :AB02-B
USUN
Model:AB02-B

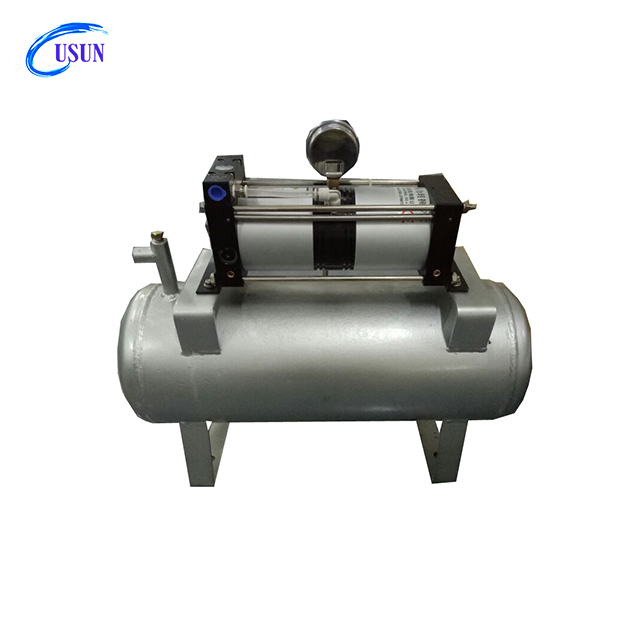

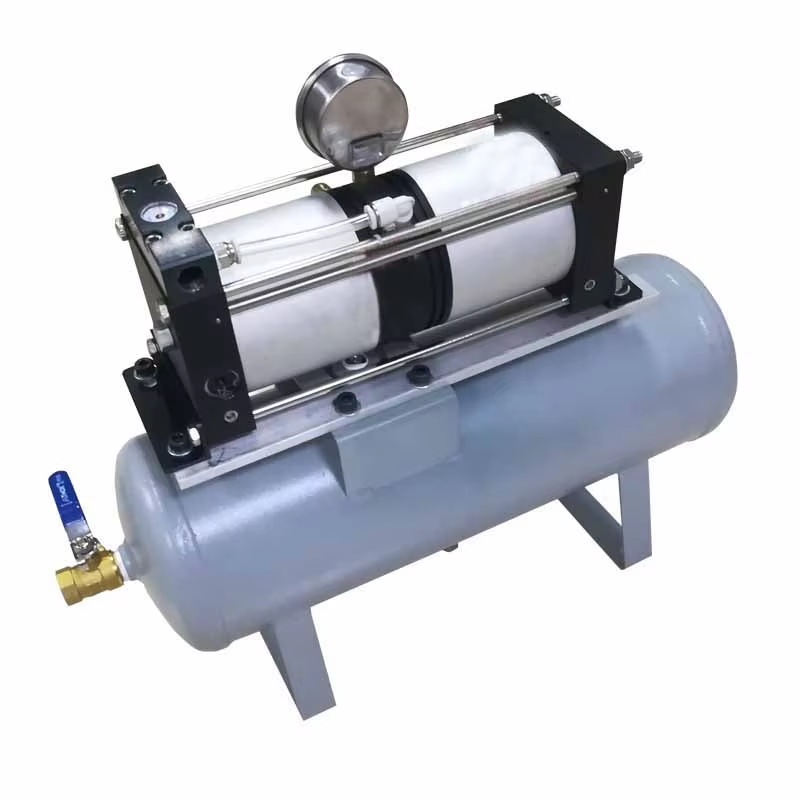

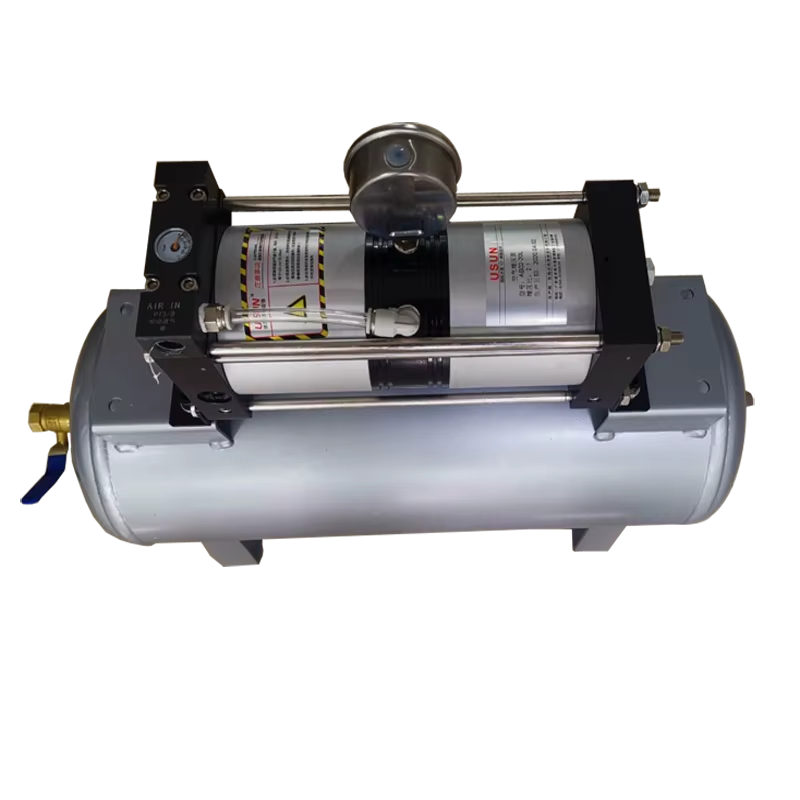

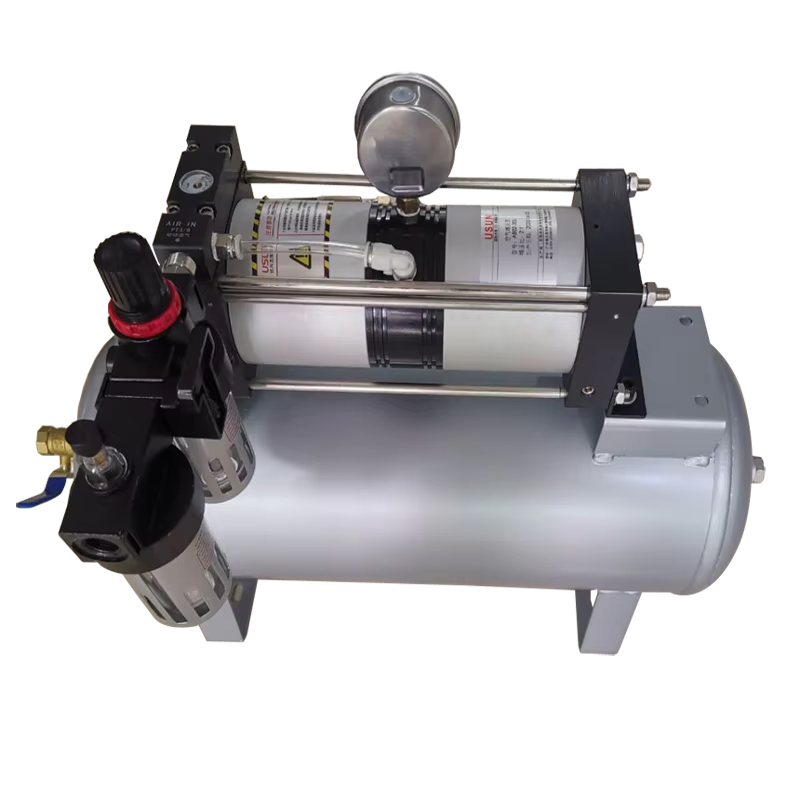

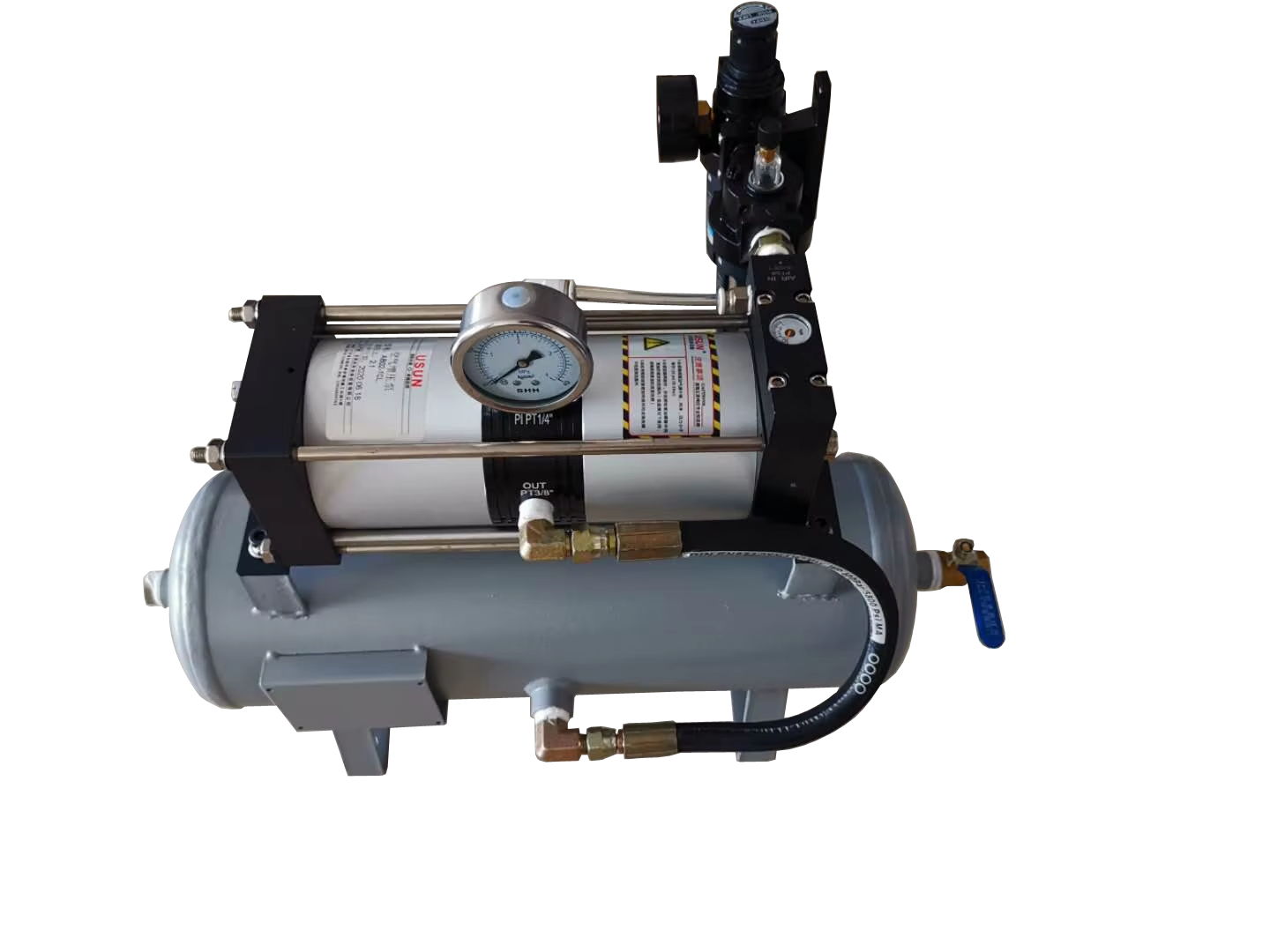

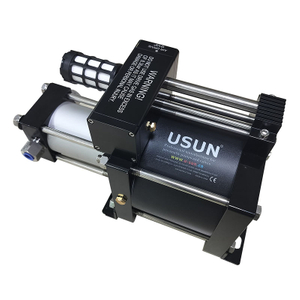

Usun Model :AB02-B 2:1 ratio 8-16 Bar 100MM driven air pressure booster pump with 20 L tank
and high pressure regulator
General Information for Air pressure booster pump with 20 L air tank
Our USUN Air Amplifiers are pneumatically driven reciprocating piston/plunger pumps
and are ratio devices that utilise low pressure compressed air driving a larger diameter
piston (area x pressure), which is linearly connected to a smaller air piston.
1. AIR DRIVE SECTION
The air drive section consists of a light weight piston complete with seals running inside an
aluminum barrel. The diameter of the air piston is 100mm. When compressed air is supplied to
the pump the air pushes the air piston down on a compression stroke
Under the control of pilot pins (poppet valve) triggered at each end of the stroke
Key features
1 ) stainless steel wetted materials of construction
2) Specialised construction materials available
3) PTFE pressure seals as standard
4) Separation between gas & pneumatic seals
5) No airline lubrication required
6) 120mm stroke reduces cycle rate & increases life
7) Suitable for most hazardous areas
8) Available as a complete packaged system
Main technical data
Typical technical data for air driven air pressure amplifier
Main technical parameter | |||||||
Model | Pressure ratio | Minimum inlet pressure PI(Bar) | Maximum Outlet pressure PO(Bar) | Outlet pressure formula PO | Inlet port size | Outlet porst size | Maximum Flow rate L/min= 7 Bar |
AB02 | 2:01 | 1 | 16 | 2PA | PT3/8'' | PT3/8'' | 513@PI=7 |
AB03 | 3:01 | 1 | 24 | 3PA | PT3/8'' | PT3/8'' | 420@PI=7 |
4AB02 | 2:01 | 1 | 16 | 2PA | PT1/2'' | PT1/2'' | 1450@PI=7 |
AB04 | 4:01 | 1.7 | 32 | 4PA | PT3/8'' | PT3/8'' | 382@PI=7 |
AB05T | 5:01 | 1.7 | 41.5 | 5PA+PI | PT1/2' | PT1/2'' | 710@pi=7 |
AB07 | 7:01 | 3.4 | 56 | 7PA | PT3/8'' | PT3/8'' | 274@PI=7 |
AB08T | 8:01 | 3.4 | 67.4 | 8PA+ PI | PT3/8'' | PT3/8'' | 482@pi=7 |
AB10 | 10:01 | 3.4 | 80 | 10PA | PT3/8'' | PT3/8' | 225@PI=7 |
AB15 | 15:01 | 8.1 | 120 | 15PA | PT3/8'' | PT3/8' | 185@PI=7 |
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such air pressure booster pump with air tank
