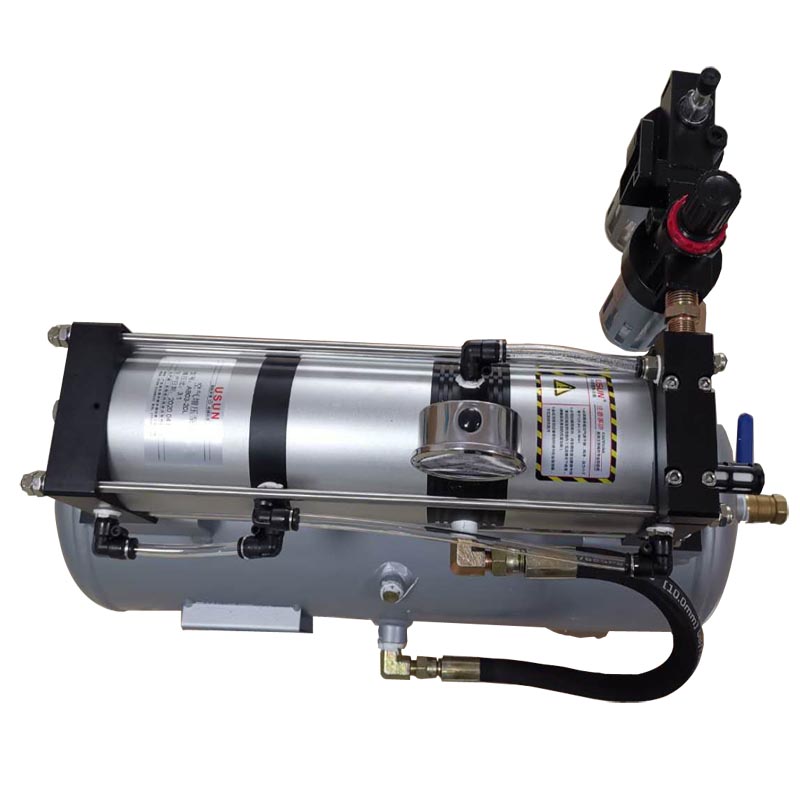

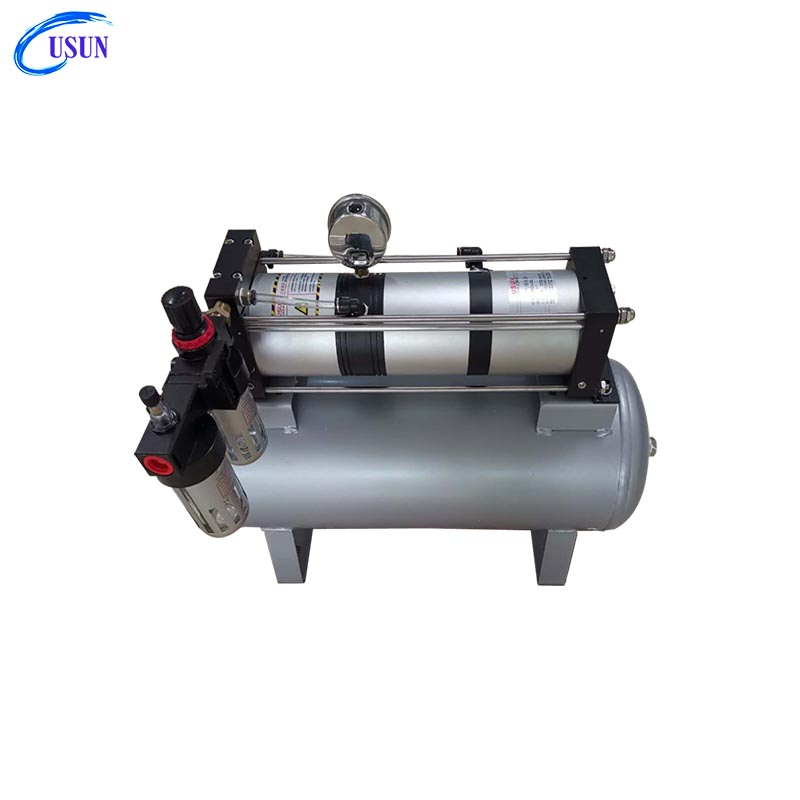

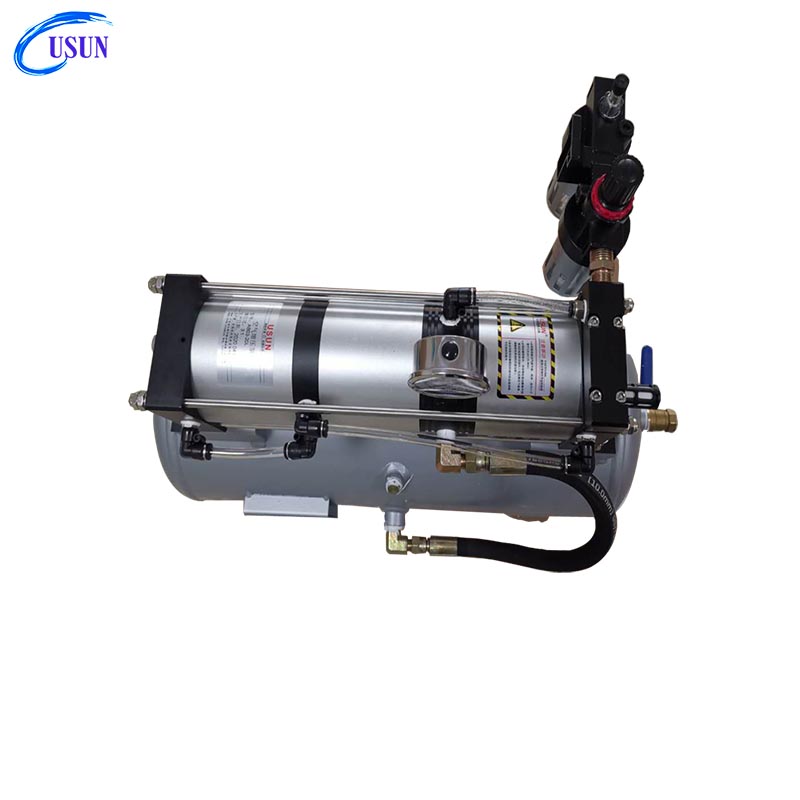

USUN Model:AB03--40L 8-24 Bar output 100 MM driven cost effective Pneumatic air booster pump system with HP gauges and valves for cylinder testing

Usun Model :AB03-40L  3:1 ratio 8-24 Bar  100MM driven air pressure booster pump with 40 L tank and high pressure regulator

General Information for Air pressure booster pump with 20 L air tank

Our USUN Air Amplifiers are pneumatically driven reciprocating piston/plunger pumps and are ratio devices  that utilise low pressure compressed air driving a larger diameter piston (area x pressure), which is linearly connected to a smaller air piston.

AIR DRIVE SECTION

 The air drive section consists of a light weight piston complete with seals running inside an aluminum barrel.

The diameter of the air piston is 100mm. When compressed air is supplied to the pump the air pushes the air piston down on a compression stroke Under the control of pilot pins (poppet valve) triggered at each end of the stroke

Key features

1 )  stainless steel wetted materials of construction

2)  Specialised construction materials available

3) PTFE pressure seals as standard

4) Separation between gas & pneumatic seals

5) No airline lubrication required

6) 120mm stroke reduces cycle rate & increases life

7) Suitable for most hazardous areas

8) Available as a complete packaged system

Dimensions:(mm)

Typical technical data for air driven air pressure amplifier

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .

Typical application of such air pressure booster pump with air tank
