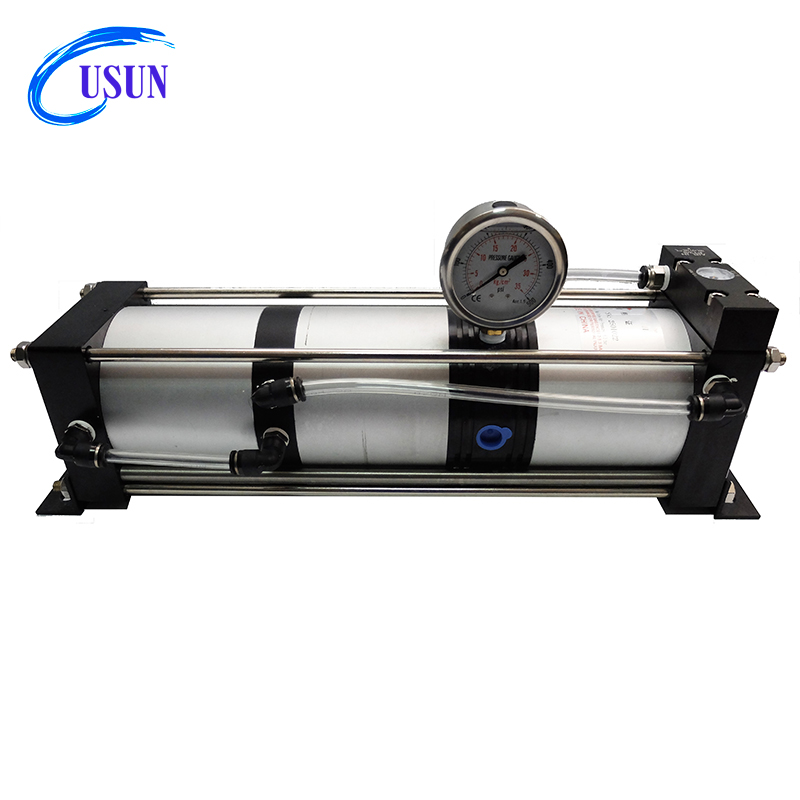

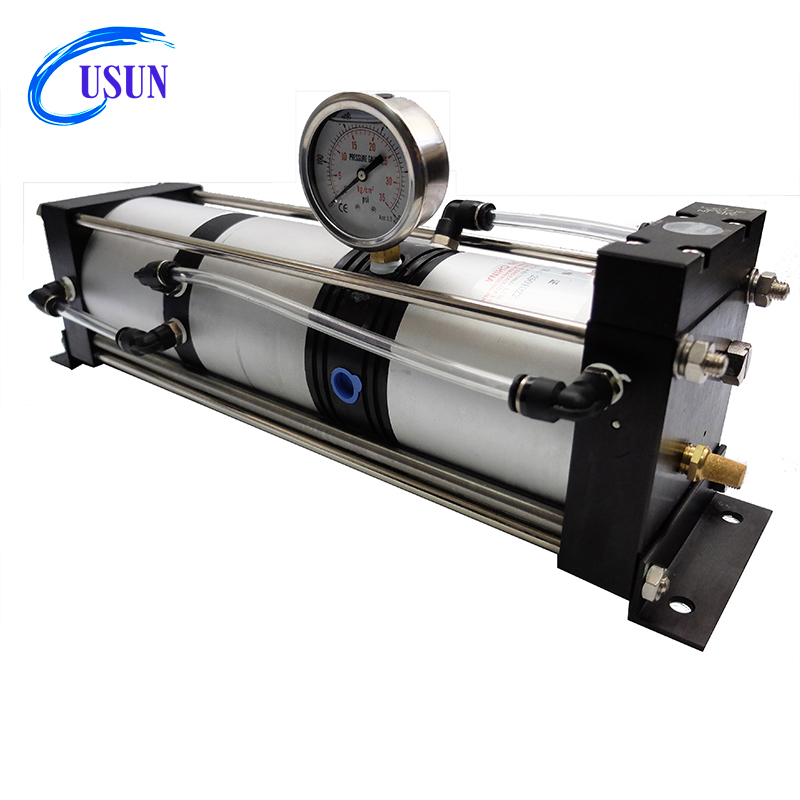

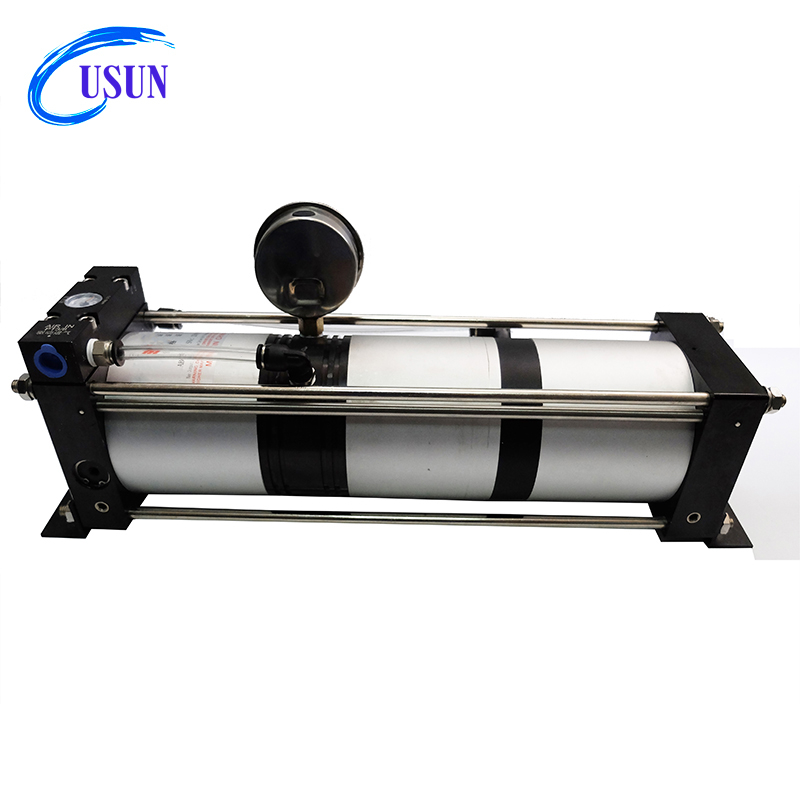

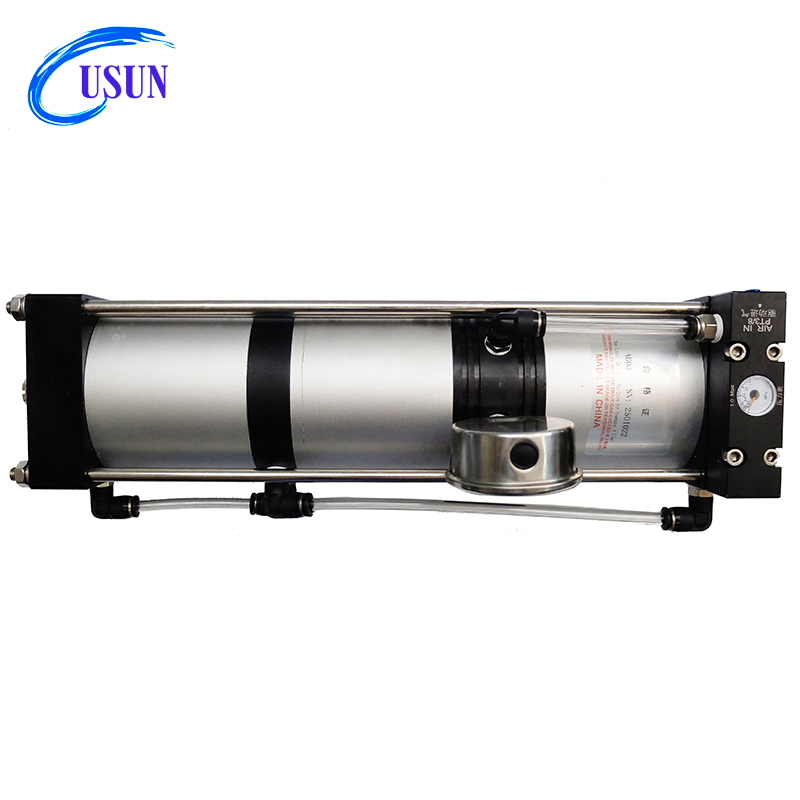

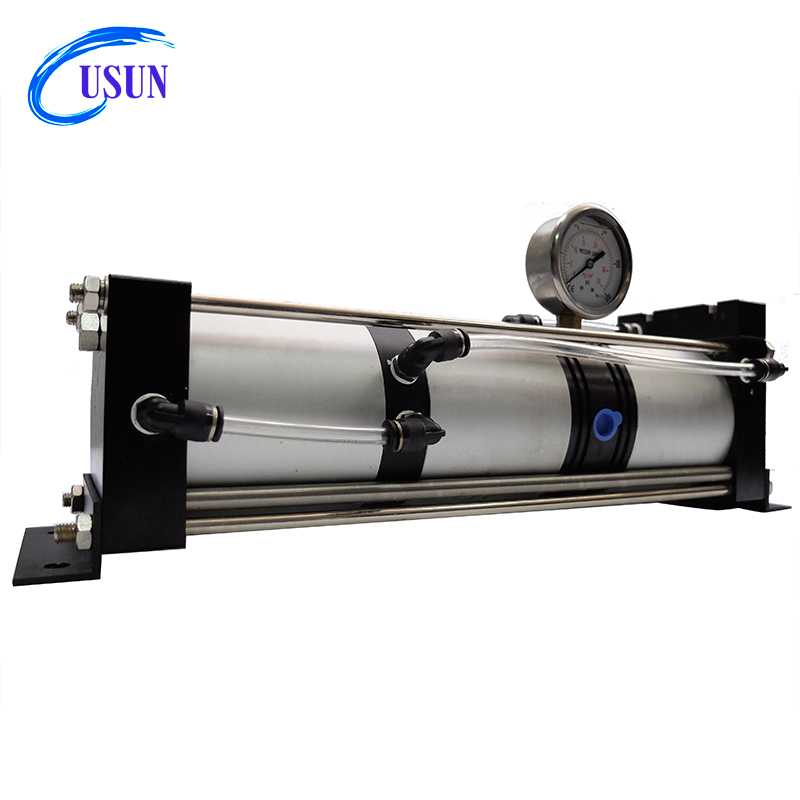

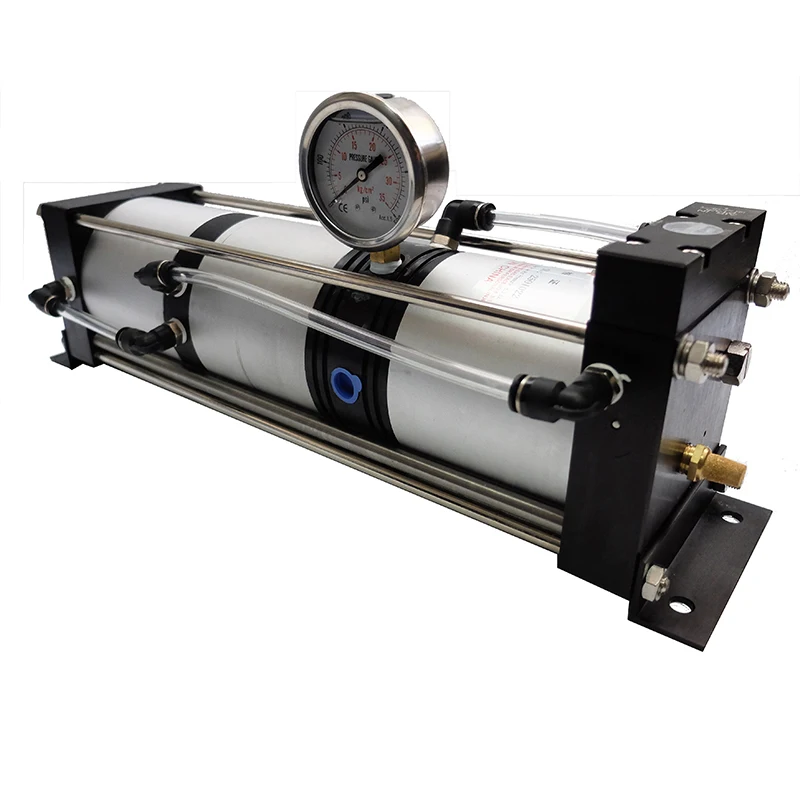

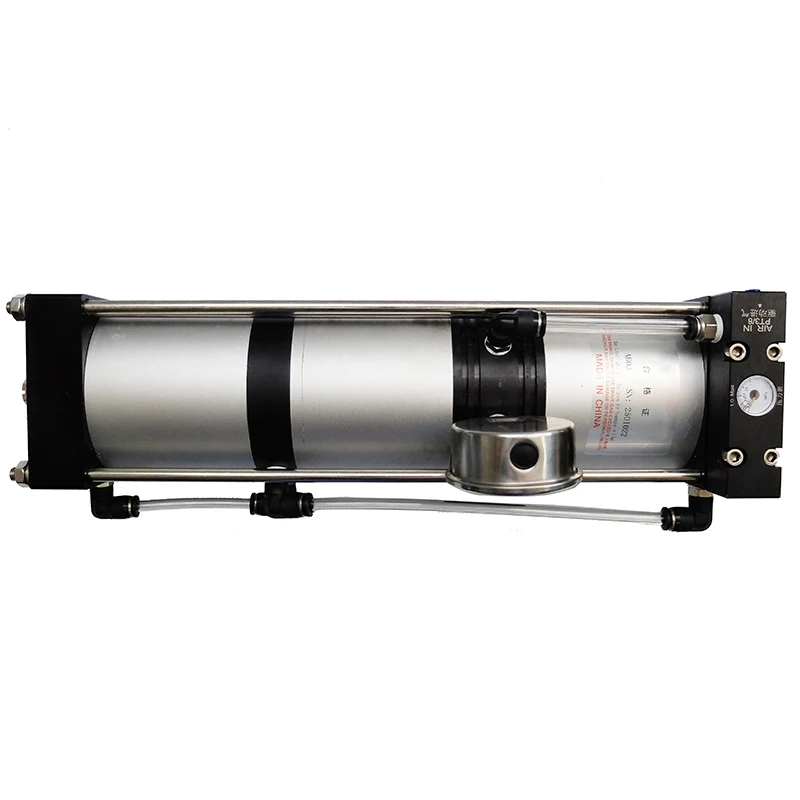

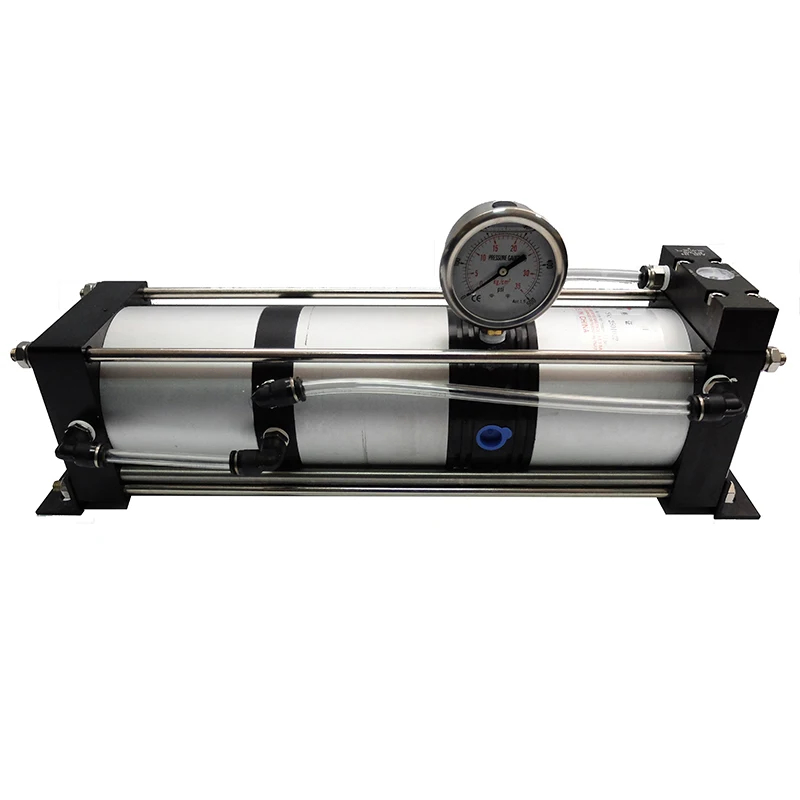

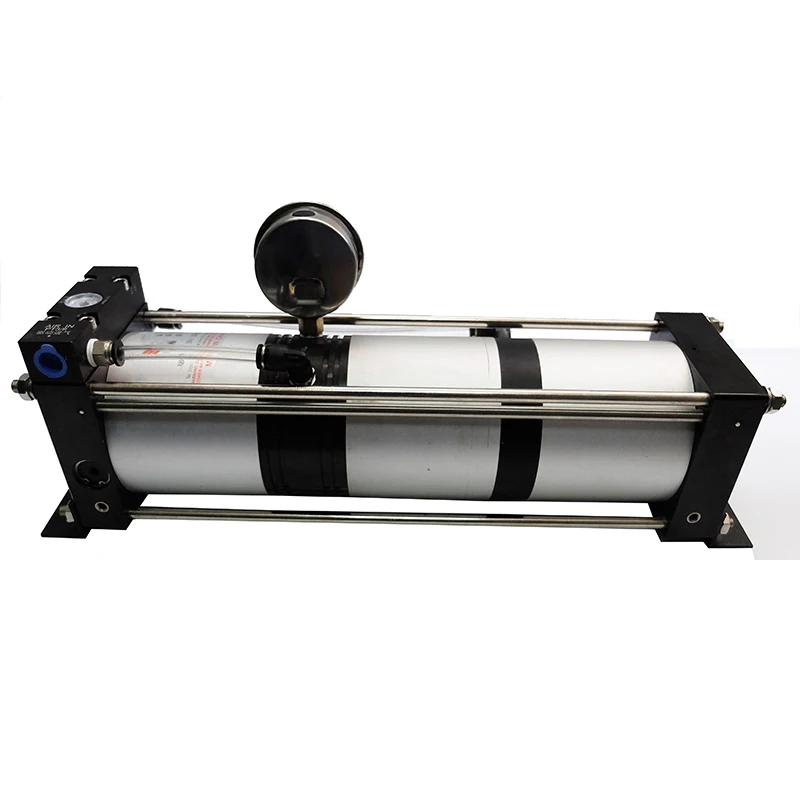

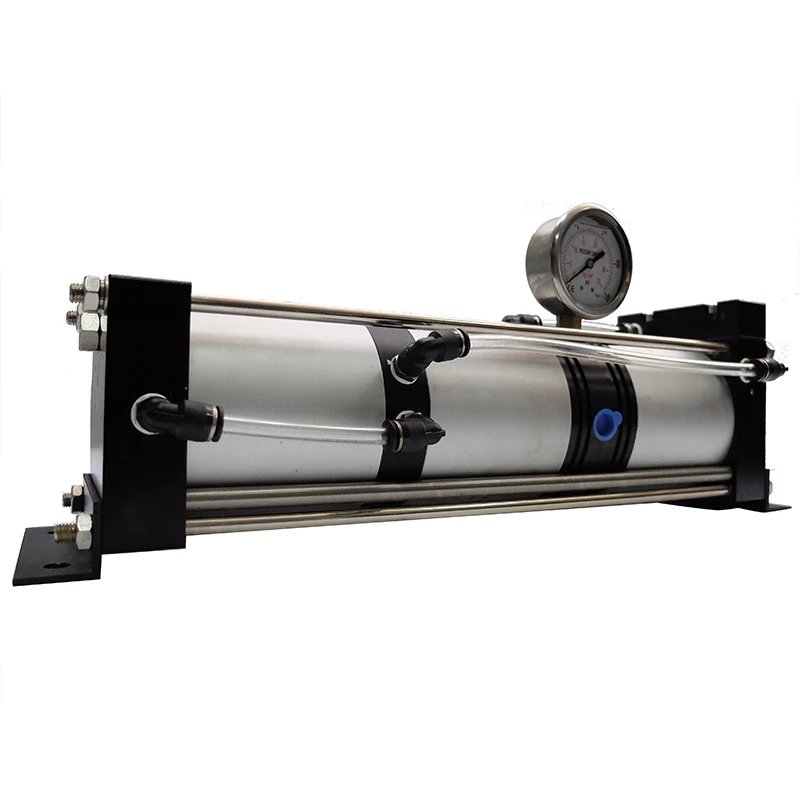

USUN Model:AB03 8--24 Bar output 100 MM driven cost effective air driven air pressure booster pump

 Usun Model :AB03  2:1 ratio 8-24 Bar  100mm driven cost effective  air pressure booster pump

 Our USUN Air Amplifiers are pneumatically driven reciprocating piston/plunger pumps

and are ratio devices  that utilise low pressure compressed air driving a larger diameter

 piston (area x pressure), which is linearly connected to a smaller air piston.

 1.  AIR DRIVE SECTION

Air Pressure Boosters involve AB Series are used for boosting compressed normal shop air to higher pressures

They feature  rugged construction.They are capable of double or fourfould of the compressed air.Provided for

pressures up to 24 bar .Ideal for use with machines or applications where higher pressure is required than the

compressed airline system available

Key features

1 )  stainless steel wetted materials of construction

2)  Specialised construction materials available

3) PTFE pressure seals as standard

4) Separation between gas & pneumatic seals

5) No airline lubrication required

6) 120mm stroke reduces cycle rate & increases life

7) Suitable for most hazardous areas

8) Available as a complete packaged system

Main technical data

Typical technical data for air driven air pressure amplifier

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .

Typical application of such air driven air pressure amplifier
