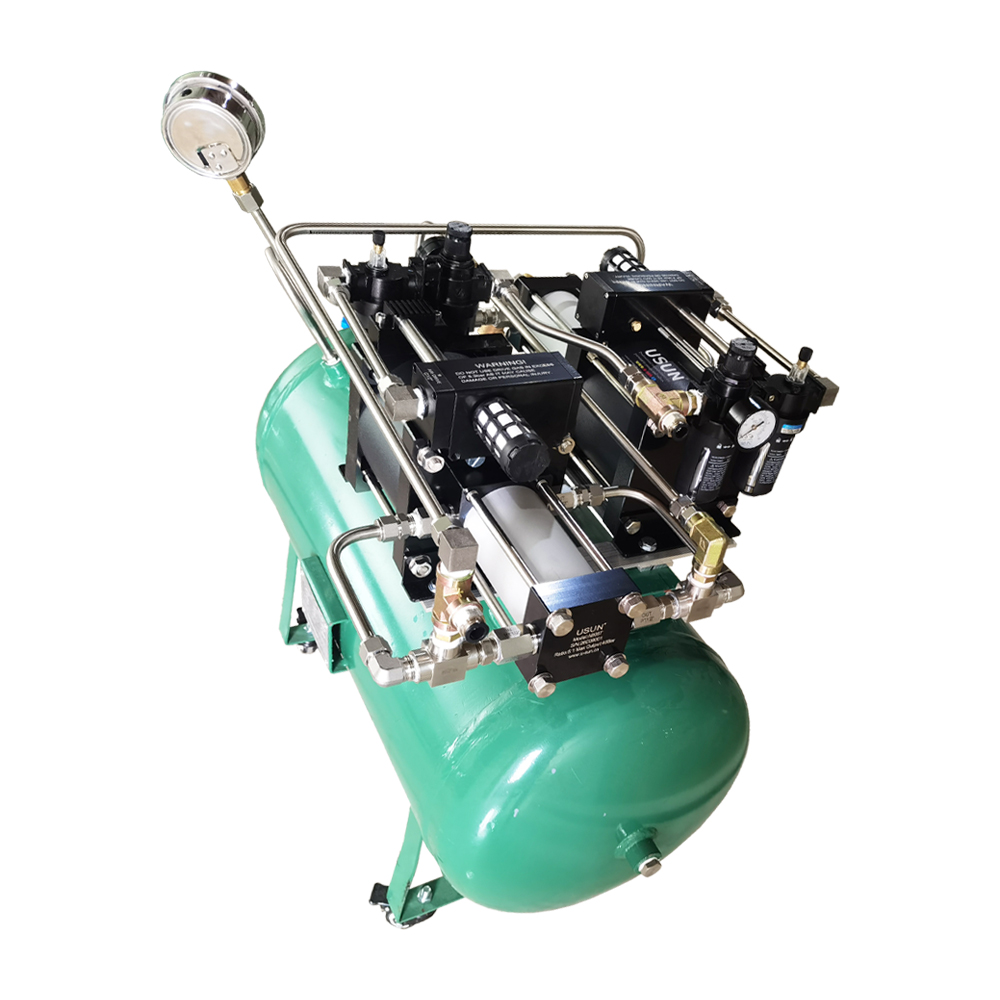

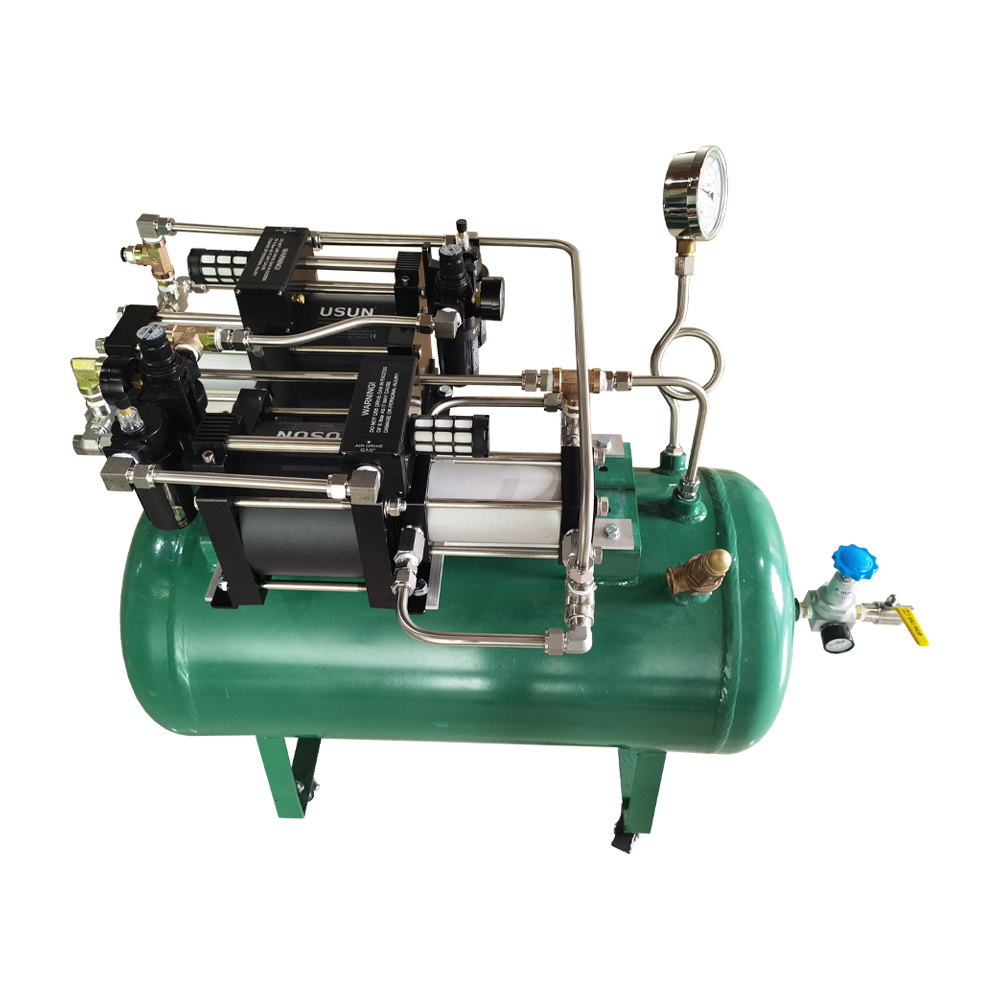

USUN Model:AB05T-2-100L Double Pneumatic Air Pressure Booster Pump System with 100L Tank for Laser Cutting Machine Application

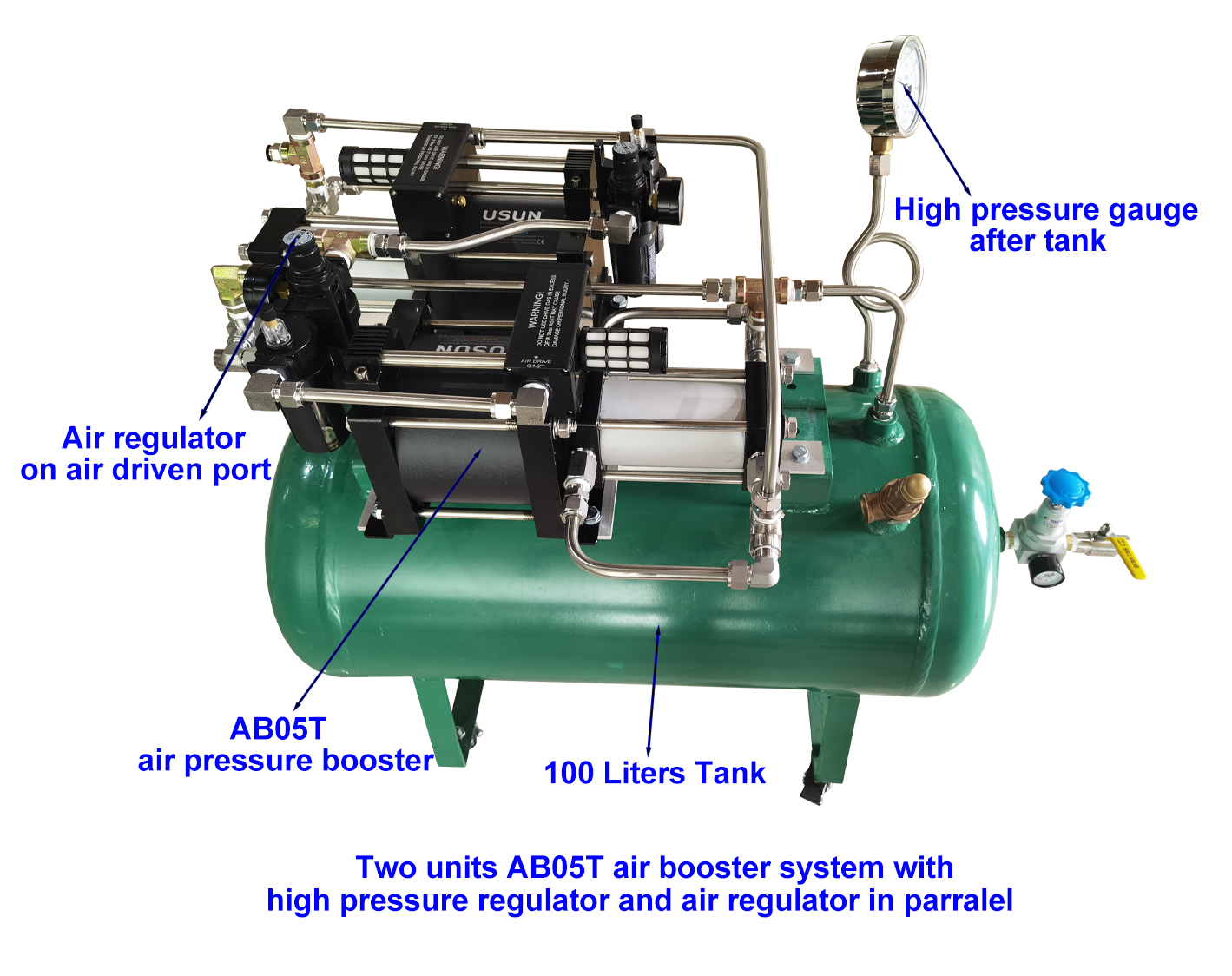

Usun Model :AB05T-2-100L   5:1 ratio maximum 40 Bar complete  Double head  Pneumatic air pressure booster pump system with 100L tank and air regulator

and high pressure regulator and also safety valve

Our USUN Air pressure amplifiers are pneumatically driven reciprocating piston/plunger pumps

 and are ratio devices  that utilise low pressure compressed air driving a larger diameter

piston (area x pressure), which is linearly connected to a smaller air piston.

 1.  AIR DRIVE PRESSURE AMPLIFIERS

Air Pressure Boosters involve AB Series are used for boosting compressed normal shop air to higher pressures

They feature  rugged construction.They are capable of double or fourfould of the compressed air.Provided for

pressures up to 40 bar .Ideal for use with machines or applications where higher pressure is required than the

compressed airline system available

Key features

1 )  stainless steel wetted materials of construction

2)  Specialised construction materials available

3) PTFE pressure seals as standard

4) Separation between gas & pneumatic seals

5) No airline lubrication required

6) 120mm stroke reduces cycle rate & increases life

7) Suitable for most hazardous areas

8) Available as a complete packaged system

Main technical data

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .

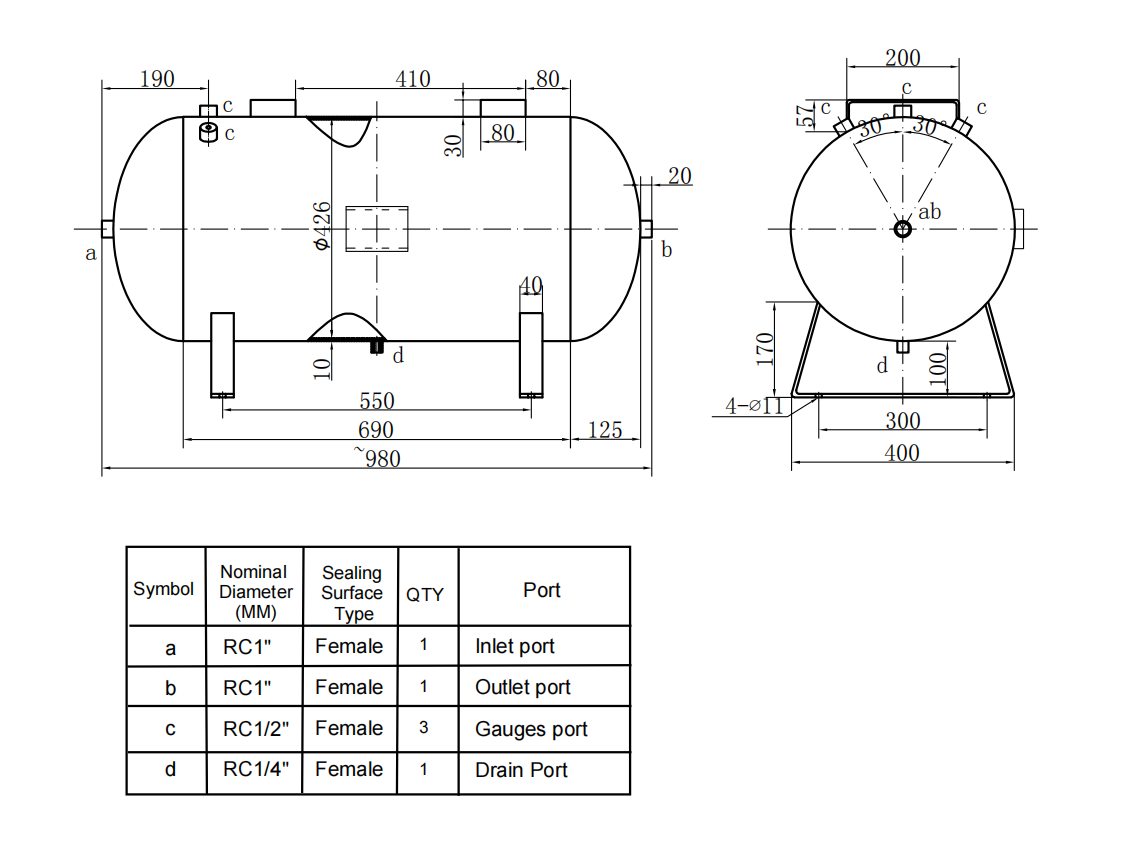

Dimensions: (mm)

Typical application of such pneumatic air booster pump

PNEUMATIC AIR BOOSTER PUMP  PRODUCT COMPARISON TABLE

To select the right amplifier for your application you will need to

know the  following parameters:

The available air pressure & volume

The desired pressure and flow rate

If you are unsure of these parameters but know a competitor brand’s model number,

 use the air amplifier product comparison table below to help you choose the

 right USUNp air  Pressure amplifier.

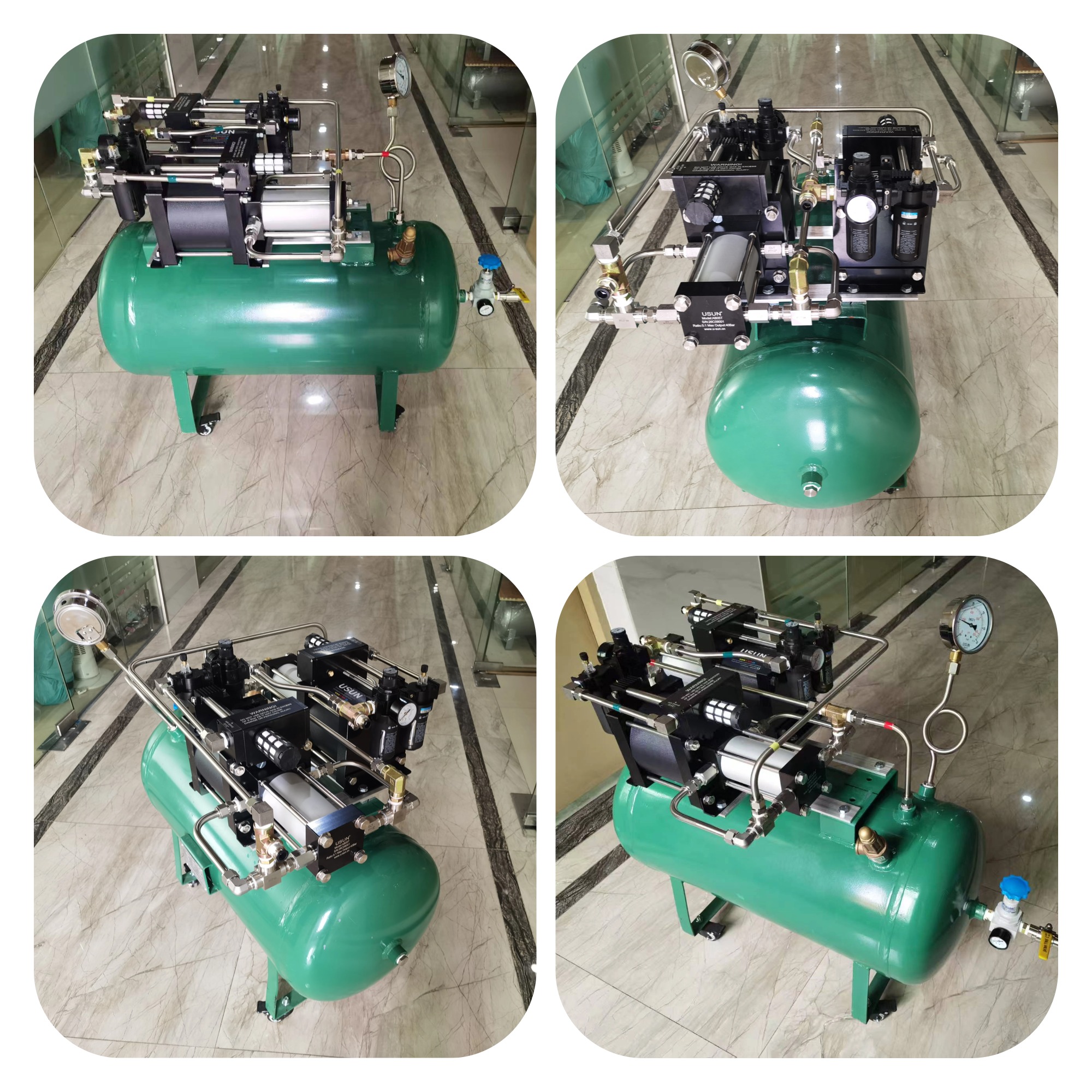

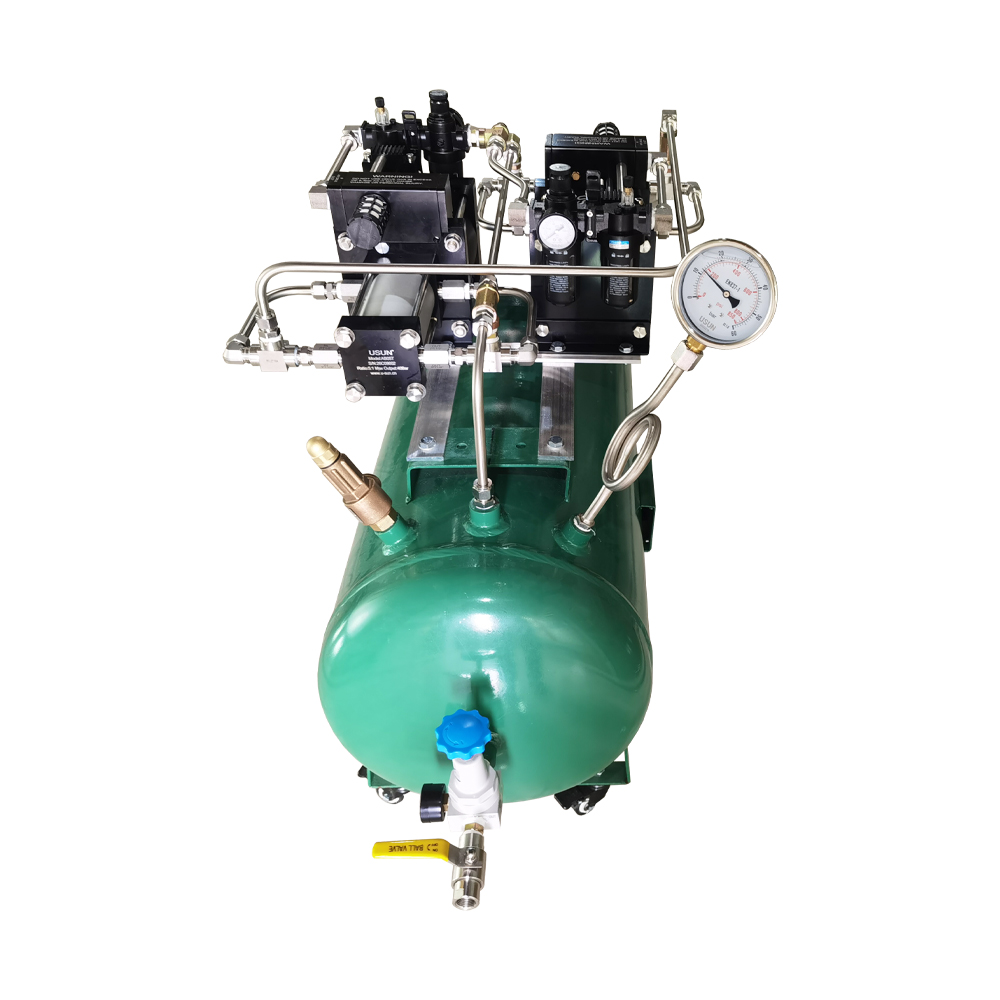

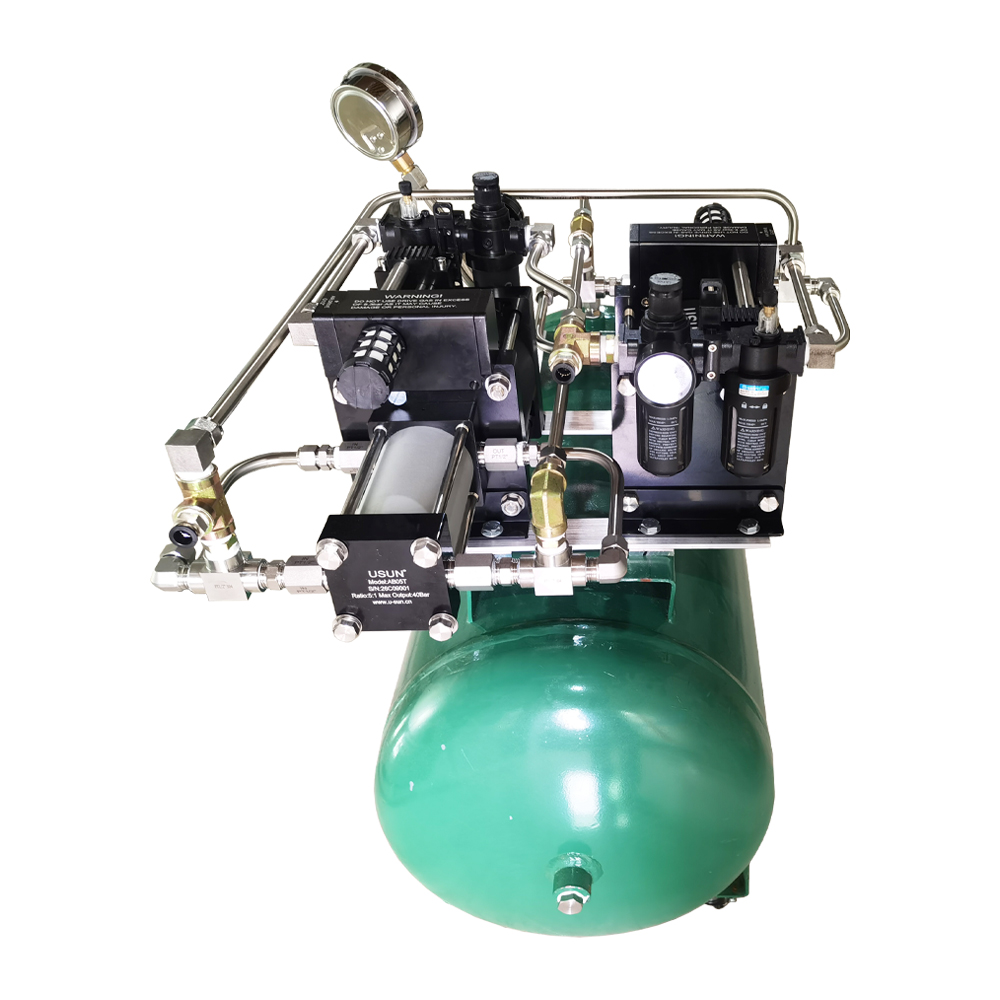

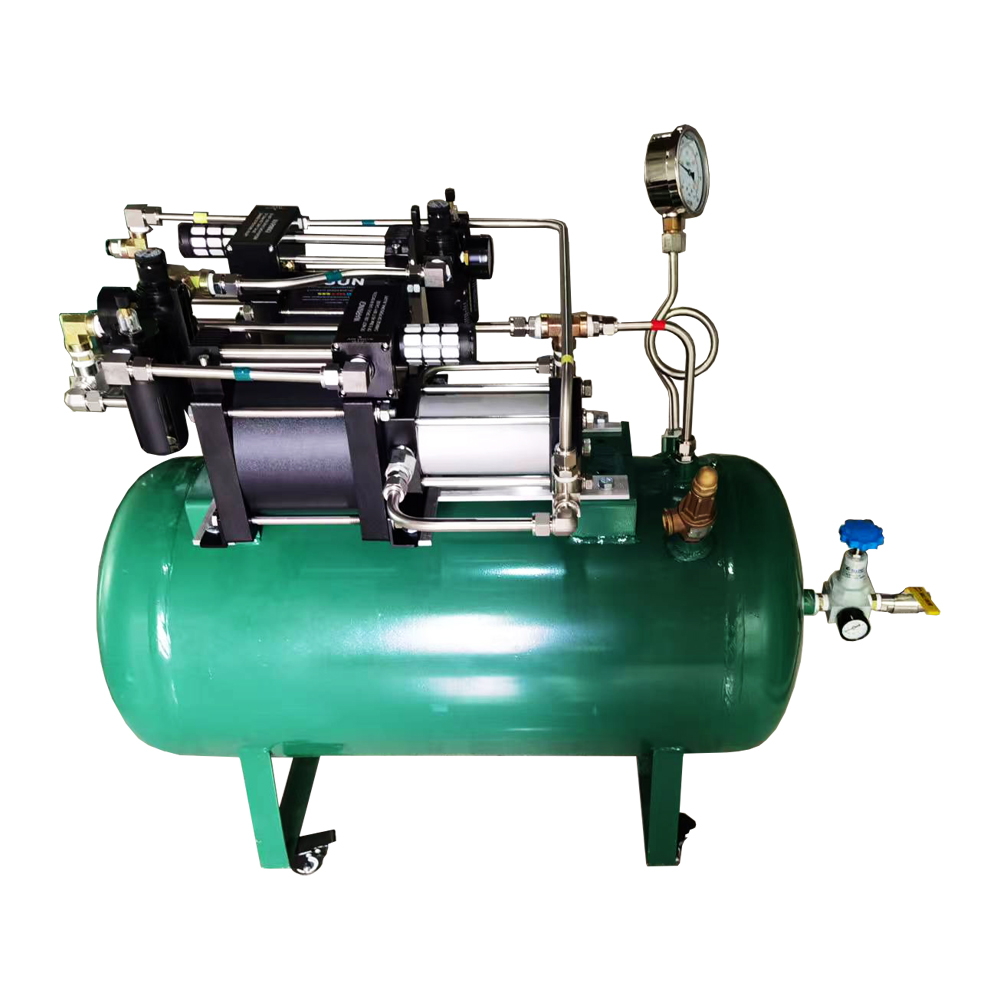

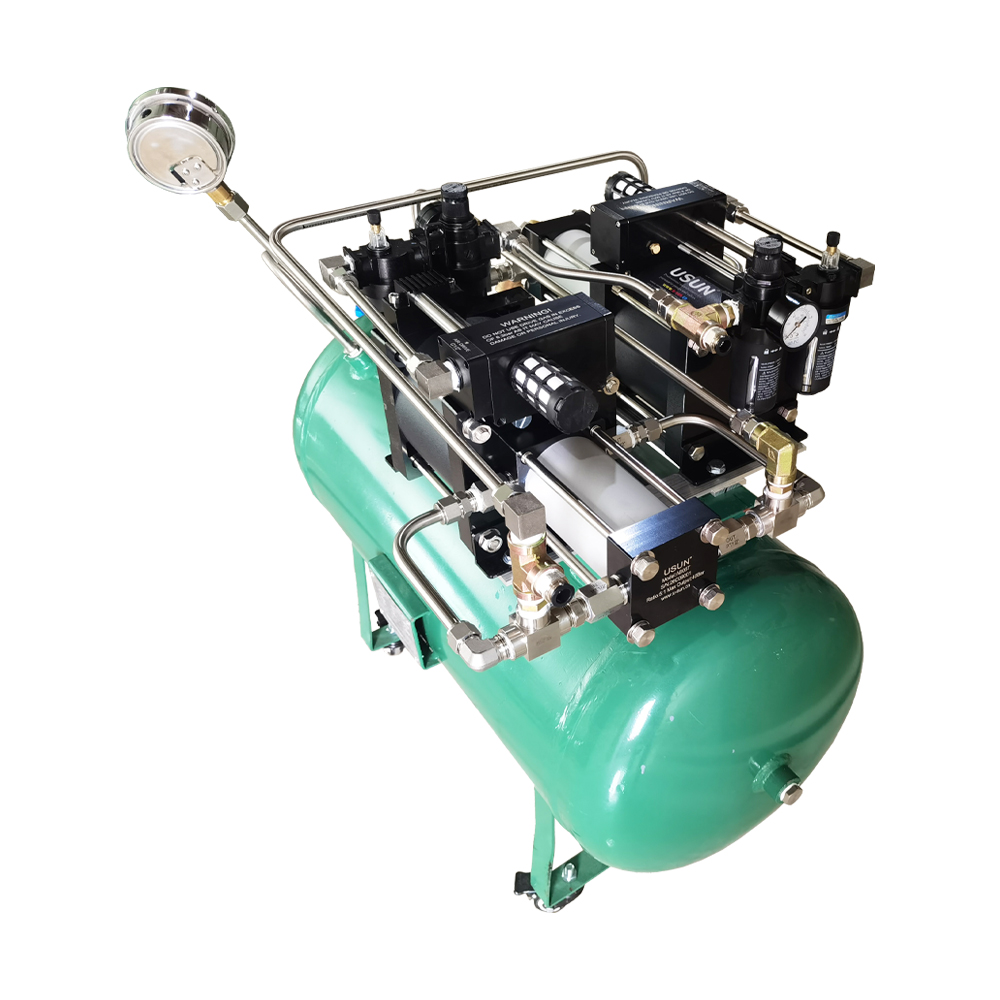

Product real photos
