Model :AB05T
USUN
Model:AB05T

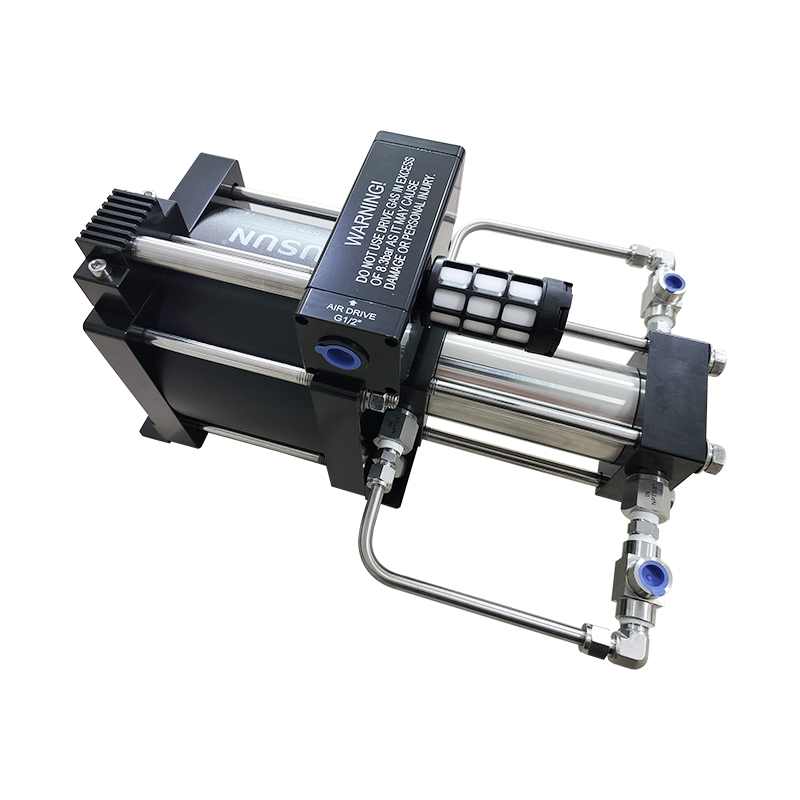

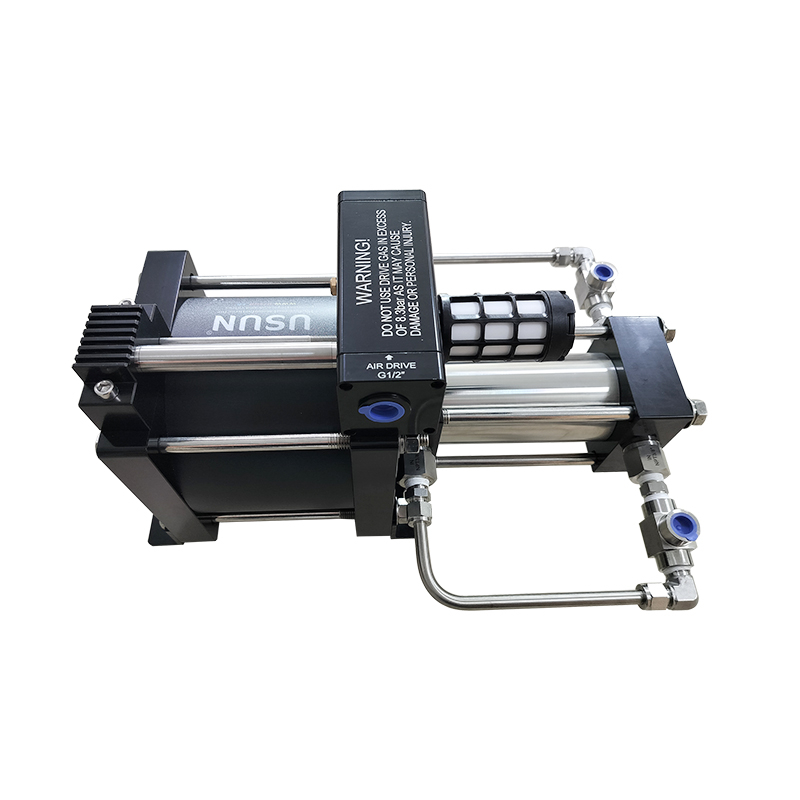

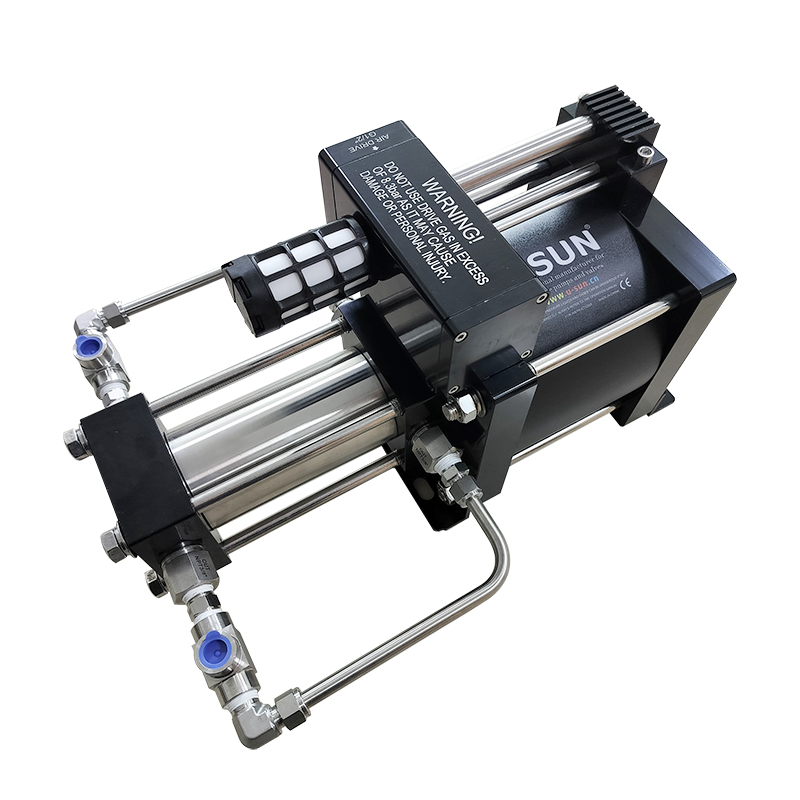

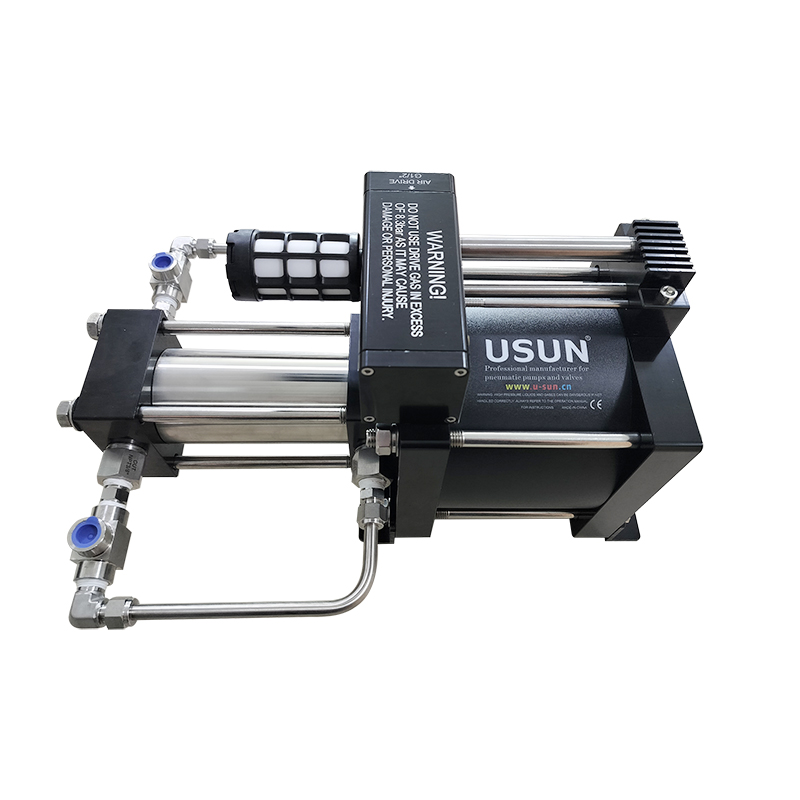

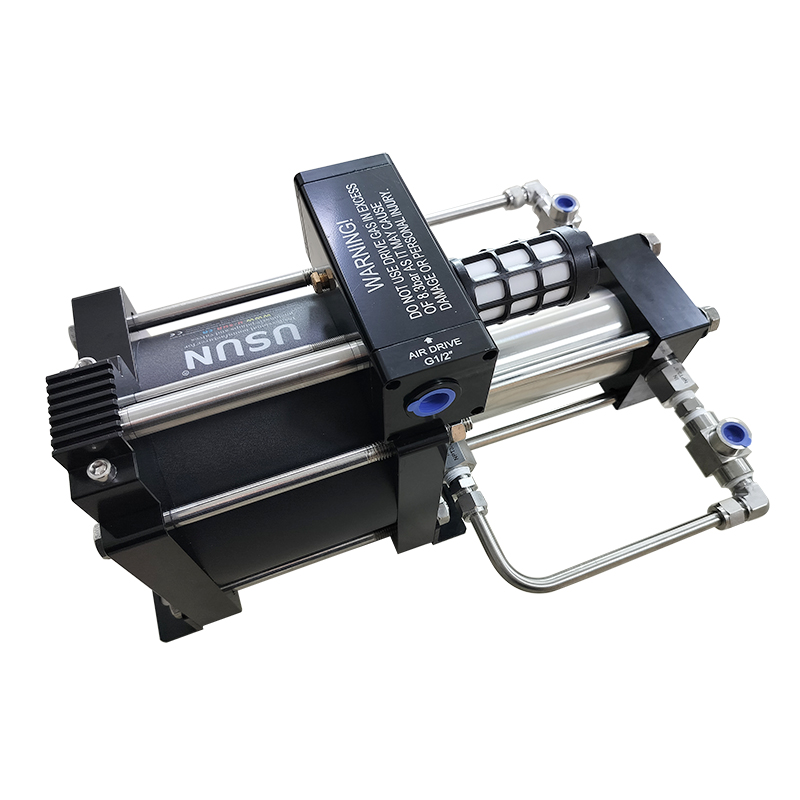

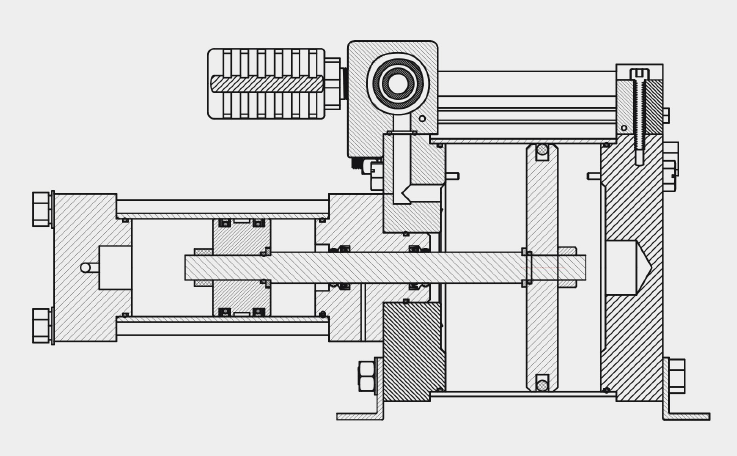

Usun Model :AB05 5:1 ratio 15-40 Bar double acting air pressure booster pump
Our USUN Air Amplifiers are pneumatically driven reciprocating piston/plunger pumps
and are ratio devices that utilise low pressure compressed air driving a larger diameter
piston (area x pressure), which is linearly connected to a smaller air piston.
1. AIR DRIVE PRESSURE BOOSTER
Air Pressure Boosters involve AB Series are used for boosting compressed normal shop air to higher pressures
They feature rugged construction.They are capable of double or fourfould of the compressed air.Provided for
pressures up to 40 bar .Ideal for use with machines or applications where higher pressure is required than the
compressed airline system available
Key features
1 ) stainless steel wetted materials of construction
2) Specialised construction materials available
3) PTFE pressure seals as standard
4) Separation between gas & pneumatic seals
5) No airline lubrication required
6) 120mm stroke reduces cycle rate & increases life
7) Suitable for most hazardous areas
8) Available as a complete packaged system
Typical technical data for double acting pneumatic air booster pump
Main technical parameter | |||||||
Model | Pressure ratio | Minimum inlet pressure PI(Bar) | Maximum Outlet pressure PO(Bar) | Outlet pressure formula PO | Inlet port size | Outlet porst size | Maximum Flow rate L/min= 7 Bar |
AB02 | 2:01 | 1 | 16 | 2PA | PT3/8'' | PT3/8'' | 513@PI=7 |
AB03 | 3:01 | 1 | 24 | 3PA | PT3/8'' | PT3/8'' | 420@PI=7 |
4AB02 | 2:01 | 1 | 16 | 2PA | NPT1/2'' | NPT1/2'' | 1450@PI=7 |
AB04 | 4:01 | 1.7 | 32 | 4PA | NPT3/8'' | NPT3/8'' | 382@PI=7 |
AB05T | 5:01 | 1.7 | 41.5 | 5PA+PI | NPT1/2' | NPT1/2'' | 710@pi=7 |
AB07 | 7:01 | 3.4 | 56 | 7PA | NPT3/8'' | NPT3/8'' | 274@PI=7 |
AB08T | 8:01 | 3.4 | 67.4 | 8PA+ PI | NPT3/8'' | NPT3/8'' | 482@pi=7 |
AB10 | 10:01 | 3.4 | 80 | 10PA | NPT3/8'' | NPT3/8' | 225@PI=7 |
AB15 | 15:01 | 8.1 | 120 | 15PA | NPT3/8'' | NPT3/8' | 185@PI=7 |
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such pneumatic air booster pump
PNEUMATIC AIR BOOSTER PUMP PRODUCT COMPARISON TABLE
To select the right amplifier for your application you will need to
know the following parameters:
The available air pressure & volume
The desired pressure and flow rate
If you are unsure of these parameters but know a competitor brand’s model number,
use the air amplifier product comparison table below to help you choose the
right USUNp air amplifier.
USUN | Haskel | Maximator | Maxpro | HII |
AB04 | SPLV3 | DLA5-1 | ||
AB07 | AA-8 | |||
AB10 | ||||
AB15 | AA-15 | DLA15-1 | ||
AB05T | AAD-5 | GPLV5 | DLA5 | 5A-DS-5 |
Usun Model :AB05 5:1 ratio 15-40 Bar double acting air pressure booster pump
Our USUN Air Amplifiers are pneumatically driven reciprocating piston/plunger pumps
and are ratio devices that utilise low pressure compressed air driving a larger diameter
piston (area x pressure), which is linearly connected to a smaller air piston.
1. AIR DRIVE PRESSURE BOOSTER
Air Pressure Boosters involve AB Series are used for boosting compressed normal shop air to higher pressures
They feature rugged construction.They are capable of double or fourfould of the compressed air.Provided for
pressures up to 40 bar .Ideal for use with machines or applications where higher pressure is required than the
compressed airline system available
Key features
1 ) stainless steel wetted materials of construction
2) Specialised construction materials available
3) PTFE pressure seals as standard
4) Separation between gas & pneumatic seals
5) No airline lubrication required
6) 120mm stroke reduces cycle rate & increases life
7) Suitable for most hazardous areas
8) Available as a complete packaged system
Typical technical data for double acting pneumatic air booster pump
Main technical parameter | |||||||
Model | Pressure ratio | Minimum inlet pressure PI(Bar) | Maximum Outlet pressure PO(Bar) | Outlet pressure formula PO | Inlet port size | Outlet porst size | Maximum Flow rate L/min= 7 Bar |
AB02 | 2:01 | 1 | 16 | 2PA | PT3/8'' | PT3/8'' | 513@PI=7 |
AB03 | 3:01 | 1 | 24 | 3PA | PT3/8'' | PT3/8'' | 420@PI=7 |
4AB02 | 2:01 | 1 | 16 | 2PA | NPT1/2'' | NPT1/2'' | 1450@PI=7 |
AB04 | 4:01 | 1.7 | 32 | 4PA | NPT3/8'' | NPT3/8'' | 382@PI=7 |
AB05T | 5:01 | 1.7 | 41.5 | 5PA+PI | NPT1/2' | NPT1/2'' | 710@pi=7 |
AB07 | 7:01 | 3.4 | 56 | 7PA | NPT3/8'' | NPT3/8'' | 274@PI=7 |
AB08T | 8:01 | 3.4 | 67.4 | 8PA+ PI | NPT3/8'' | NPT3/8'' | 482@pi=7 |
AB10 | 10:01 | 3.4 | 80 | 10PA | NPT3/8'' | NPT3/8' | 225@PI=7 |
AB15 | 15:01 | 8.1 | 120 | 15PA | NPT3/8'' | NPT3/8' | 185@PI=7 |
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such pneumatic air booster pump
PNEUMATIC AIR BOOSTER PUMP PRODUCT COMPARISON TABLE
To select the right amplifier for your application you will need to
know the following parameters:
The available air pressure & volume
The desired pressure and flow rate
If you are unsure of these parameters but know a competitor brand’s model number,
use the air amplifier product comparison table below to help you choose the
right USUNp air amplifier.
USUN | Haskel | Maximator | Maxpro | HII |
AB04 | SPLV3 | DLA5-1 | ||
AB07 | AA-8 | |||
AB10 | ||||
AB15 | AA-15 | DLA15-1 | ||
AB05T | AAD-5 | GPLV5 | DLA5 | 5A-DS-5 |
