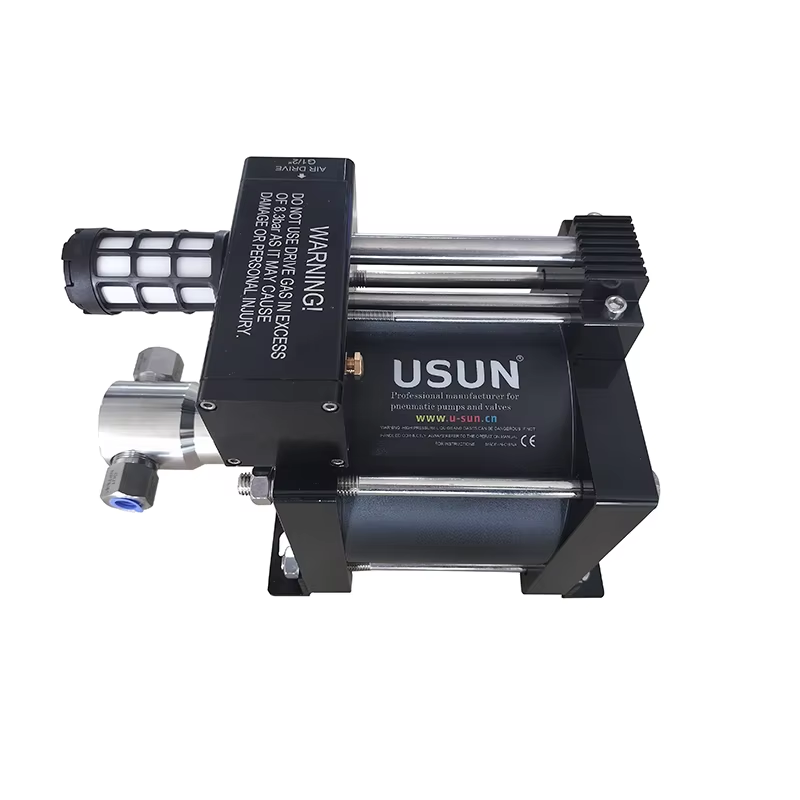

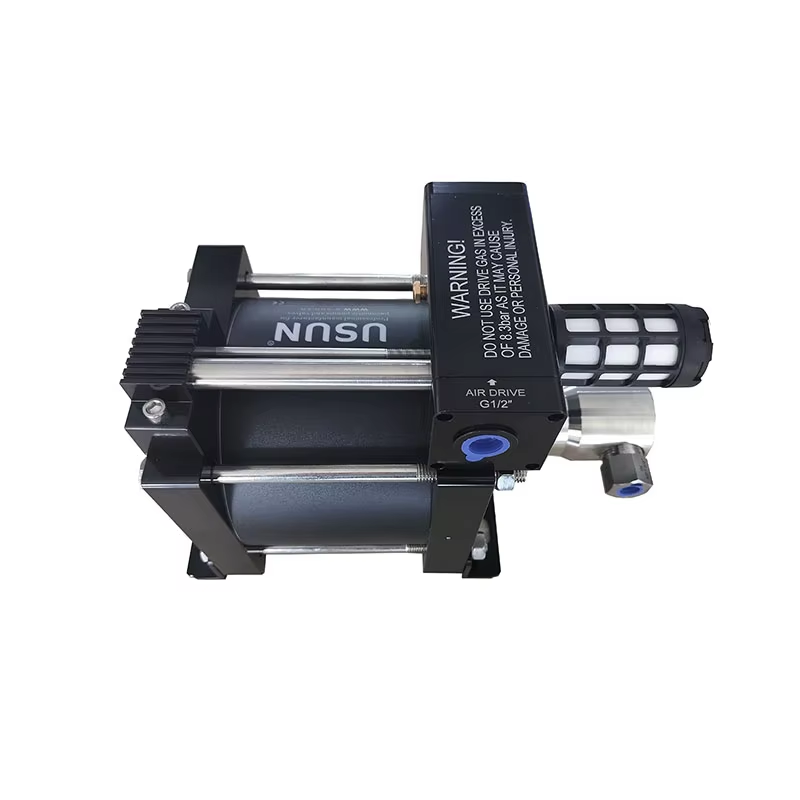

USUN Model:AH28-N2O160MM Driven Single acting Pneumatic Driven Liquid N2O Pump for Filling Small Soda Bottles

USUN Model:AH28-N2O 160MM Driven Single acting Pneumatic Driven Liquid N2O Pump for

Filling SODA  Bottles

Typical applications for air driven Liquid pumps

Key features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable output pressure and flow capability

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. Wide range of models and controls and options

6.Seals system designed for long working life,No airline lubricated required

7. Wide range of standard and customized liquid pump systems

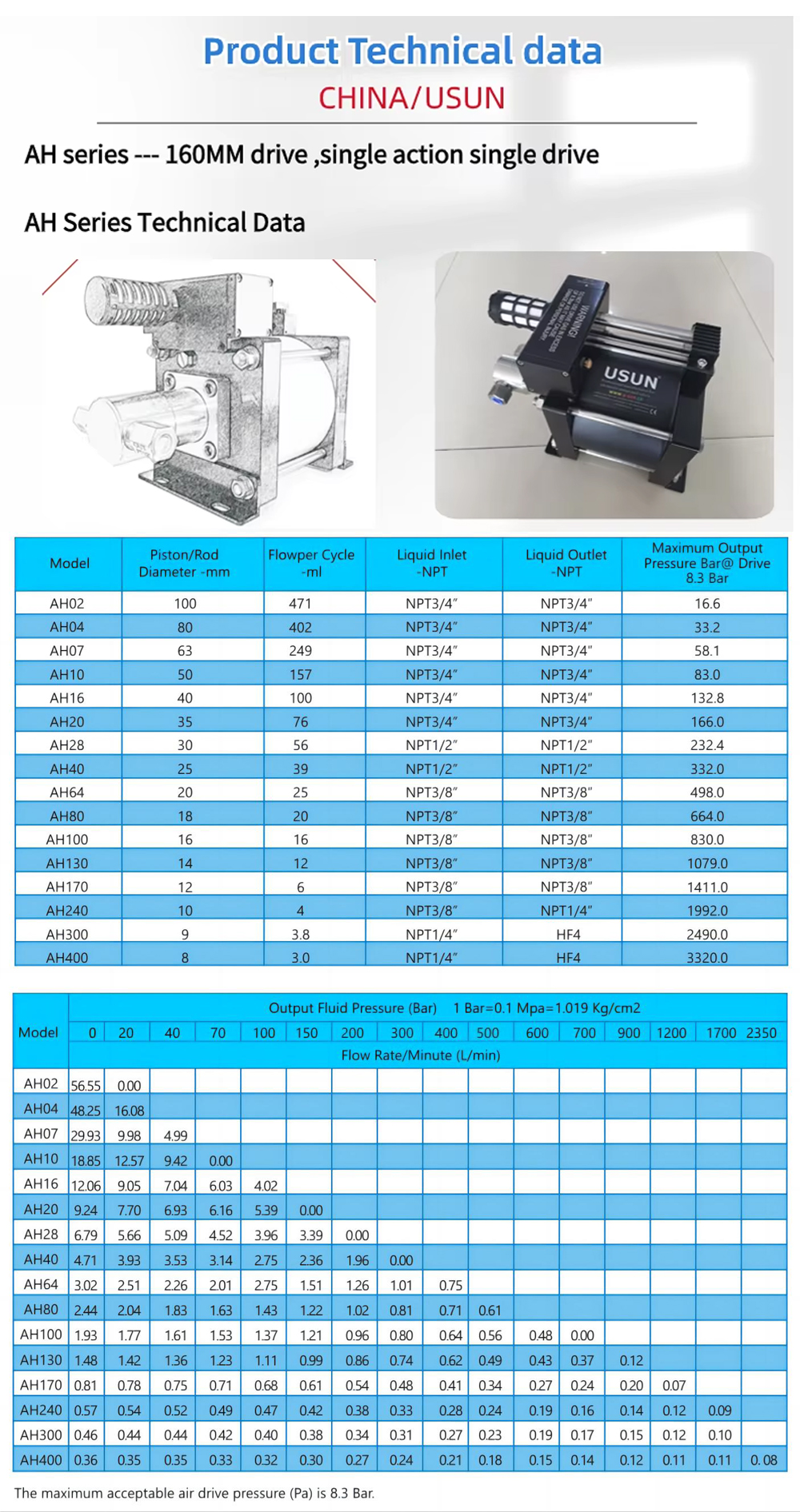

Main technical data

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .
