APSV-SS-1G-2A/2B
USUN
APSV-SS-1G-2A/2B
Main technical parameters:
1.Functional form:normally open or normally closed,
2. depending on the connection port.
3. Standard pressure range of sensor ports is 10-10,000 psi.
4. Optional working pressure range 5 to 20000 psi.
5.Working temperature:-30~100℃ .
6. The repeatability of the set point is about 1%.
7.No control zone:5%of the range
8. The material is 316L stainless steel.
9.Maximum pressure of air valve :3-way valves:150 Psi 2-way valves:6000psi
10.Optional tamper resistant locking device available upon request.
11. If a piston seal leak occurs,the exhaust port above the sensing
piston can prevent high pressure from entering the instrument power supply.

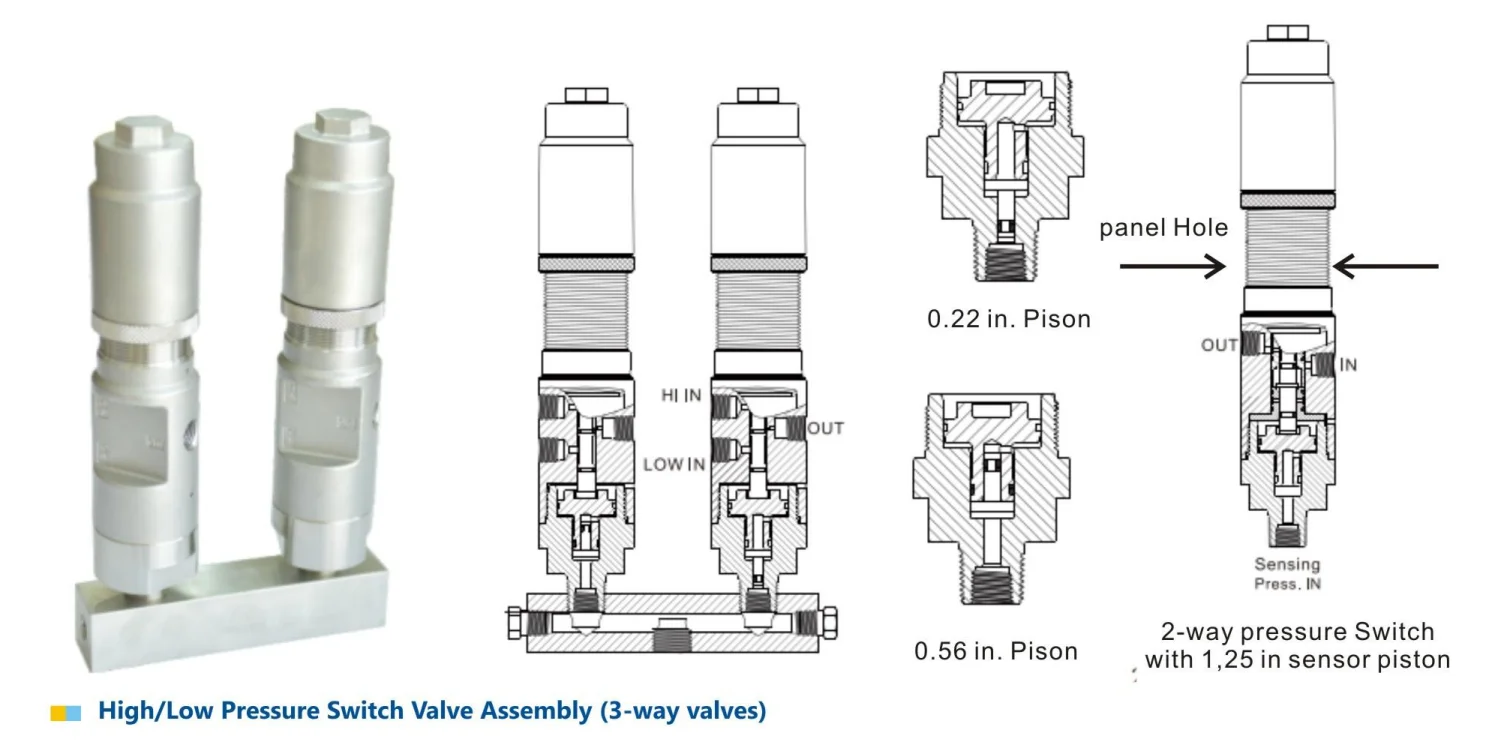

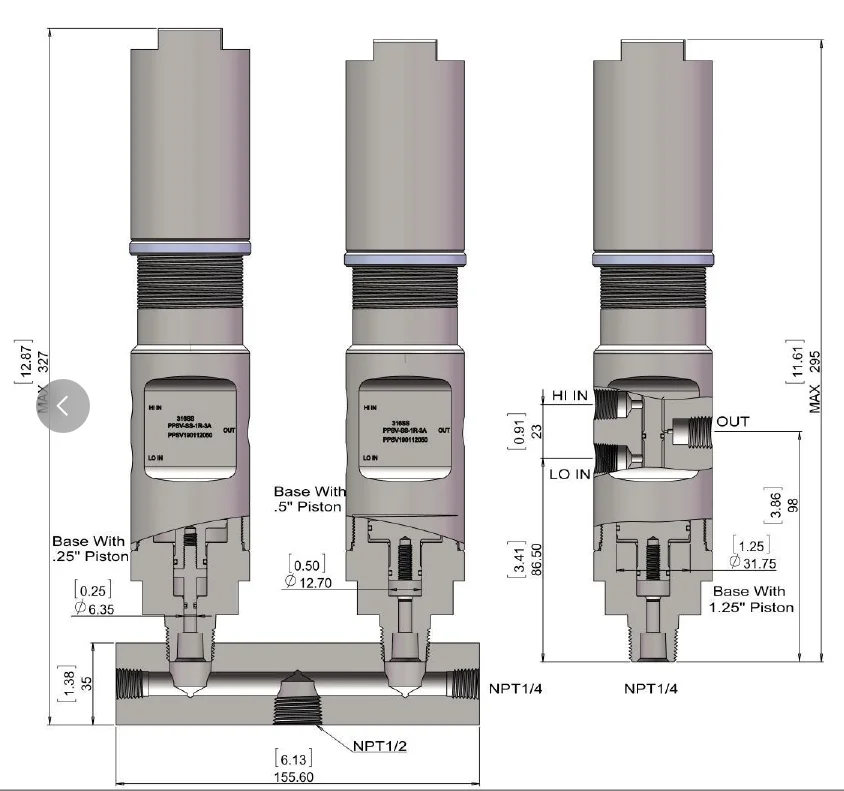

Exploded view:

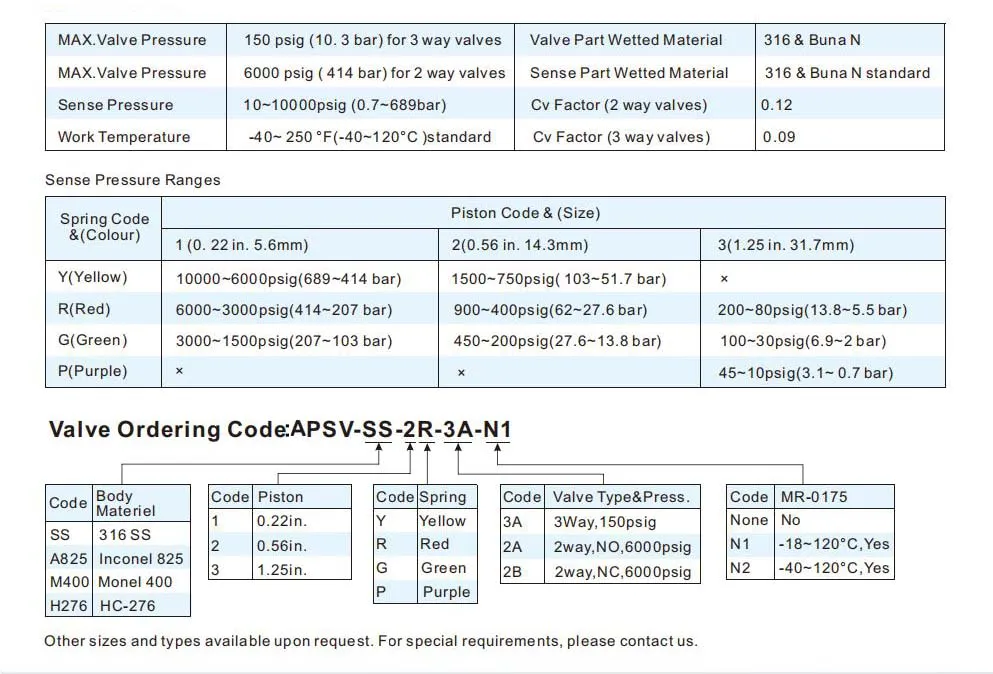

Ordering code:APSV-SS-1G-2A/2B

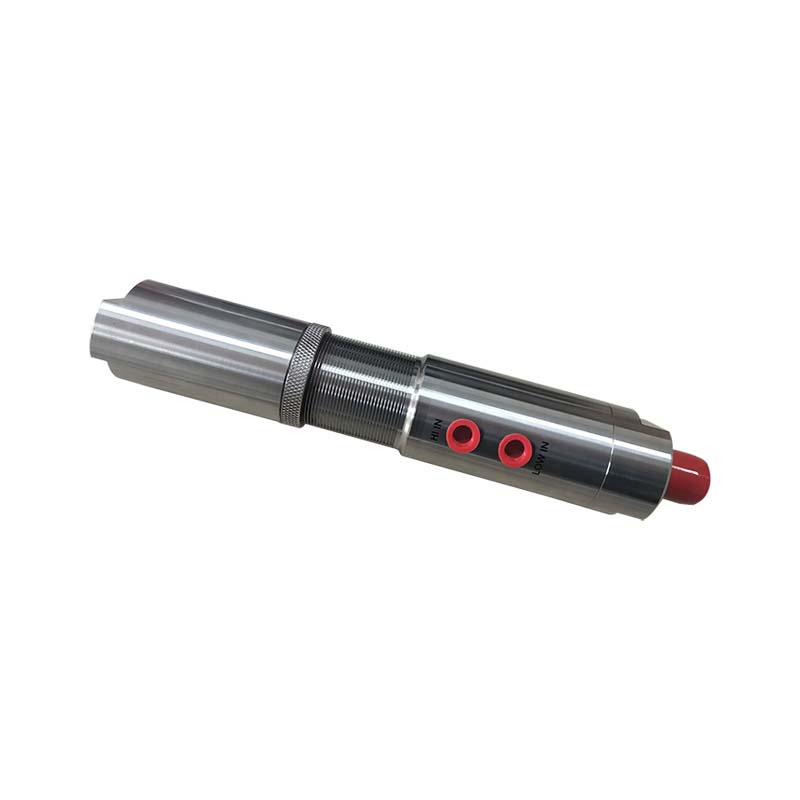

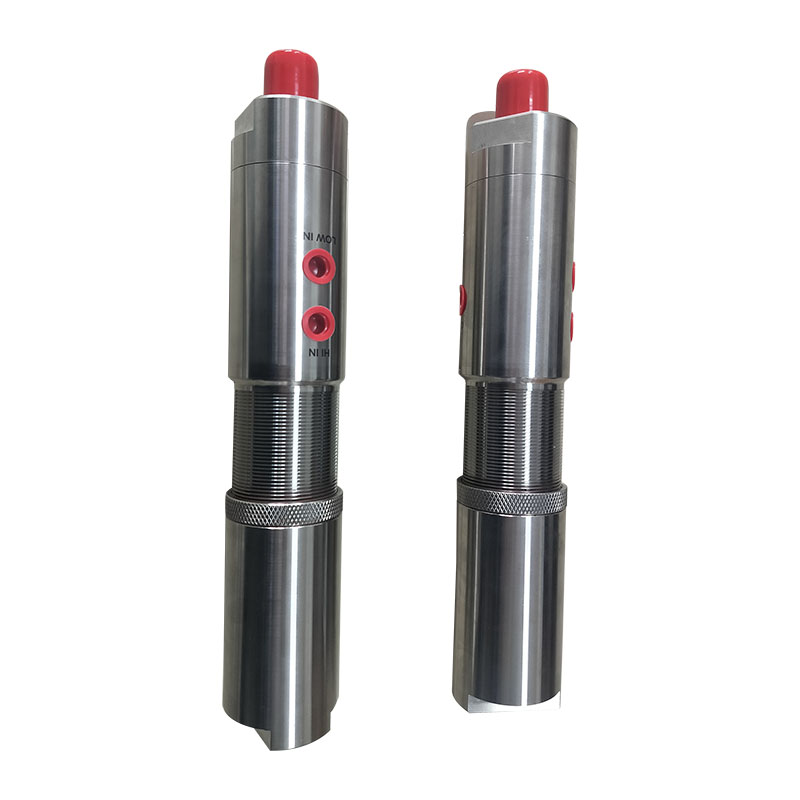

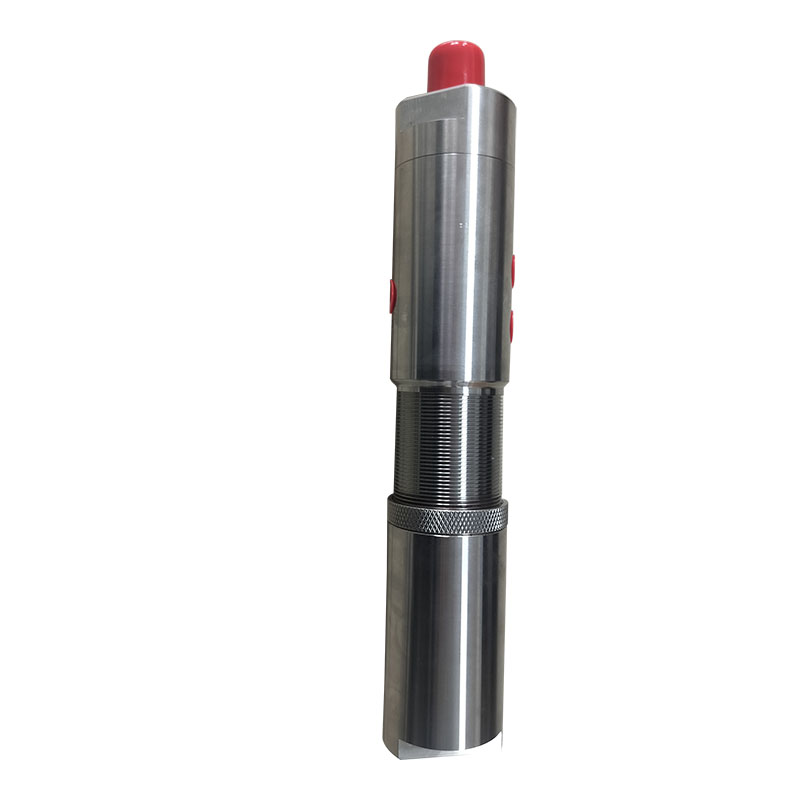

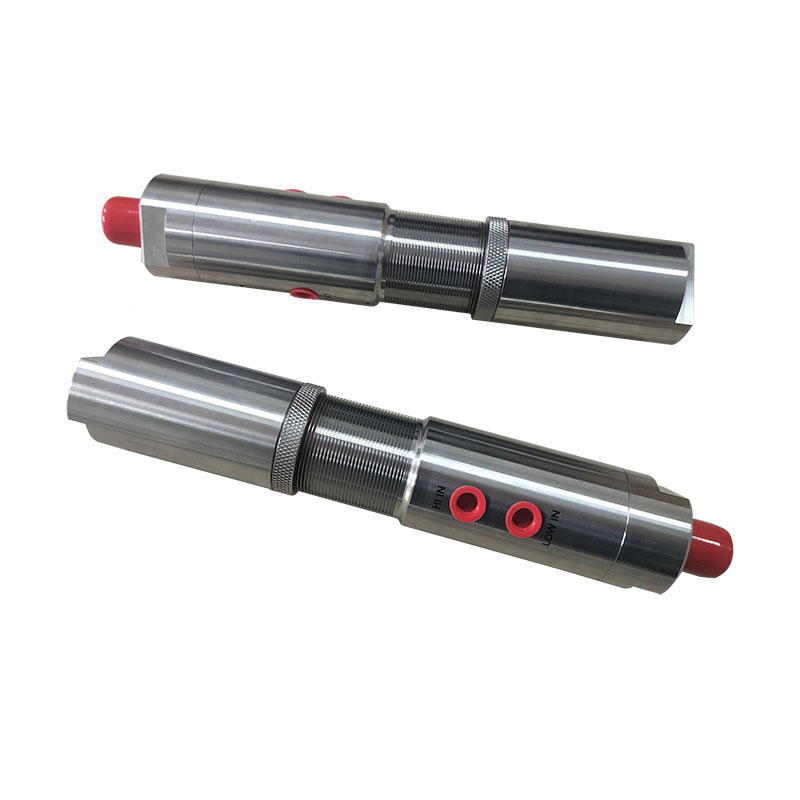

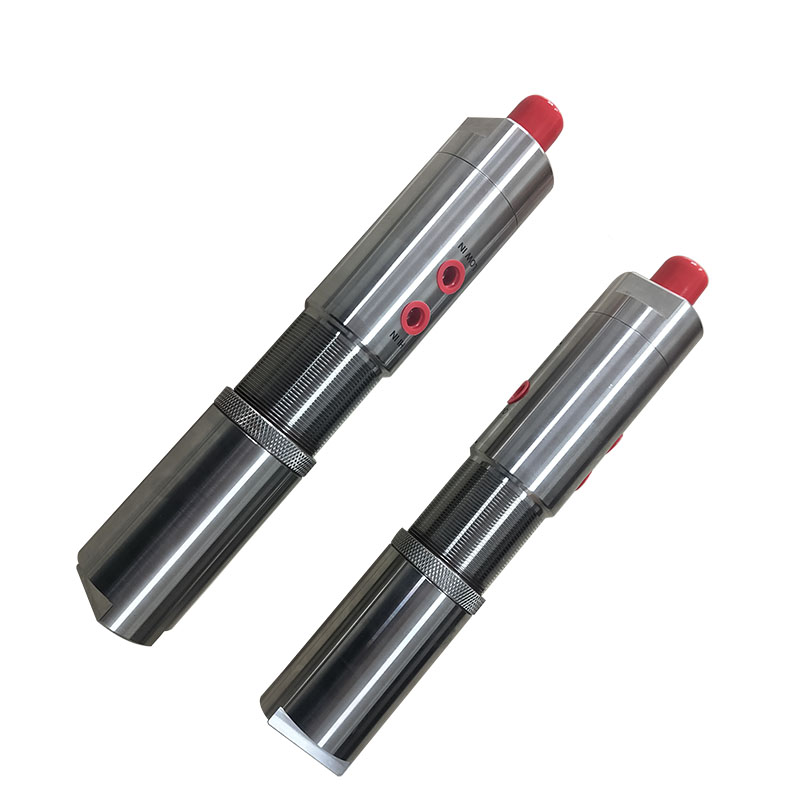

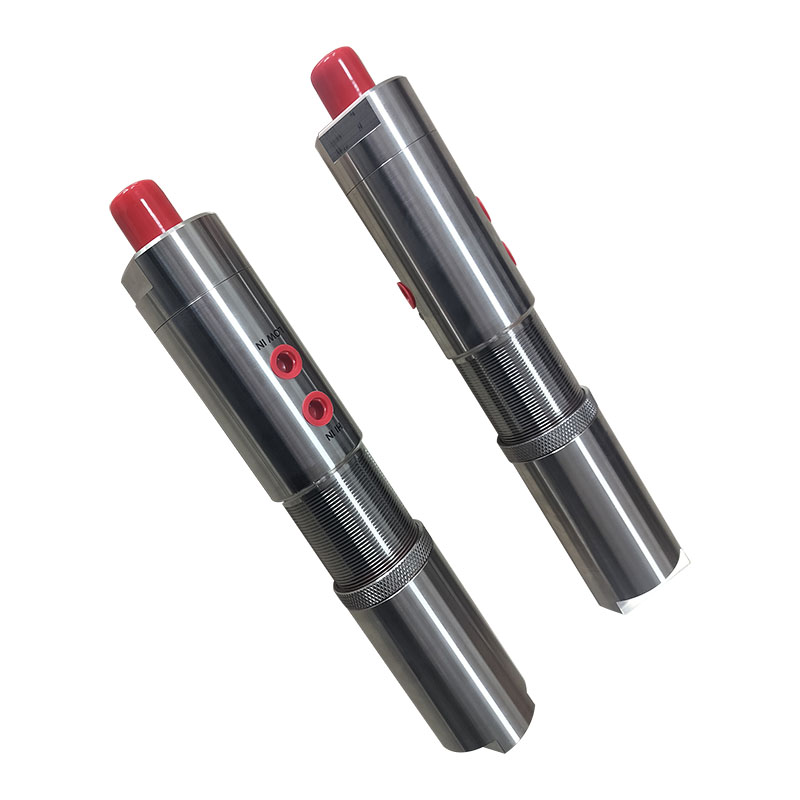

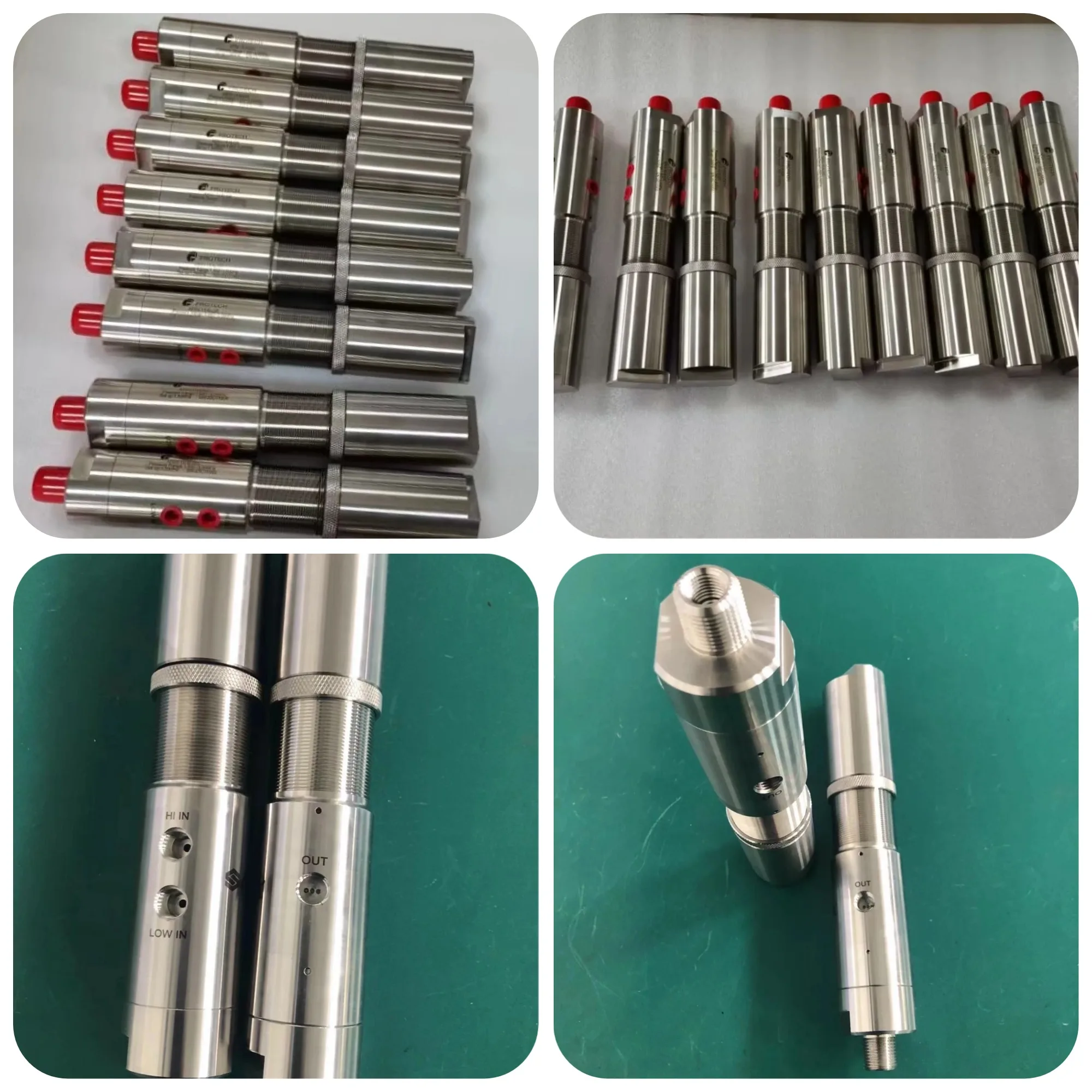

Real photos of such adjustable pressure sensing valve
