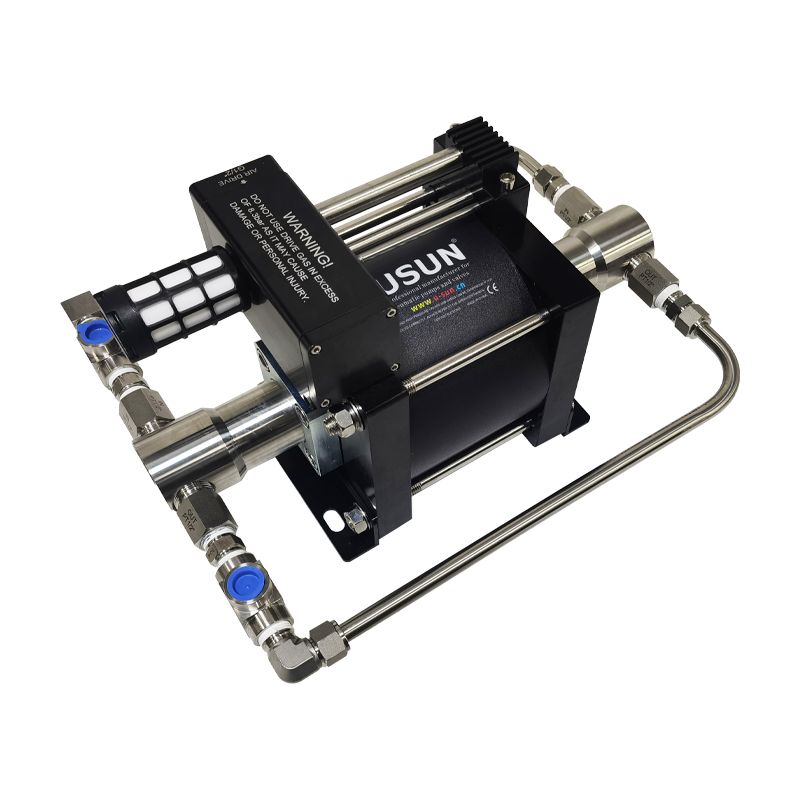

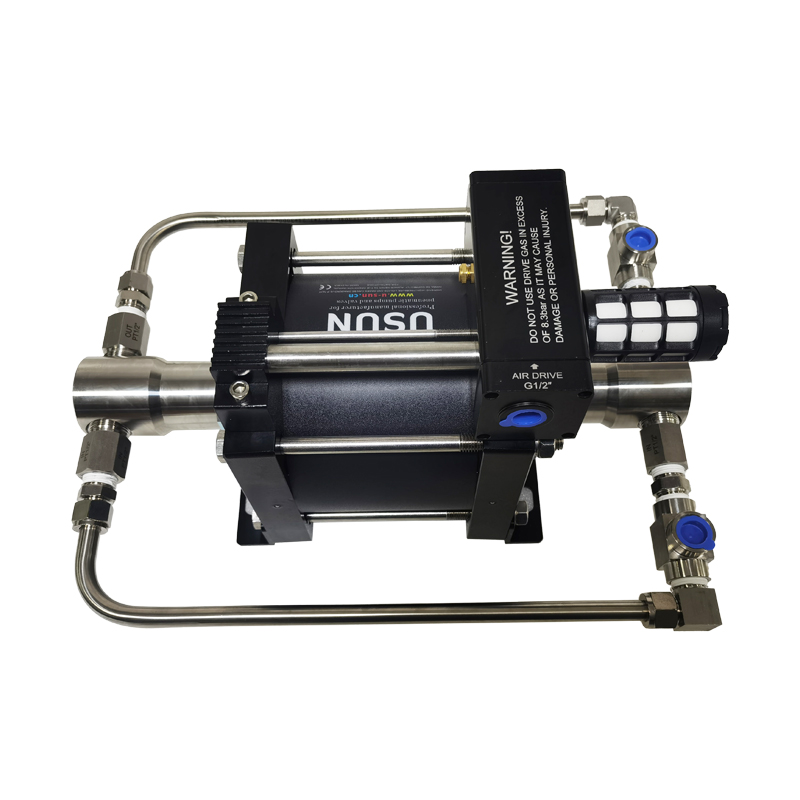

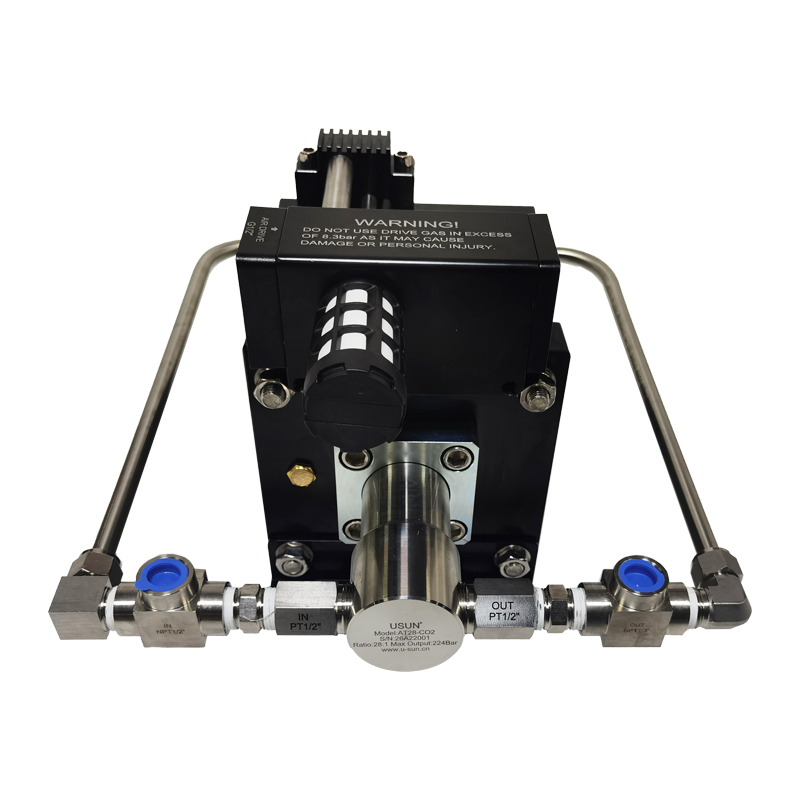

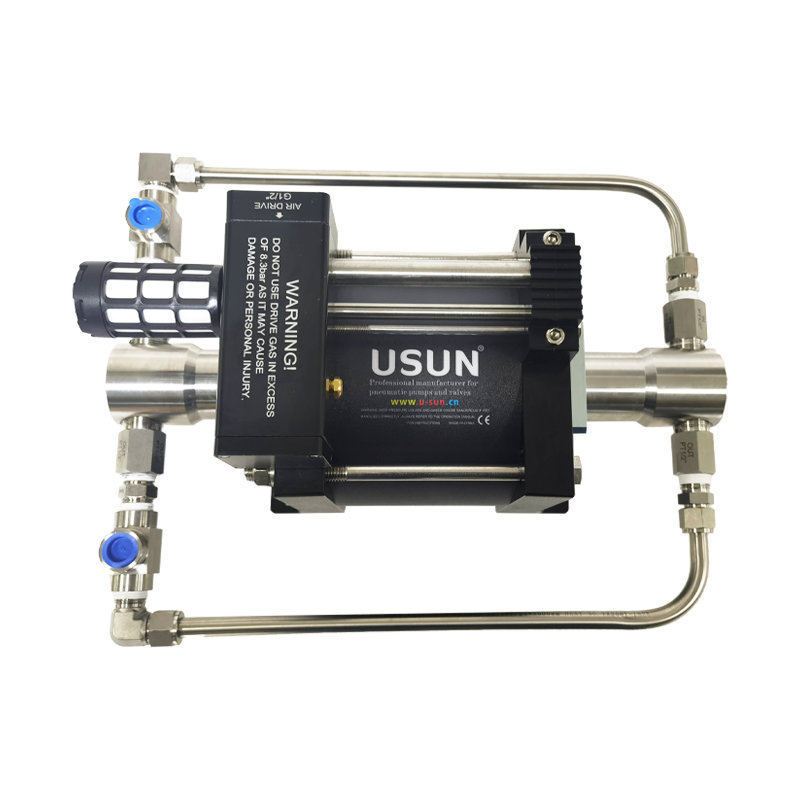

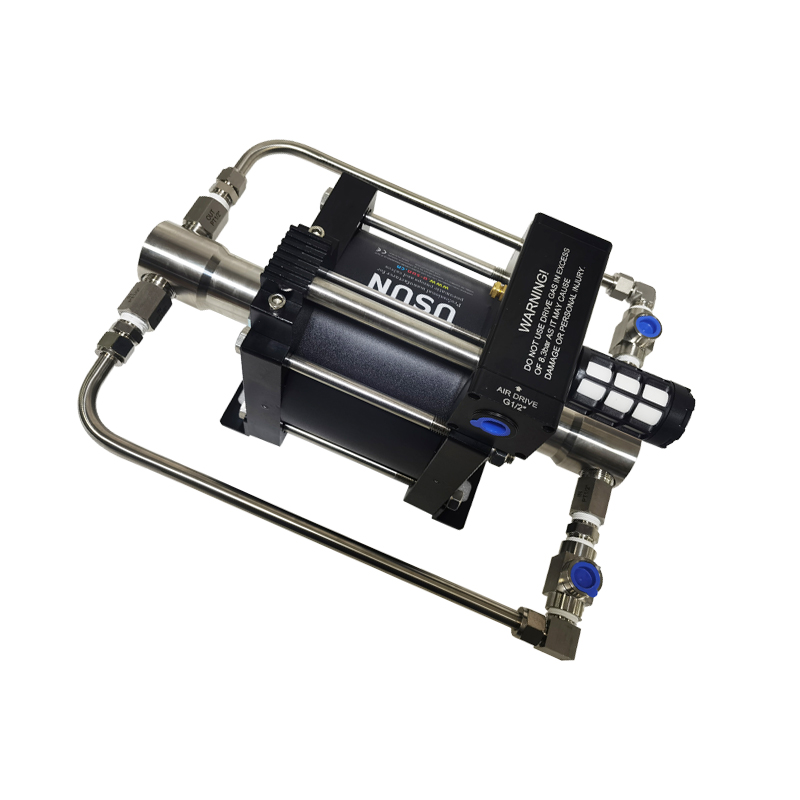

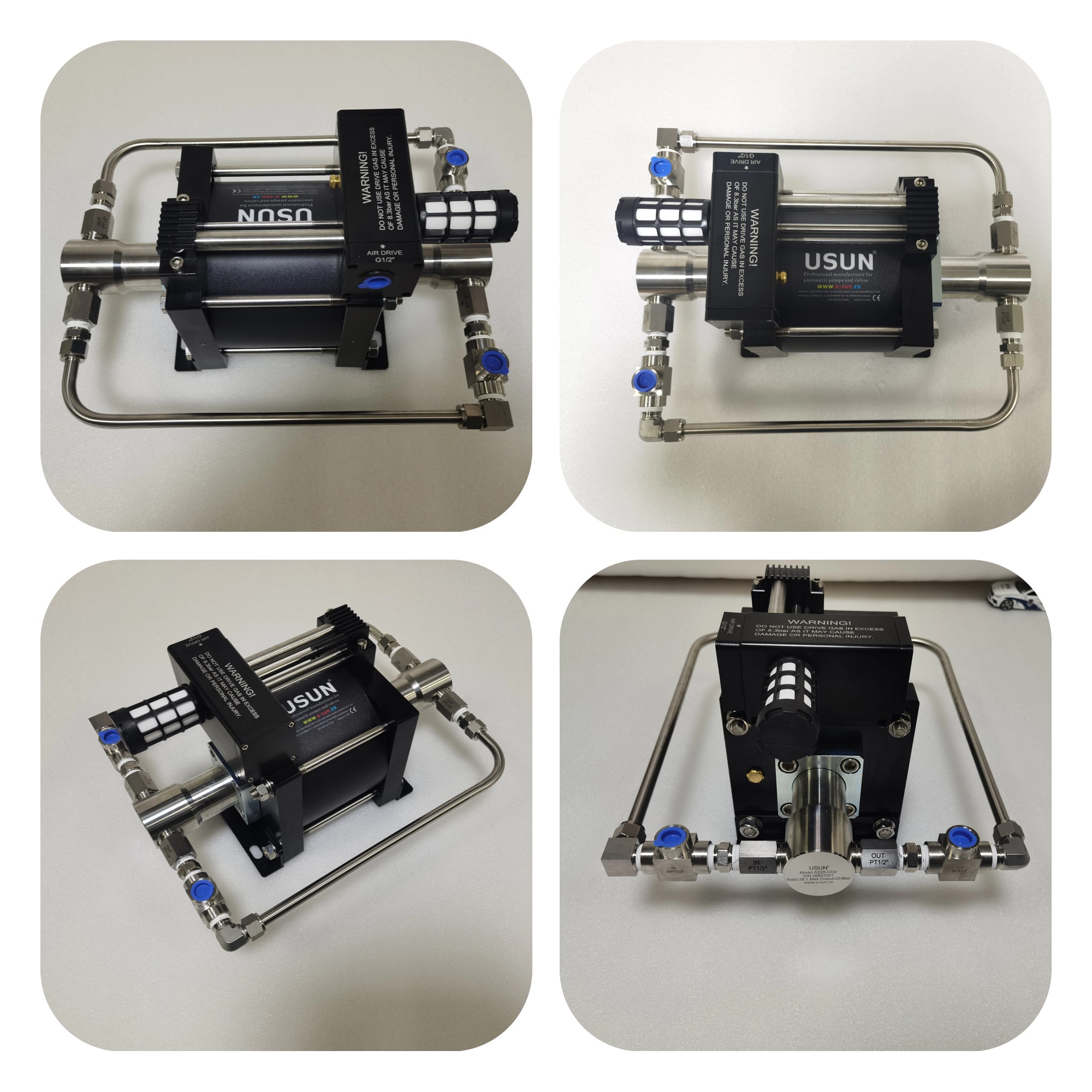

USUN Model:AT28-N2O 100-200 Bar Out High Pressure double acting Air Driven Liquid N2O Pressure Transfer Pump

USUN  Model:AT28-N2O  100-200 Bar Out 160mm driven double acting High Pressure Air Driven

Liquid N2O Pressure Transfer Pump, Fast refilling tank

General Information for Air driven hydraulic pumps

USUN air driven liquid  pumps are ratio devices that utilize low pressure compressed

air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller

hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.

Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data

indicates exact ratios.  The outlet stall pressure is easy to set by adjusting the air drive pressure

through a simple air pressure regulator.

Typical applications for air driven Liquid pumps

Key features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable output pressure and flow capability

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. Wide range of models and controls and options

6.Seals system designed for long working life,No airline lubricated required

7. Wide range of standard and customized liquid pump systems

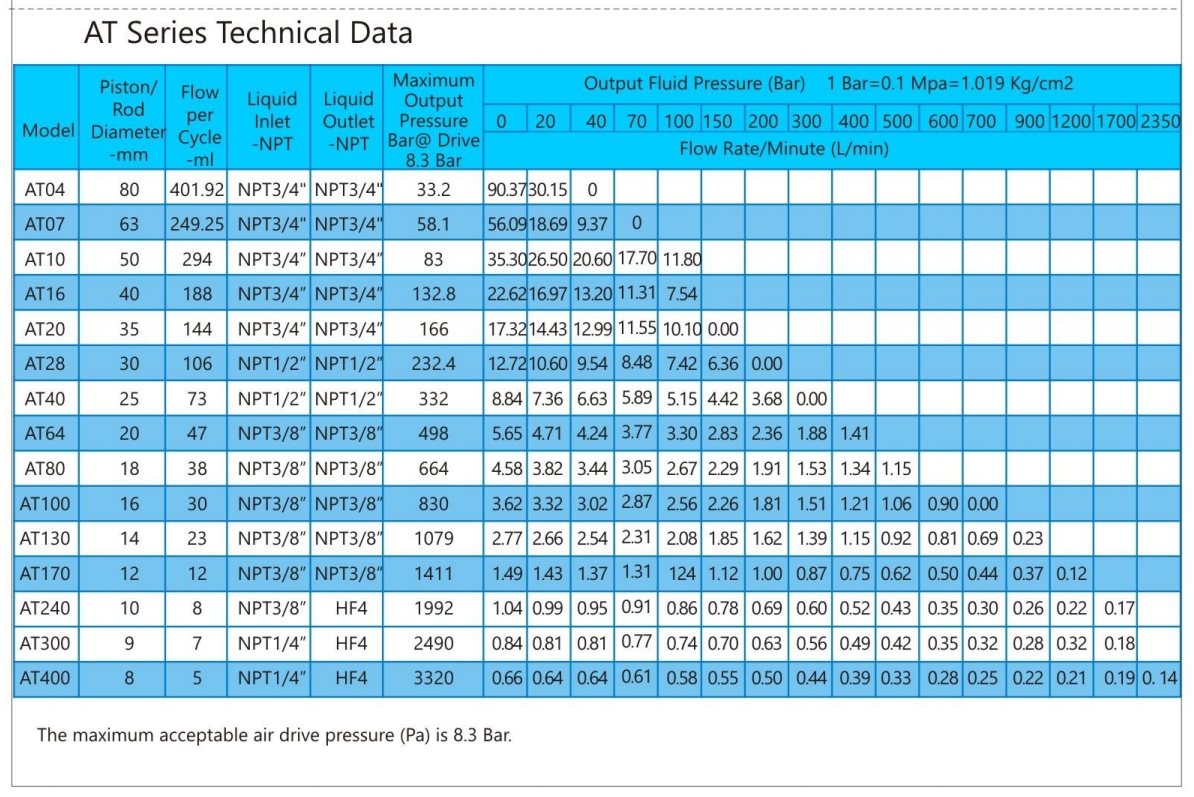

Main technical data

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .

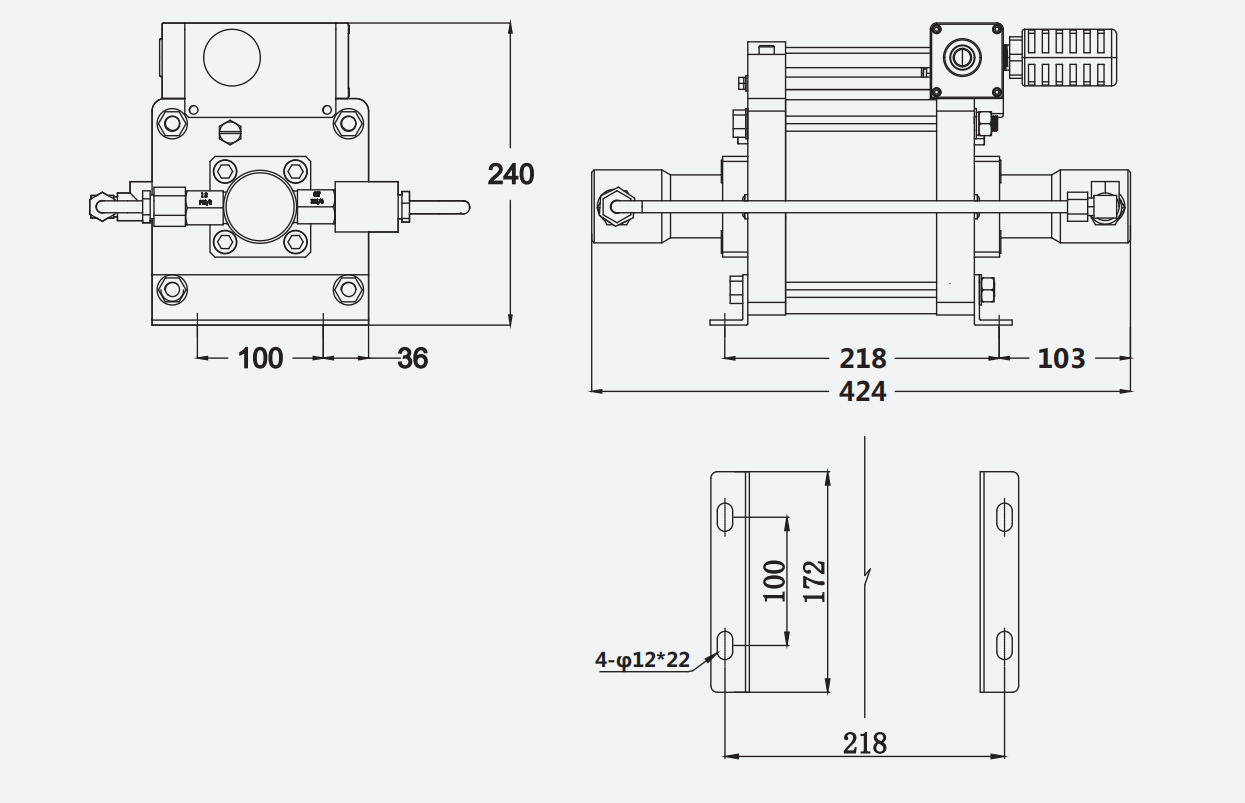

Dimensions:     (mm)

Typical diagram of such air driven Liquid  booster  pump
