Model : ELP106001/ELP06002/ELP06003
USUN
Model : ELP06001/ELP06002/ELP06003

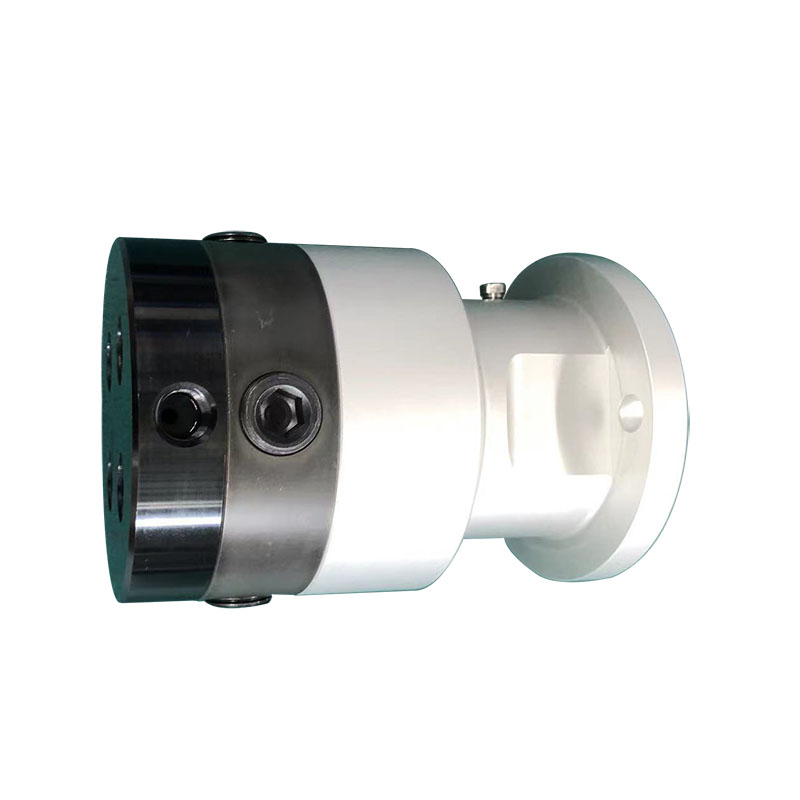

Usun Model :ELP06001 SERIAL SIMILAR DYNEX PF500 PF1300 316 6000 K psi Low flow rate
Stainless Steel Electrical powered Hydraulic Oil Pump for Well head Control Panels installation .
Low flow rate Electrical Hydraulic Pump features
★ Choice of 0.24 Imin,0.45 Imin,0.64 l/min 3 ratios.
★ High-strength alloy steel pump body, and stainless steel shell optional.
★ Low power consumption, and very low noise.
★ Standard Buna N seals for -29~120°C service, other seals available
★ Pump can rotate clockwise and counterclockwise
Electrical Hydraulic pump Descriptions
The pump is a plunger pump, it needs to be driven by a motor and recommend using electric motor.
These pumps can be used on wellhead control panel systems, Power packs on high-torque service tools.
The pump application medium is hydraulic oil and it needs to be installed at a lower position than the tank.
Before starting the pump, you must vent the air in the pump chamber .
USUN electric piston pump is a small swash plate multi-piston pump with high pressure
flow rate of 0.64~2.0 L/Min and pressure output of 6000~15000psi.
USUN electric piston pump has high volumetric efficiency, hydraulic clearance seal design and long service life.
USUN electric plunger pump is compact and easy to install.
Electrical Pump Performance and technical data :

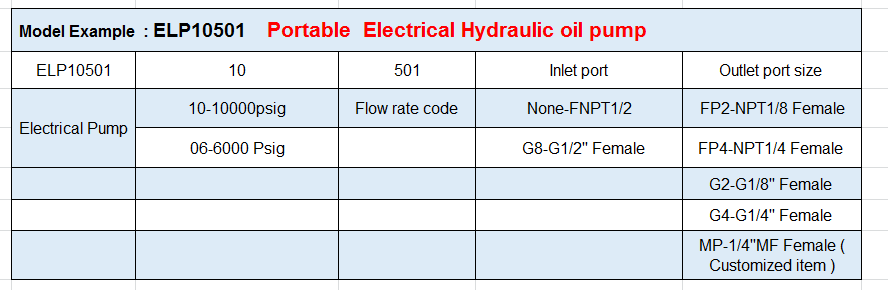

Model selection :
1）Ordering these pumps requires a complete model code specifying seal and port options.
Output flows are based on typical performance using 100 sus (20 cst) mineral oil at rated pressure.
2）MF means 20000psi female medium pressure connection.
3) Ordering codes listed are standard.other materials and types are available upon request.
For special requirements, please contact us.
Technical drawing :

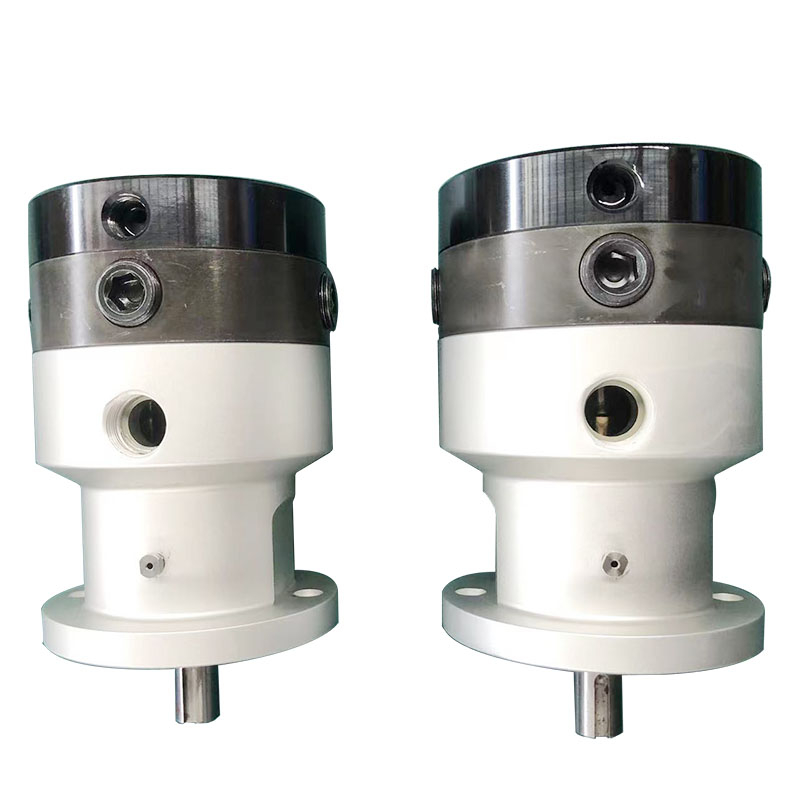

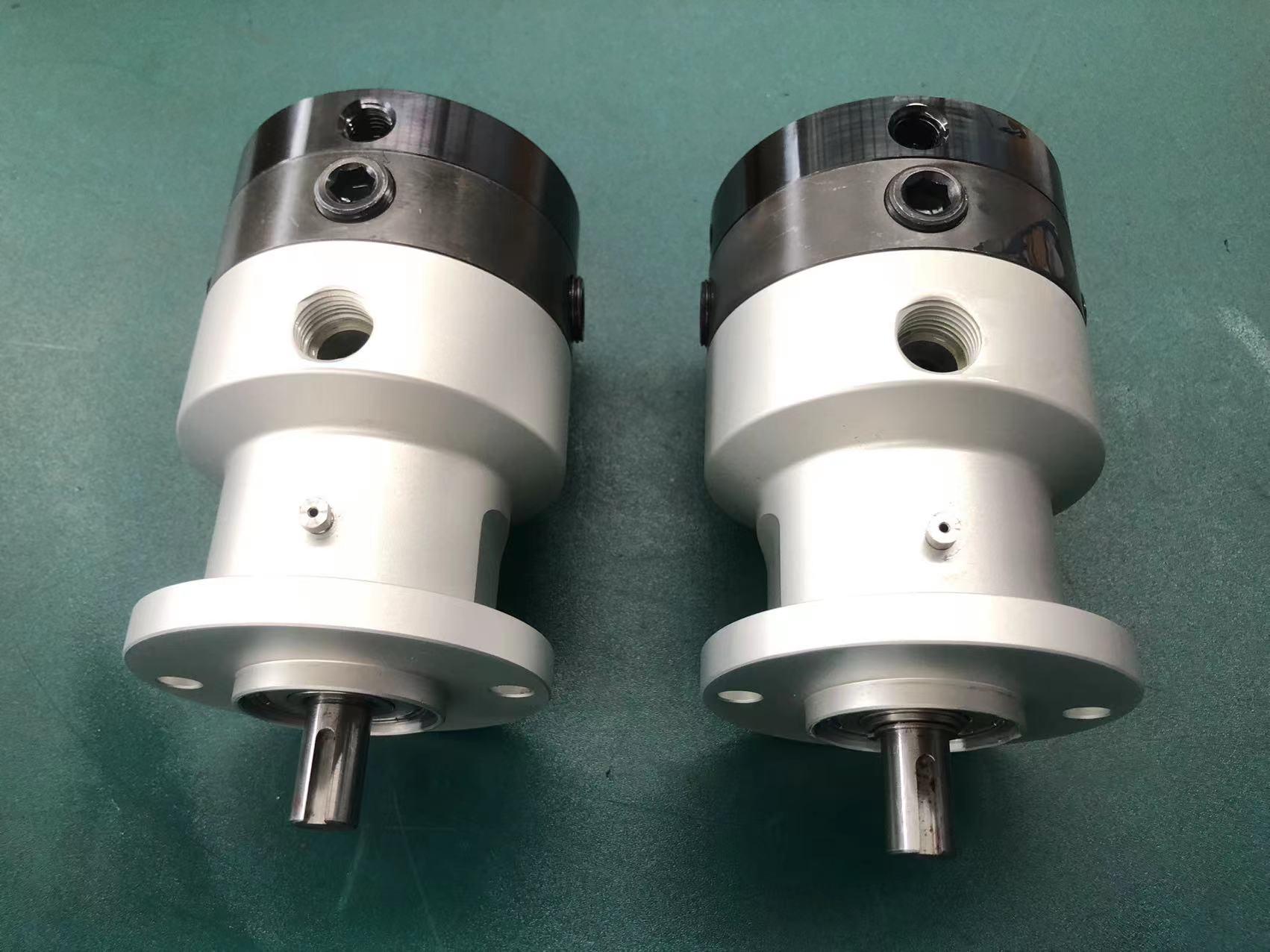

Product Real Photos :
