Model :FSV-20-MF9-J
USUN
Model :FSV-20-MF9-J

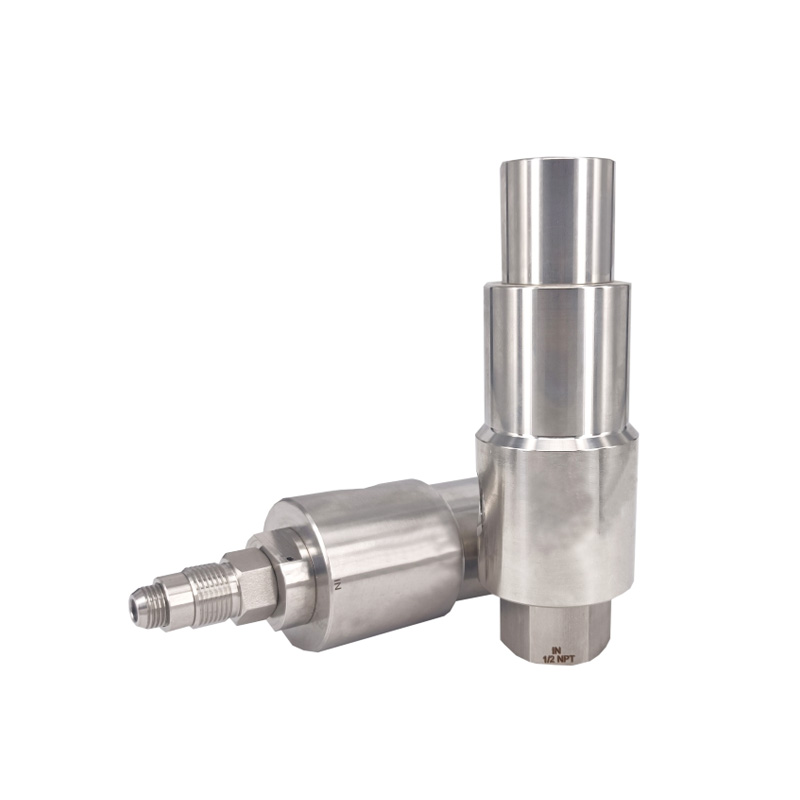

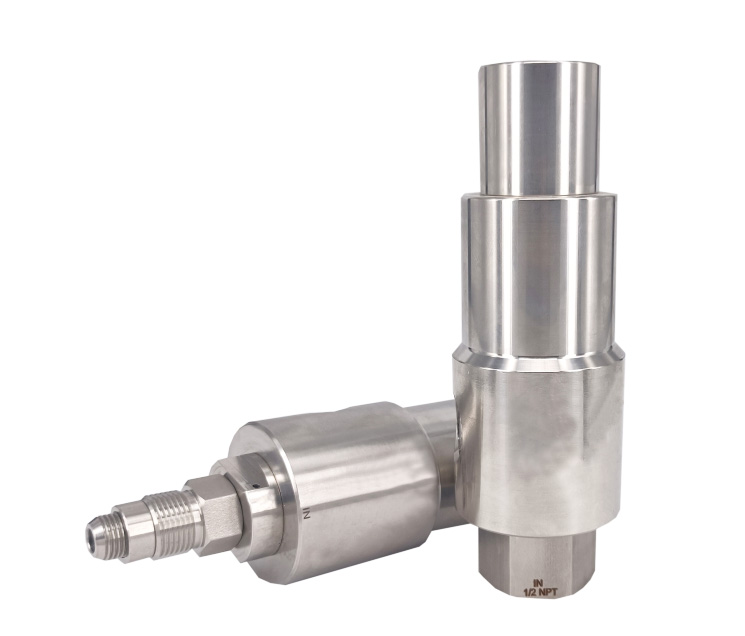

USUN Model : FSV-20-MF9-J Pressure Range 15000-20000 PSI Orifice 5.5 MM Stainless Steel Fall Lift Safety Relief Valve
The ultra-high pressure full-lift relief valve is engineered for demanding industrial environments and UHP fluid systems, serving as the ultimate safety barrier. Featuring a classic full-lift design, it instantly opens to maximum height at the set pressure, enabling rapid, unrestricted media discharge for supreme protection of critical equipment and piping.
Product features
★ Adopting 316 stainless steel or other alloys suitable for high-pressure hydrogen gas
★ The sealing material is made of special materials suitable for hydrogen gas
★The maximum set pressure is 1379Bar (20000psig)
★The working temperature range is -40 ℃ to 90 ℃
★ Stable pressure setting and high repeatability accuracy
★The difference between the resealing pressure and the set pressure is extremely small

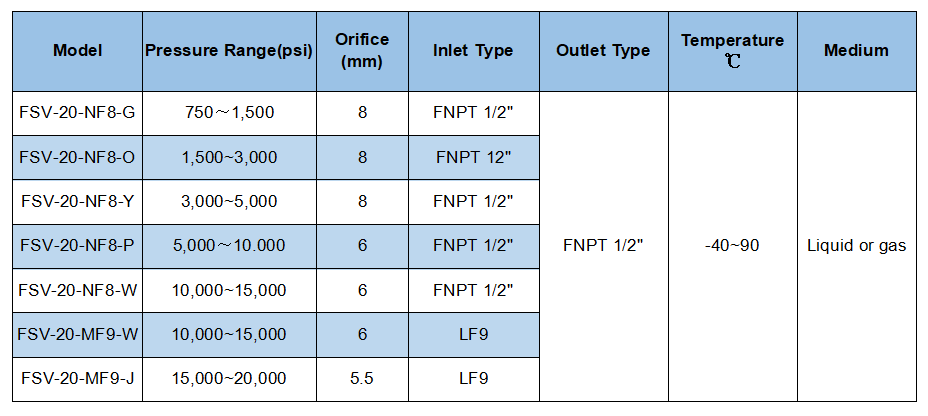

Product model information
Main technical parameters:
1.Work pressure range: 15000~20000 psi.
2.Inlet connection: 9/16 "O.D.
3.Outlet port connection: 1/2 "FNPT.
4.Diameter：∅4.
5.Working medium: gas, liquid.
6.Operating temperature：-40～90℃.

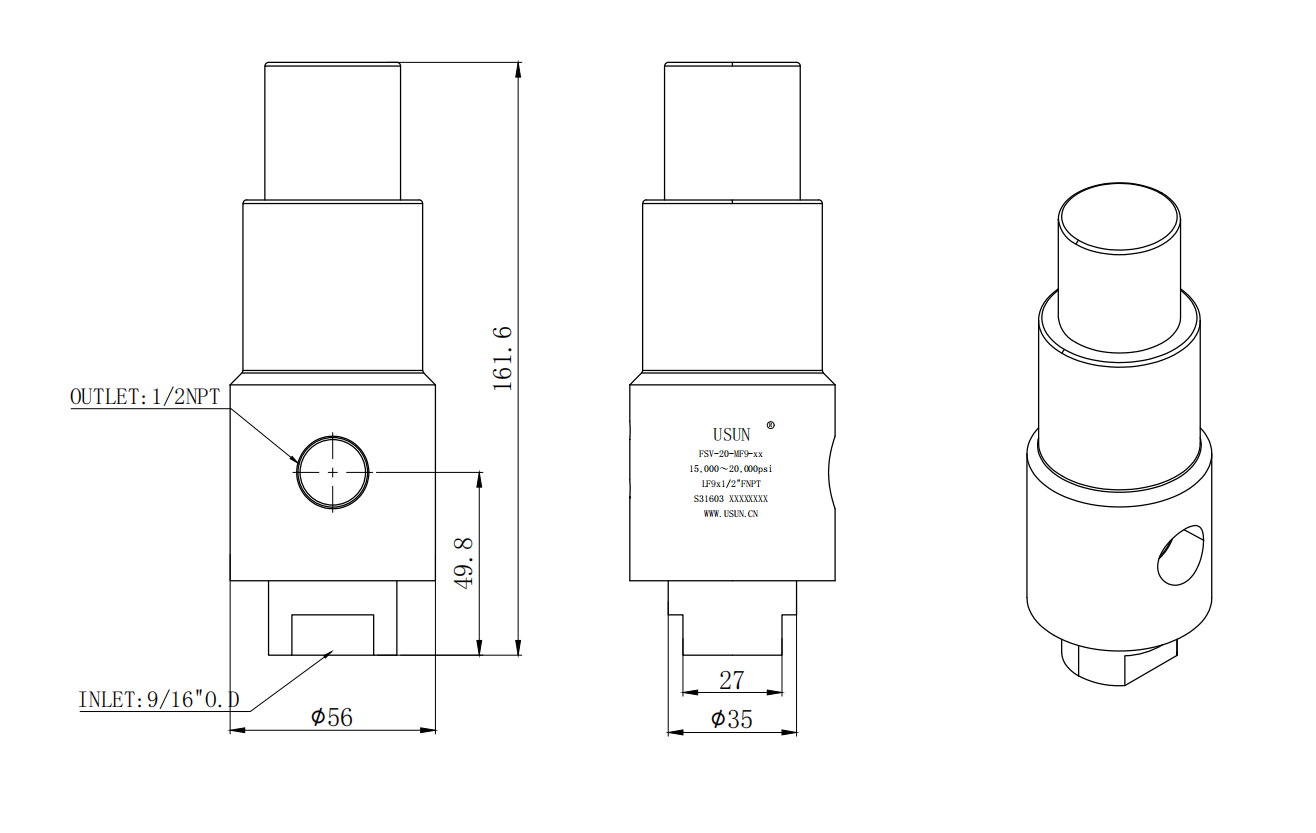

Product dimension drawing
