Model :GSR102-T-5-7um--K-V15
USUN
Model :GSR102-T-5-7um--K-V15/GSR103-T-10-7um--K-V15
USUN Model::GSR102-T-5-7um--K-V15 High pressure 10000 PSI Stainless steel 316 Filter with Indicator
for High pressure liquid or gas pump system
USUN Brand High pressure filter valve Features：
Up to 30,000 psig(2069 bar).
* Stainless steel wetted materials.
*Standard Buna N seals, other seals available.（ Regular stock is BUNA seals ）
*316 sintered elements, 316 stainless steel mesh elements, and glass
fiber elements available.
* Filter elements replaceable without removing body from the system.
* Filters with indicators available.
* Filters with drain port available.
High pressure filter Valve description :
GSR fiters are used to filter gases or liguids in high-pressure systems,
The fiter element can be easily replaced on site without theneed to disassemble the main body from the system.
The filtering unit is made of sintered materials (316 sintered elements, 316stainless steel mesh elements, and fiberqlass elements).

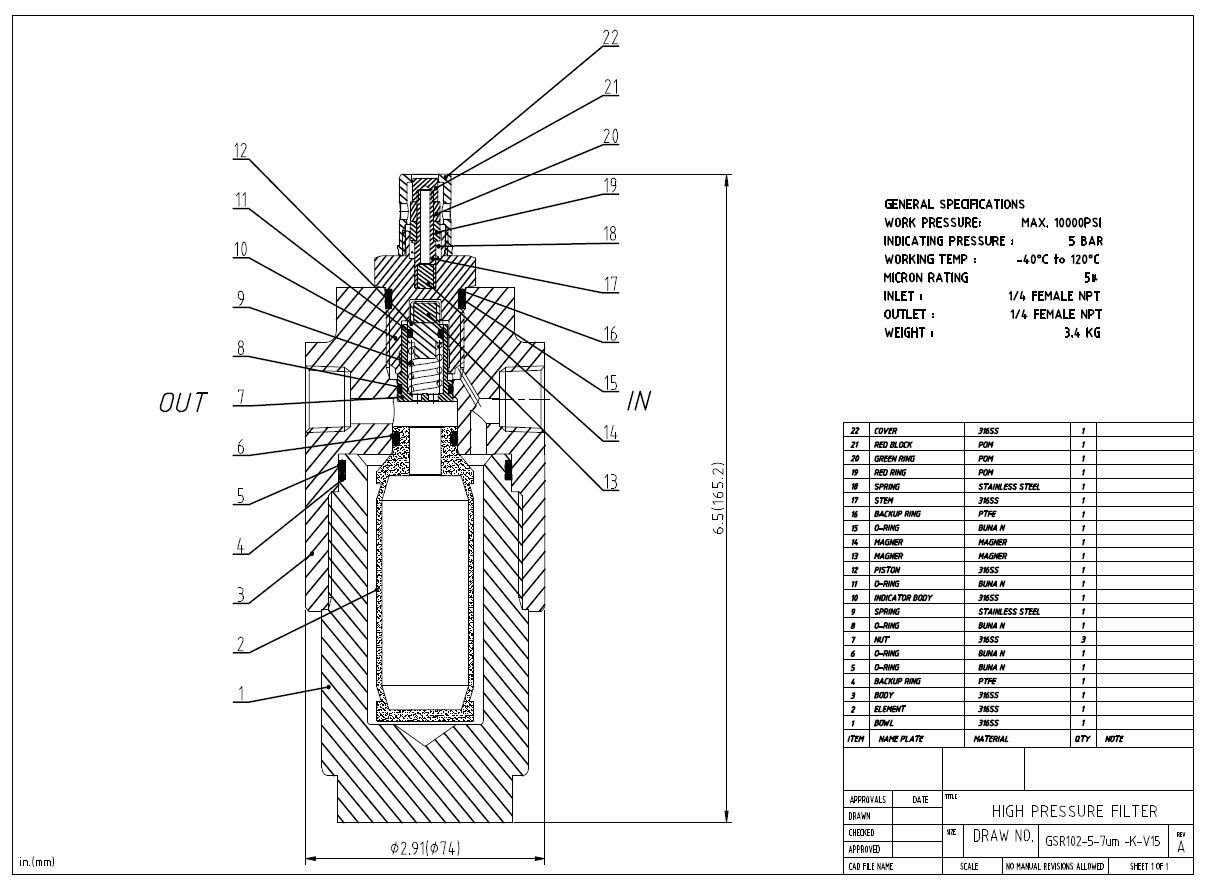

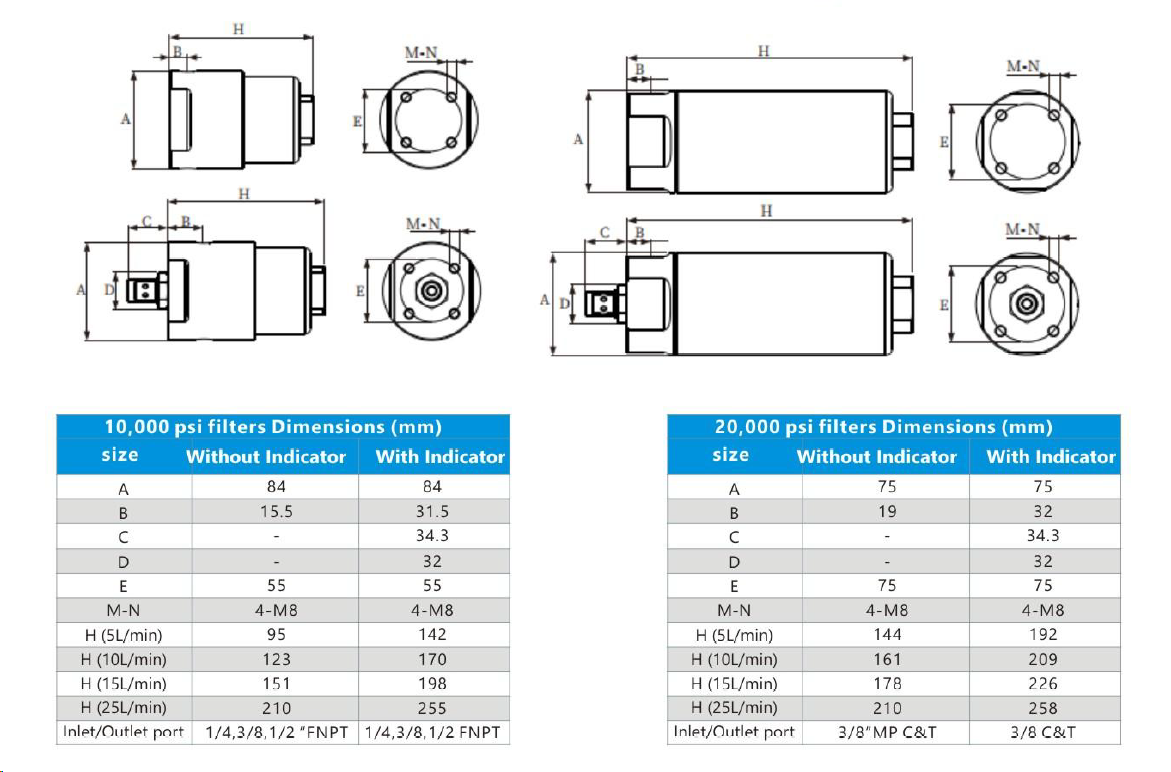

High pressure filter technical drawing :
High pressure filter with indicator specified drawing :

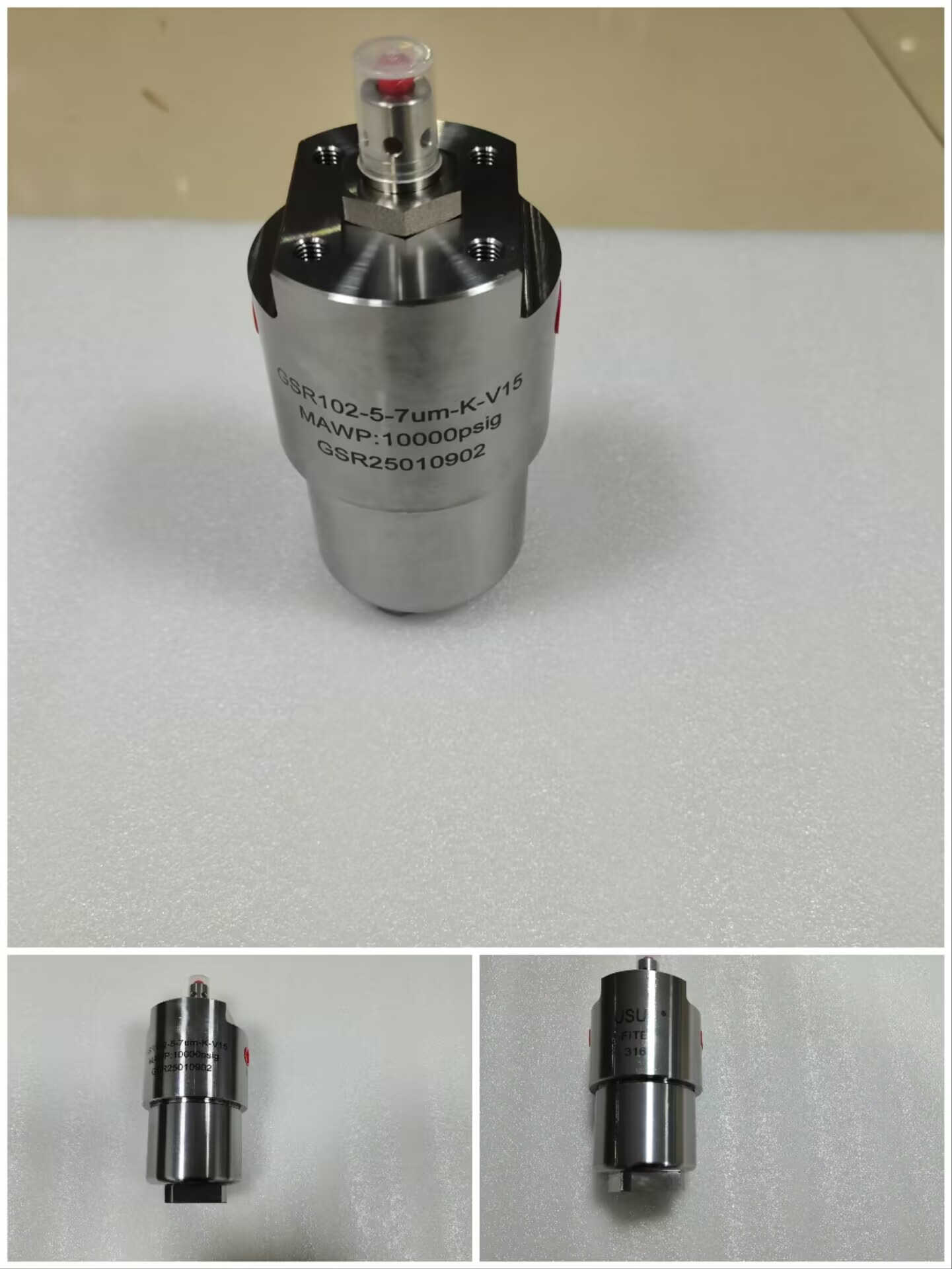

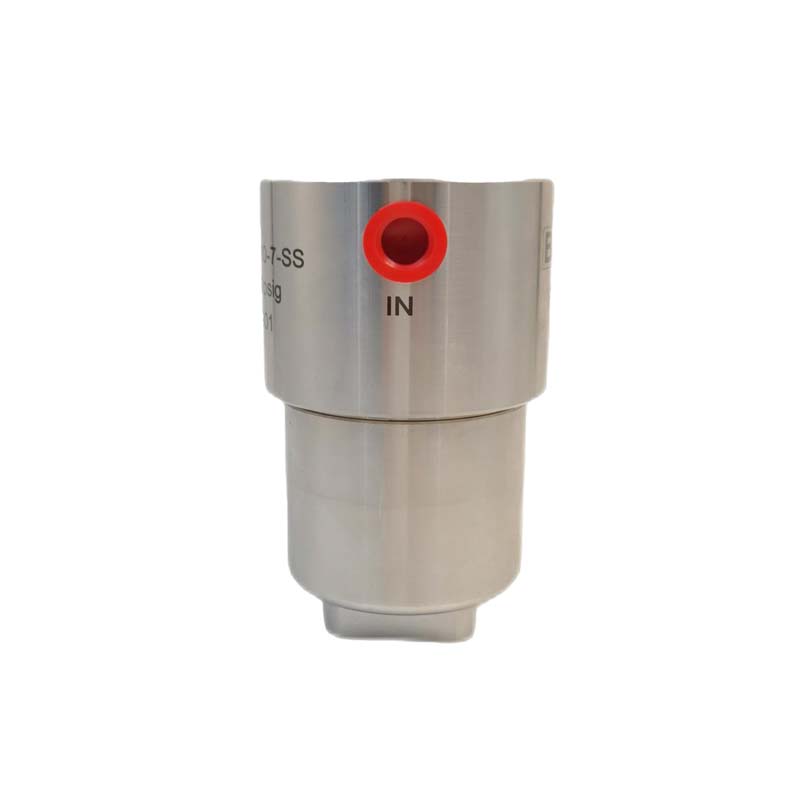

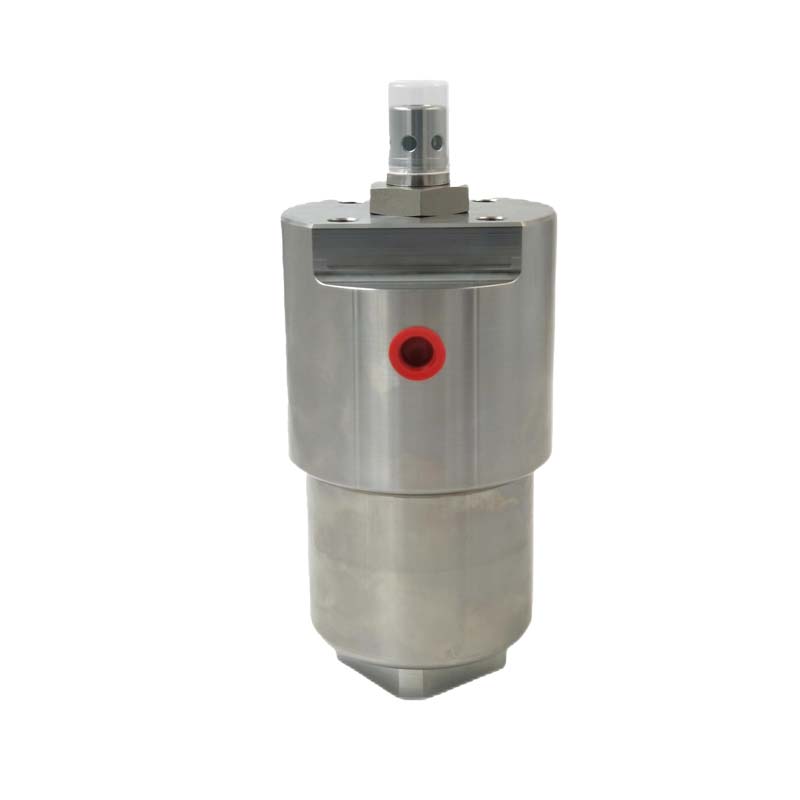

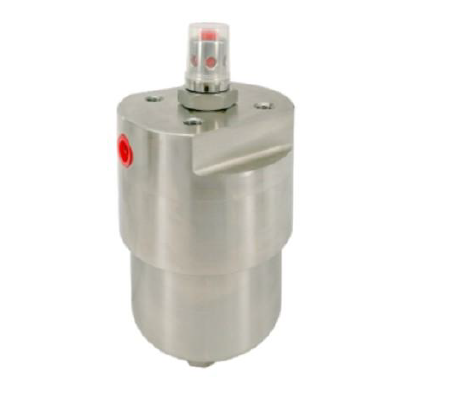

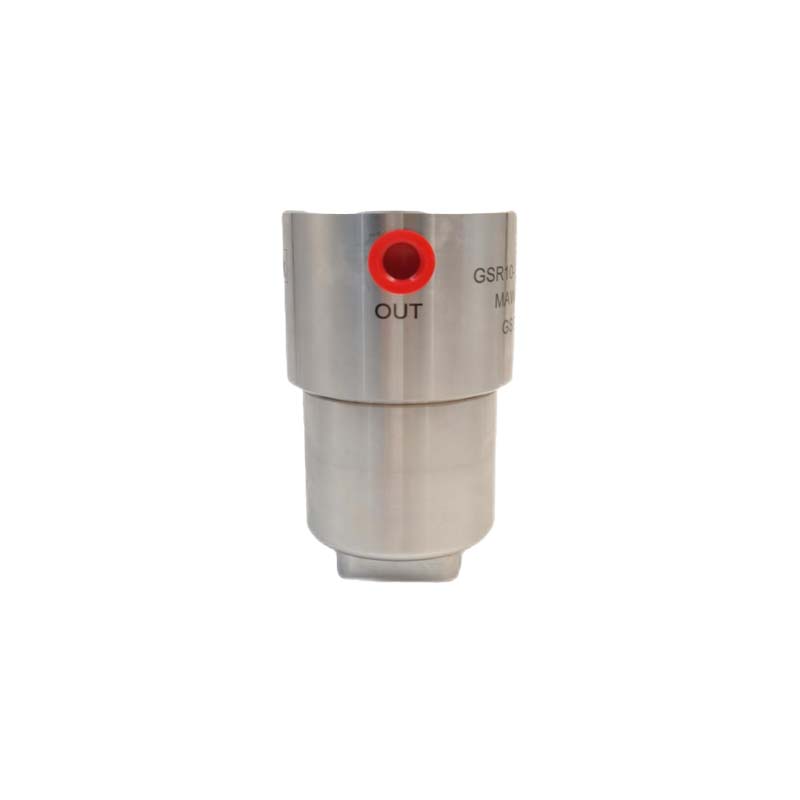

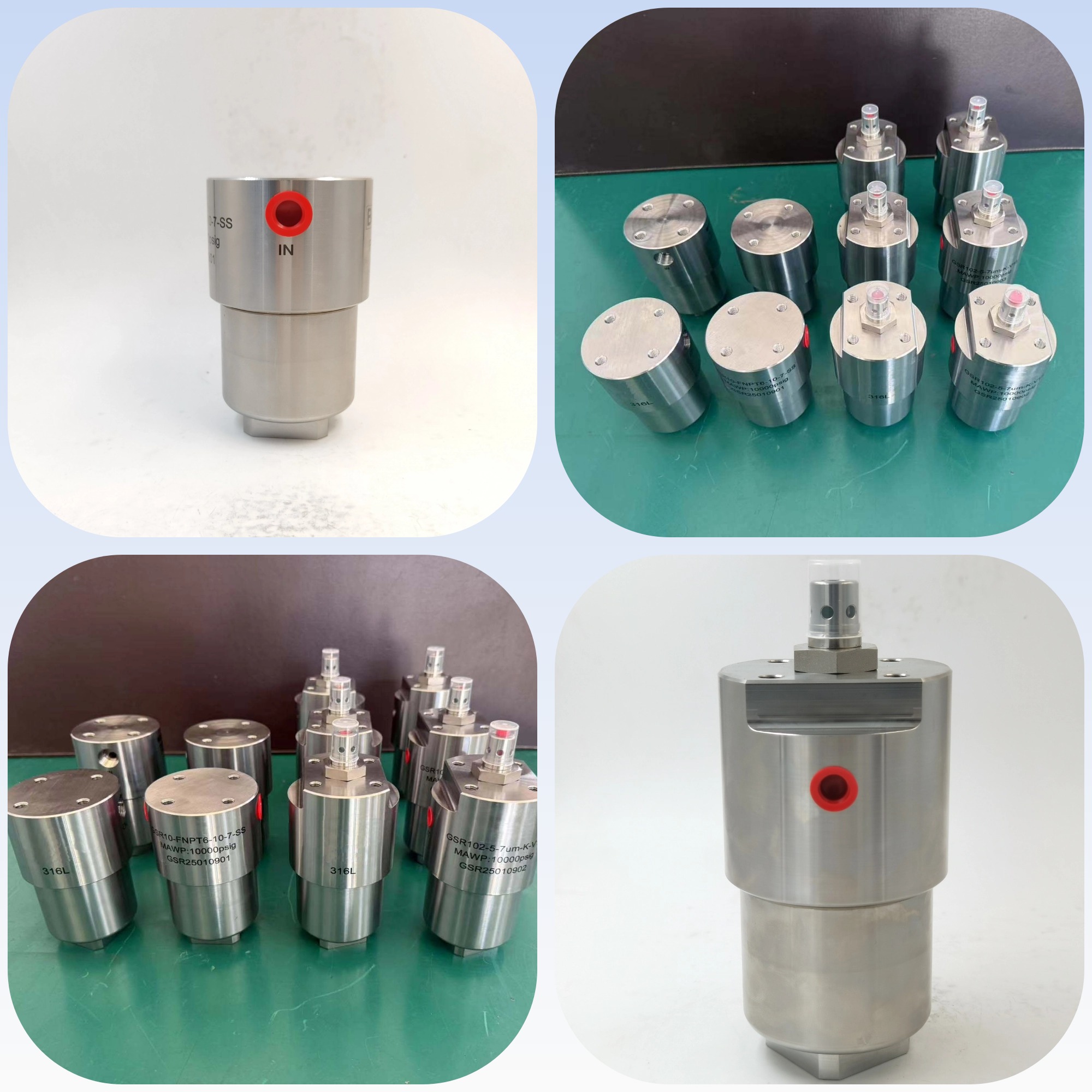

Real photos of such High pressure stainless steel high pressure filter with indicator and without indicator
USUN Model::GSR102-T-5-7um--K-V15 High pressure 10000 PSI Stainless steel 316 Filter with Indicator
for High pressure liquid or gas pump system
USUN Brand High pressure filter valve Features：
Up to 30,000 psig(2069 bar).
* Stainless steel wetted materials.
*Standard Buna N seals, other seals available.（ Regular stock is BUNA seals ）
*316 sintered elements, 316 stainless steel mesh elements, and glass
fiber elements available.
* Filter elements replaceable without removing body from the system.
* Filters with indicators available.
* Filters with drain port available.
High pressure filter Valve description :
GSR fiters are used to filter gases or liguids in high-pressure systems,
The fiter element can be easily replaced on site without theneed to disassemble the main body from the system.
The filtering unit is made of sintered materials (316 sintered elements, 316stainless steel mesh elements, and fiberqlass elements).
High pressure filter technical drawing :
High pressure filter with indicator specified drawing :
Real photos of such High pressure stainless steel high pressure filter with indicator and without indicator
