HI10141-NC-T
USUN
HI10141-NC-T

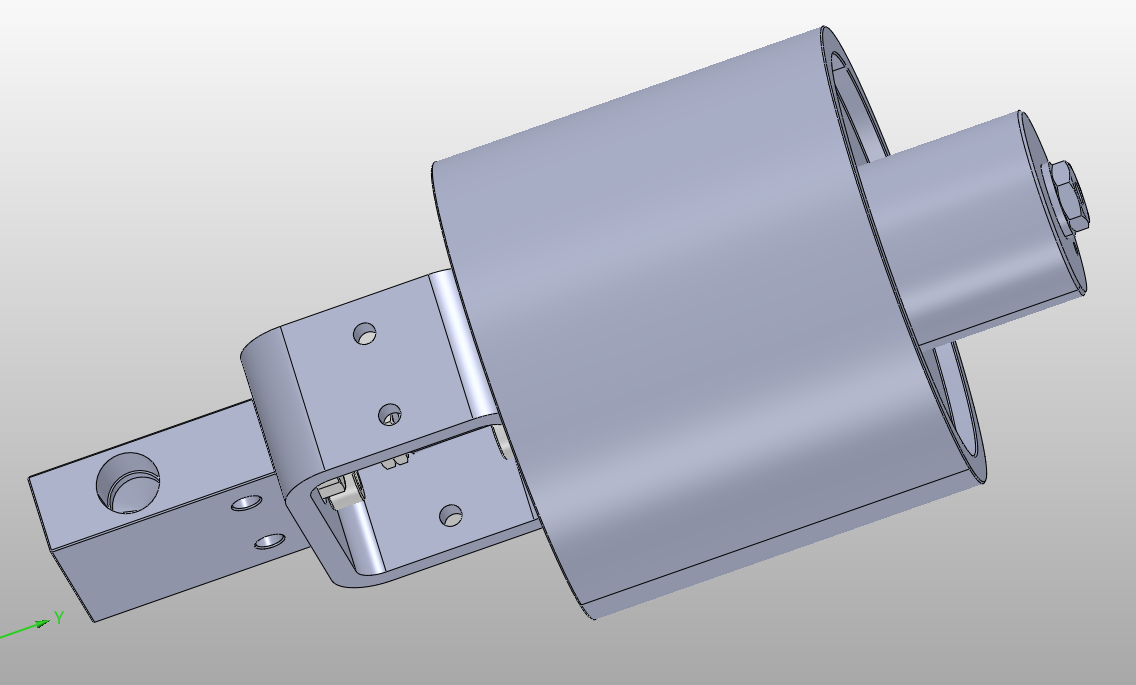

USUN Model : HI10141-NC-T 10K Psi 2-Way Straight Normally Closed Sent Air Operated Needle Valve with NPT1/2 Female Thread
HI type Air Driven Needle Valves features:
1.Pneumatic valve actuators are all piston type design, reliable operation, long life.
2.Mounted on manual valves to provide remote control.
3.Separated stem design, easy to adjust the stroke and replace the stem.
4.The actuator is made of anodized alumina, which has good corrosion resistance and is more portable.
Technical Parameter
1)Actuator maximum allowable working pressure: 100 psi (6.89 bar)
2)Allowable piston temperature range: -29°C~ 93°C (-20°F ~ 200°F).
3)Maximum working pressure: 60,000 psi (4,137 bar)
4)Working medium: gas, oil and water.
5)Standard operating temperature:-50°C~200°C (-58°F ~ 392°F).

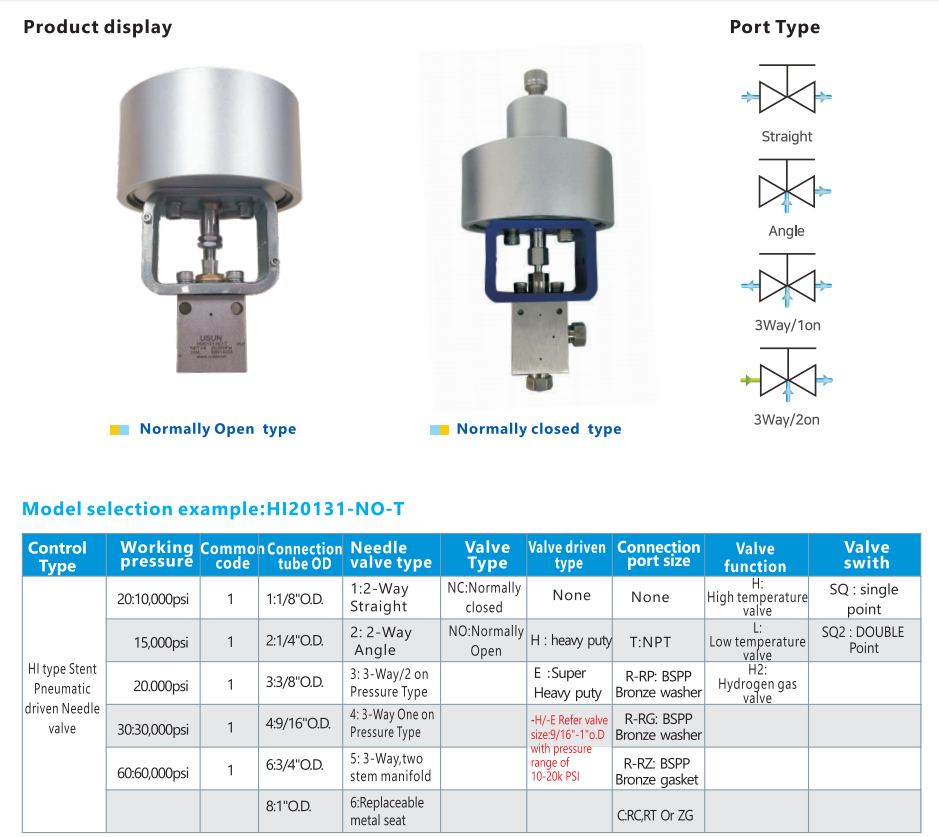

Product model information

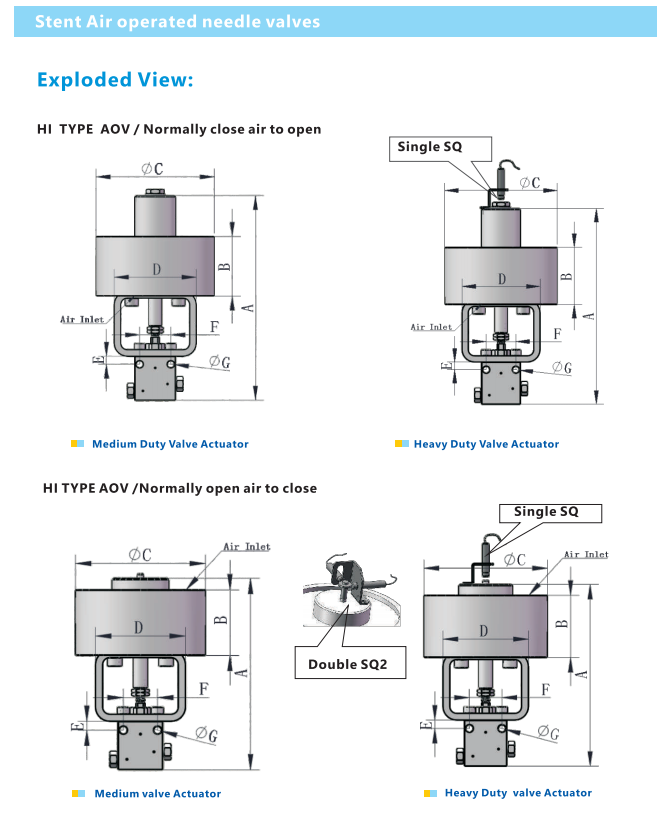

Product structure

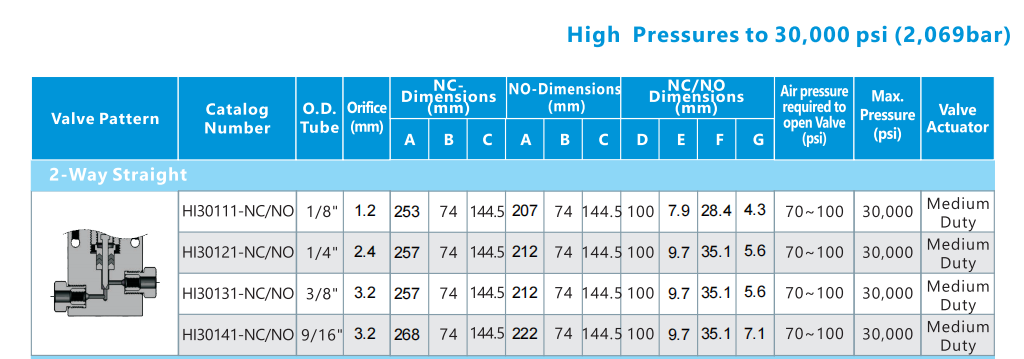

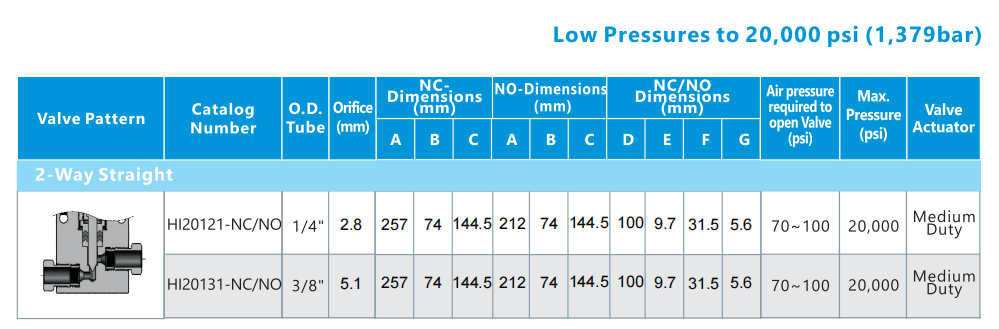

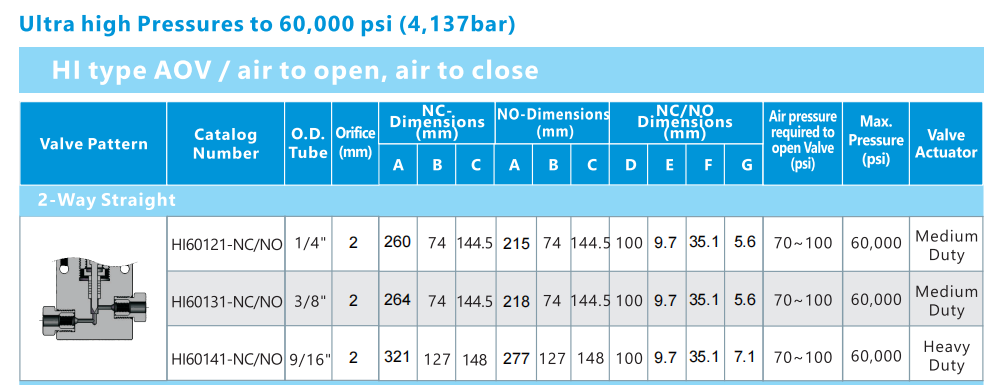

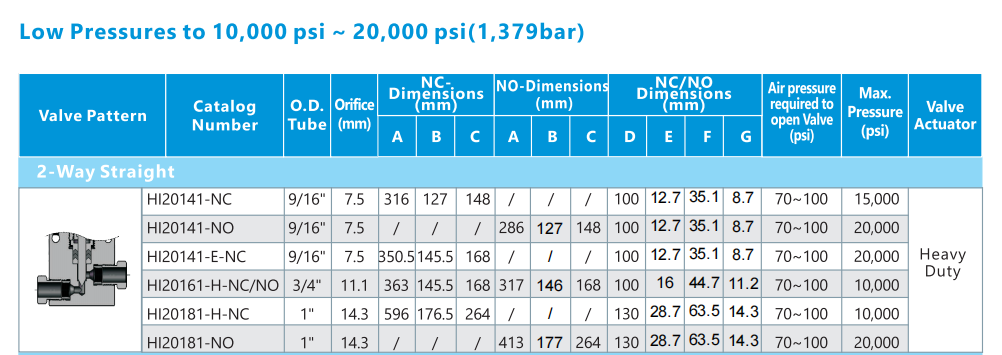

Product specifications

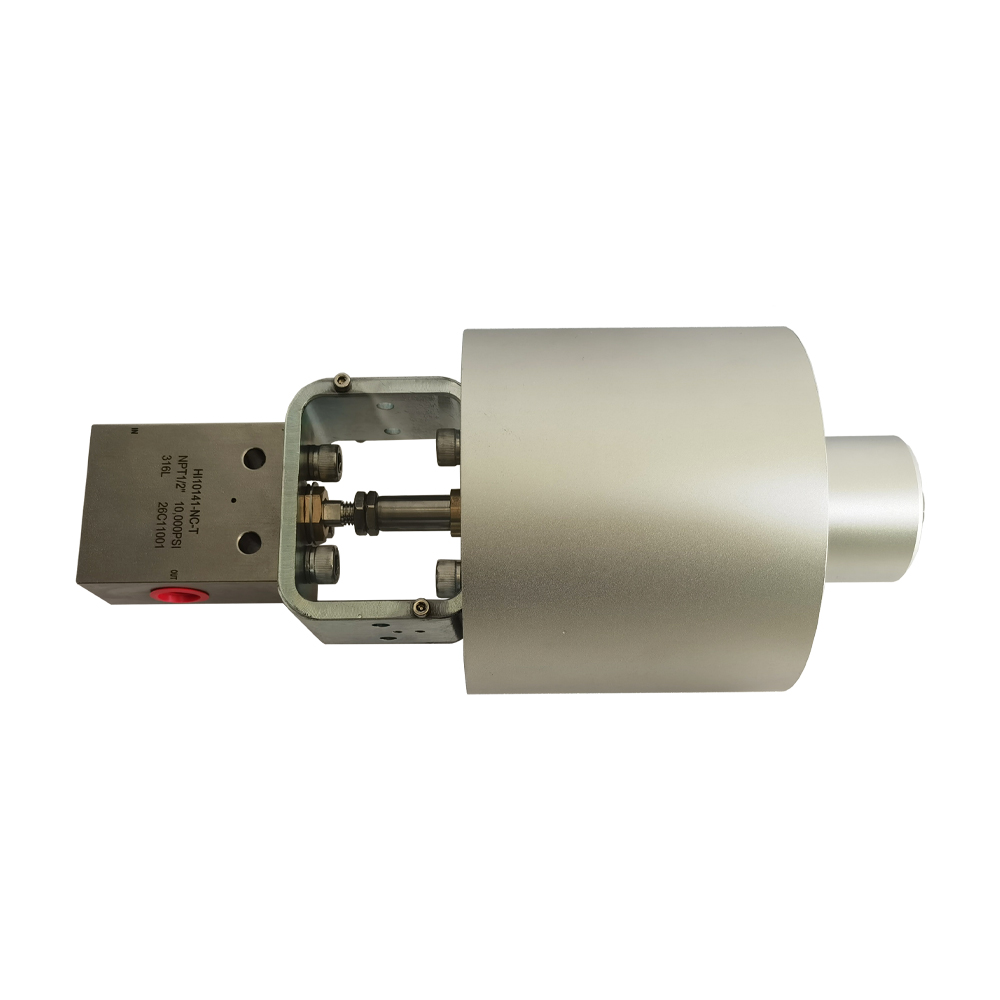

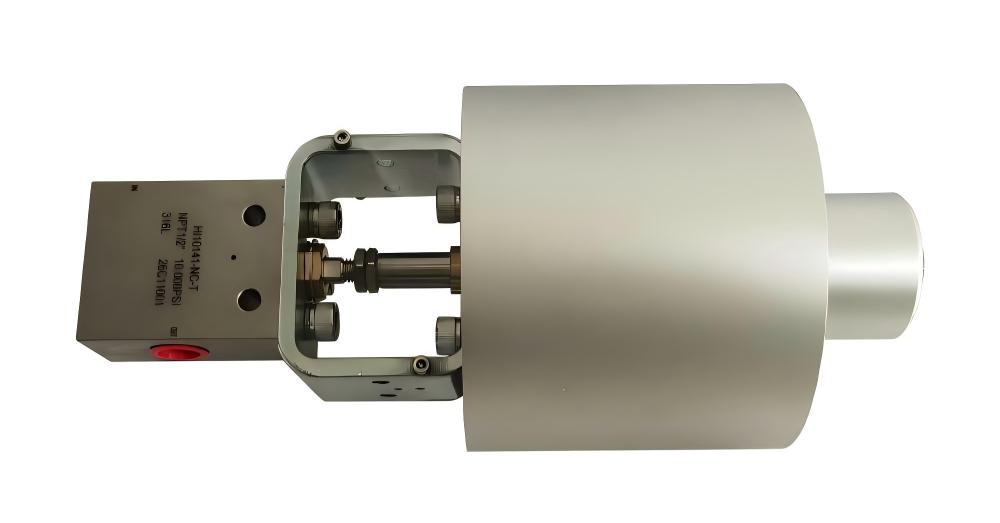

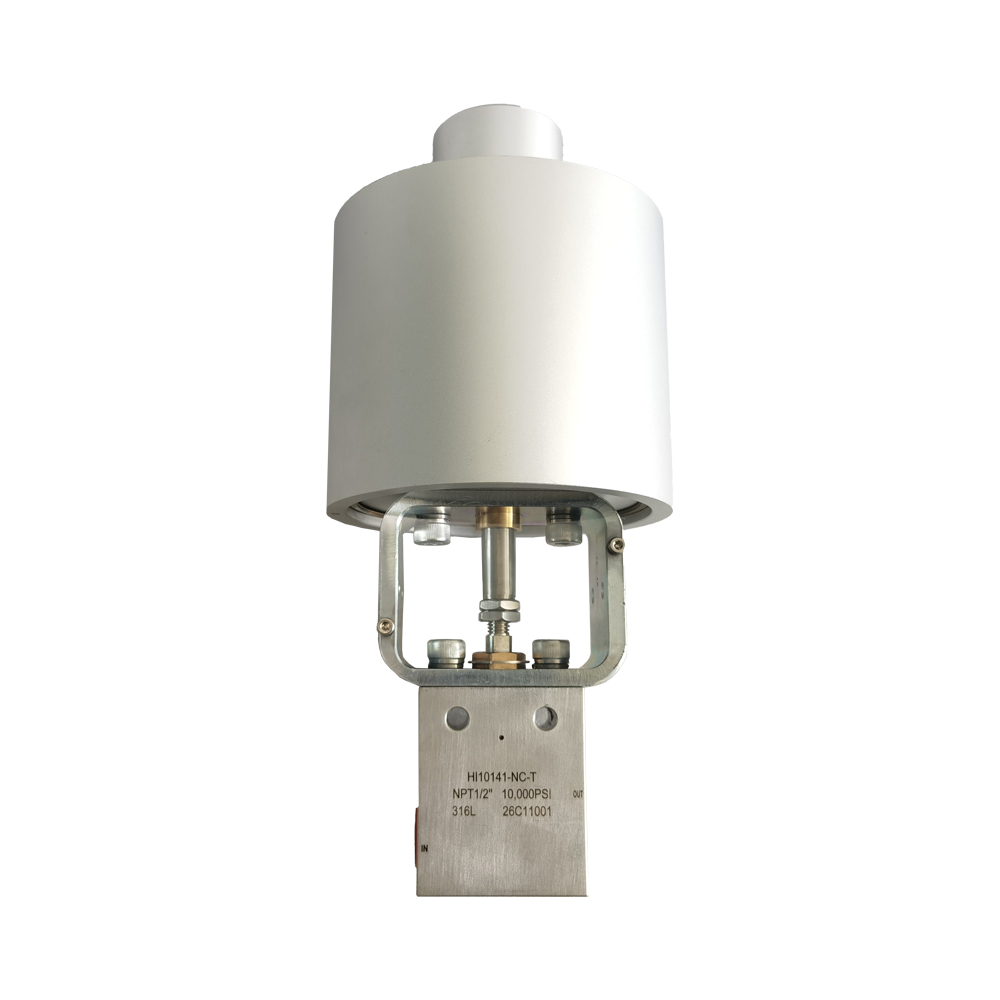

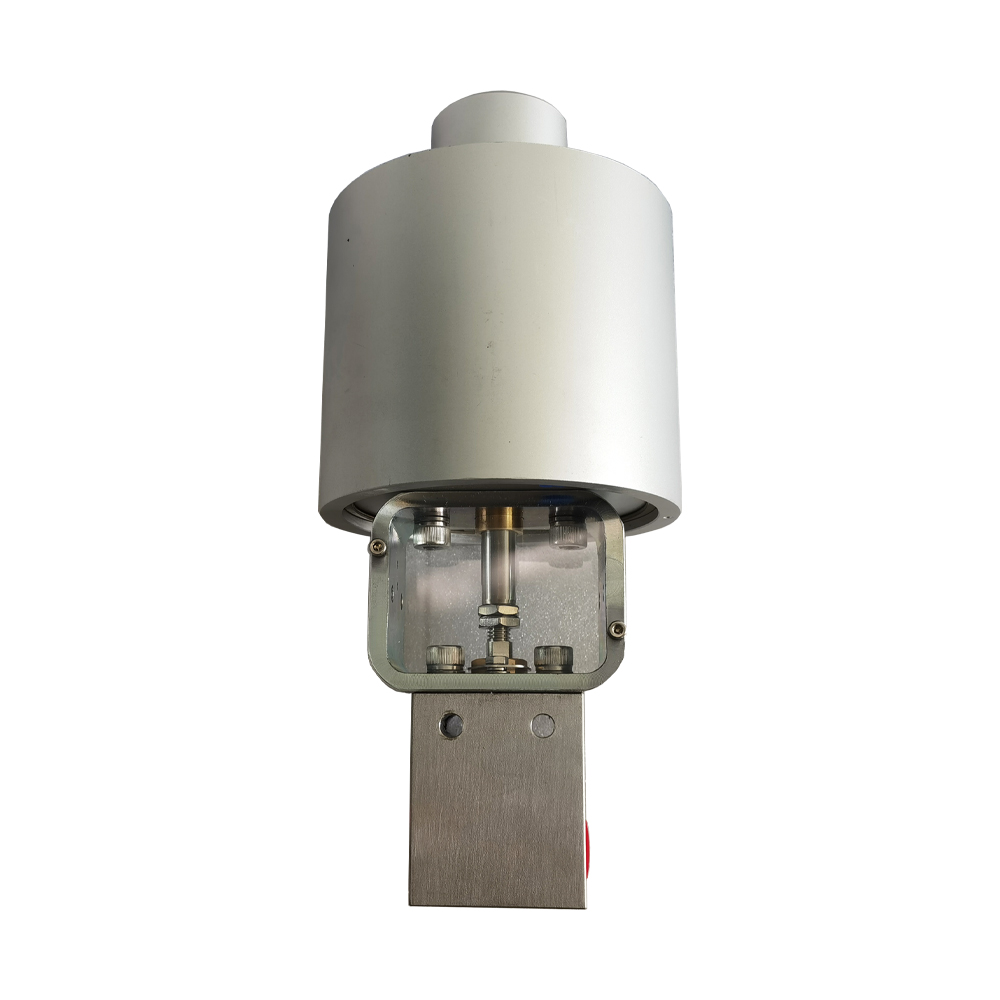

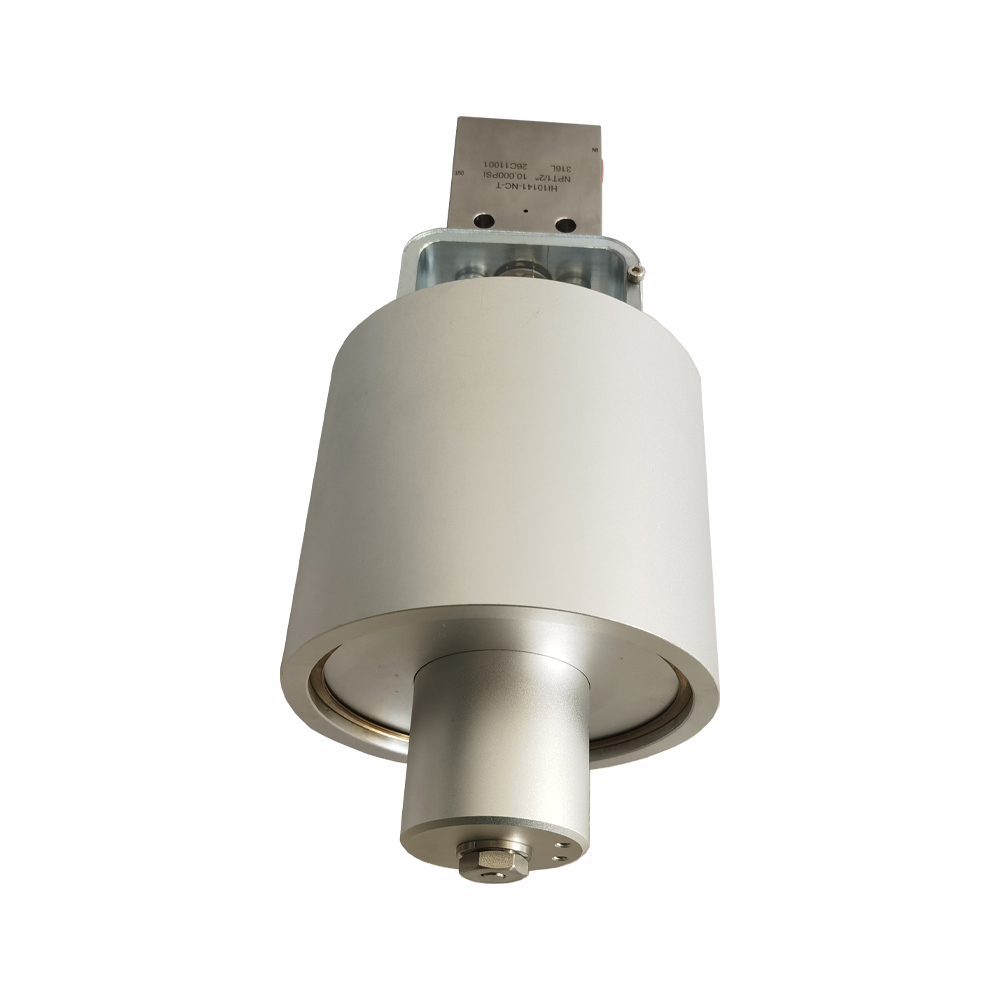

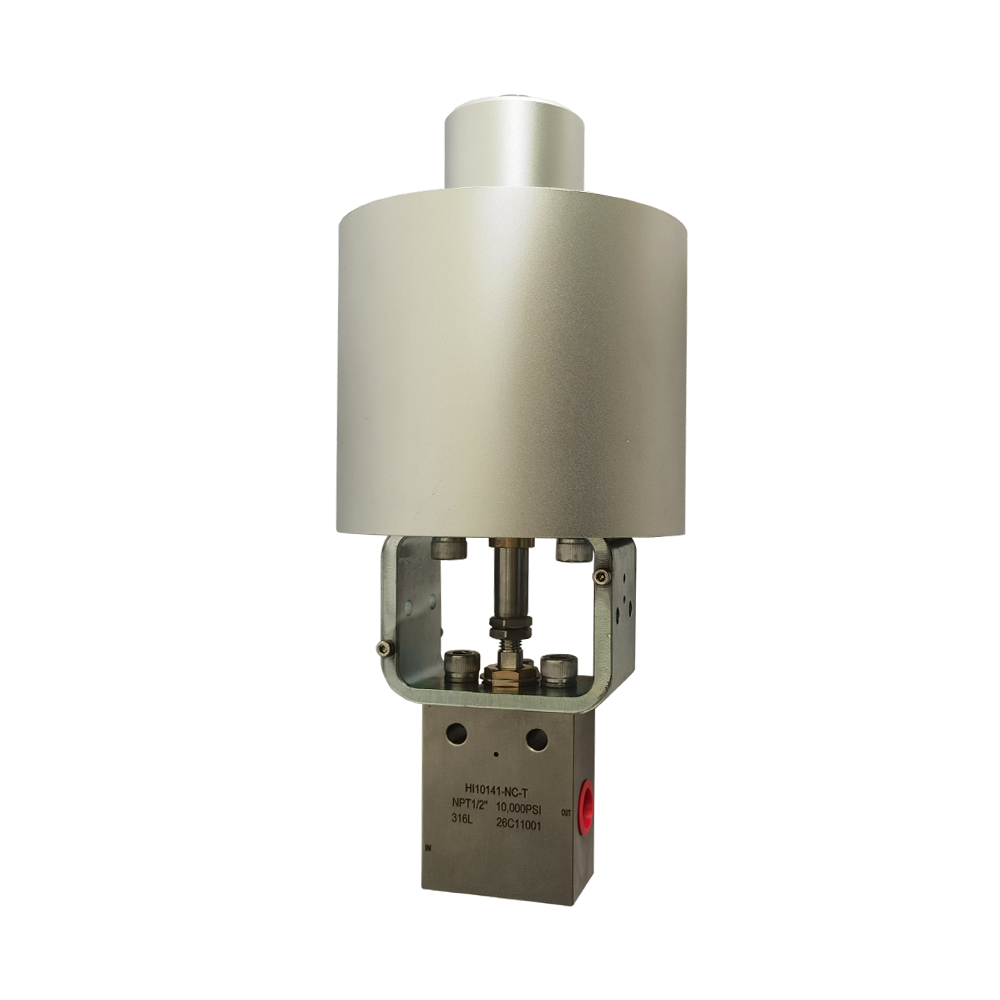

Product real photos:
