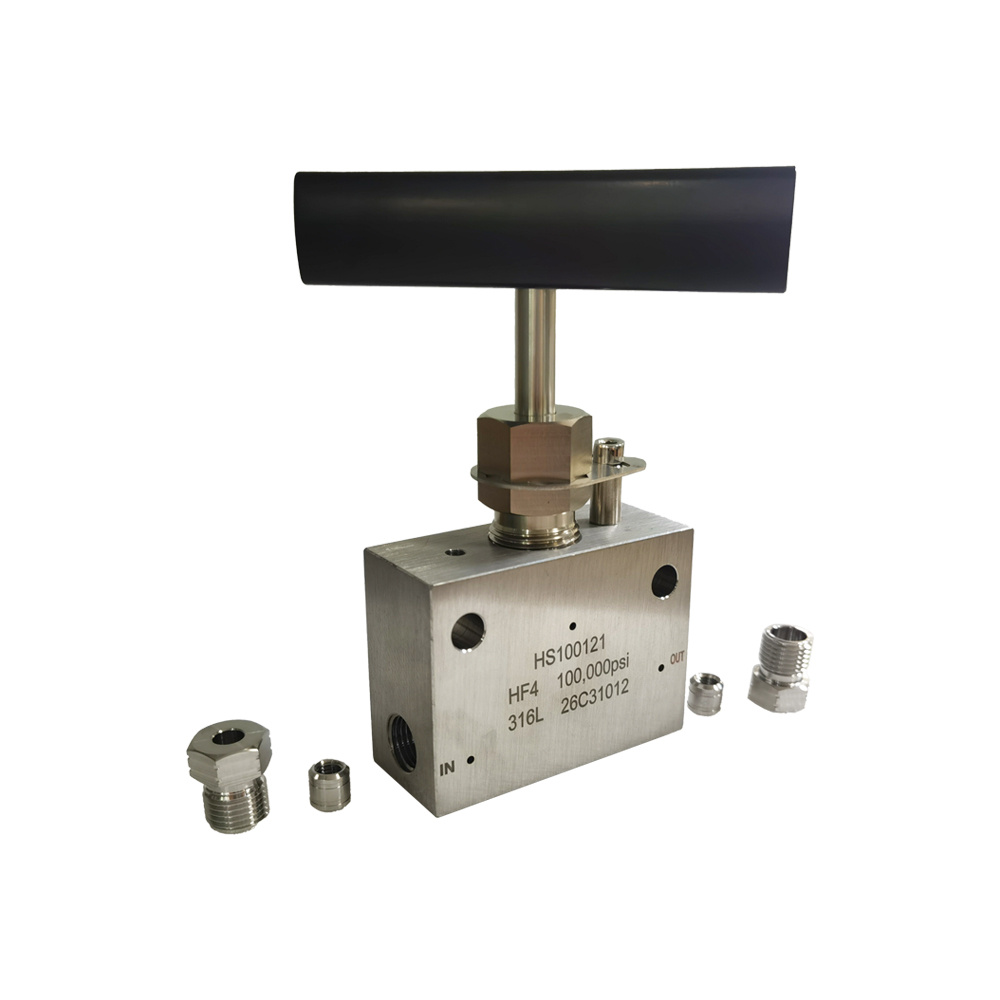

USUN Model:HS100121 O.D.1/4''100,000 PSI Ultra High Pressure 2-Way Straight Stainless Steel Manual Needle Valve

USUN Model :HS100121 O.D.1/4''100,000 PSI Ultra High Pressure 2-Way straight stainless steel manual needle valve

Product features :

• Maximum working pressure:100,000psi(6,900bar).

•Operating temperature:-50℃~200℃C (-58°F~392°F)

• Pressure parts are made of high-quality corrosion-resistant stainlesssteel.

• Metal hard seal with a high level of safety and reliability for both gas and liquid needle and seat with longer life and durability.

•The valve needle and valve stem are non-rotatingwhich in creasesthe service life and reliability of the valve.

•Adopt stainless steel stem with aluminum bronze gland for optimal threaded cycle life and reduced torque.

•Ensure traceability through fully recorded data (Batch No., Maximum Pressure Material No., Type Name).

• All needle valves are equipped with gland and collar.

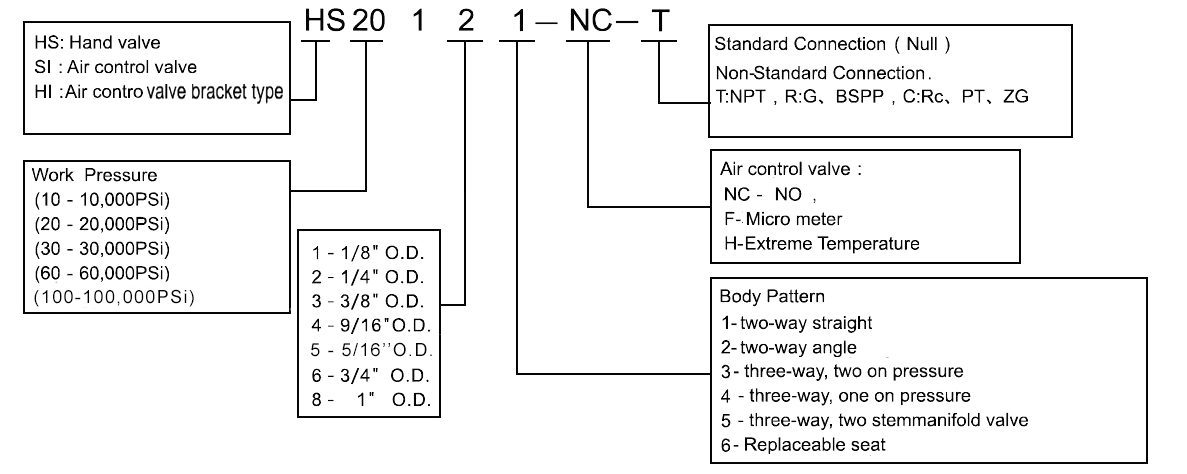

Product model information

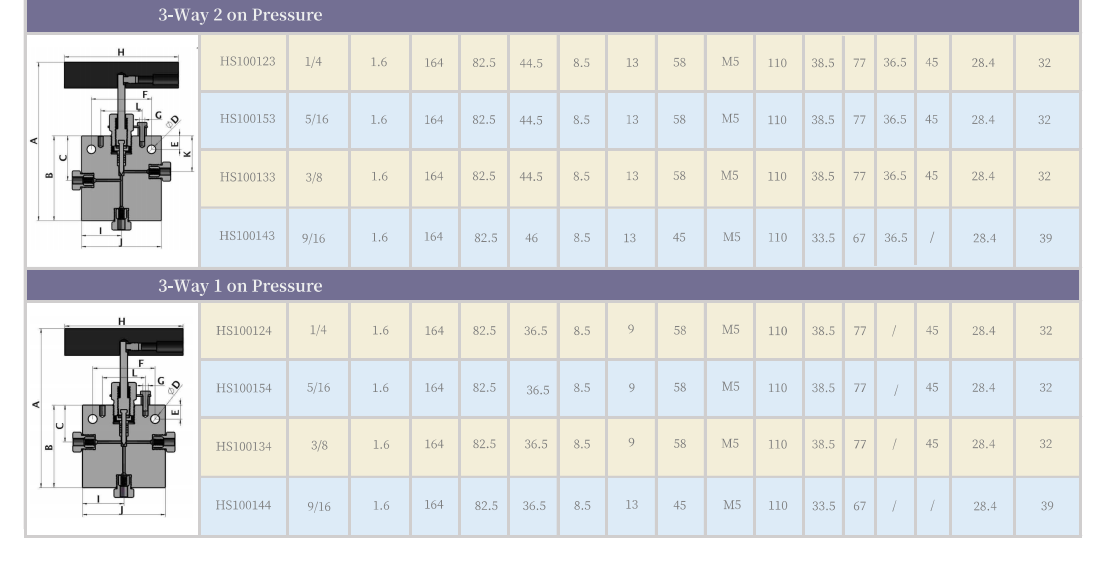

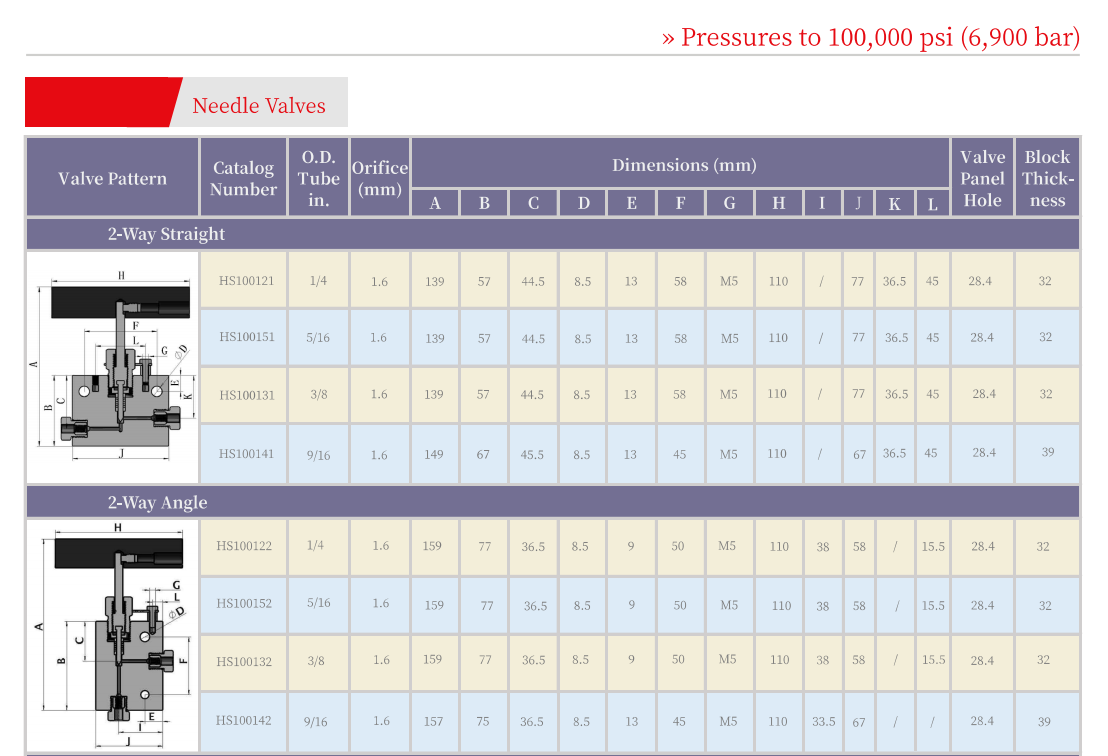

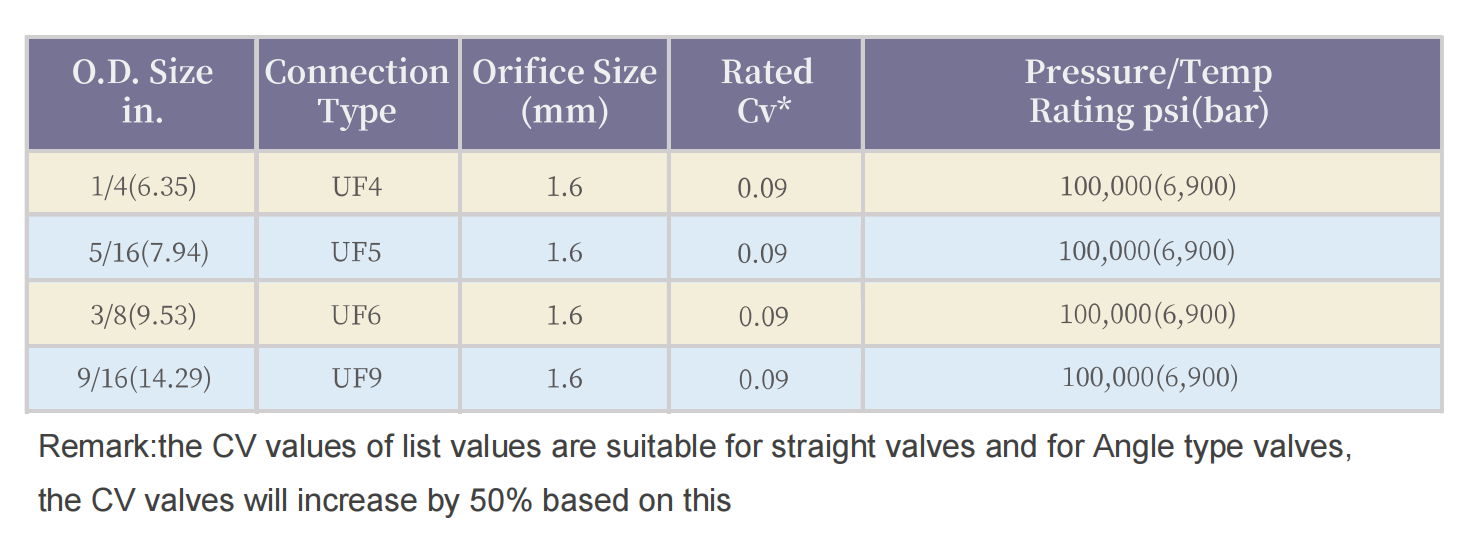

Product specifications

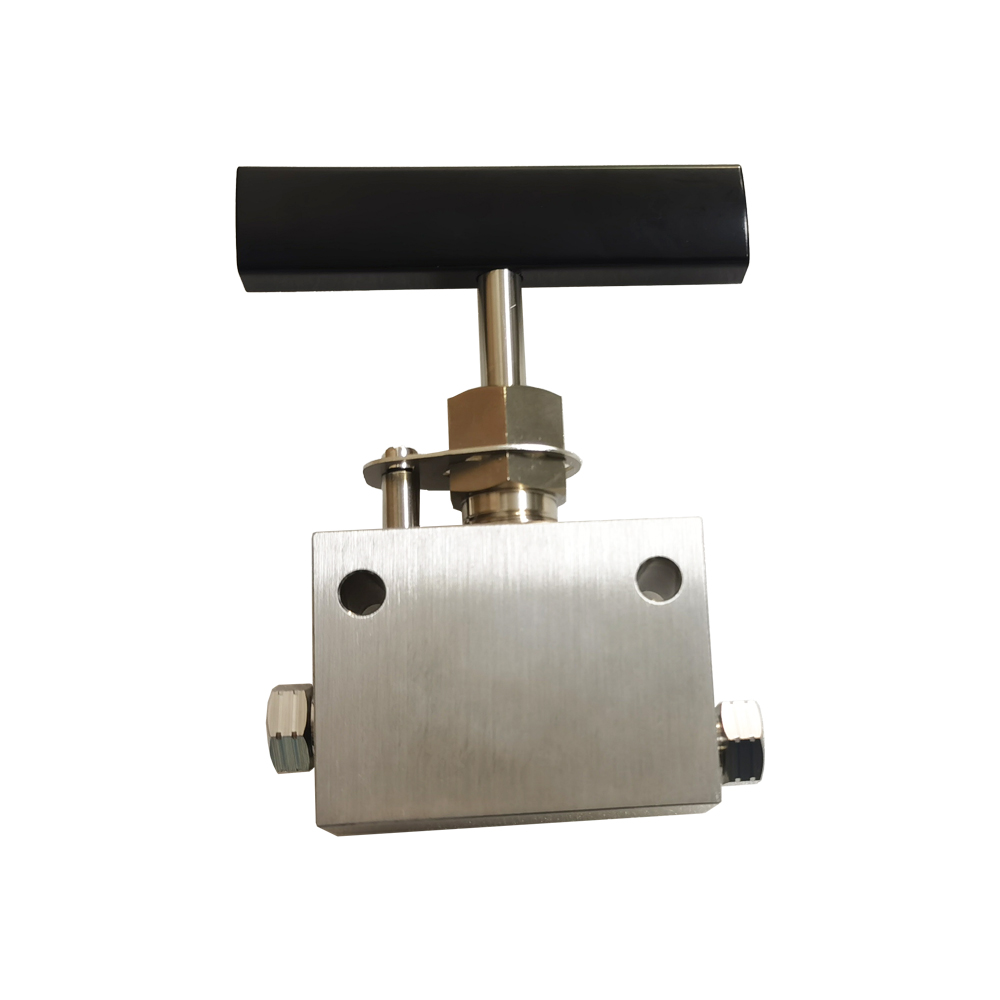

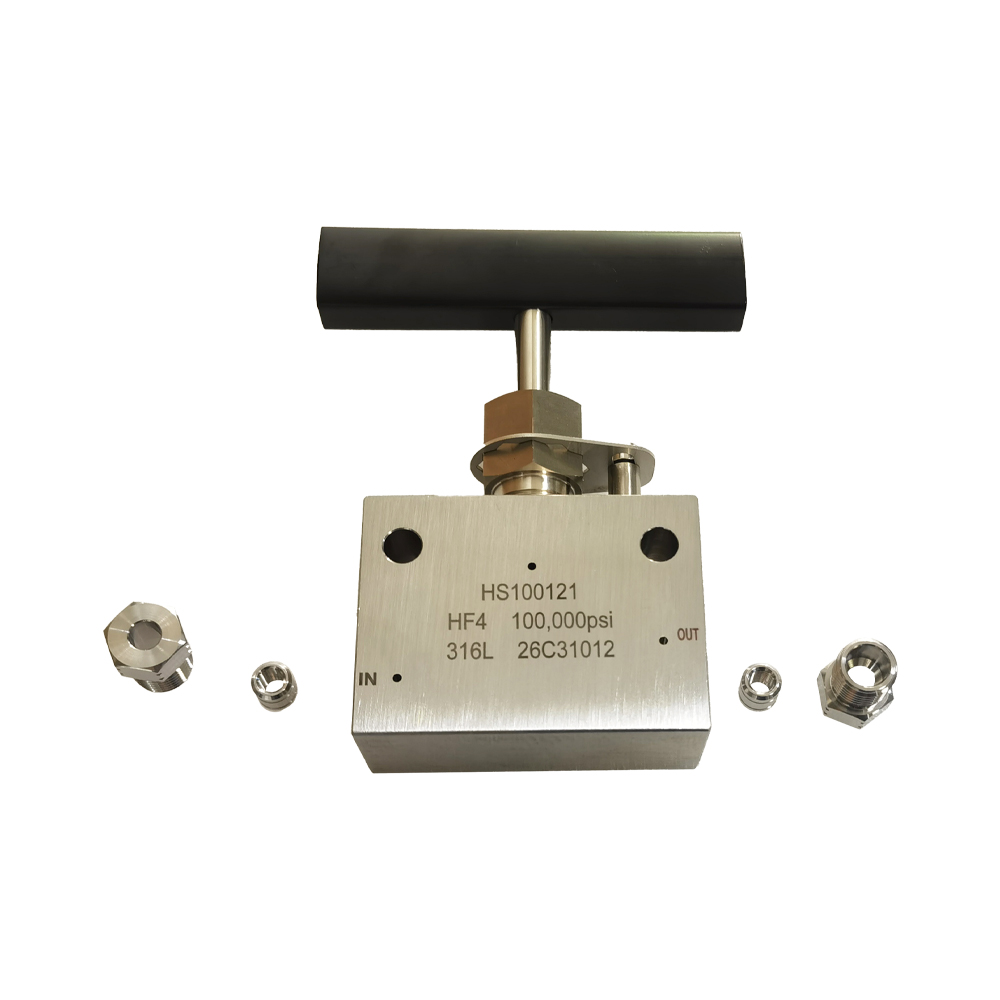

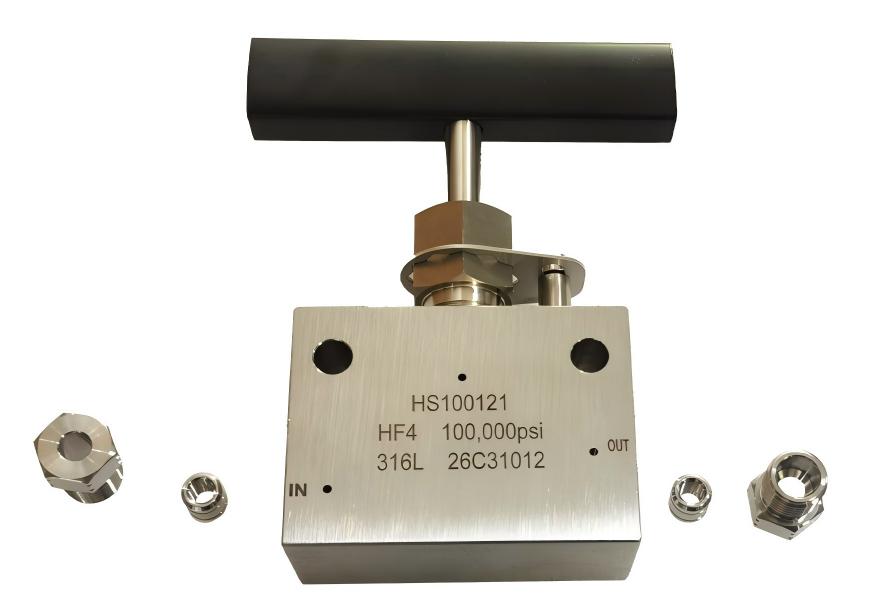

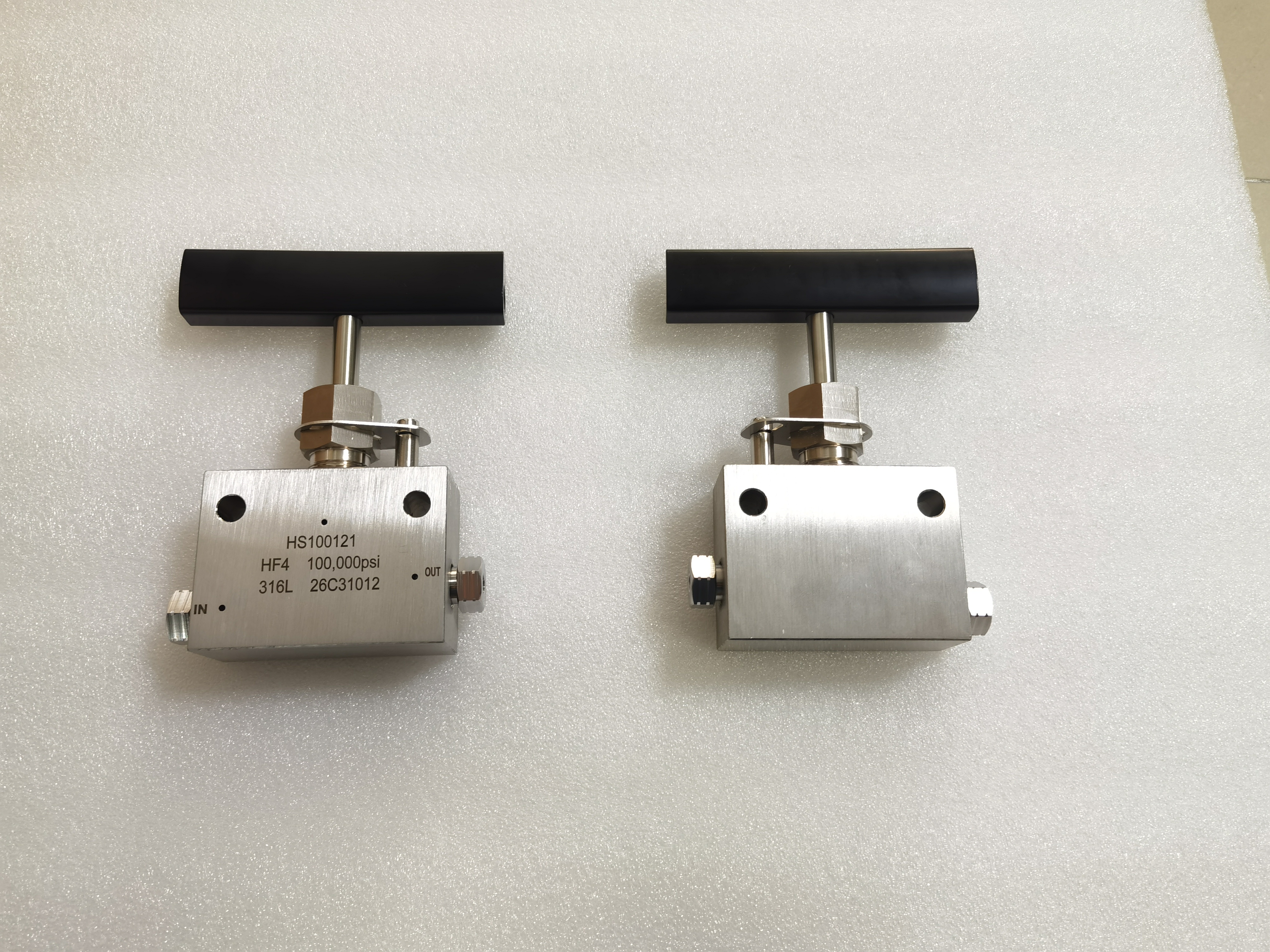

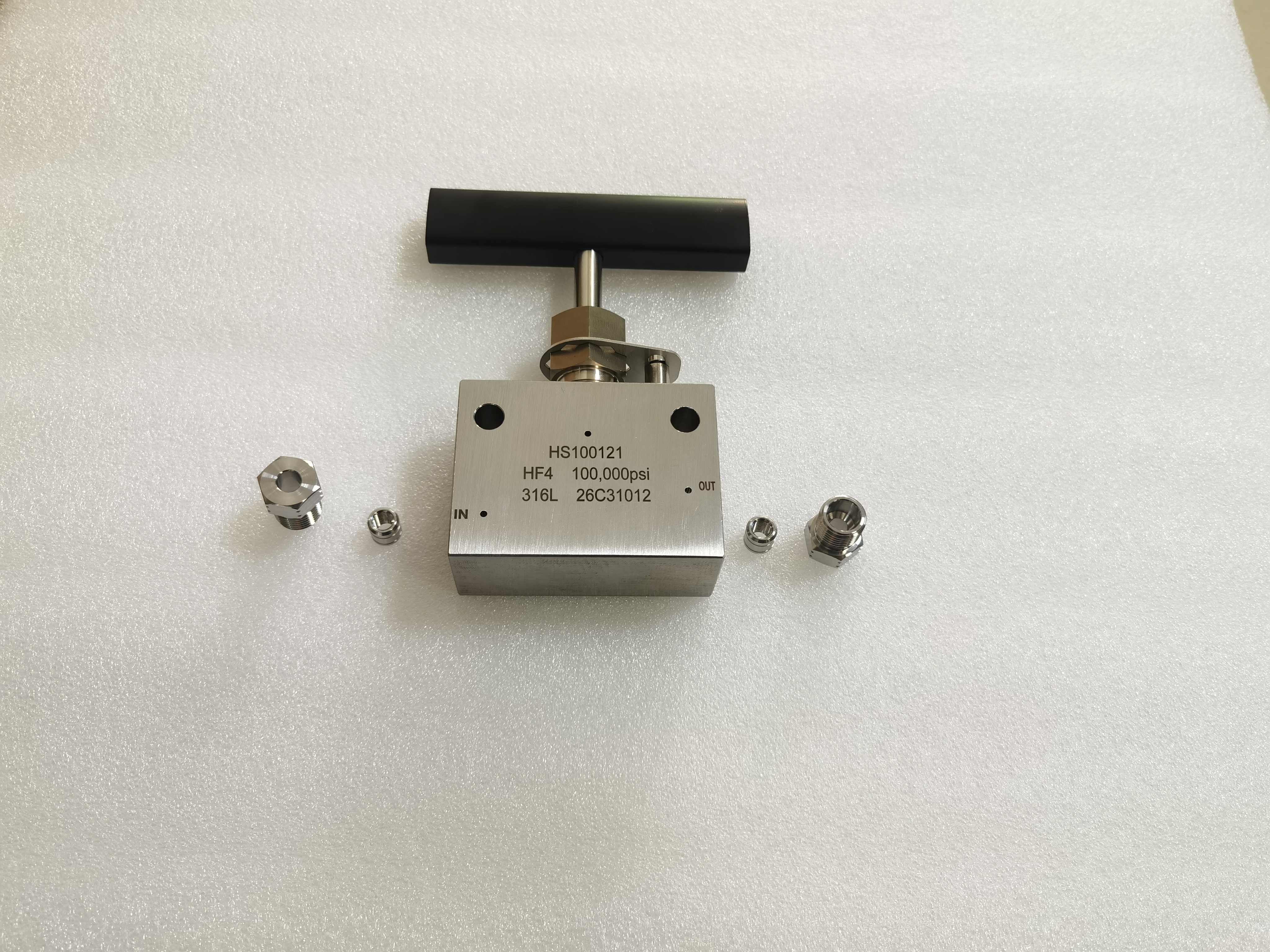

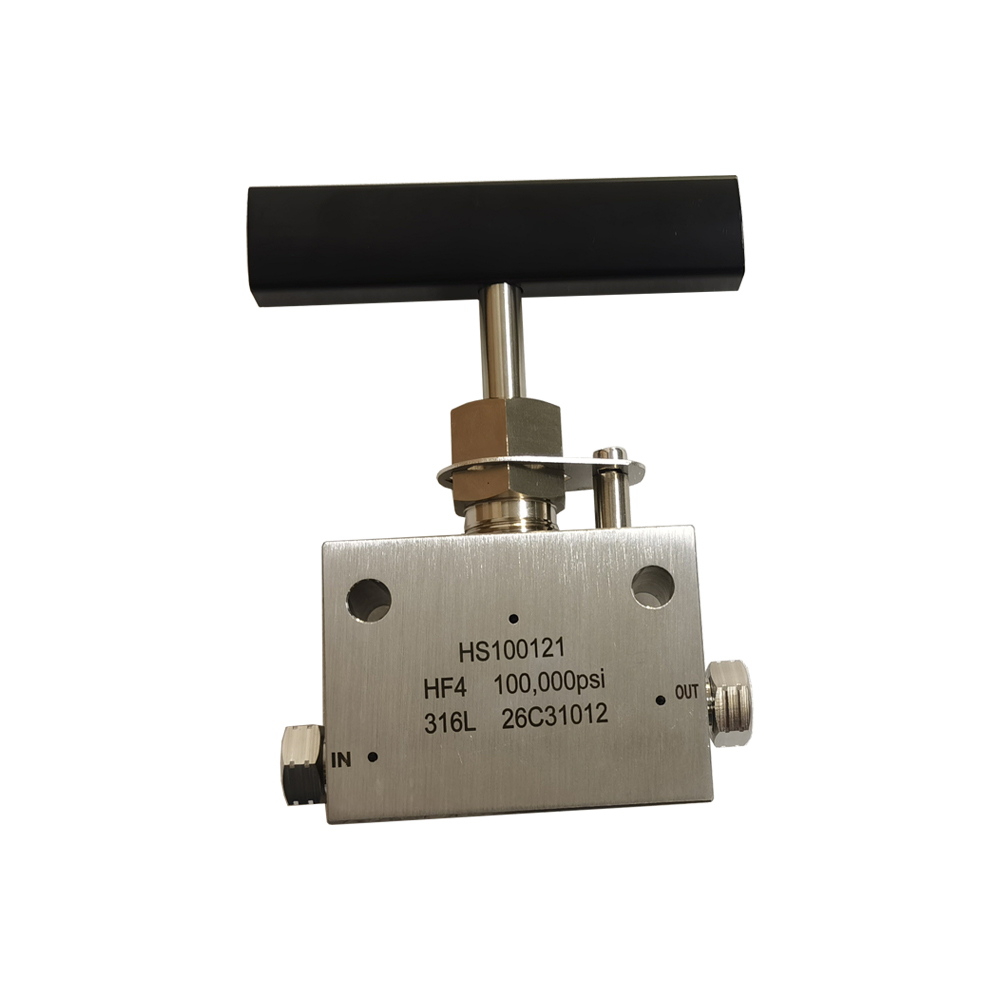

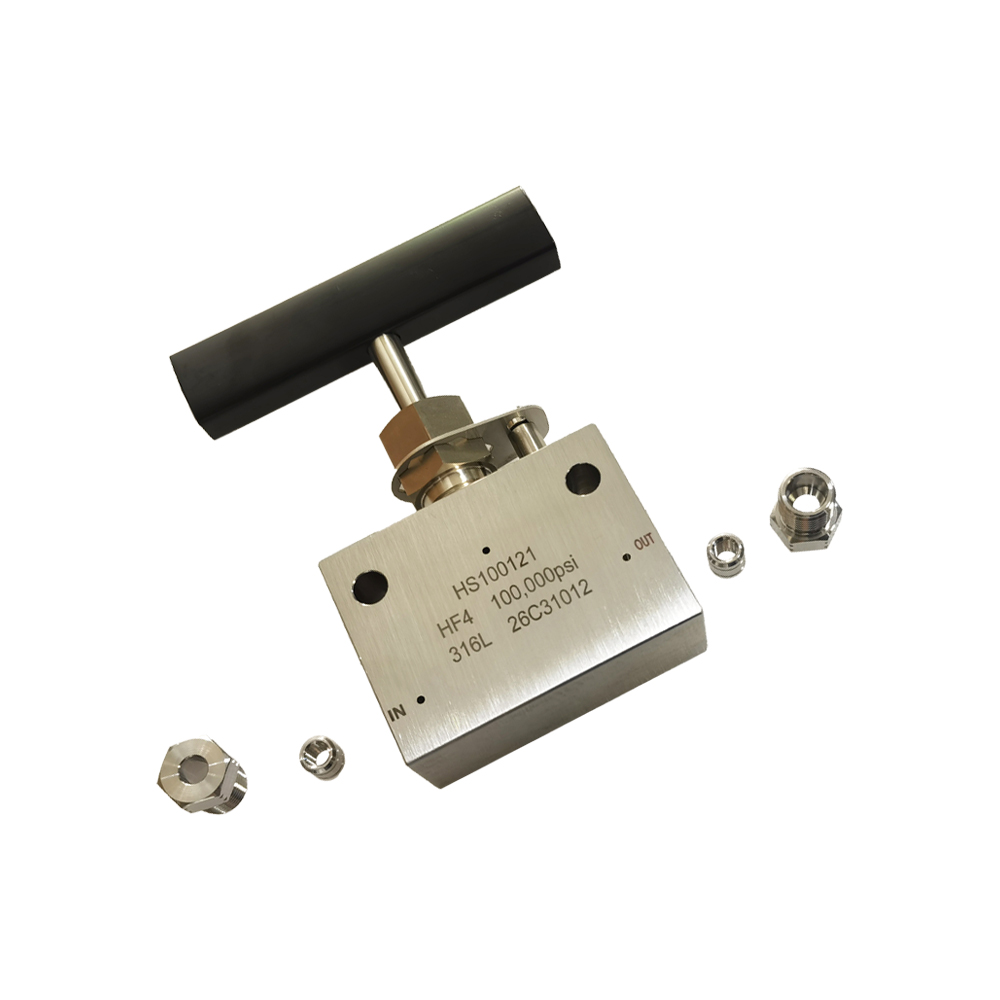

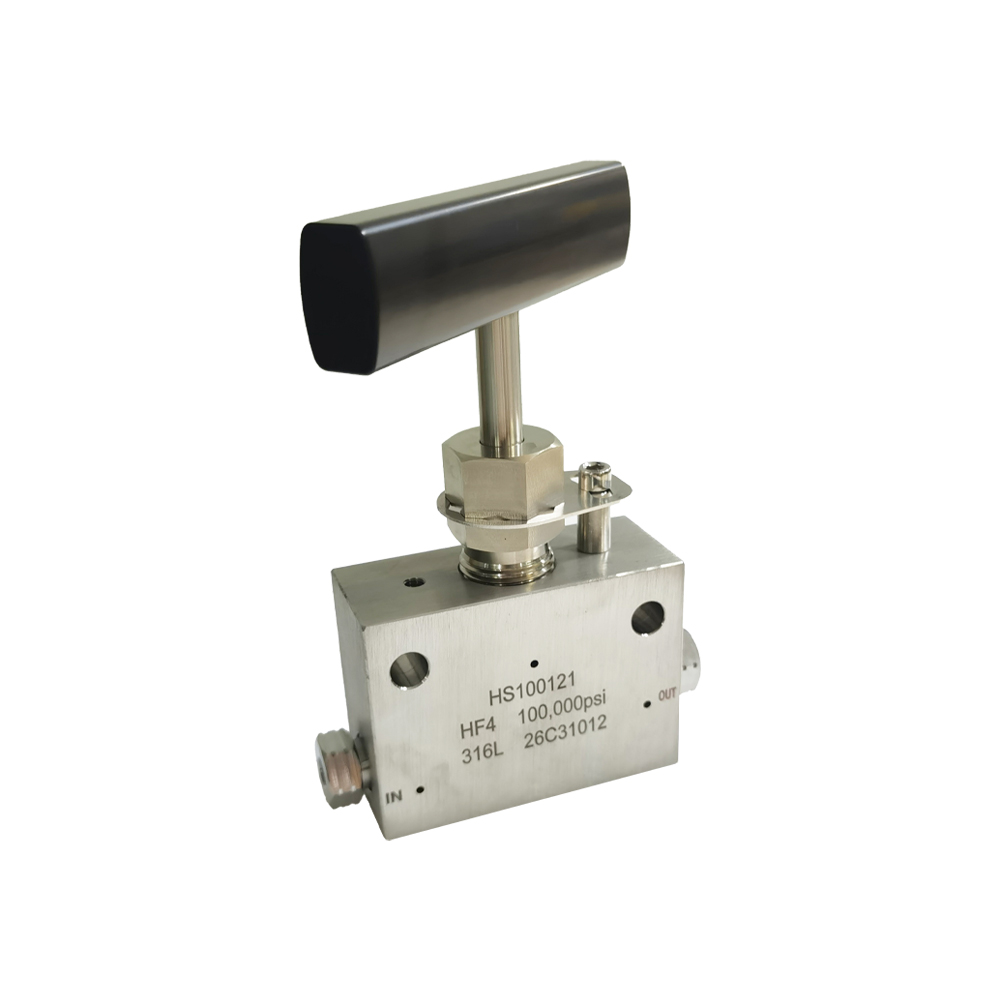

Real pictures of  High pressure Needle valve
