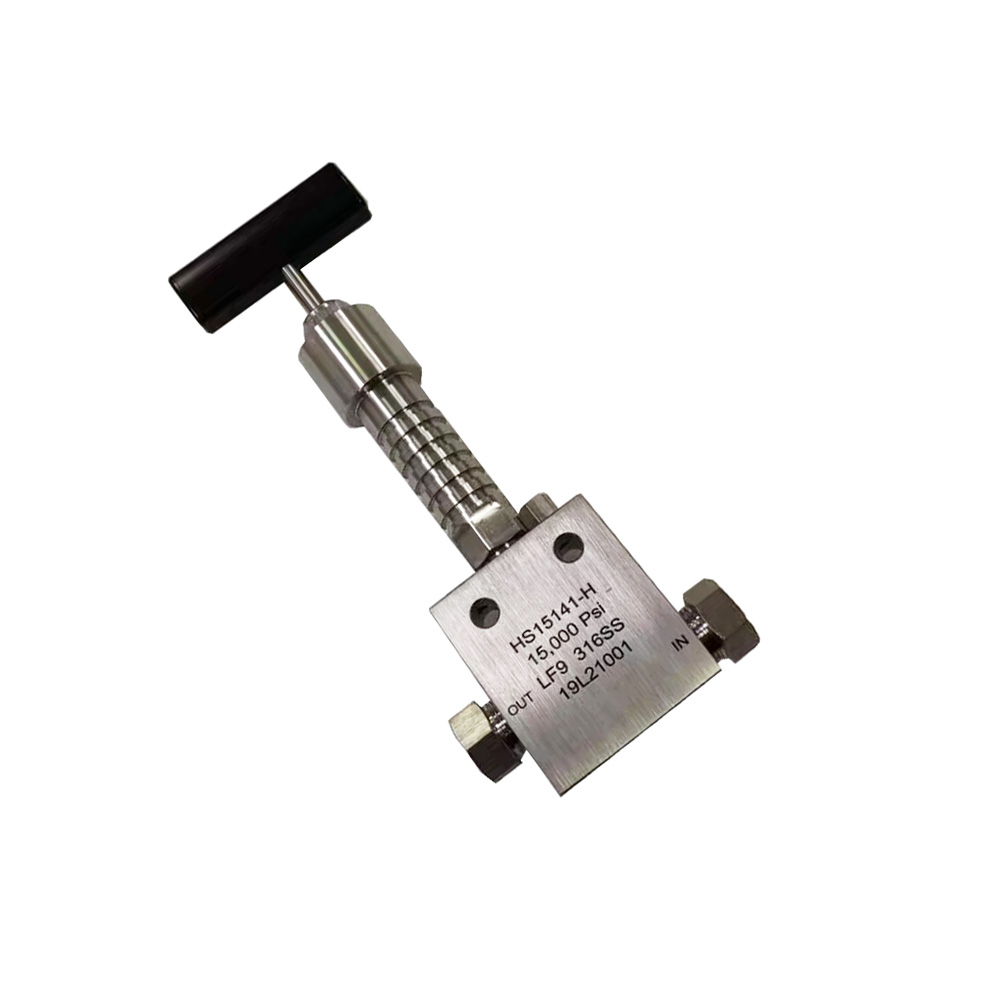

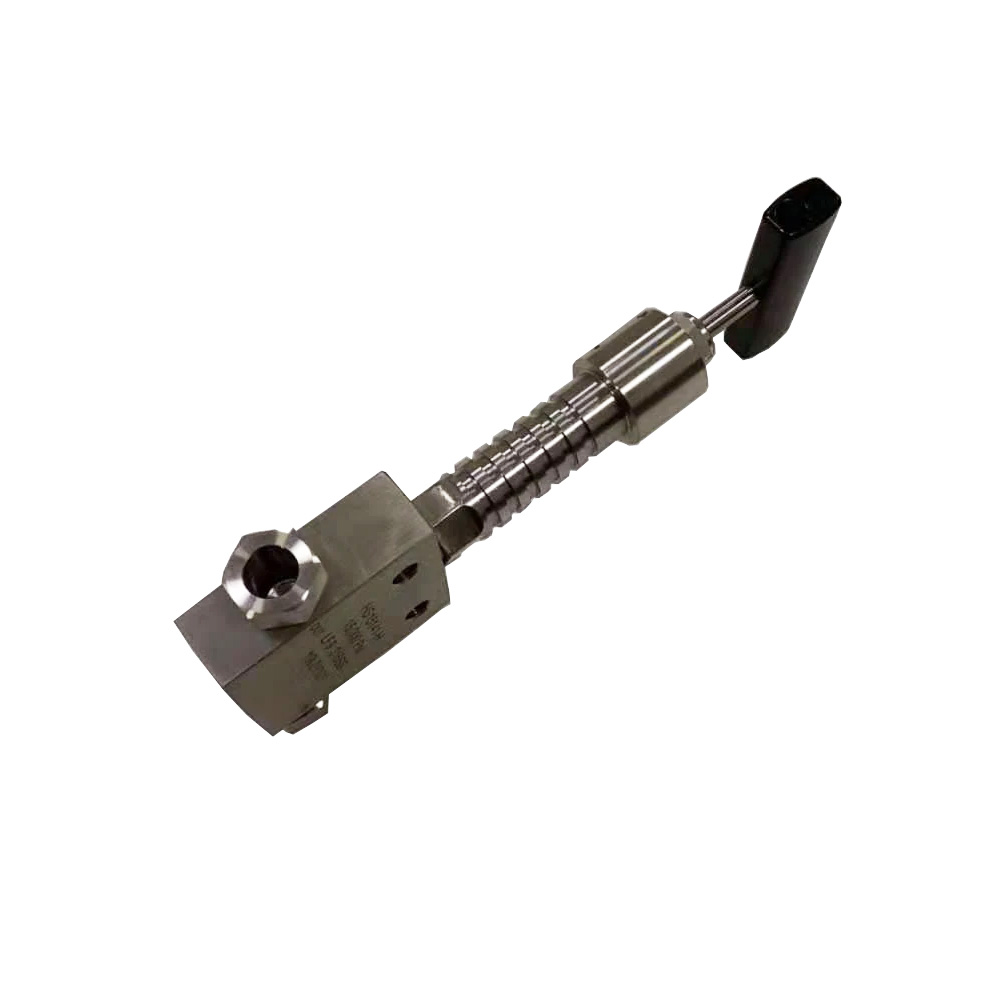

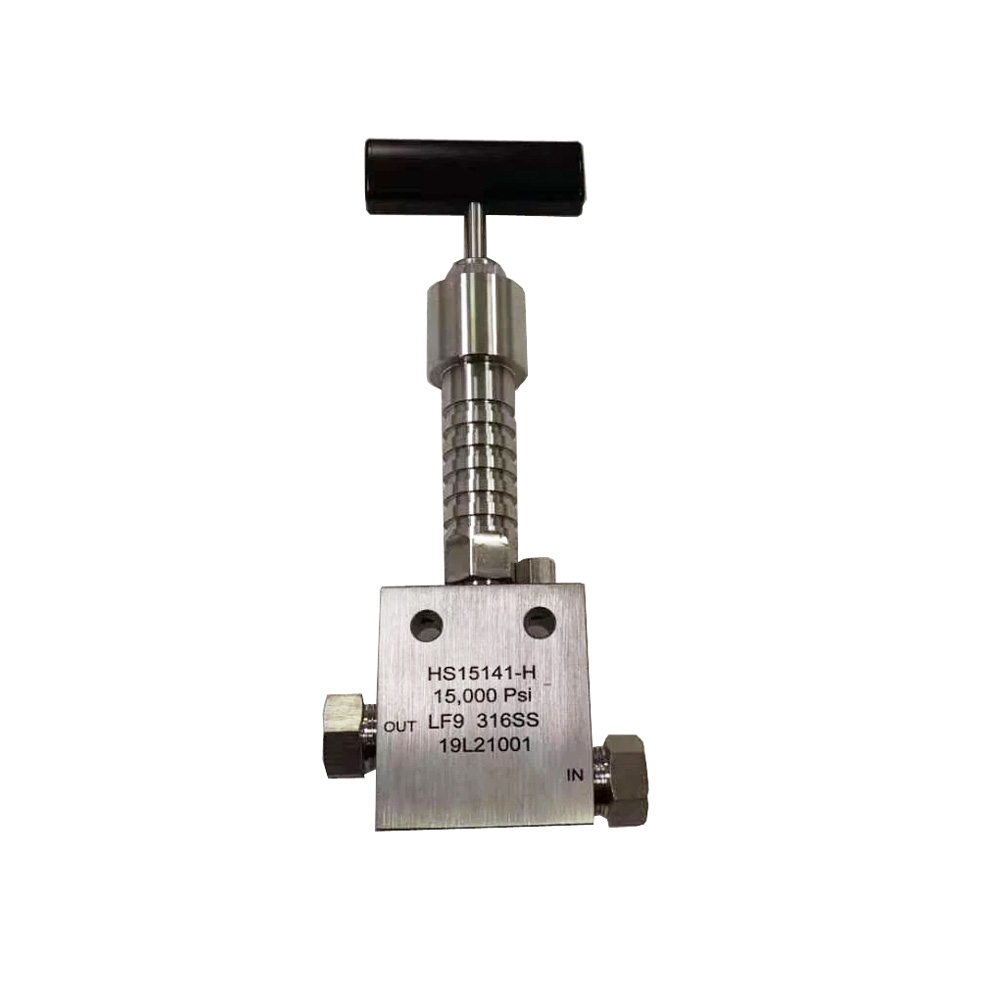

USUN Model: HS15141-H 15K PSI Similar HIP High Temperature Manual Control Stainless Steel Needle Valve

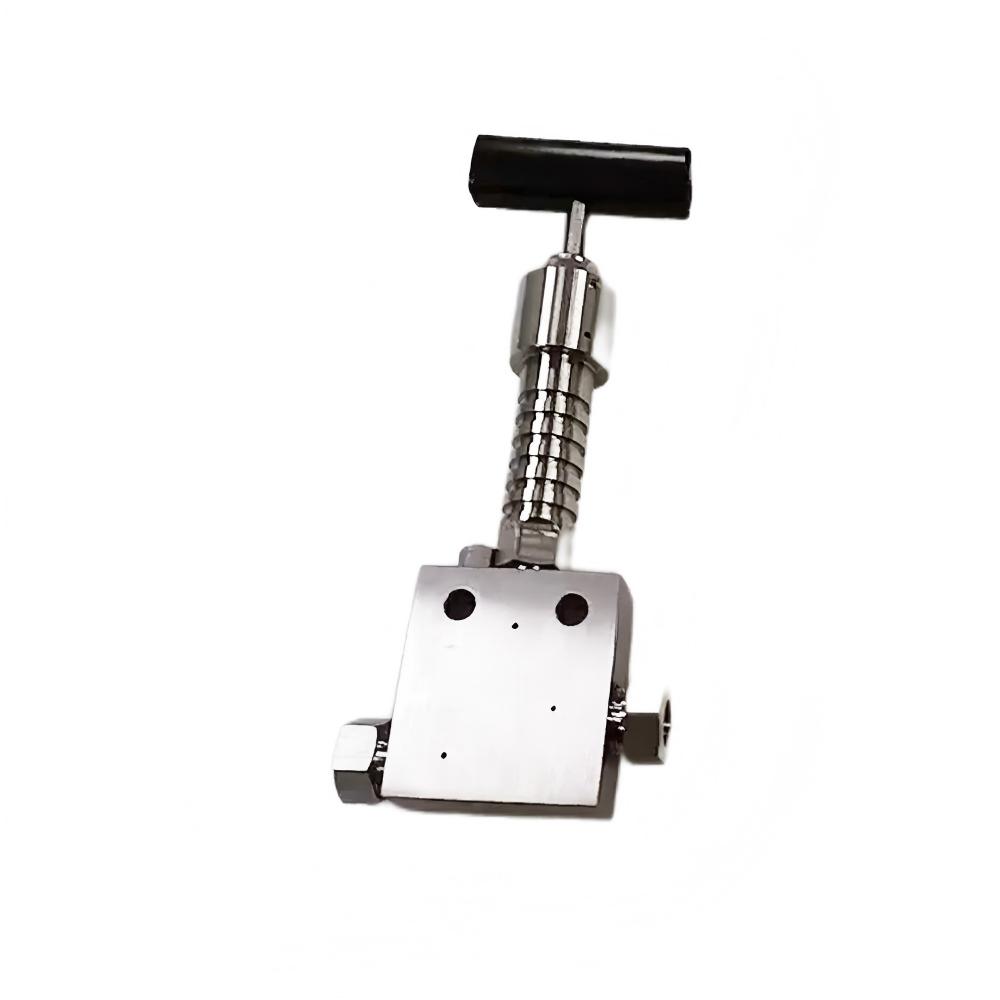

USUN Model : HS10121-H  10K PSI Similar HIP brand High Temperature manual control stainless steel needle valve

Description:

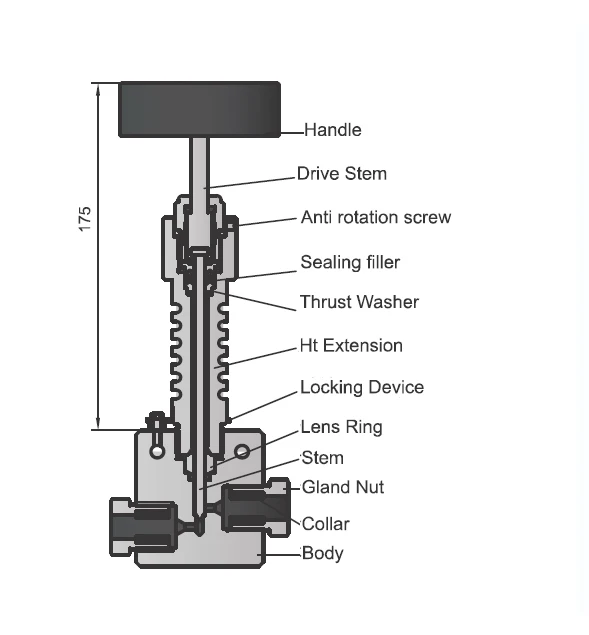

The Extreme Temperature Extension provides a means to move the packing area away from the hot or cold zone of a valve. Fins are provided around the packing area to dissipate heat or cold with this option.

Features:

1)Suitable Temperature range: -100°F(-73°C) to 800°F(427°C).

2)Size range: Extreme temperature extensions are available for 1/4" O.D _, 3/8" O.D ., 9/16" O.D. tubing size valves in the 20,000 PSI ,30,000 psi, 60,000 psi series and for all High Pressure series valves.

3)Materials and features: Standard packing is Grafoil and Teflon. Nonrotating tip stems prevent galling at the seats and minimize torque reguirements for positive shut off.

4) When ordering: simply add the suffix "-H" or "-L" to the standard valve catalog number (example: HS20121-H).

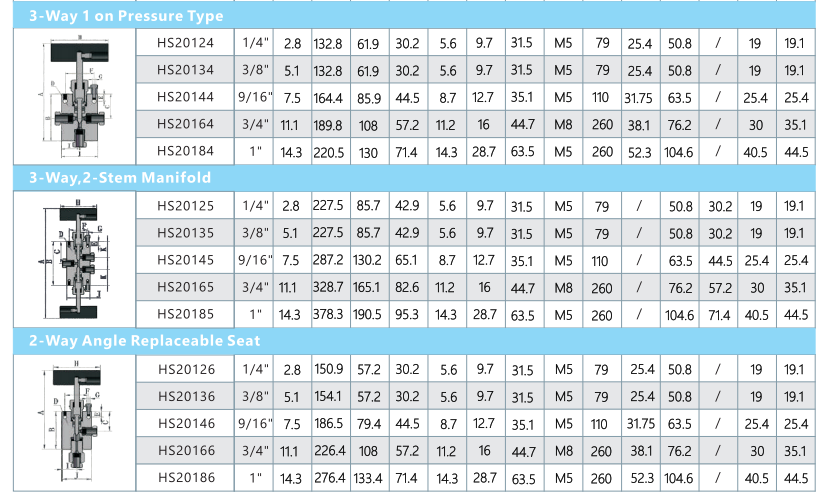

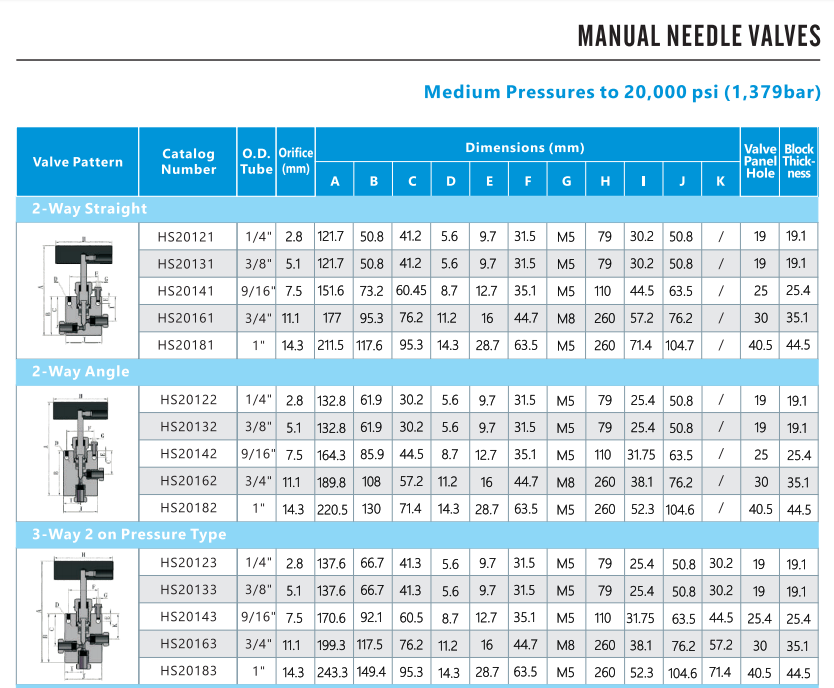

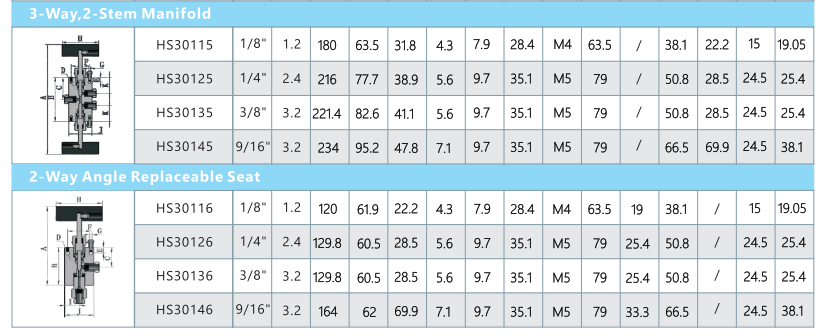

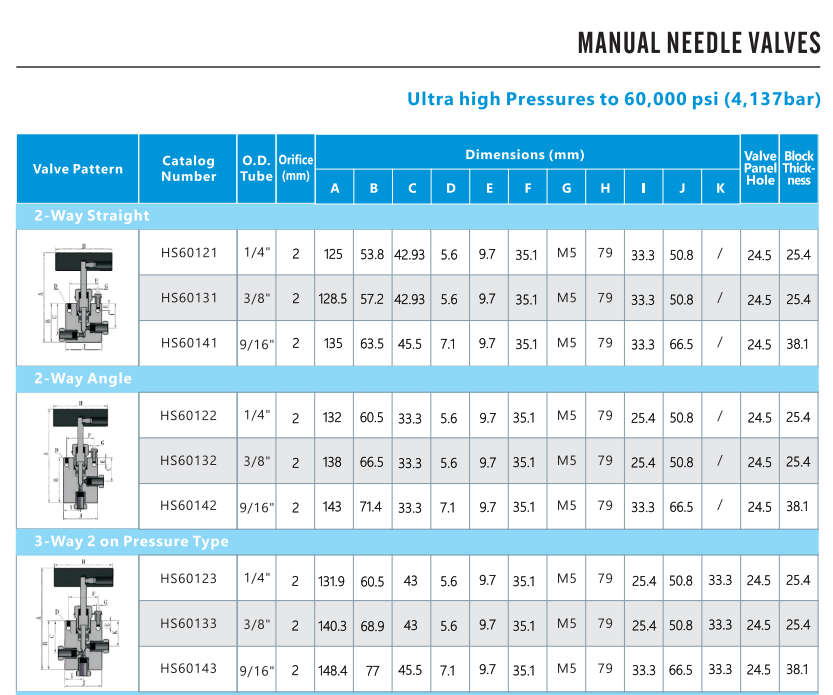

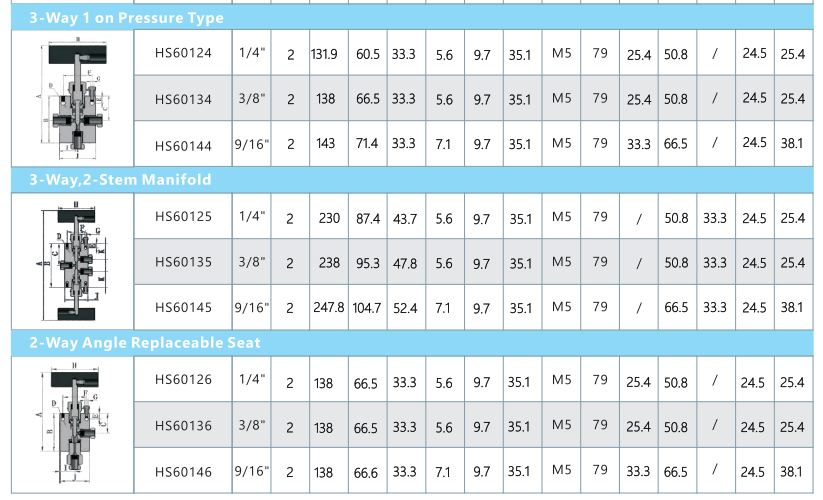

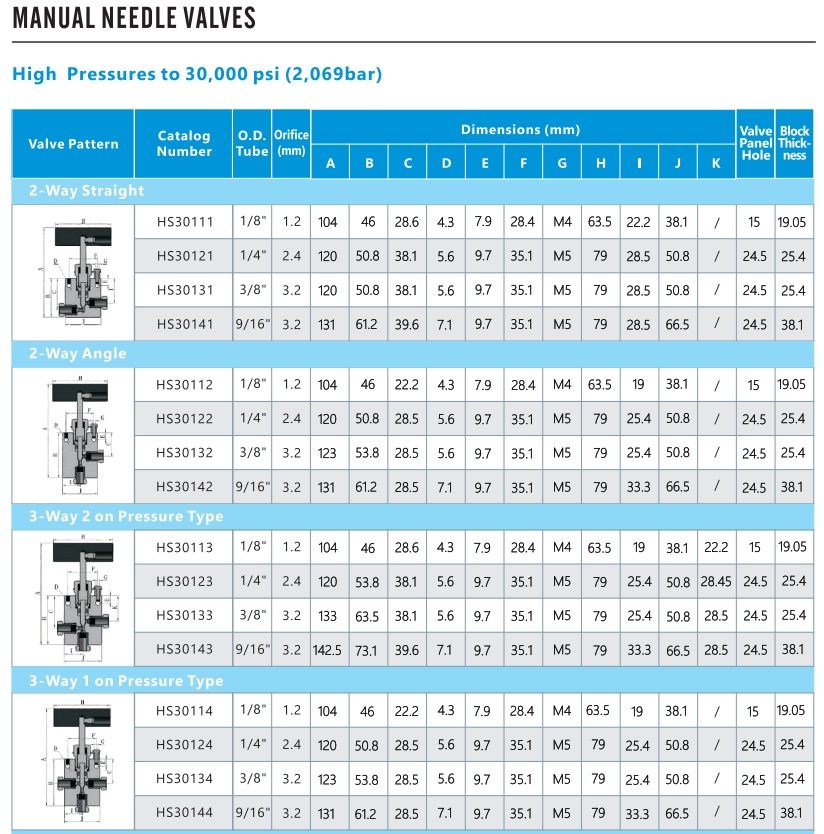

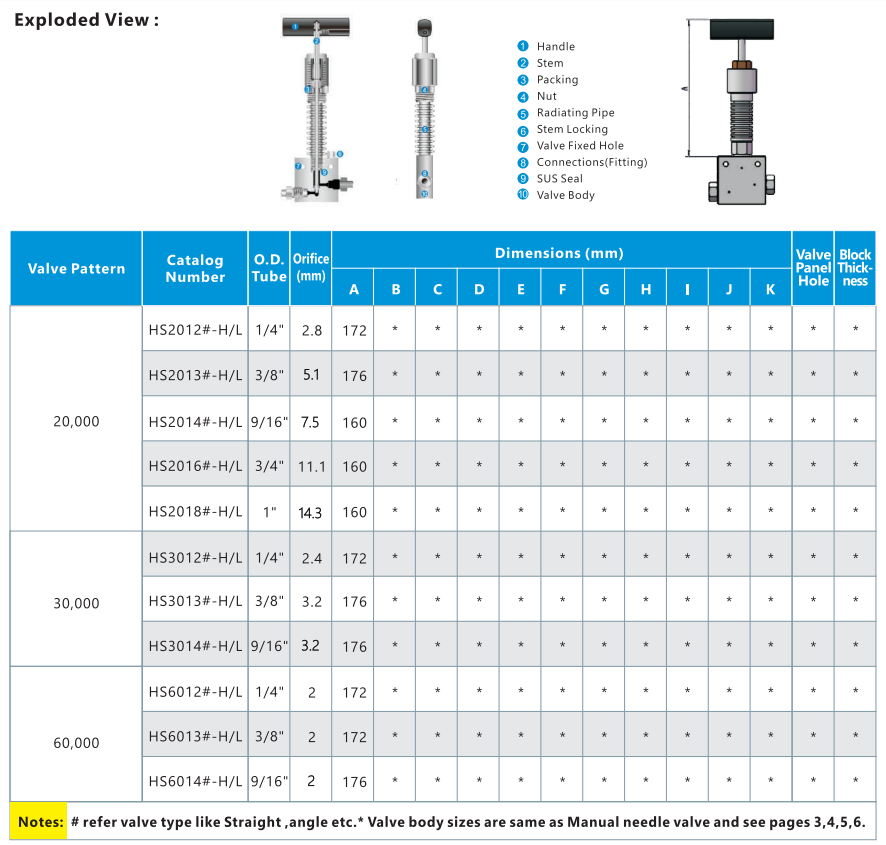

Product model information
