Model HS30126-F/HS60126-F/HS60126-F/HS60136-F
USUN
HS30126-F/HS60126-F/HS60136-F
USUN Model : HS30126-F 1/4'' connection 30,000 PSI High Pressure micro metering manual
high pressure stainless steel needle valve
Product features :
-Maximum can be used to 60,000psi
-The working medium can be hydraulic oil,water and most chemicals corrosive liquids
-According to the ergonomically handle,convenient and comfortable to operate.
-The unique split stem design to solve the integrated concentricity.
-Needles with special angles act on replaceable seats that are precisely matched to form throttles allowing
wide flow regulation andsmooth differential pressure changes.
-These valves are only used for metering and cannot be used as shutoff valves.
The minimum flow is set by the factory and acts at 0.Do not operate
the valve below 0, otherwise it will cause damage.
When shutdown operation is required ,USUN valves shall be installed in series with precision metering valves.

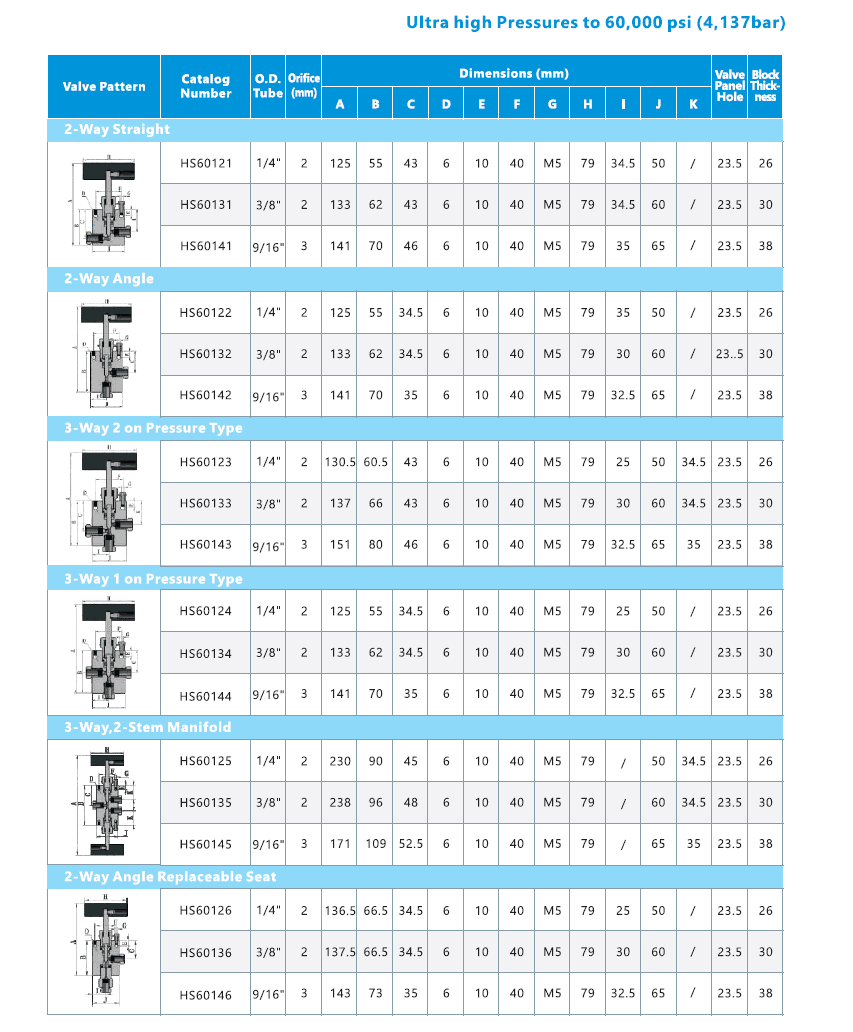

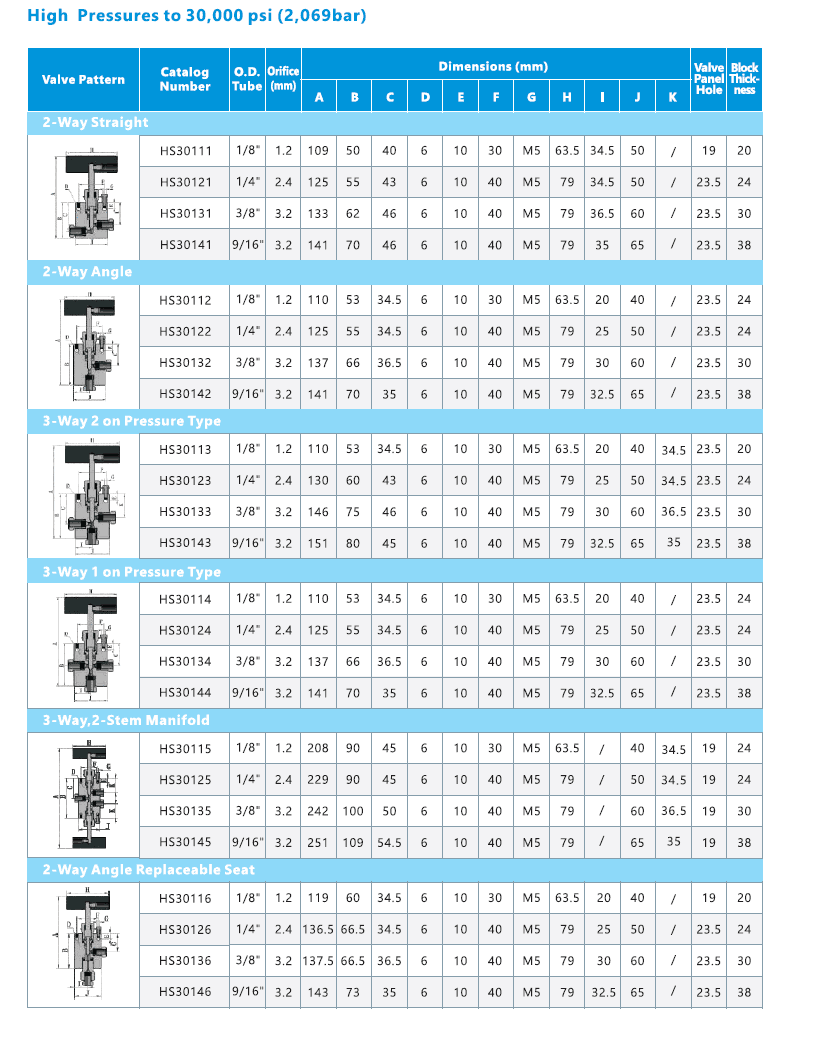

Product model information

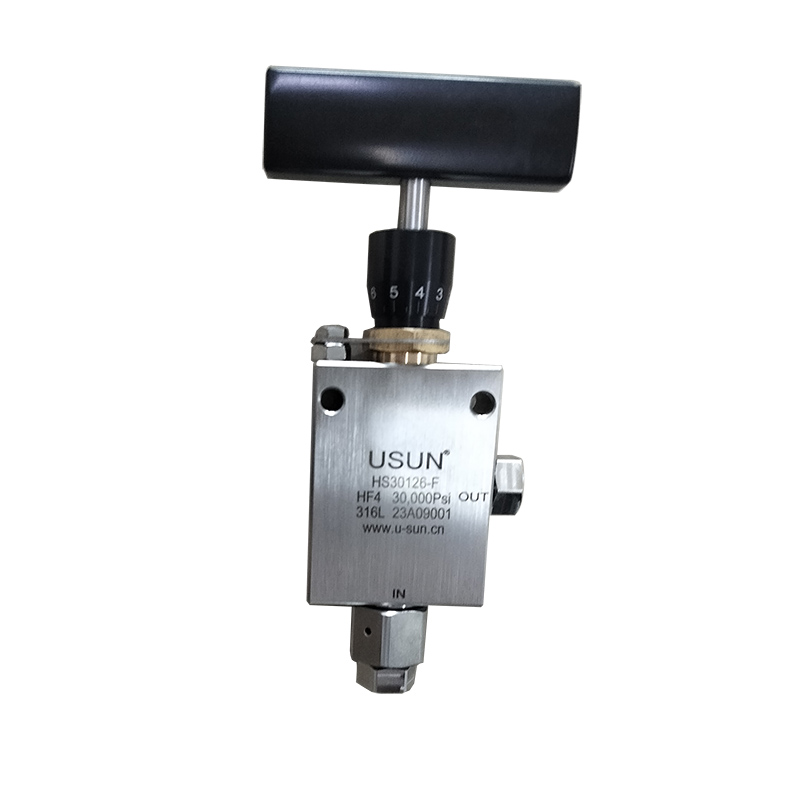

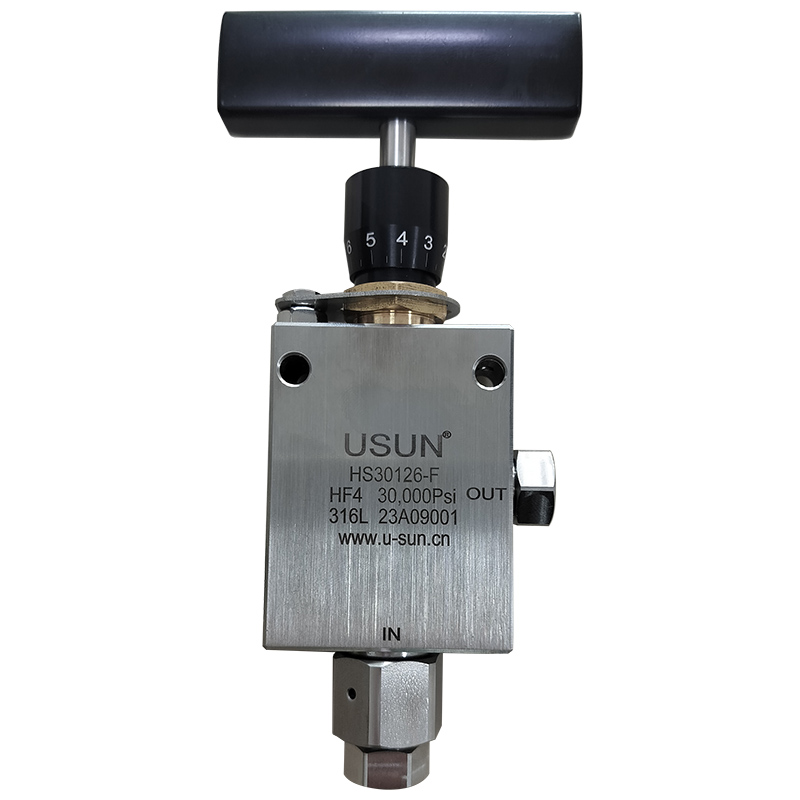

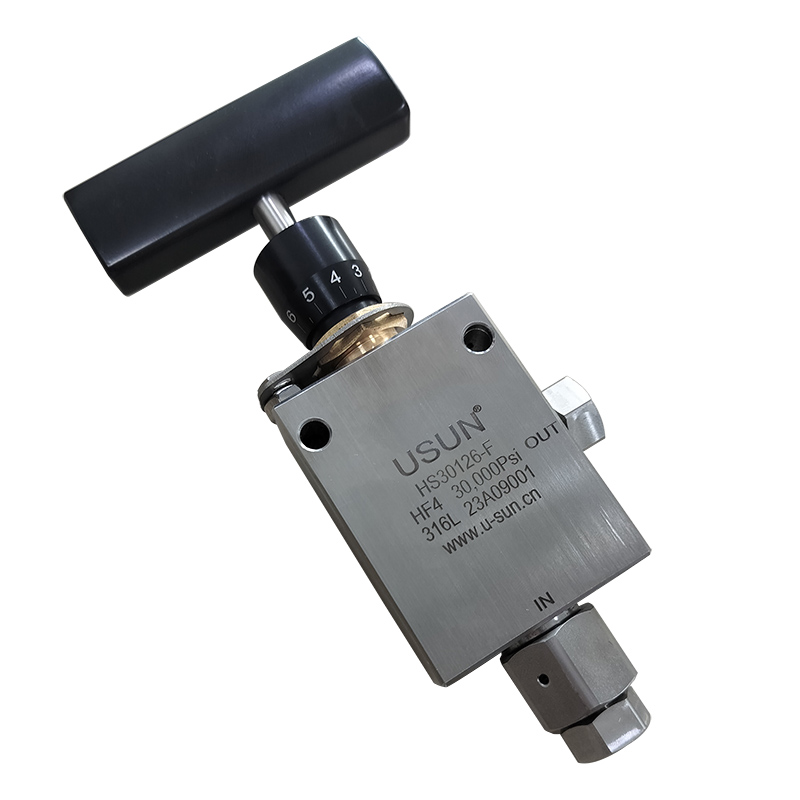

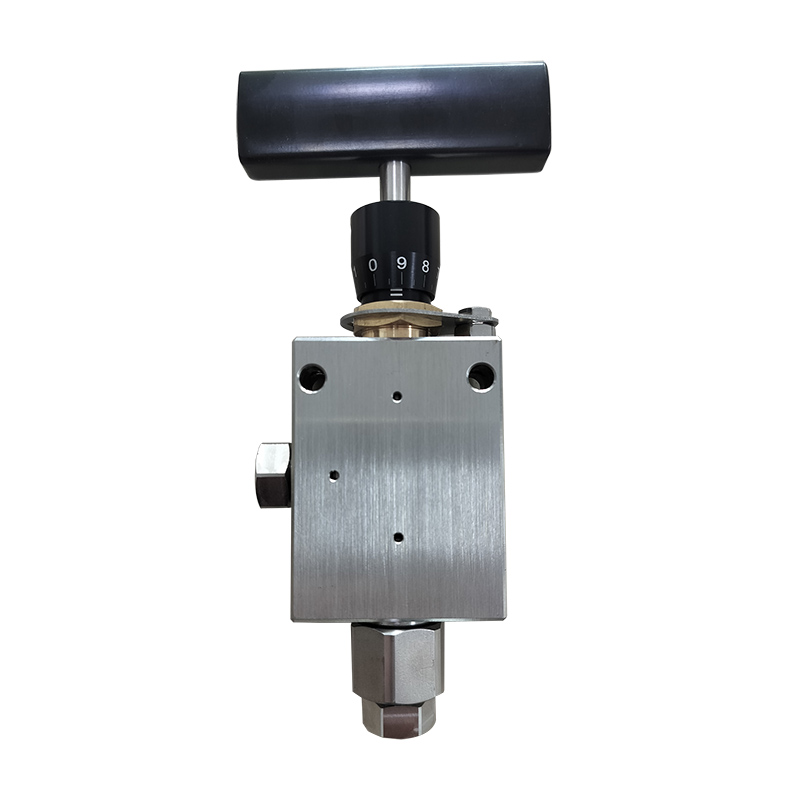

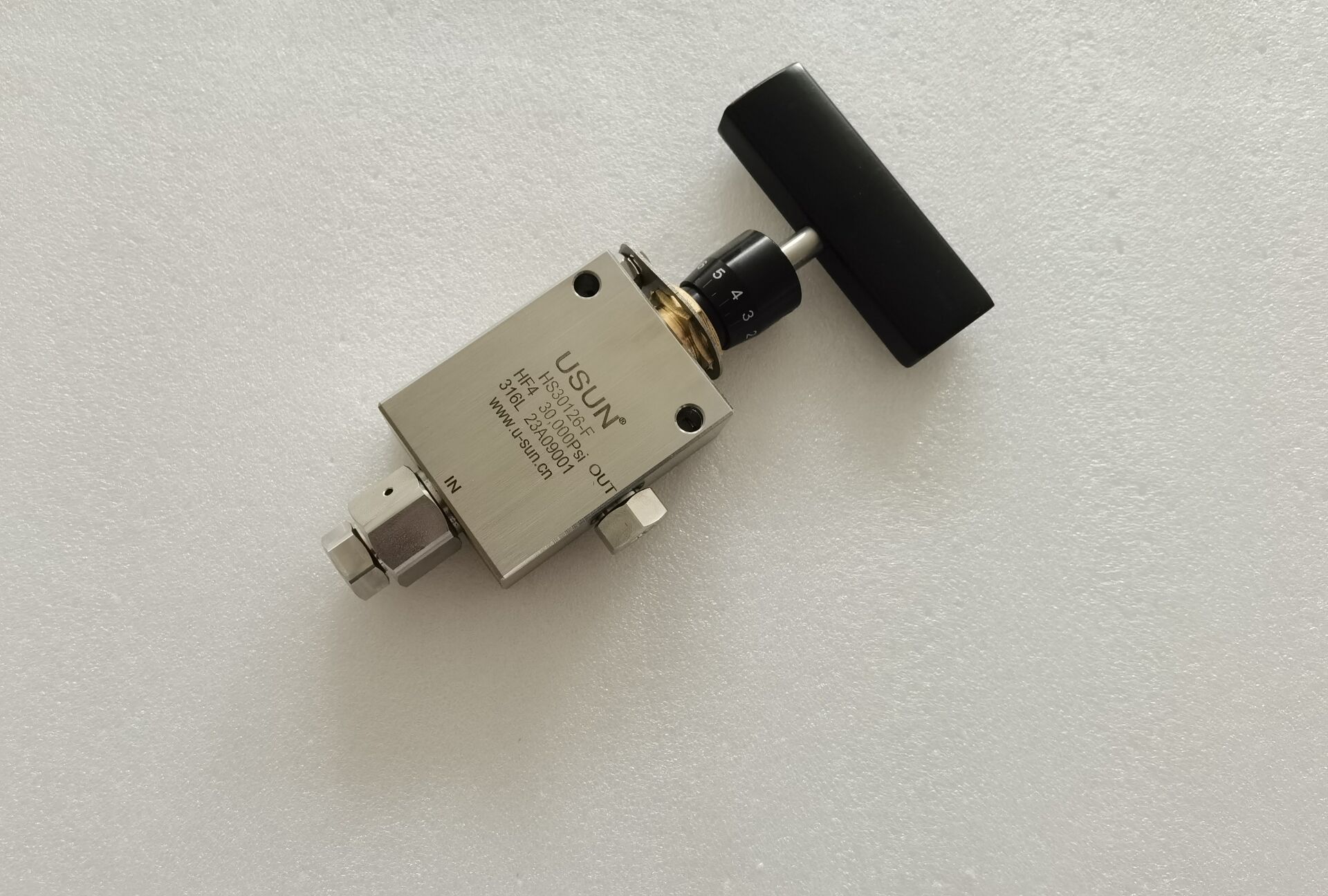

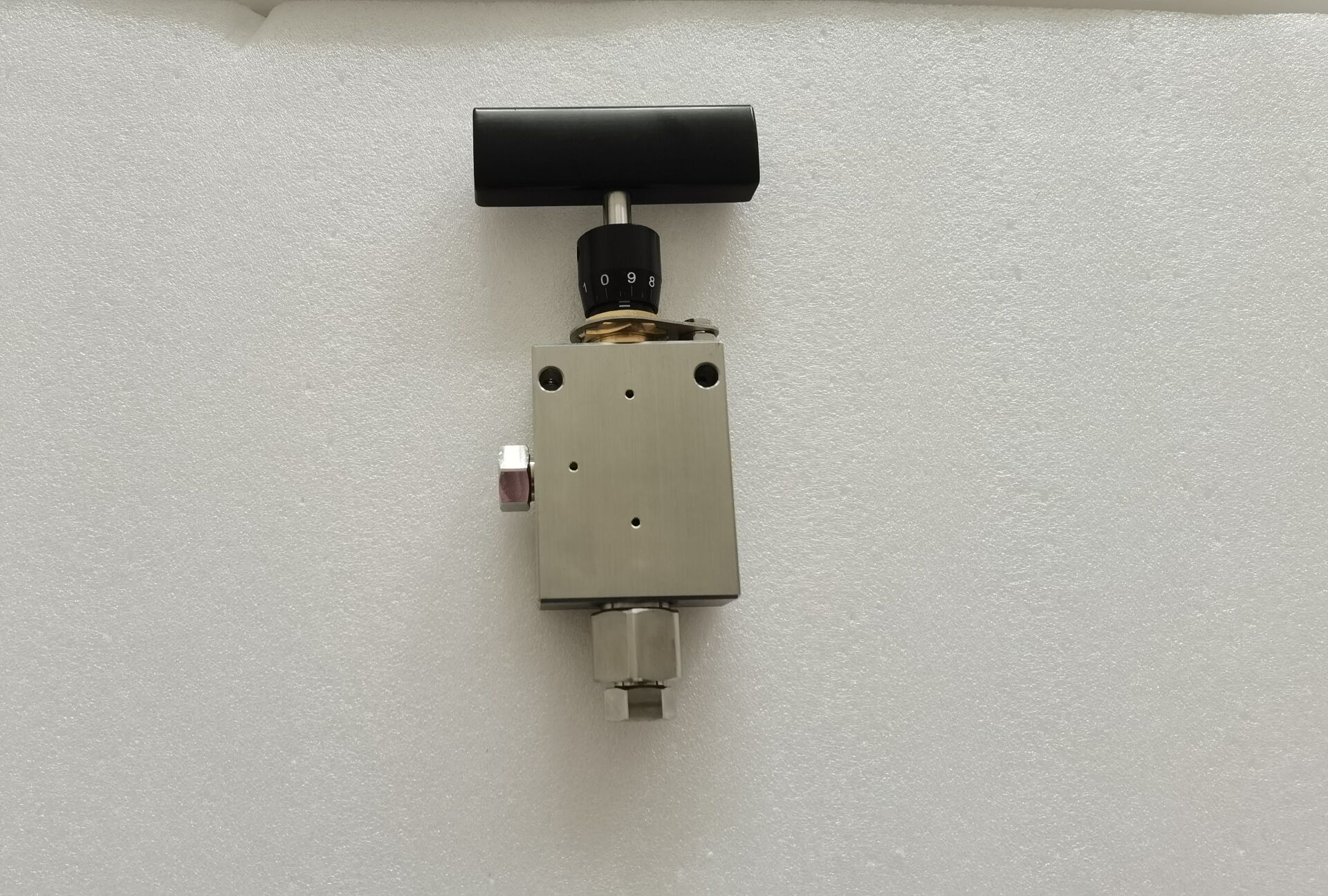

Real pictures of High pressure Micro metering Needle valve
