Model :IFV10SSFP4-31
USUN
Model :IFV10SSFP4-31 Or Model :IFV10SSFP4-31

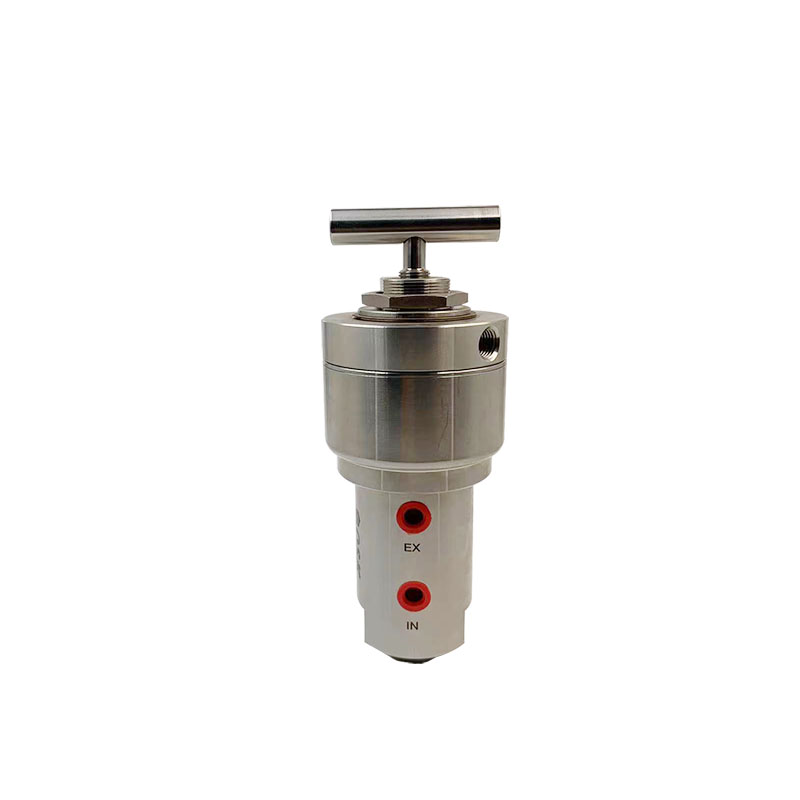

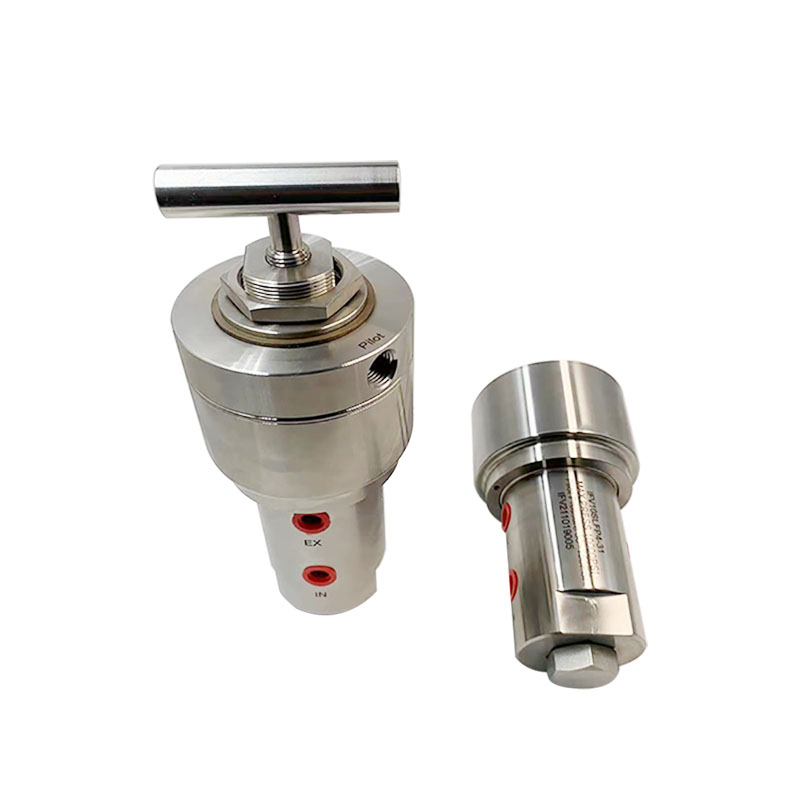

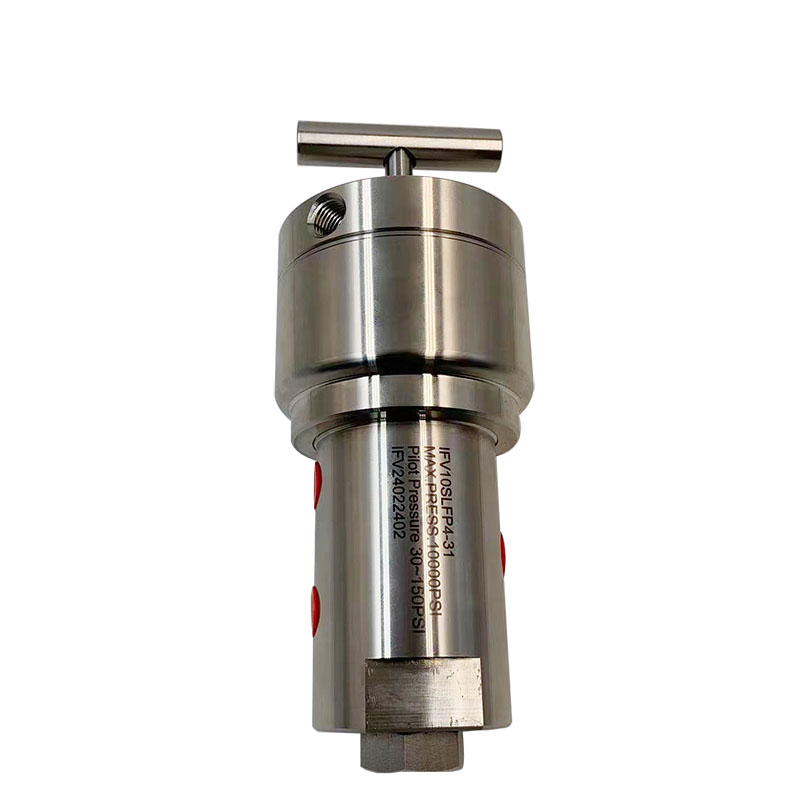

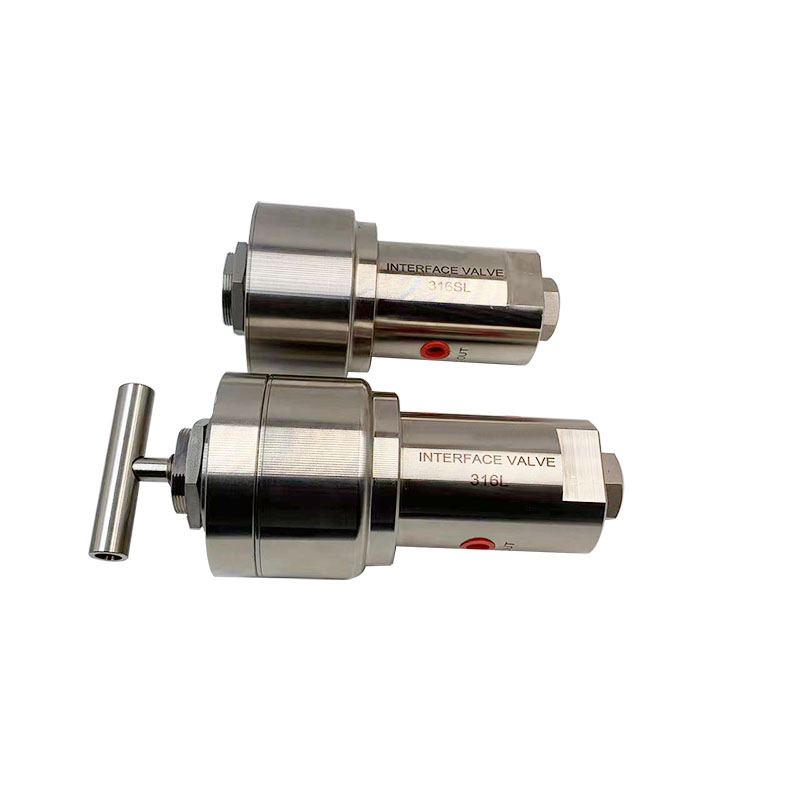

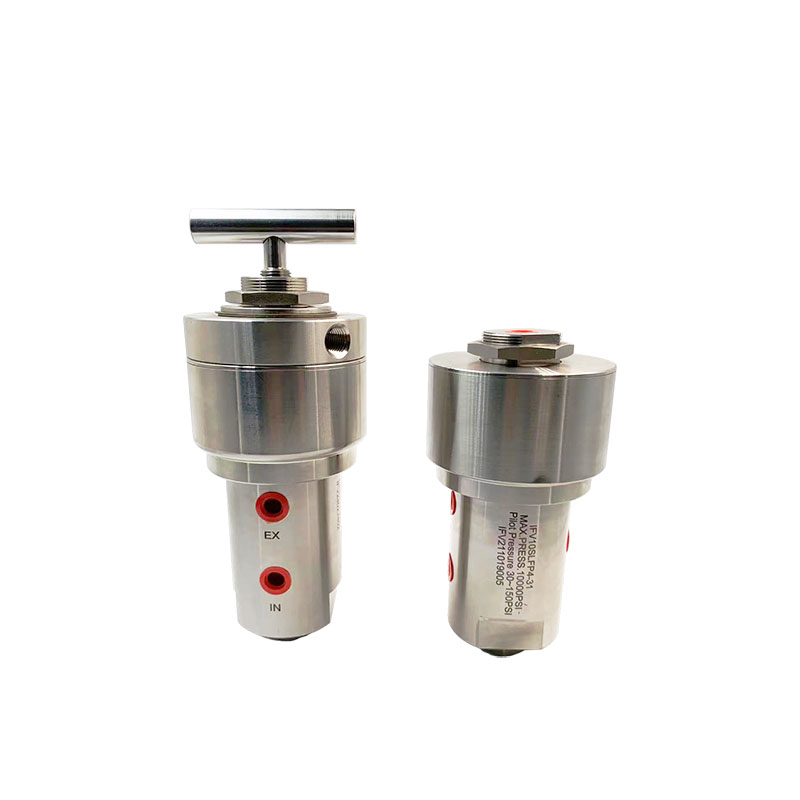

USUN Model: IFV10SSFP4-31 Max 10000 PSI range Stainless steel 316 High pressure interface valve
USUN Brand Interface valve Features：
* 316SS stainless steel construction .
* Large spring load assures fast system response .
* Smooth ball sealS assures zero leakage and long life .
* Manual override handle available.
Interface Valve Parameters :
Rated pressure of valve body (control port) : 20000psig (137Mpa)
Suitable working Temperature: -20°F to 250°F (-29℃ to 121℃)
Connection Port: NPT1/4 Female
Product description:
Turning the handle clockwise will increase the spring tension to increase the regulalotor output pressure.Rotaling the handle
counter-clockwise decrease the regulator output pressure. When the downstream pressure is higher than the set pressure the
downstream pressure will rellief from the vent port.

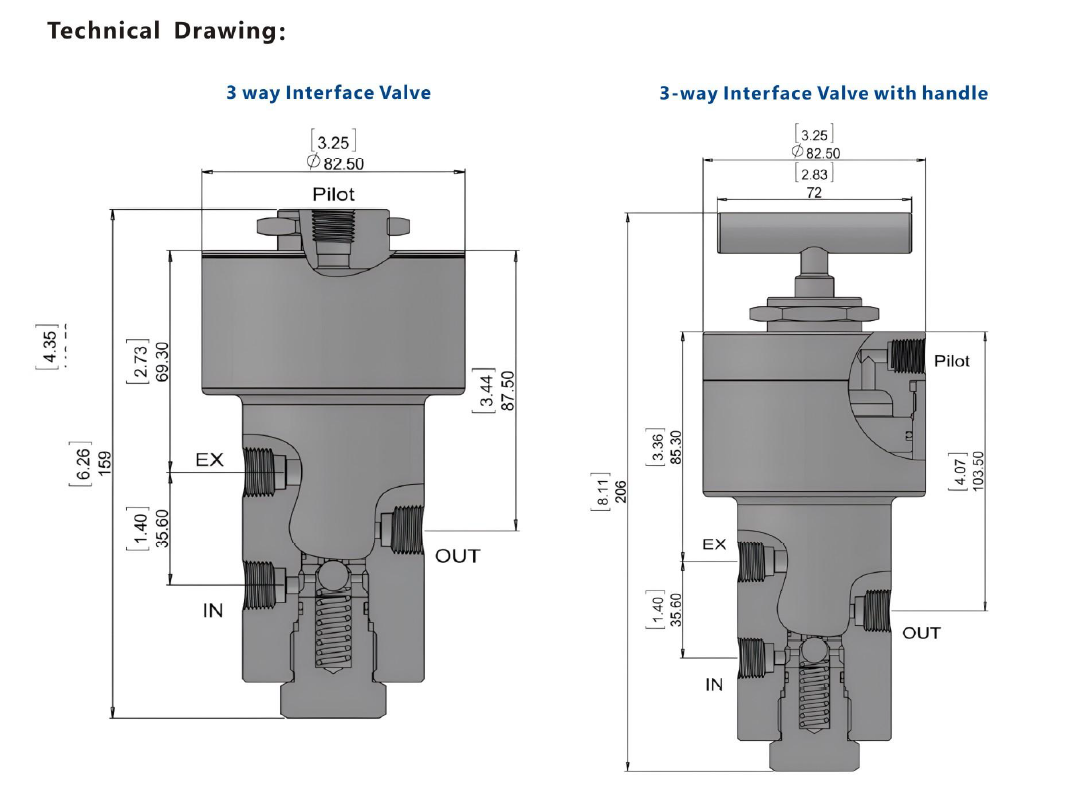

Product Technical data ：
3-way interface valves are normally closed block and bleed hydrauliccontrollers. They allow the system to control hydraulic pressure as high
as 10,000 psi with a relatively low pilot supply hydraulic or pneumatic pressure.2-way interface valves are normally opened or closed hydraulic
Controllers. They are designed to block incoming hydraulic supply pressure with a relatively low pilot hydraulic or pneumatic pressure.
Valves with manual handles can be operated by the handle. when there is no pilot pressure.
USUN Brand lFVseries Interface valve isa multifunctional control valve, commonly used as a two way three On normally closedvalve, consisting of pilot operated pressure control valve and hydraulic flow control valves. The purpose of valve design is to userelatively low pilot presure to control high-pressure hydraulic output. When the pilot supply pressure drops, the inlet portcloses anothe pressure in the control circuit is released. interface Valve is typically used to control the opening or closing operation ofunderground safety valves (SCSSVS) or surface safety valves (SSVS)
