Model :MO22
USUN
Model :MO22

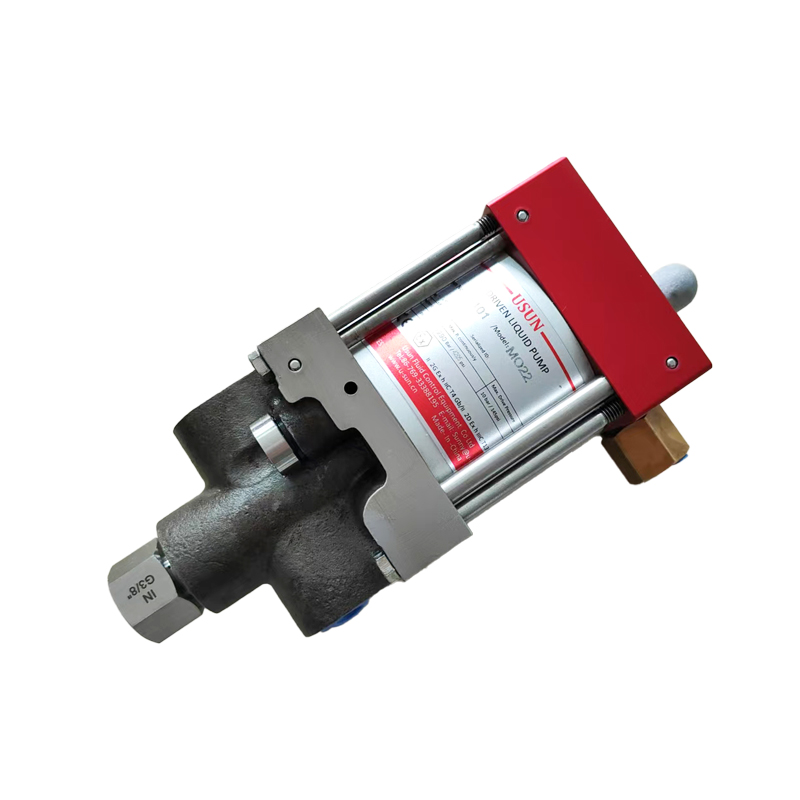

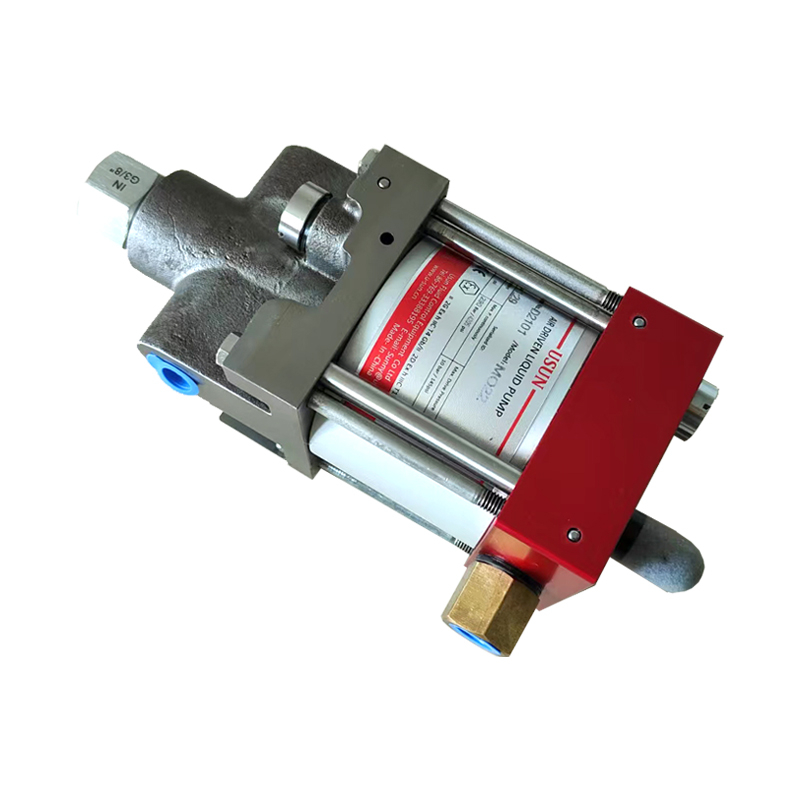

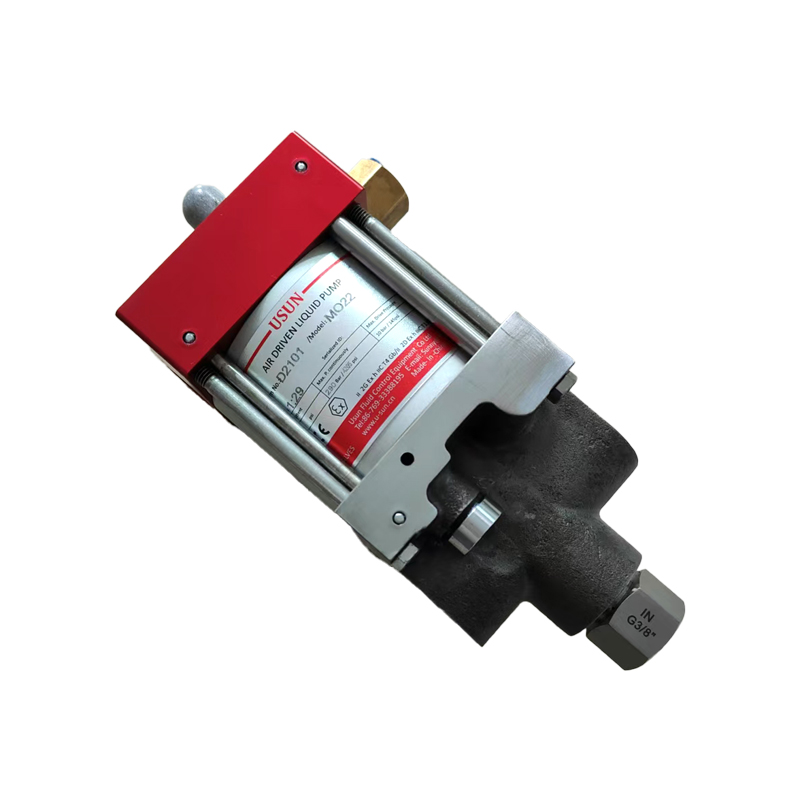

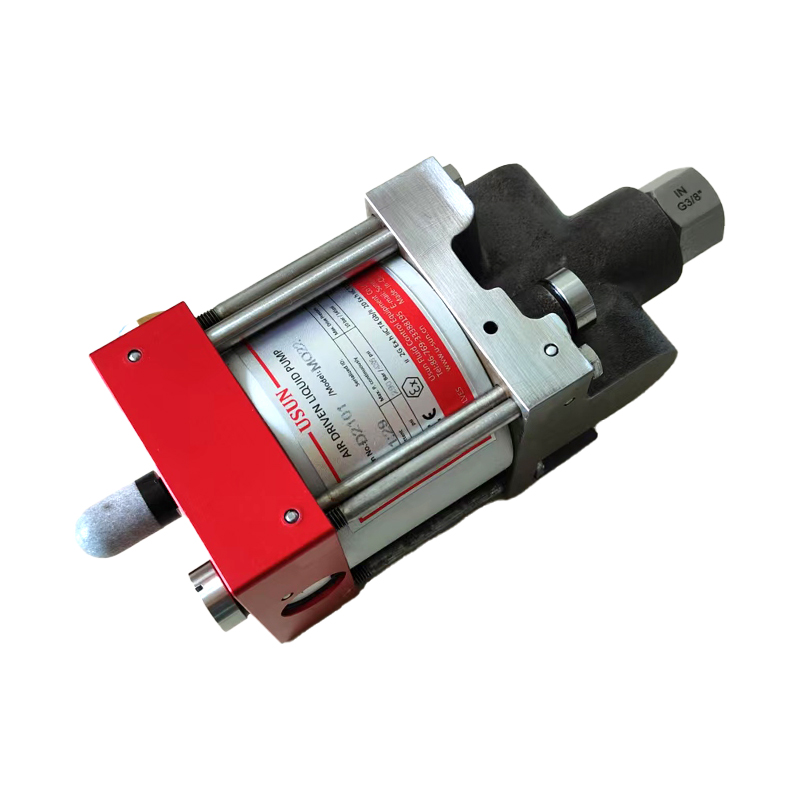

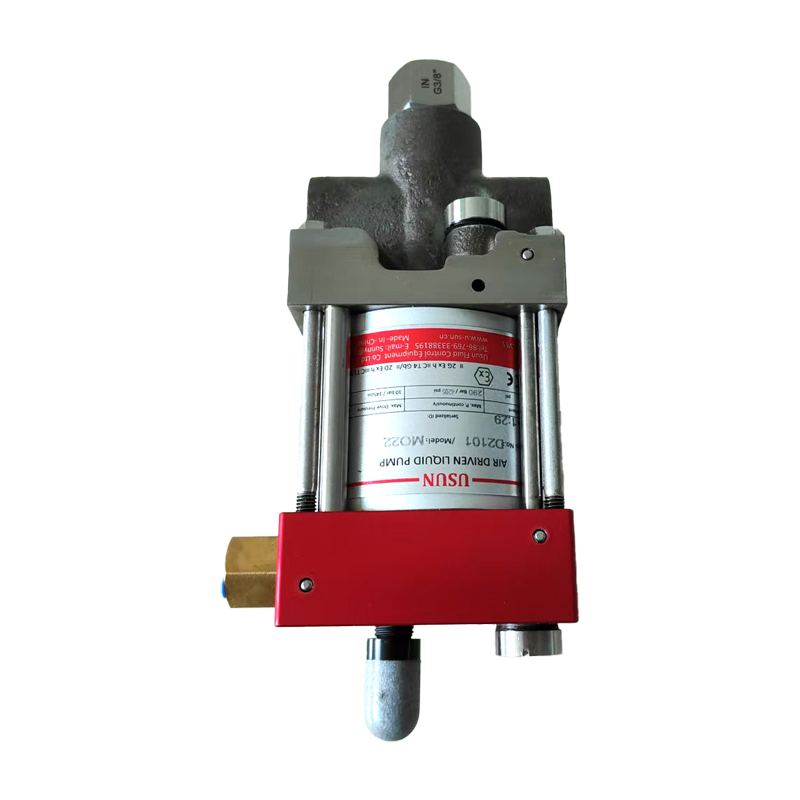

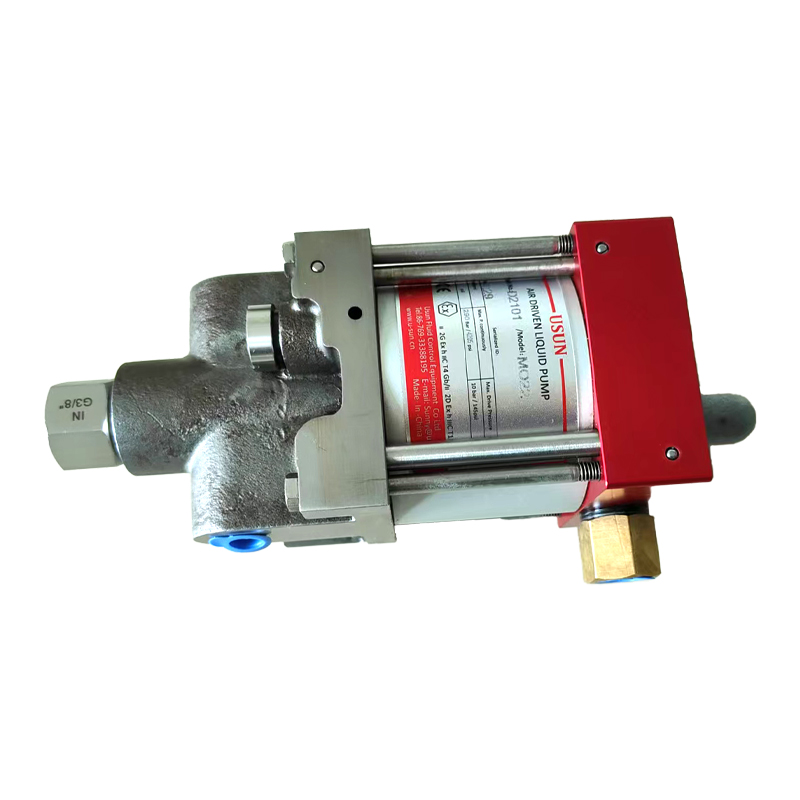

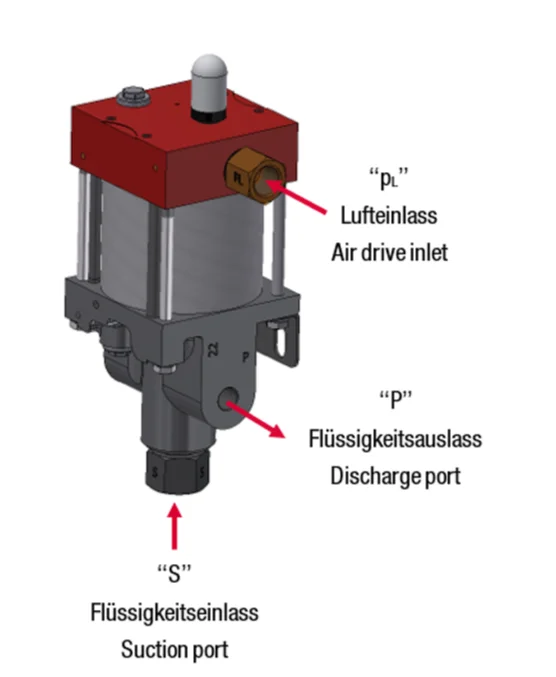

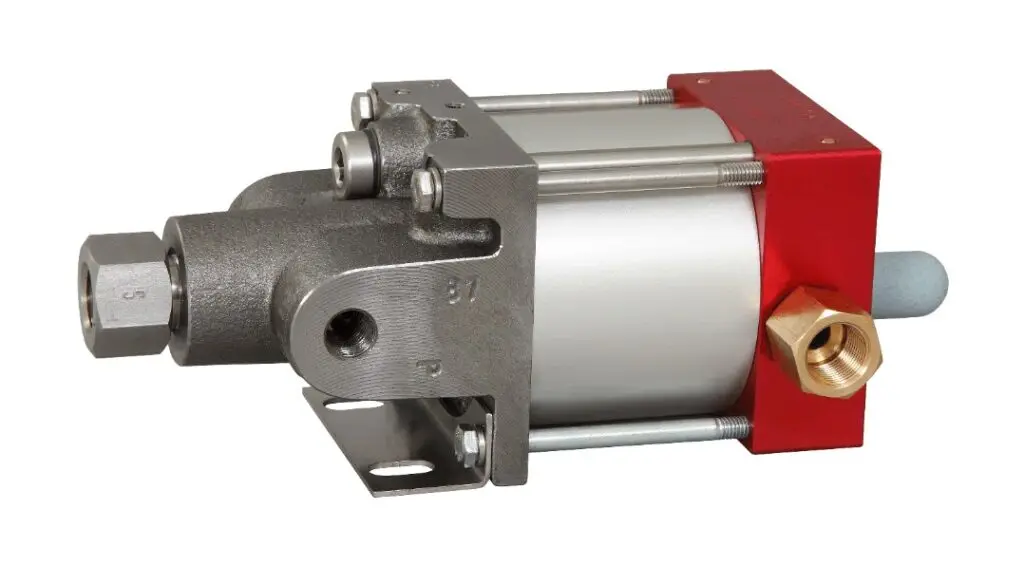

USUN Model: MO22 29:1Ratio 100-200 Bar Maximator Equivalent Pneumatic Driven Oil Pressure Testing Pump
MO serial maximum output pressure can reach 1000 bar;
The quantity of parts and seals is small, the maintenance is simple, and the maintenance cost is reduced.
Easy to carry, with a maximum net weight of only 3kg, very suitable for field operations.
Compact structure, light weight, and high pressure ratio are widely used in the petroleum hydraulic industry.
Multiple gas drives: compressed air, vaporized liquid nitrogen, natural gas, and most other gases can be used as driving sources, providing an independent external power device.
Product features
MO pumps are single acting, single air drive head types.
1) Based on static pressure, when the driving pressure is 7 bar, the air consumption is 0.6m3/min;
2)Drive pressure ranges from 1 bar to 8.3 bar (14.5-120.35 psi), with the MO series featuring a single drive piston (75mm);
3)The high-pressure cylinder is a cast iron pump head, and the pneumatic part is made of aluminum alloy.

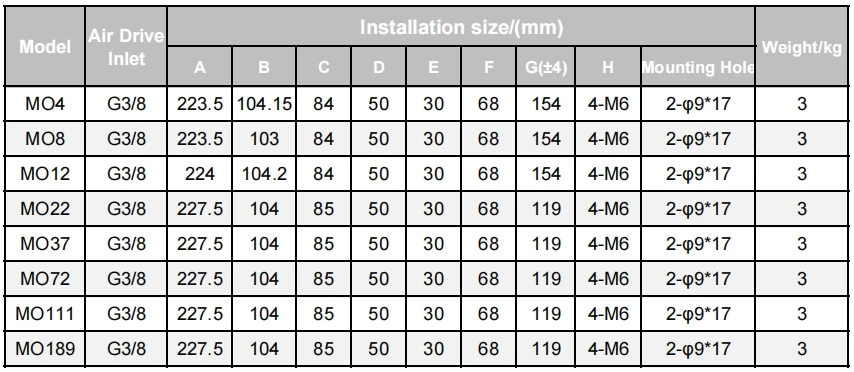

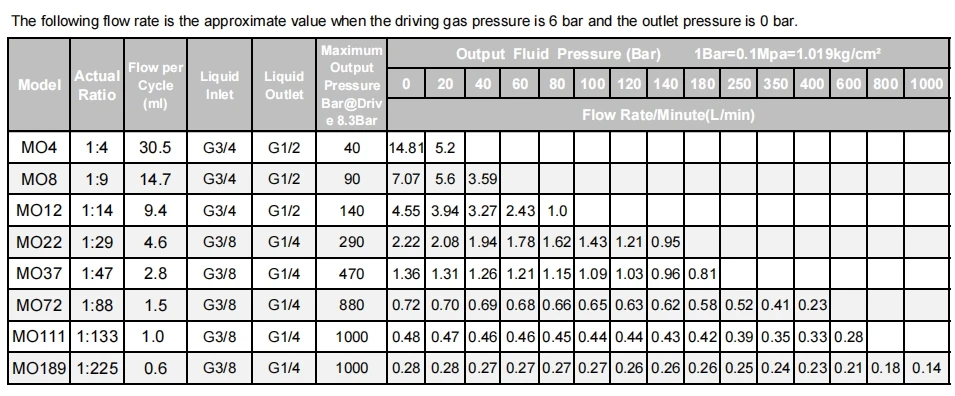

Technical parameter of MO single action air driven oil pump
MO series gas-liquid booster pump is suitable for situations where pressure needs to be maintained, supplemented, and low-frequency movable;
Small volume hydraulic testing and blasting testing include but are not limited to pressure components such as valves, pressure vessels, pressure switches, hoses, and blowout preventers;
Hydraulic applications: clamping devices, stamping and cylinder drive;
Power source for hydraulic fixtures
Testing: Tensile testing machine and pressure testing;
Various mobile and portable device power sources.
