Model : MRLV- SS-BHL
USUN
Model : MRLV- SS-BHL/ MRLV- SS-BPL

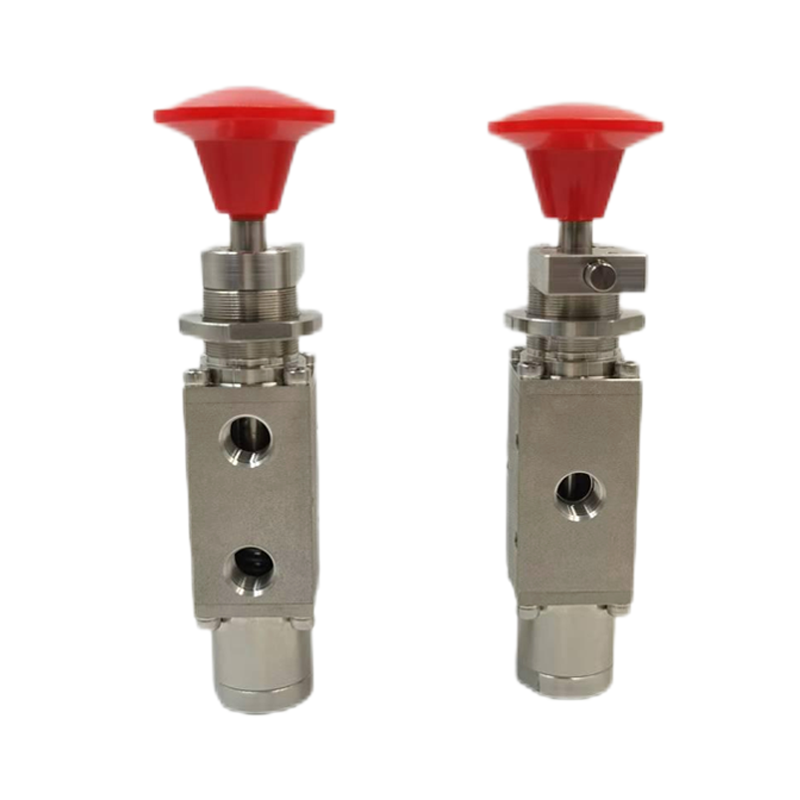

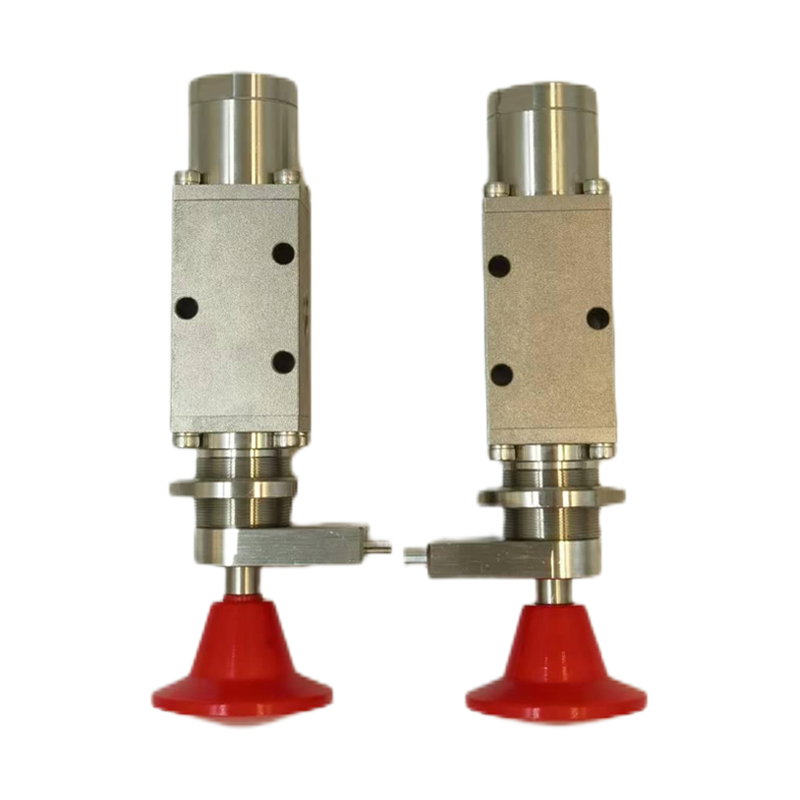

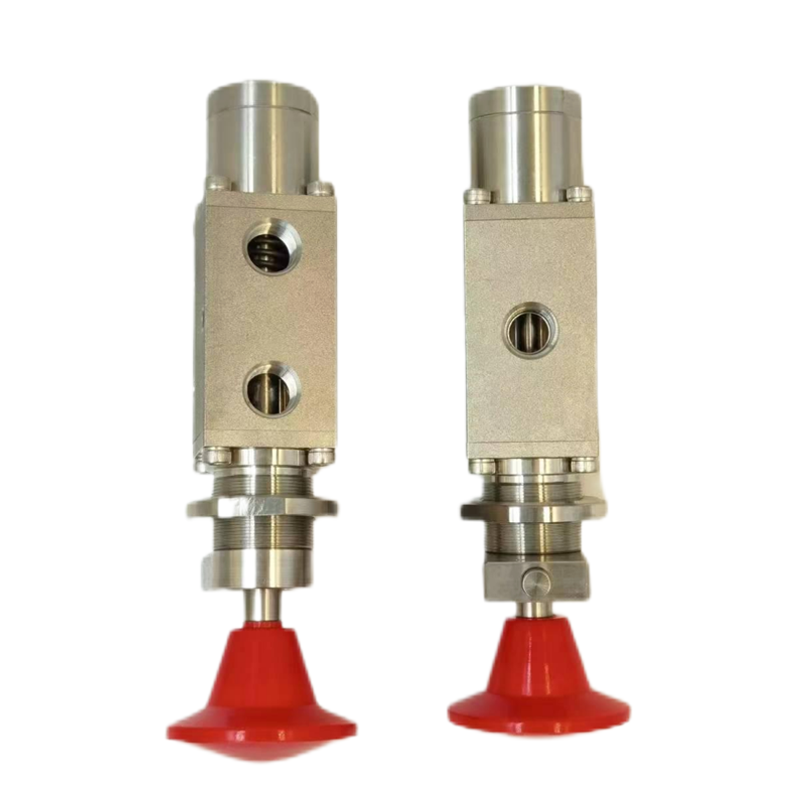

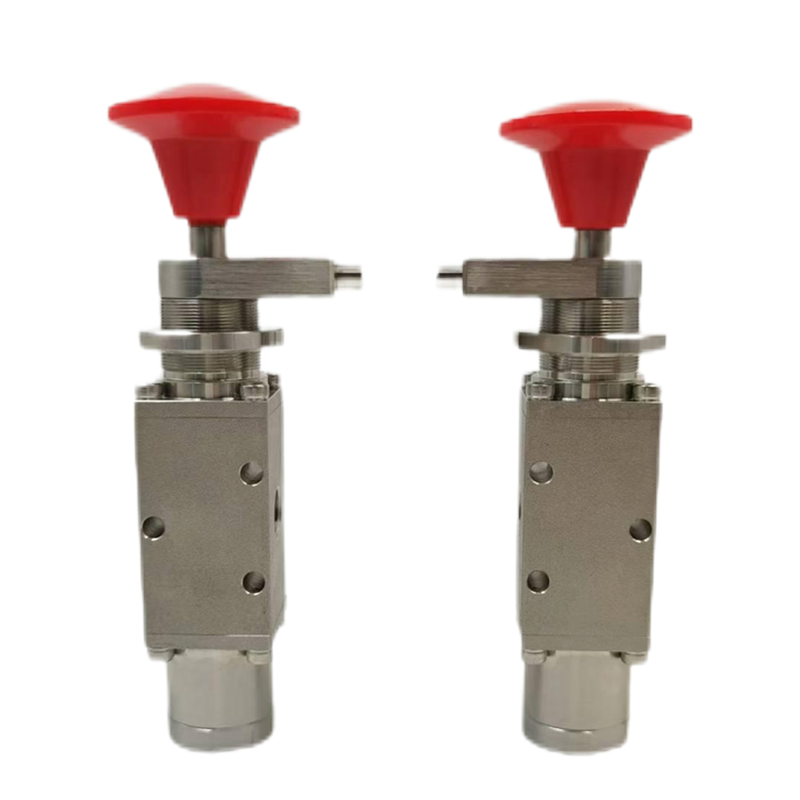

USUN Model: MRLV- SS-BHL Black color handle Manual control Stainless steel relay valve for Hydraulic liquid
USUN Brand Relay valve Features：
* 3316 stainless steel, X-750 material components
* Two way , three-positions control function, normally closed valve
*Applicable for Hydraulic or Pneumatic System and can choose relay valve with lock
* Standard Buna N seals, other seals available and Operating pressure is small
Manual control Relay Valve Parameters :
Rated pressure of valve body (control port) : 150psig
Temperature: -20°F to 250°F (-29℃ to 121℃)
Port: NPT1/4 Female
CV Value: 2.1
Product Technical data ：
The USUN Brand relay valve is a two way three normally closed valve that can be manually reset. Its design purpose is to adjust
valve output pressure by pulling the handles. Once the handle is pulled out and pilot air supply pressure is applied, the relay valve will remain in normal use. When the pilot supply pressure drops, the inlet ports close and the pressure in the control circuit is released.
This type of relay valve is most commonly used to control the opening/closing sequence of ground safety valves or to operate typical
fault shut-off systems. Relay Valves can also be equipped with locking block components.
