PRV06SS2FNPT4-V
USUN
PRV06SS2FNPT4-V

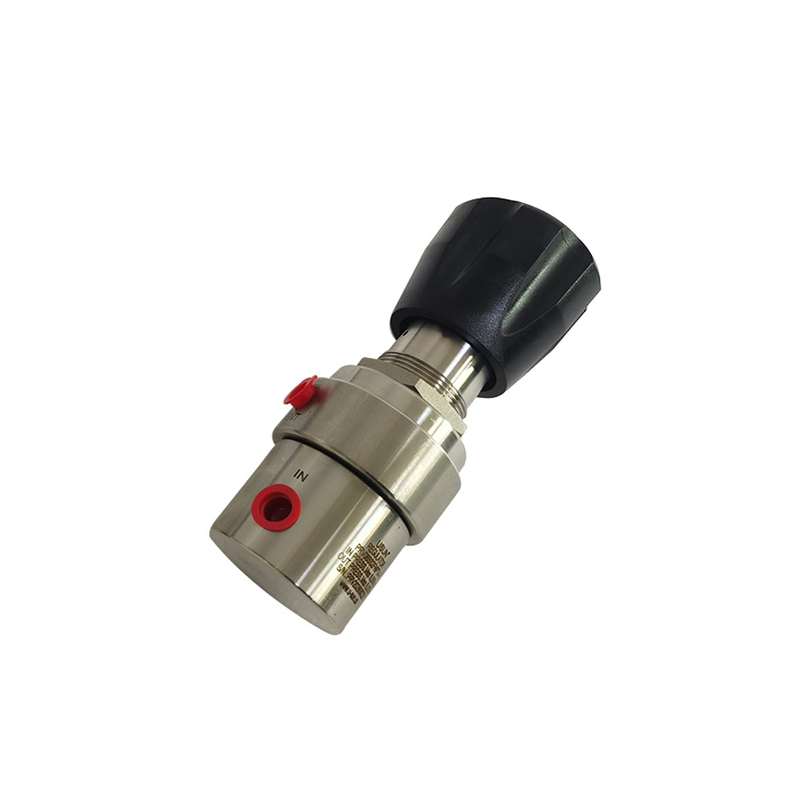

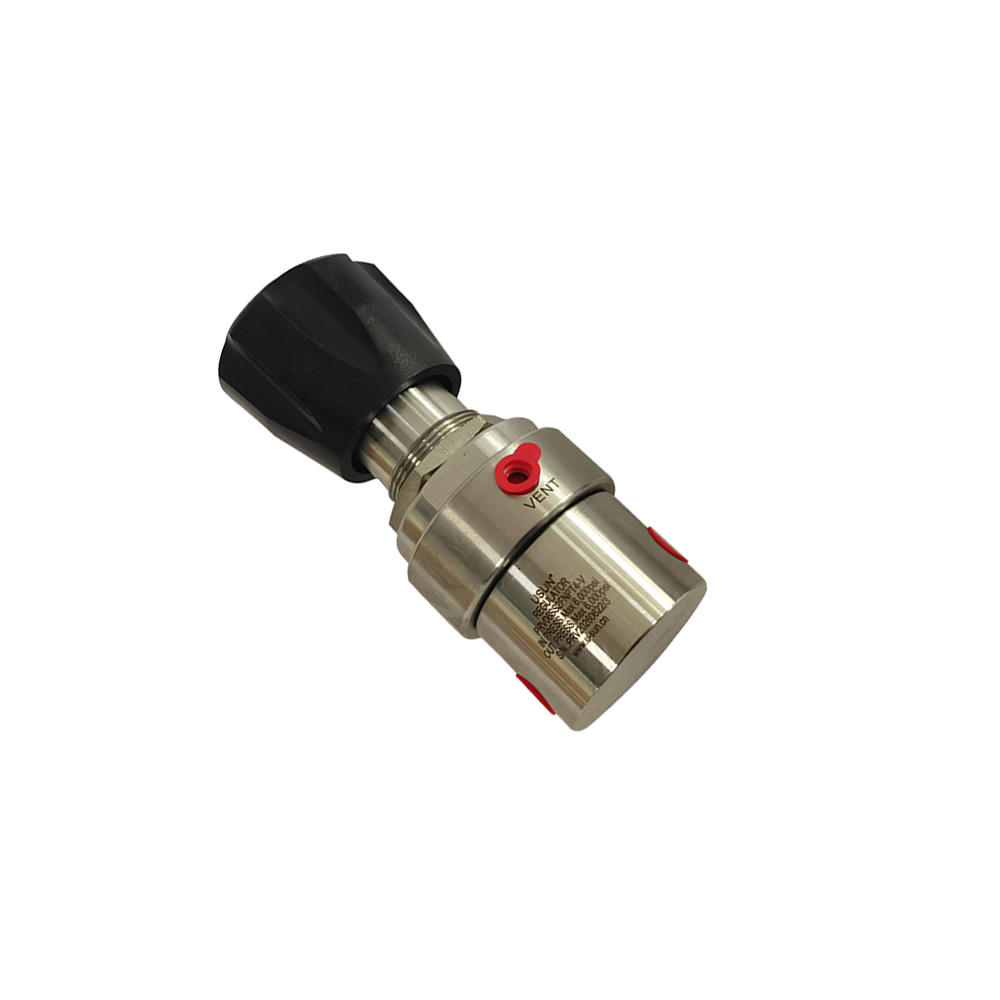

USUN Model:PRV06SS2FNPT4-V Similar Tescom Stainless Steel 316 High Pressure Hydraulic Or Gas Pressure Regulator Valve with Vent NPT1/4''
Descripition
A pressure reducing and regulating valve is a mechamical device that reduces a higher upstream pressure to a lower downstream pressure. USUN pressure reducing and regulating valves can maintain downstream pressure seting points under varying inlet pressure conditions of different media in various industry applications (including high-orecision applications and hazardous environment applications).
Main technical parameters:
1)316 stainless steel construction makes the valve has good corrosion resistance.
2)Maximum inlet pressure: 6000 psig.
3)Outlet pressure ranges: 50-6000 psig.
4)Working temperature:-15°F~165°F(-26°C~74°C).
5)Flow coefficient : CV=0.12
Piston-sen se d design ensures safely and reabiliity

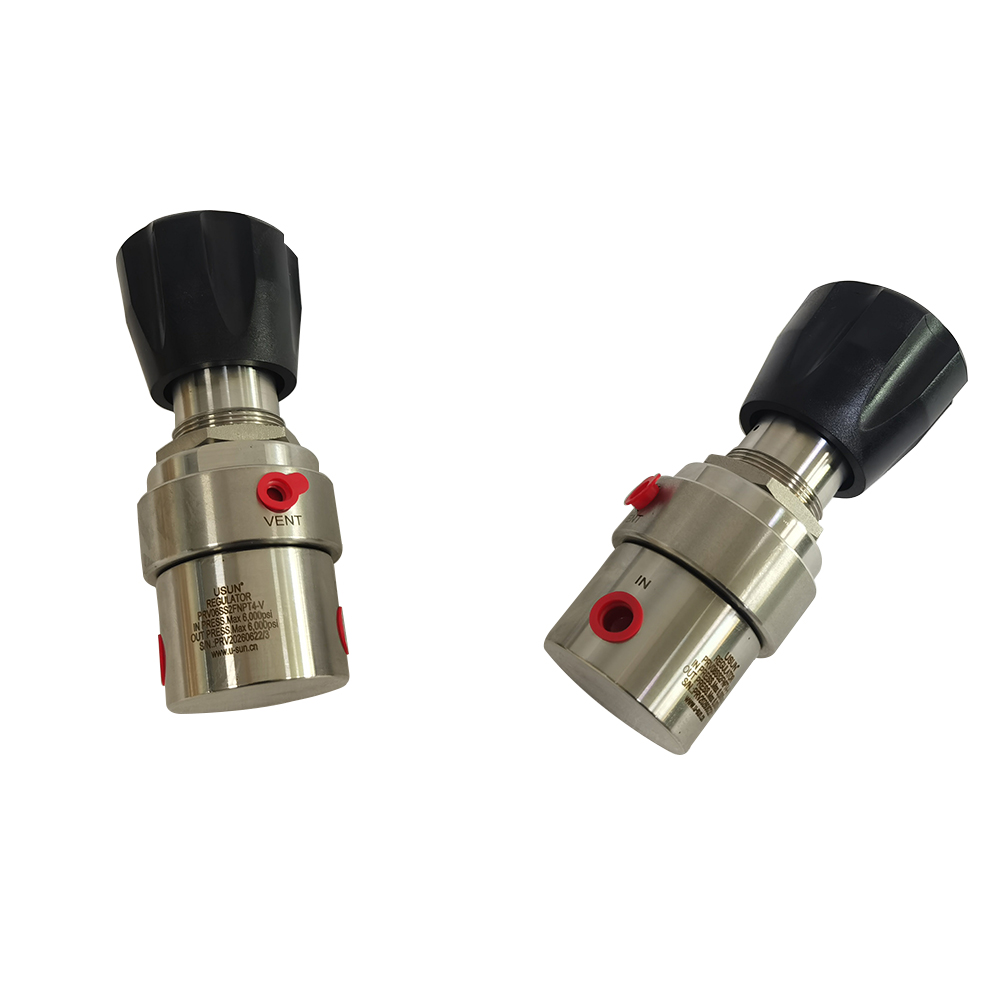

Downstream pressure vent(relief /Vent port optional )

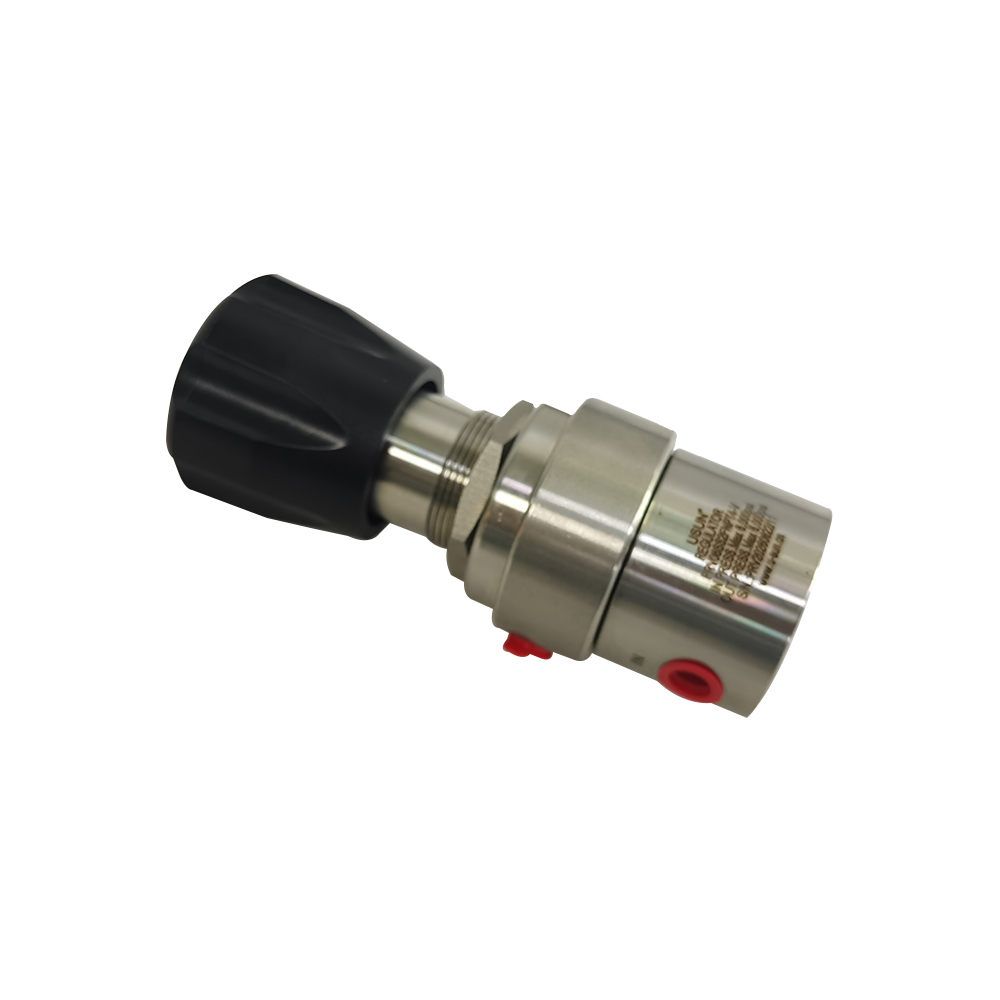

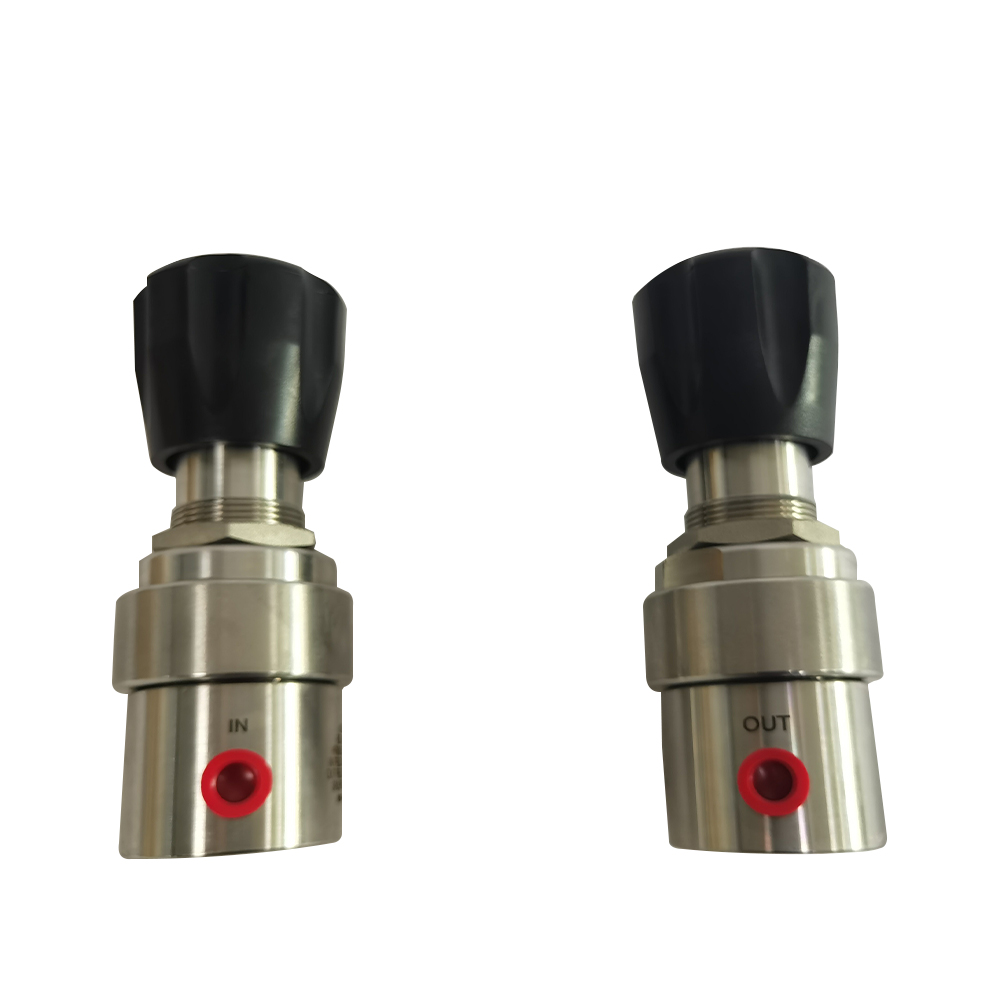

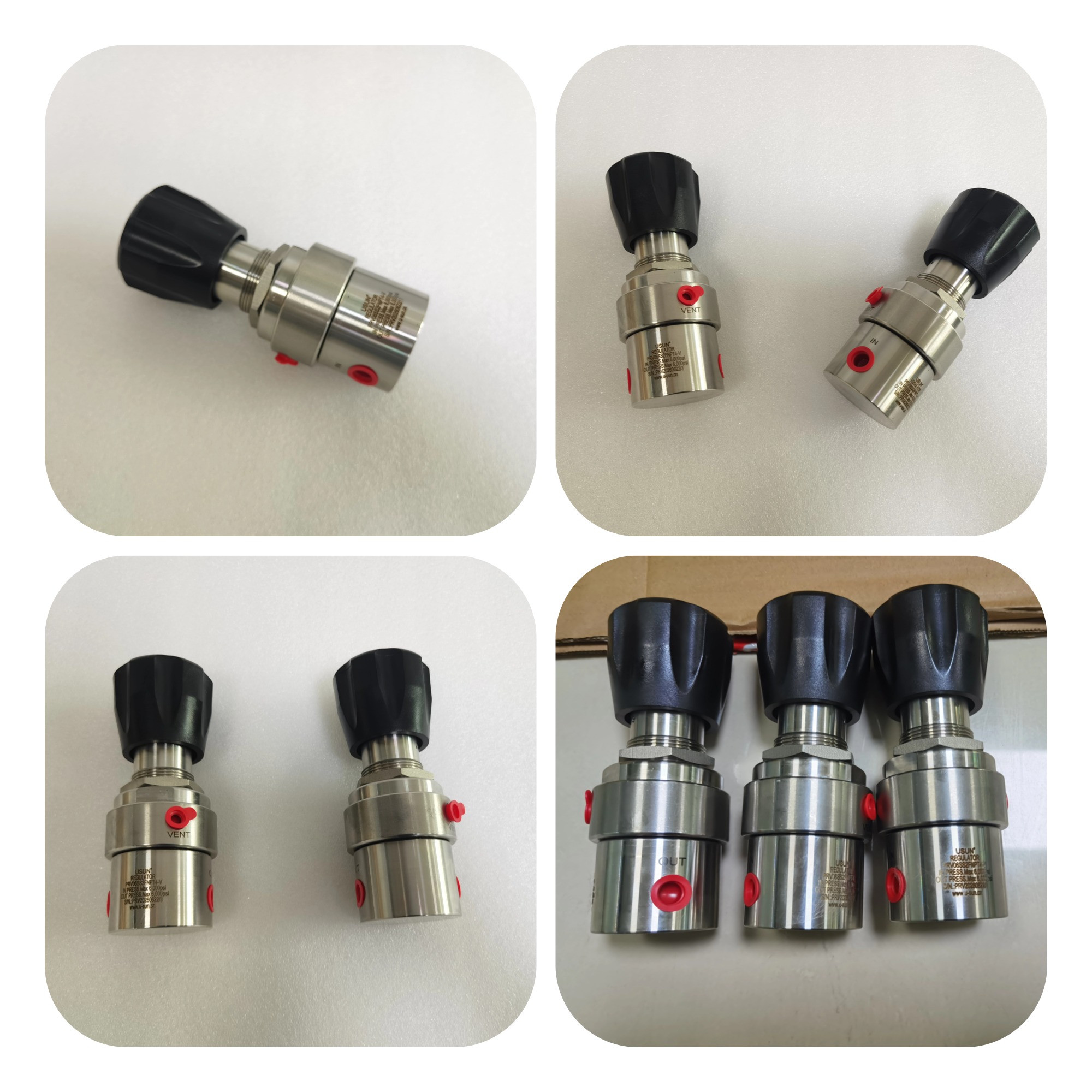

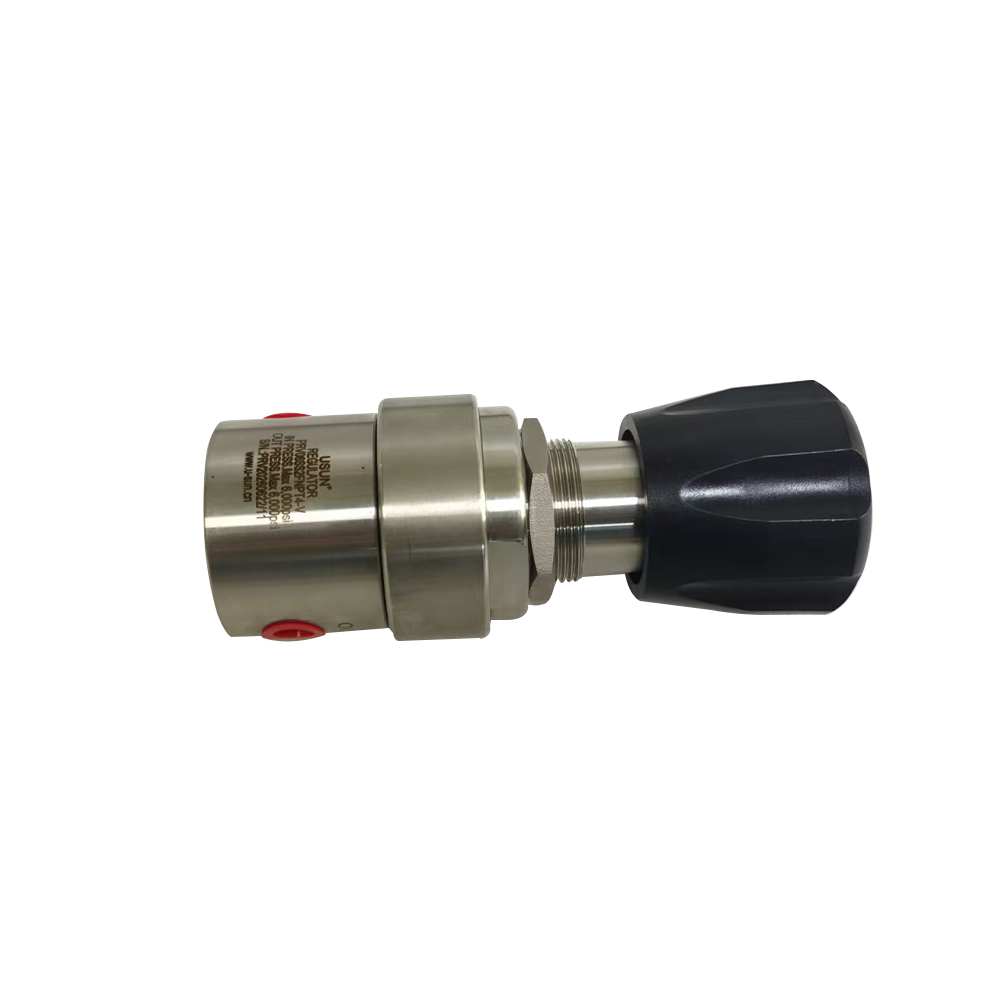

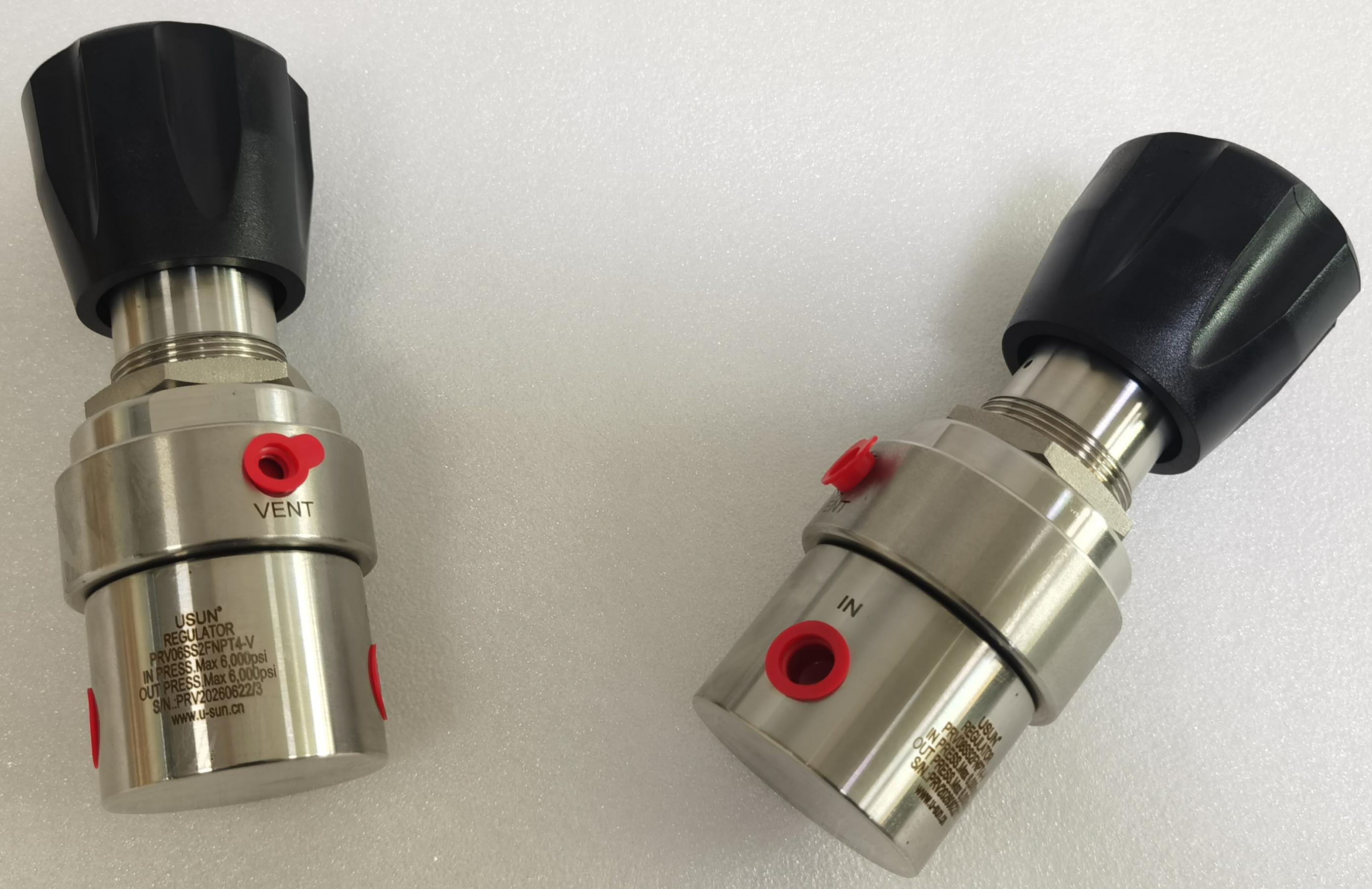

Real pictures of such regulator valve
