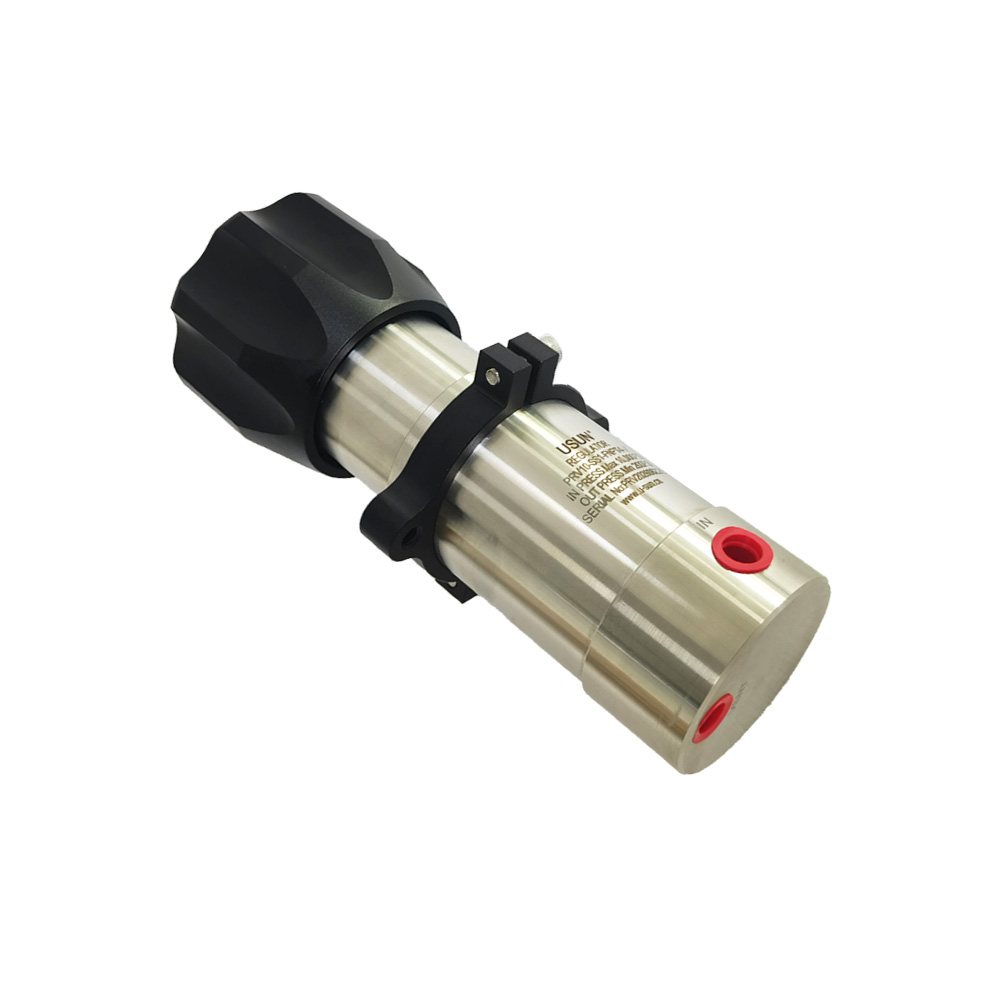

USUN Model : PRV10SS1-FNPT4 Similar Tescom Stainless steel 316 High pressure Hydraulic or gas pressure regulator valve for oil and gas equipment

USUN Model: PRV10SS1FNPT4 200 to 10000 PSI range Stainless steel 316 Hydraulic pressure regulator valve,

Similar Tescom Gas reducing valve

 Pressure regulator valve Features

★316 stain less steeleonstruction makes the vale hasgood corroslion reistance.

★Main wallve metall to metal seal.

★ Maxlmum inlet pressure:10000 psig(689 bar ),.

★  Si outle1 pressure ranges:1(200-10000psig)

2 (50-6000 psig.3(25-4000 psig1 4 15-2500 psg) 5(10-1500 psg  6 )0-800 psig

.* WorMing te mperature:-15"F~165FK-26*C~74"C

★ Spring laaded pressure reducing reg ula tor.

★Piston-sen se d design ensures safely and reabiliity

★ Downstream pressure vent(relief /Vent  port optional )

Descripition

Turning the handle cloekwise wil increa se he spring exer le d tension to increase theregulalor ou tput pre ssure.Rotaling the hande

countler clockwise  decrease the regulator outpui pressure. When the downstream pressure is higher than the set pressure the

 downsteam pressure  will rellief from the vent port.

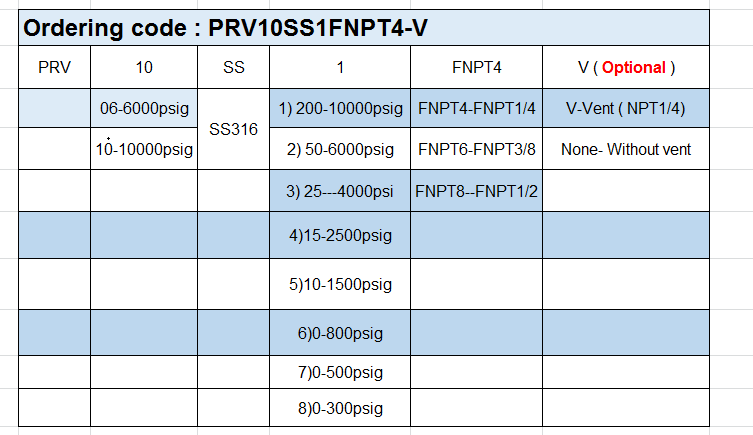

 Product  Technical data

If your side have any concern for this ,can consult with us in advance  .

Technical drawing for such pressure regulator valve

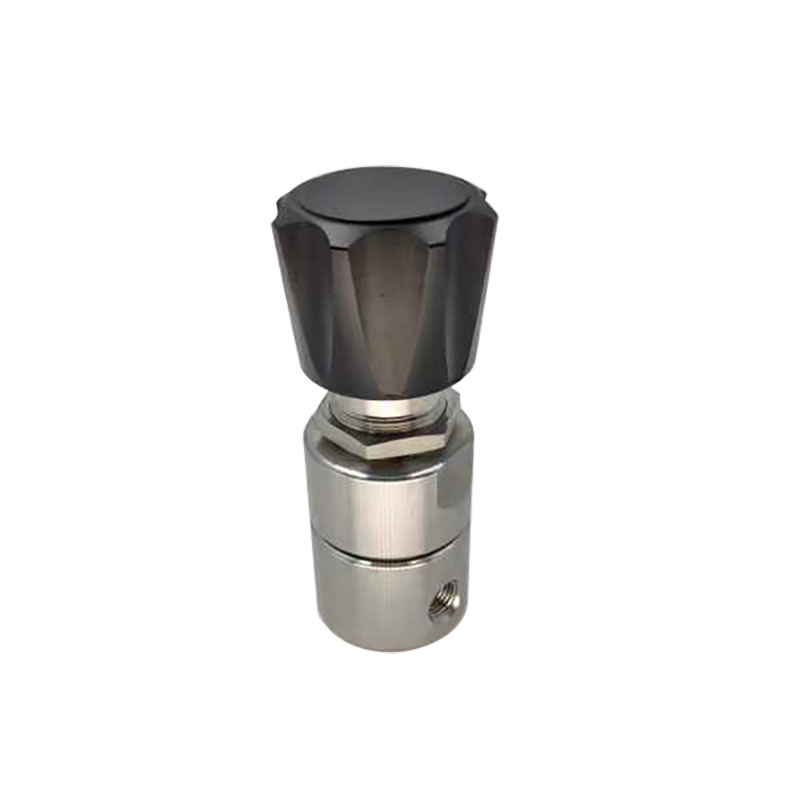

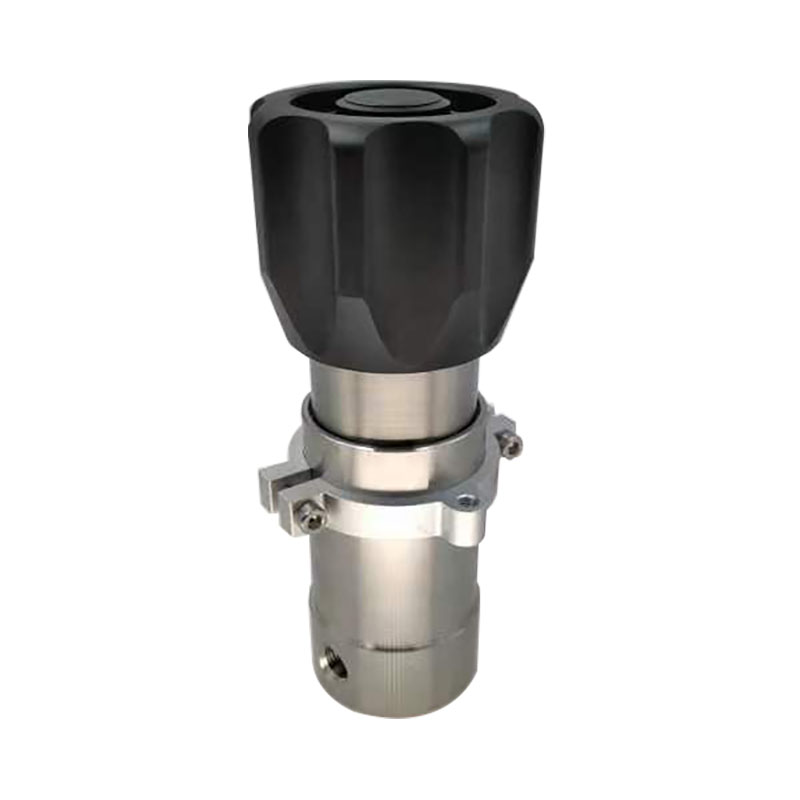

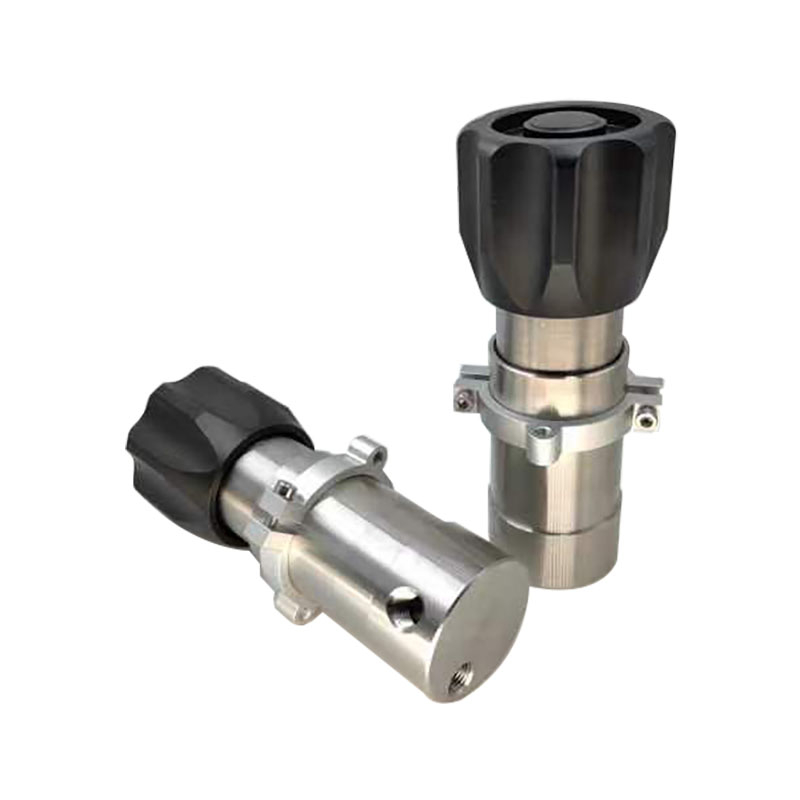

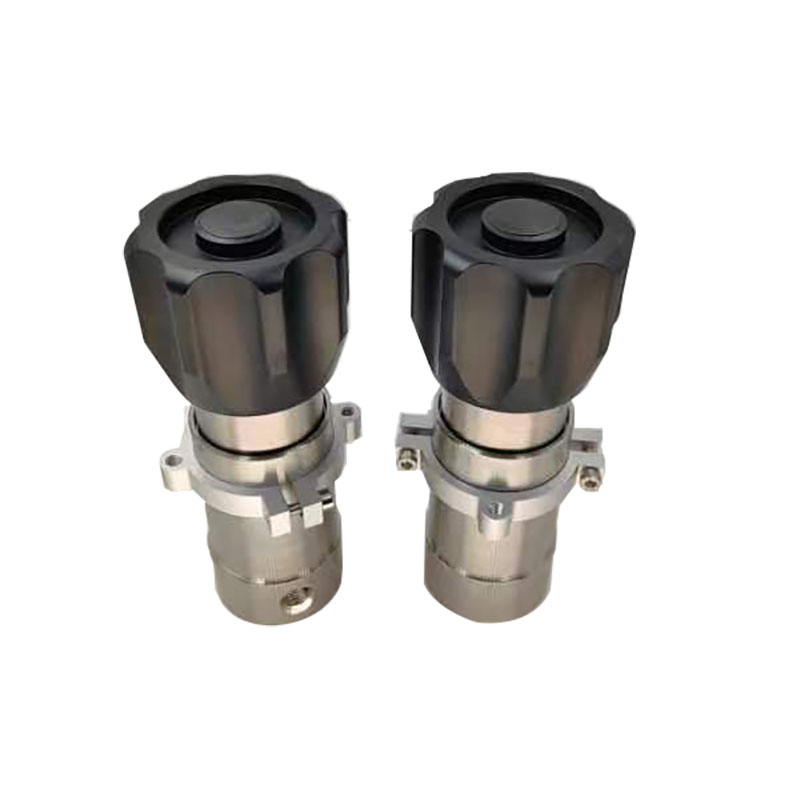

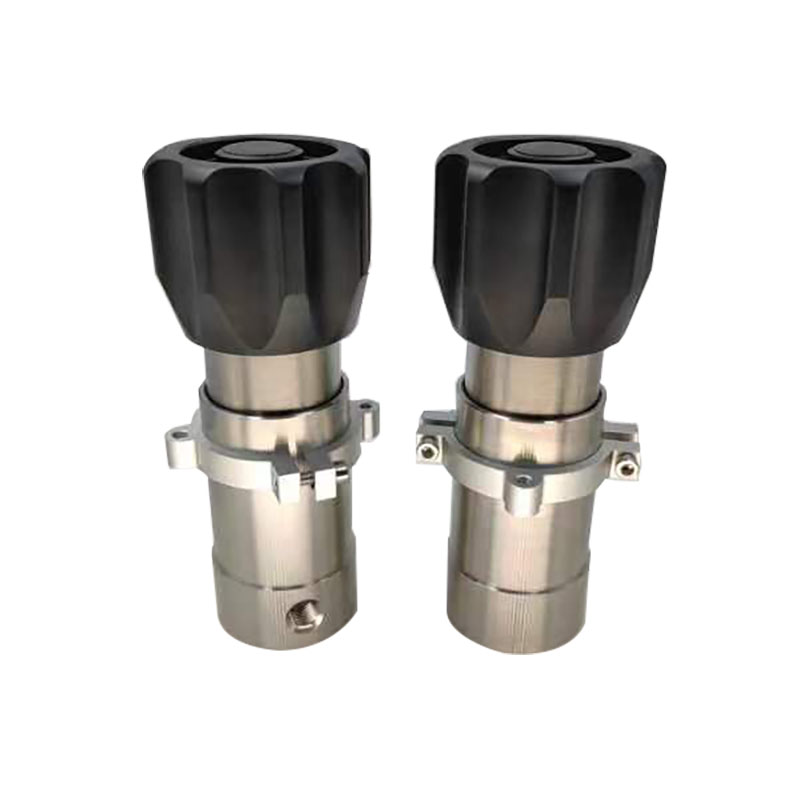

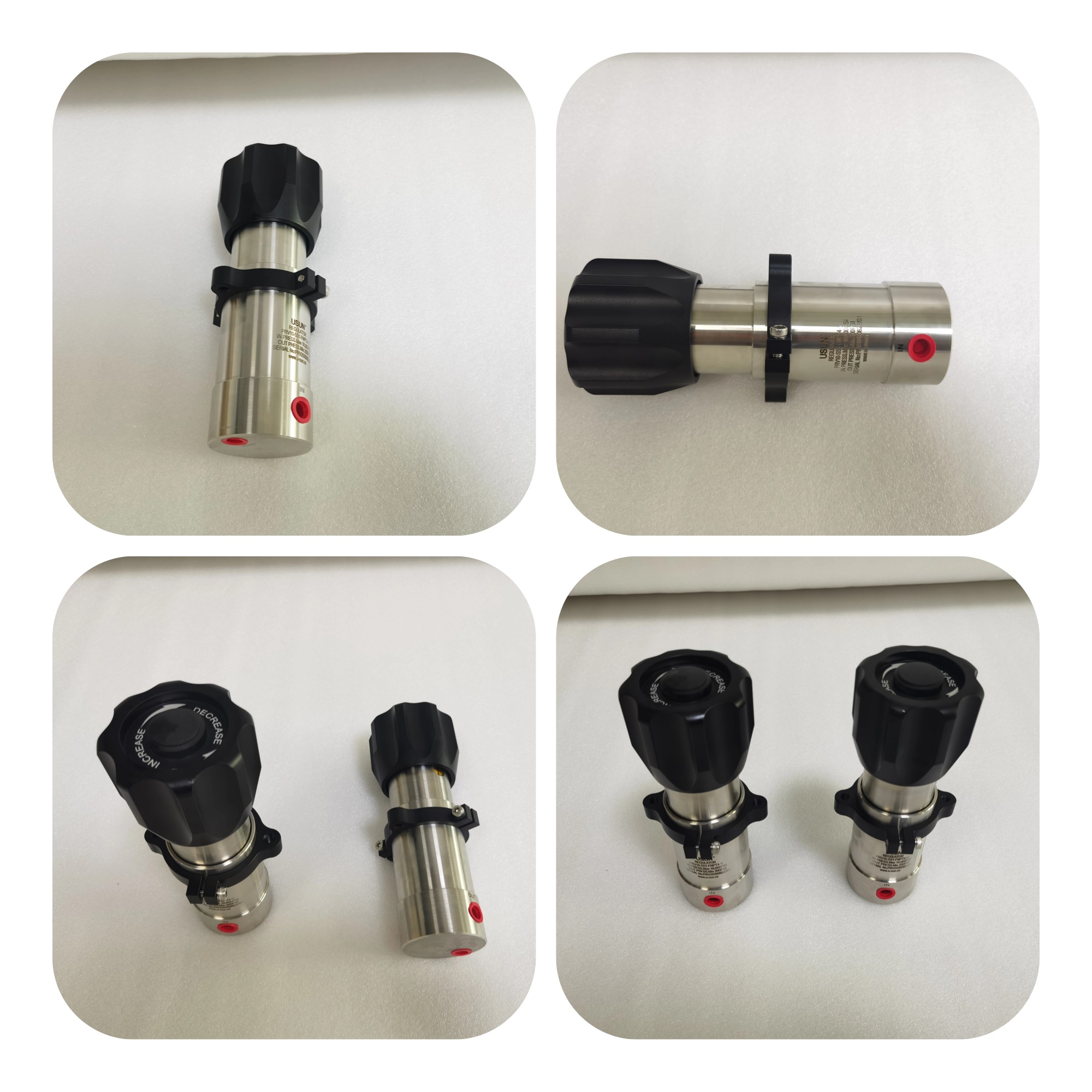

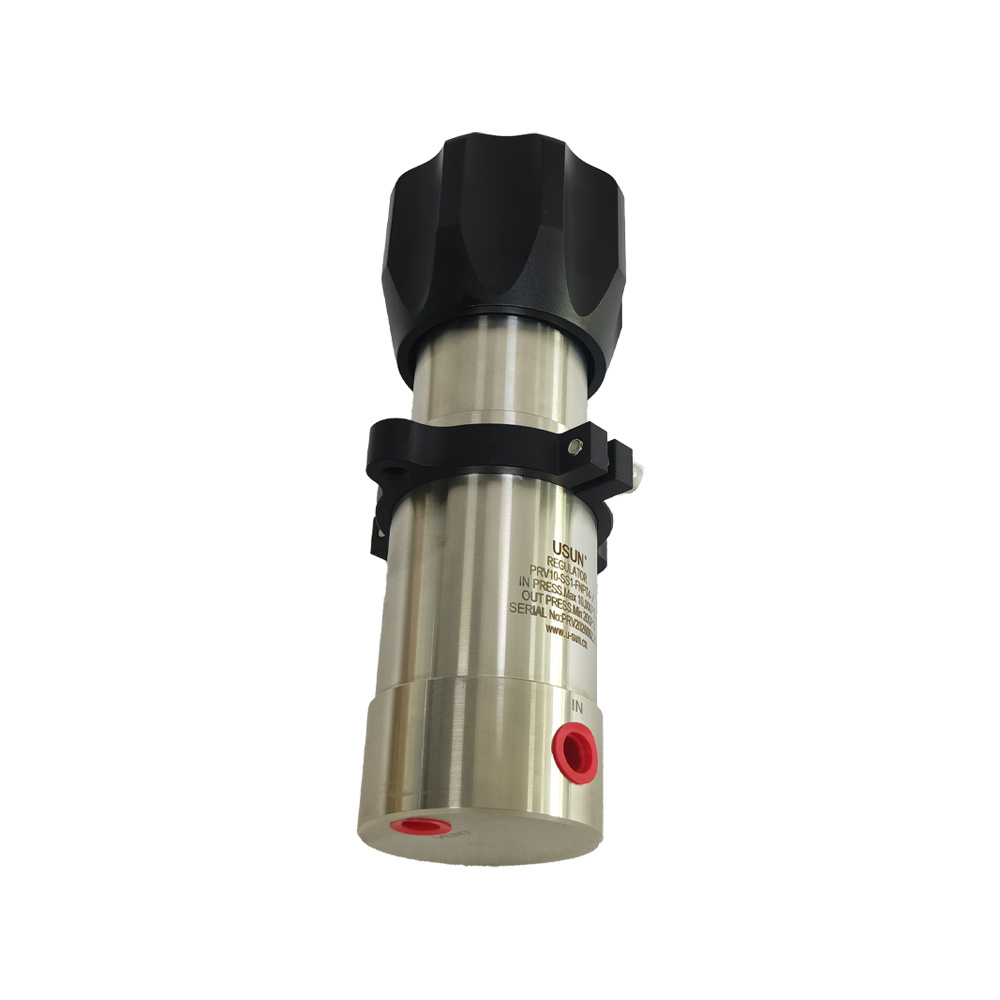

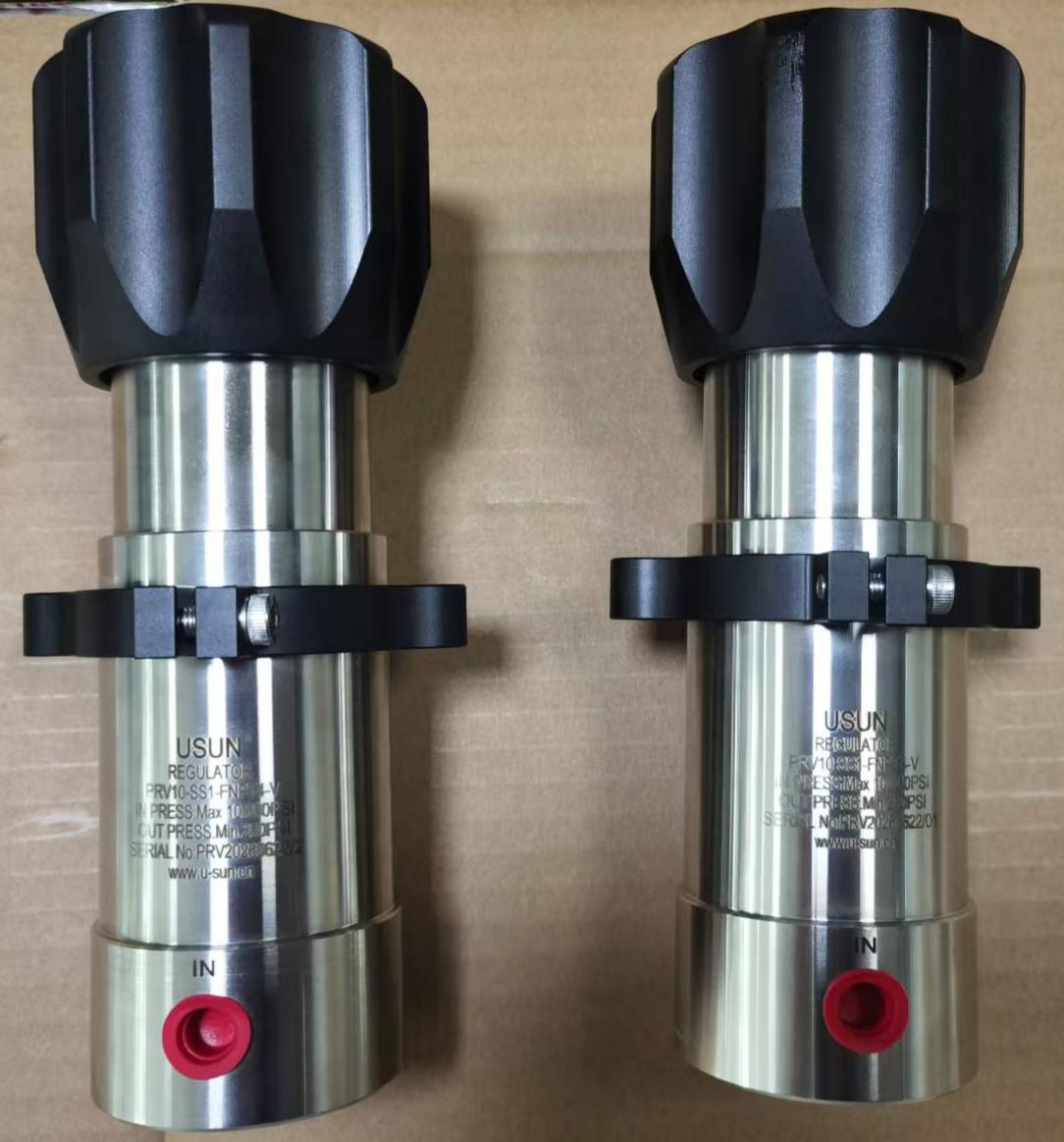

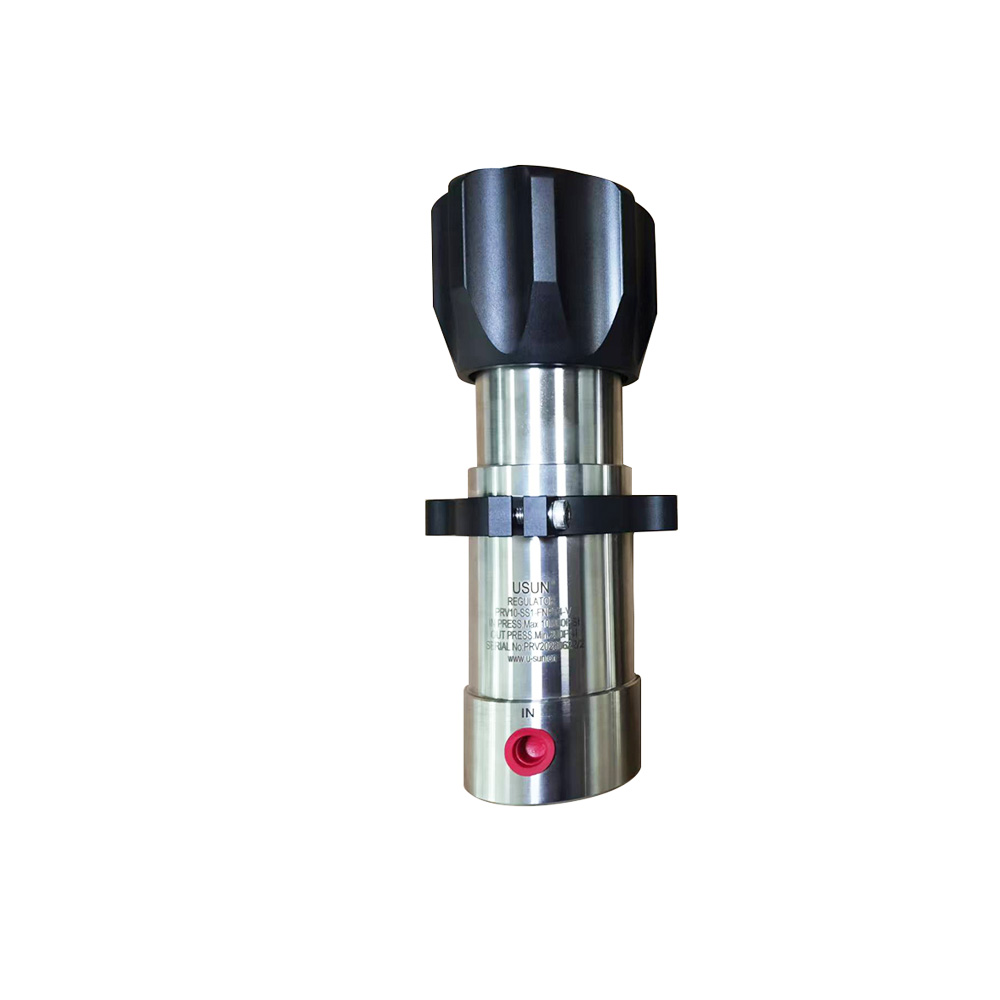

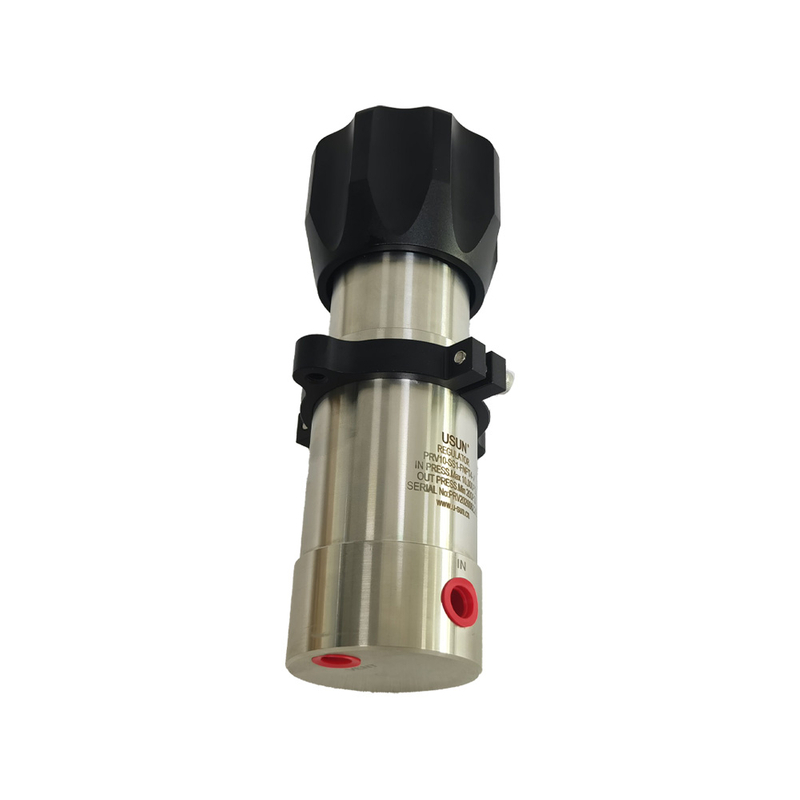

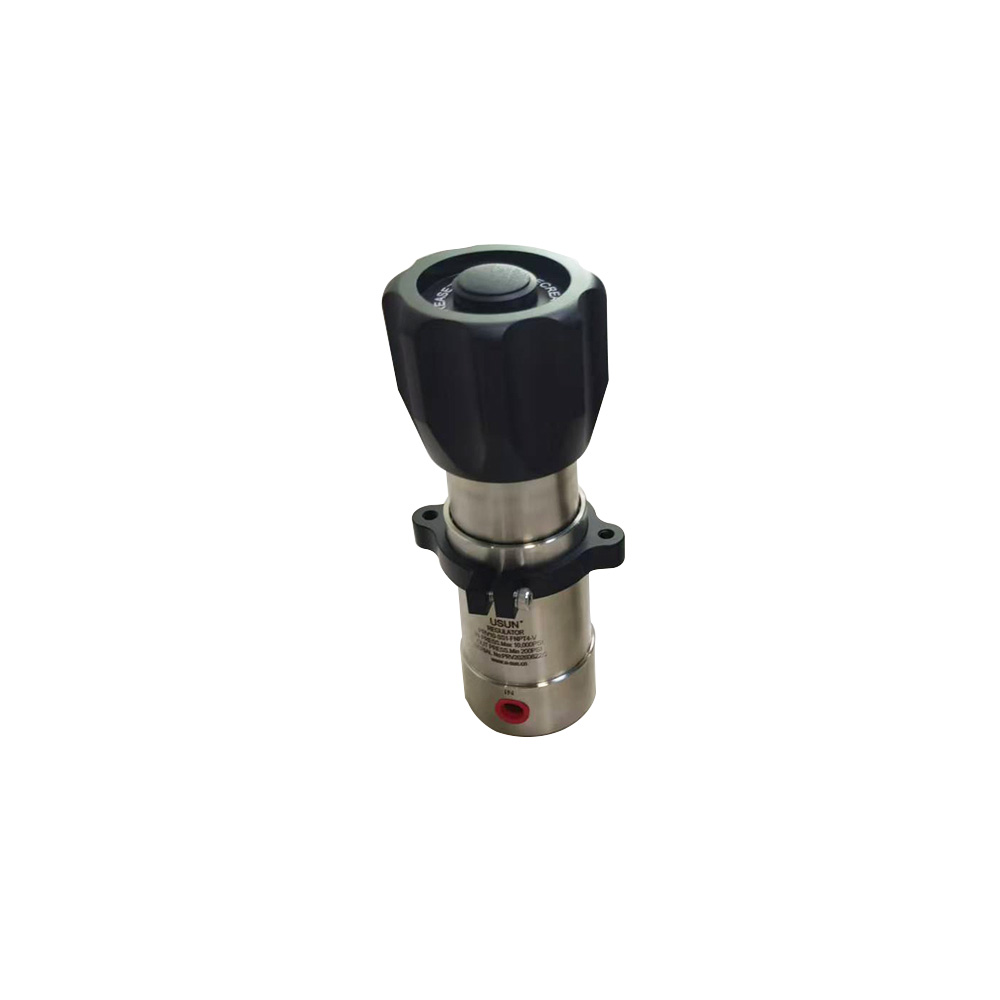

Real pictures of such  Pressure regulator valve
