Model :RV20
USUN
Model :RV20
USUN Model : RV20 10,000 psi to 20 ,000 PSI adjustable high pressure safety relief valve
applications, where maximum safety and reliability are critical. The cost saving design minimizes the need for
frequent recalibration, resulting in reduced maintenance and downtime. Set at the factory based on customer
requirements, precalibrated, tagged and locked in.
RV20 Safety pressure relief Valve product features
optimized outlet flow for faster relieving. Proportionally actuated
• Constructed of 316 SS, Nitronic 60 and 17-7 spring as standard
• Alternative spring material: 316SS, Inconel 718
applications, nor on pressure vessels CAT III, IV. Valves are not ASME code stamped safety devices. Standard model
not suitable for oxygen service. Consult factory for alternative material.
Product applications
Engineered to provide reliable, repeatable venting of gases or liquids in pressure gas systems,
cryogenic systems and petrochemical applications where flow is not important.

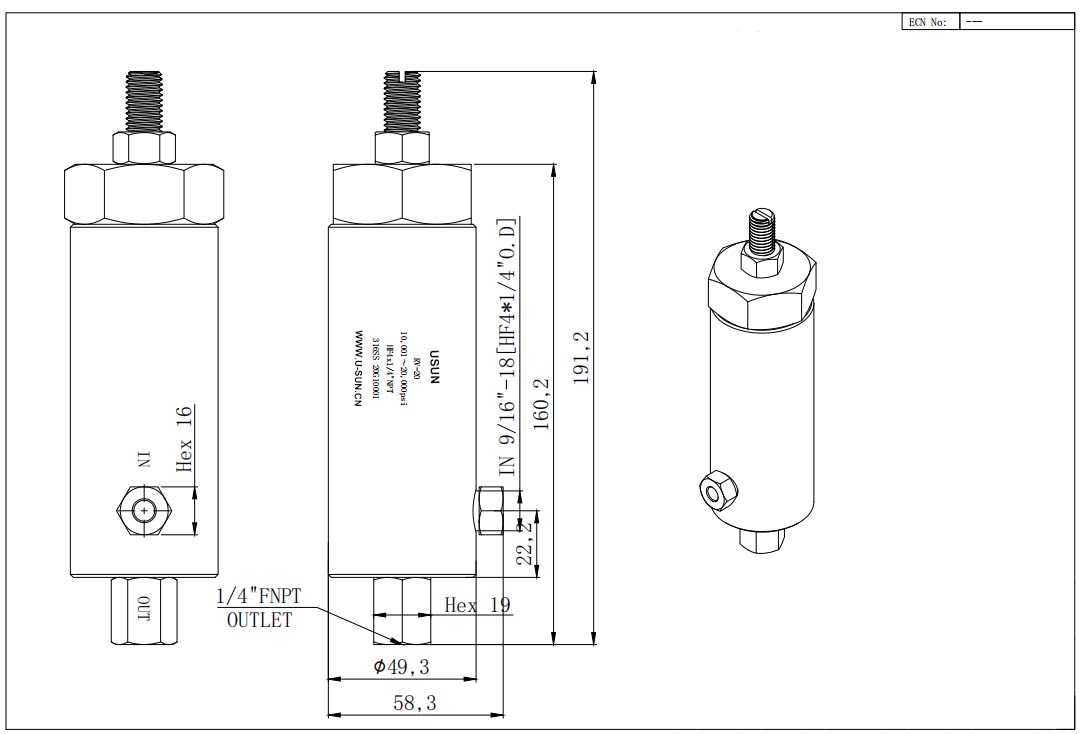

RV20 safety pressure relief valve drawing

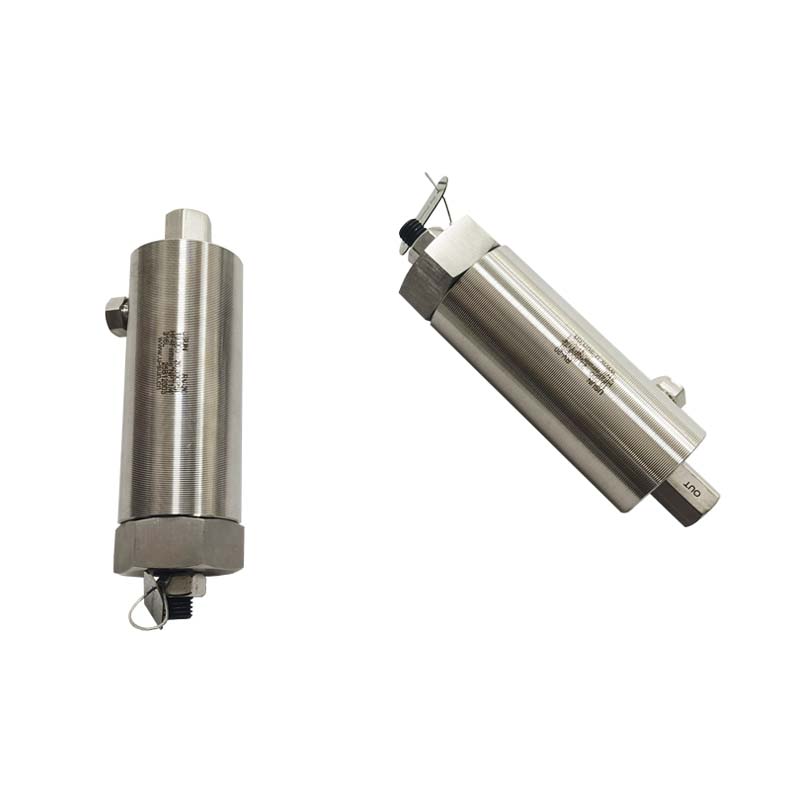

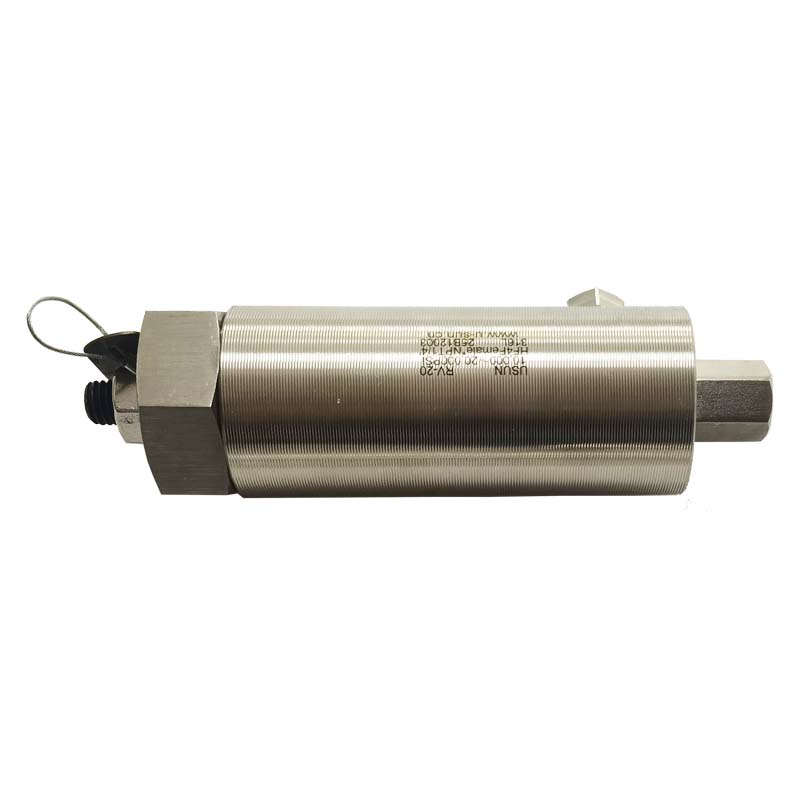

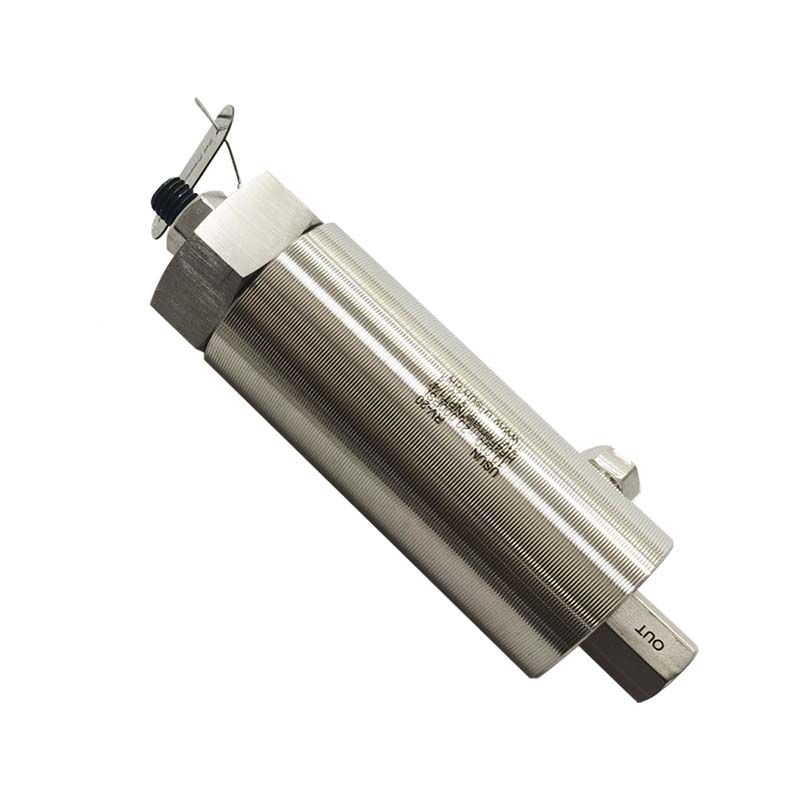

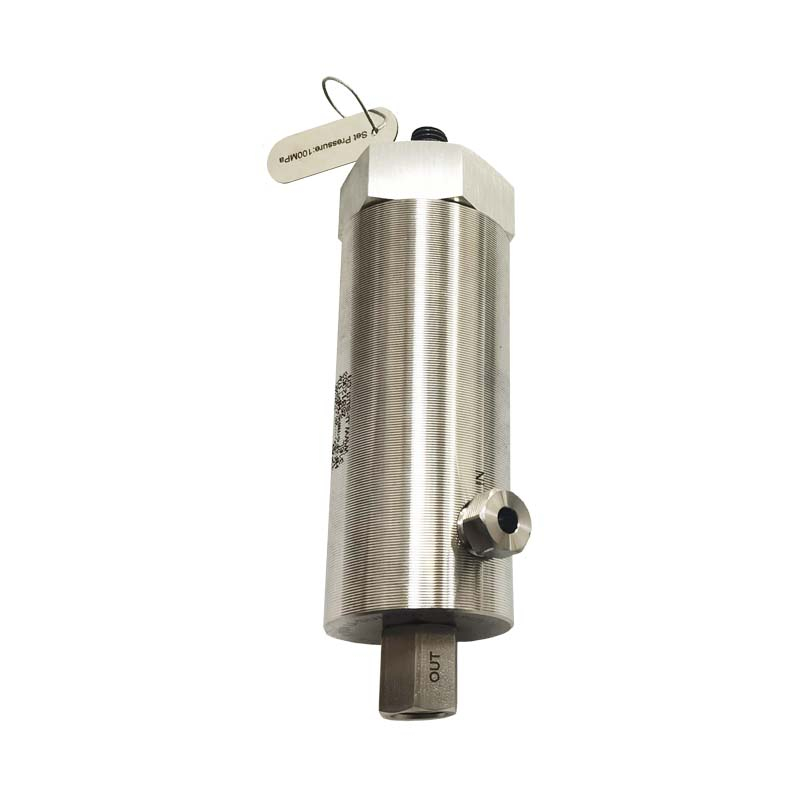

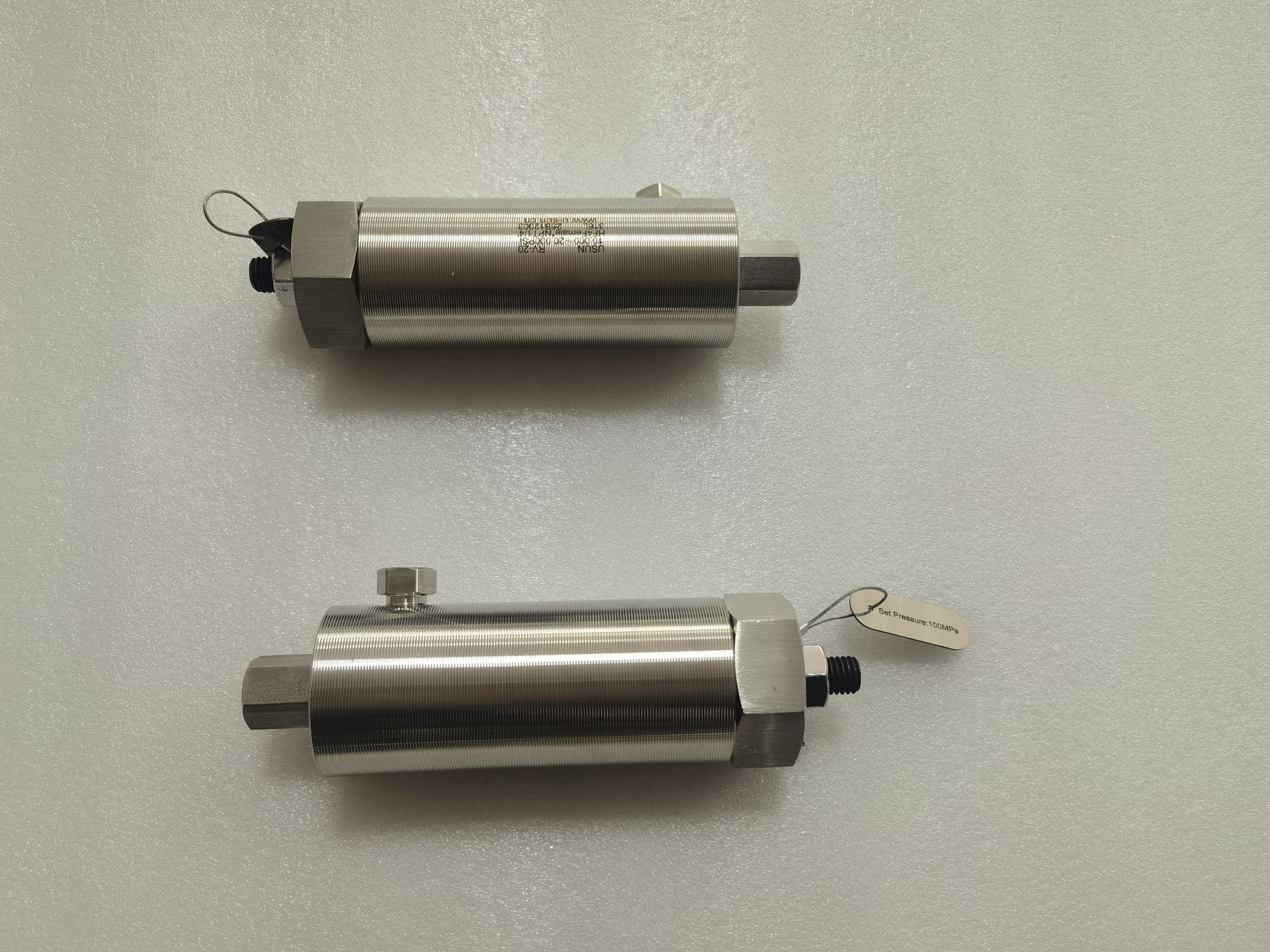

Real photos of such RV20 safety pressure relief valve
USUN Model : RV20 10,000 psi to 20 ,000 PSI adjustable high pressure safety relief valve
applications, where maximum safety and reliability are critical. The cost saving design minimizes the need for
frequent recalibration, resulting in reduced maintenance and downtime. Set at the factory based on customer
requirements, precalibrated, tagged and locked in.
RV20 Safety pressure relief Valve product features
optimized outlet flow for faster relieving. Proportionally actuated
• Constructed of 316 SS, Nitronic 60 and 17-7 spring as standard
• Alternative spring material: 316SS, Inconel 718
applications, nor on pressure vessels CAT III, IV. Valves are not ASME code stamped safety devices. Standard model
not suitable for oxygen service. Consult factory for alternative material.
Product applications
Engineered to provide reliable, repeatable venting of gases or liquids in pressure gas systems,
cryogenic systems and petrochemical applications where flow is not important.
RV20 safety pressure relief valve drawing
Real photos of such RV20 safety pressure relief valve
