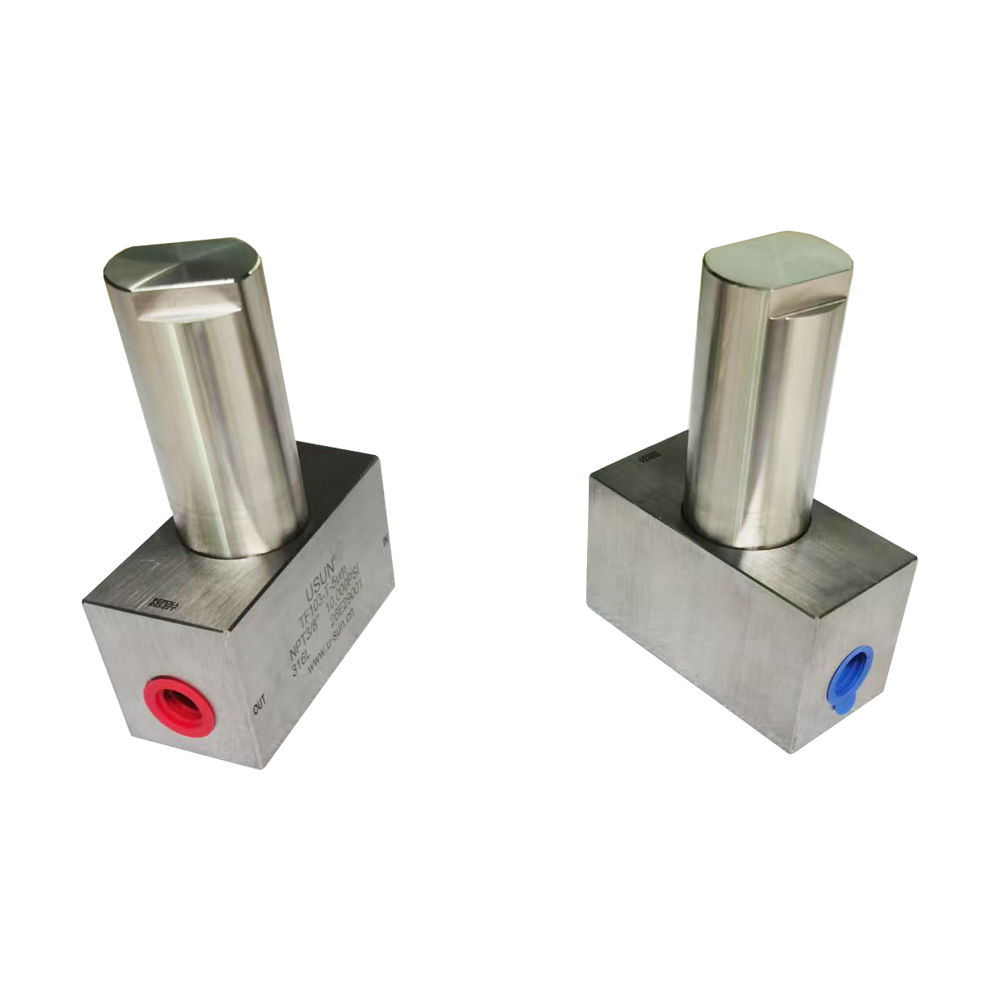

USUN Model:TF103-T-5μm Max.10000PSI FNPT3/8'' High Pressure Filters for High Flow Systems

USUN Model:TF103-T-5μm Max.10000PSI FNPT3/8'' High Pressure Filters for High Flow Systems

Particle contamination under high pressure can reduce the service life of hydrogen control equipment, while smaller particles require higher filtration quality, resulting in higher density of the filtration material and increased pressure loss. The USUN TF10/20 series filter compensates for pressure loss when the fluid flows through the filter by increasing the filtration area, keeping pressure loss as low as possible. The TF10/20 series filter is suitable for high flow systems that are resistant to high pressure differences. Particle contamination under high pressure can reduce the service life of hydrogen control equipment, while smaller particles require higher filtration quality resulting in higher density of the filtration material and increased pressure loss. The USUN TF10/20 series filter compensates for pressure loss when the fluid flows through the filter by increasing the filtration area, loss as low as possible. The TF10/20 series keeping pressure filter is suitable for high flow systems that are resistant to high pressure differences.

Product Technial paramenters:

1)Working pressure: 10,000psi (1,034bar),connection type:FNPT3/8''

2)Filtration accuracy: 5μm

3)Temperature range:-30°C~100°C(-22°F~212°F).

4)Material: The main material is S31603 [Ni> 12%, Nieg>28.5%].

5)The filter element is easy to disassemble and does not requir disassembly from the pipeline, making it easy to maintain

6)Medium: Gases, Hydrogen, neutral non-aggressive gases.

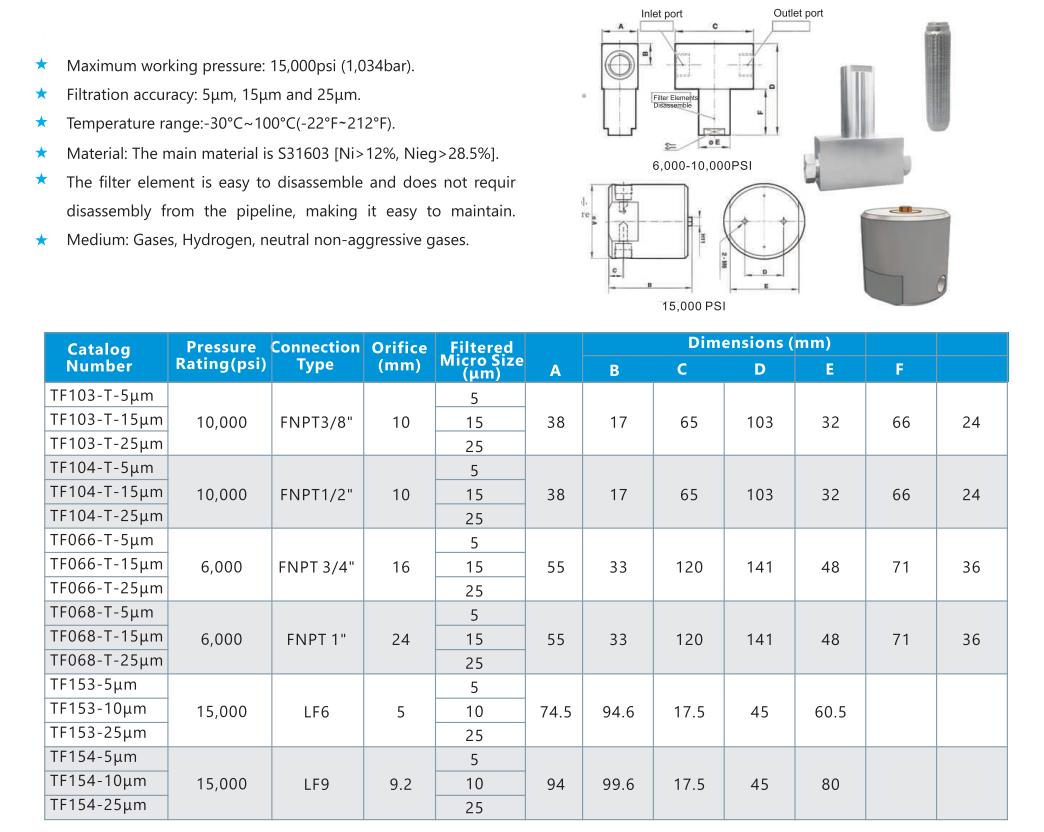

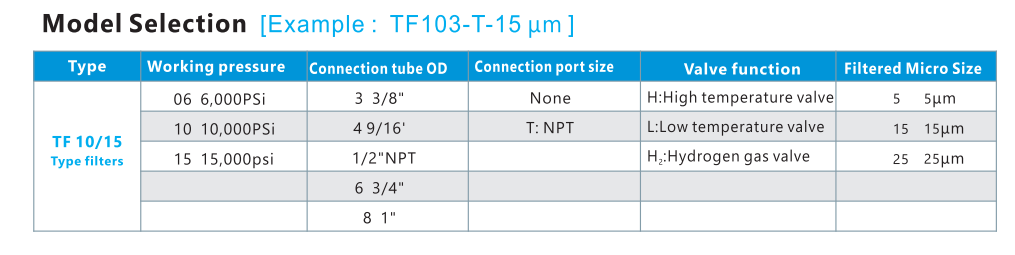

TF10/15 Series specifications:

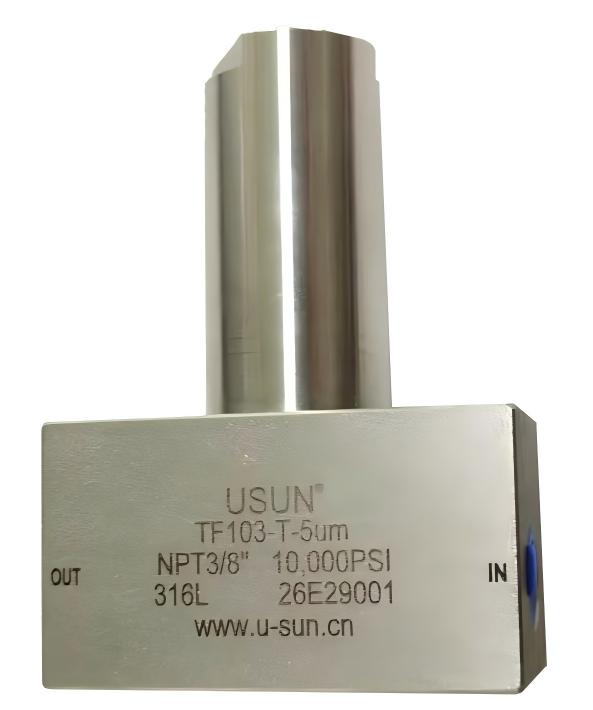

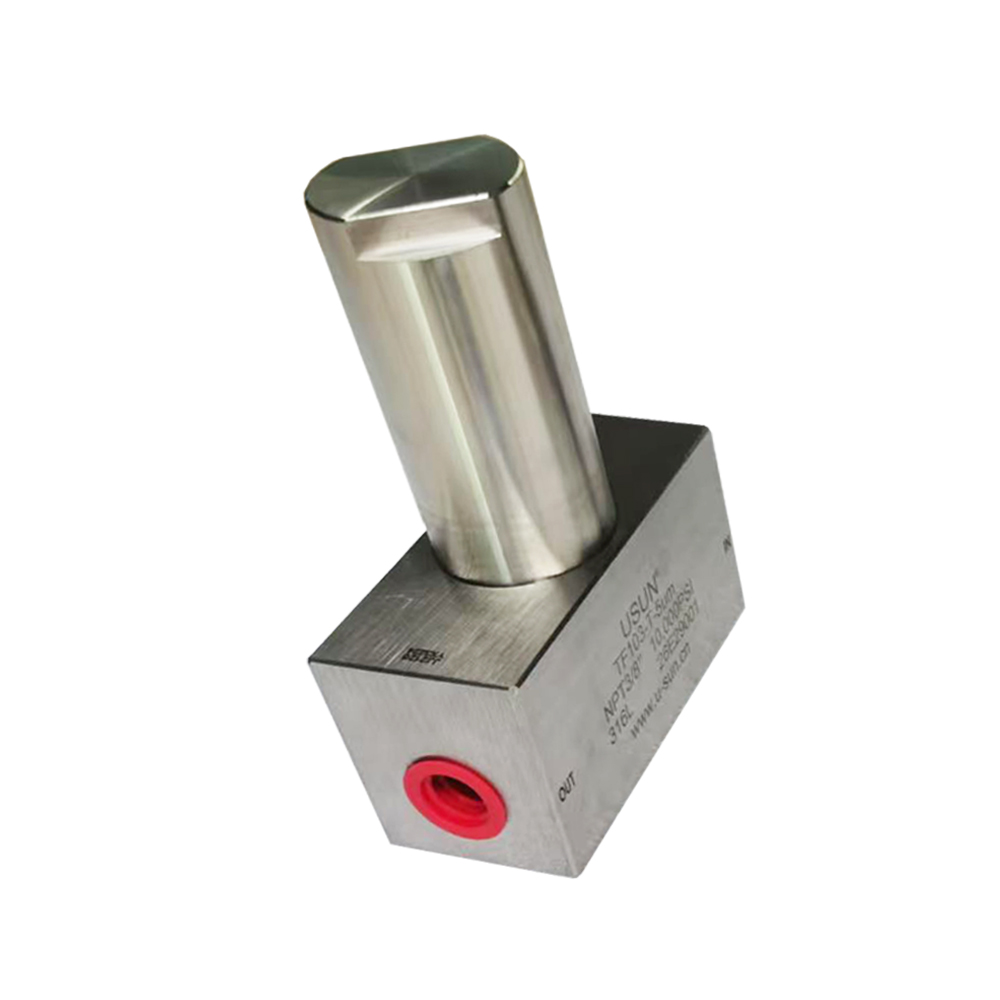

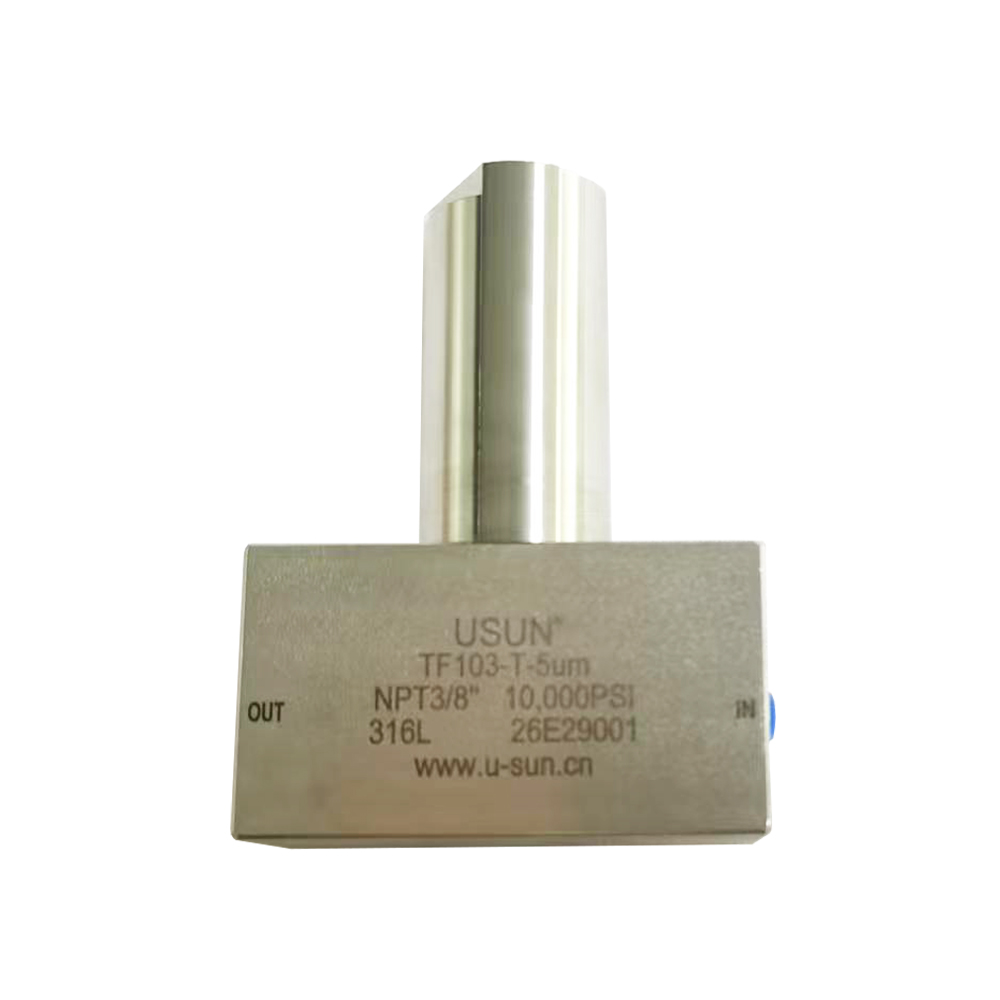

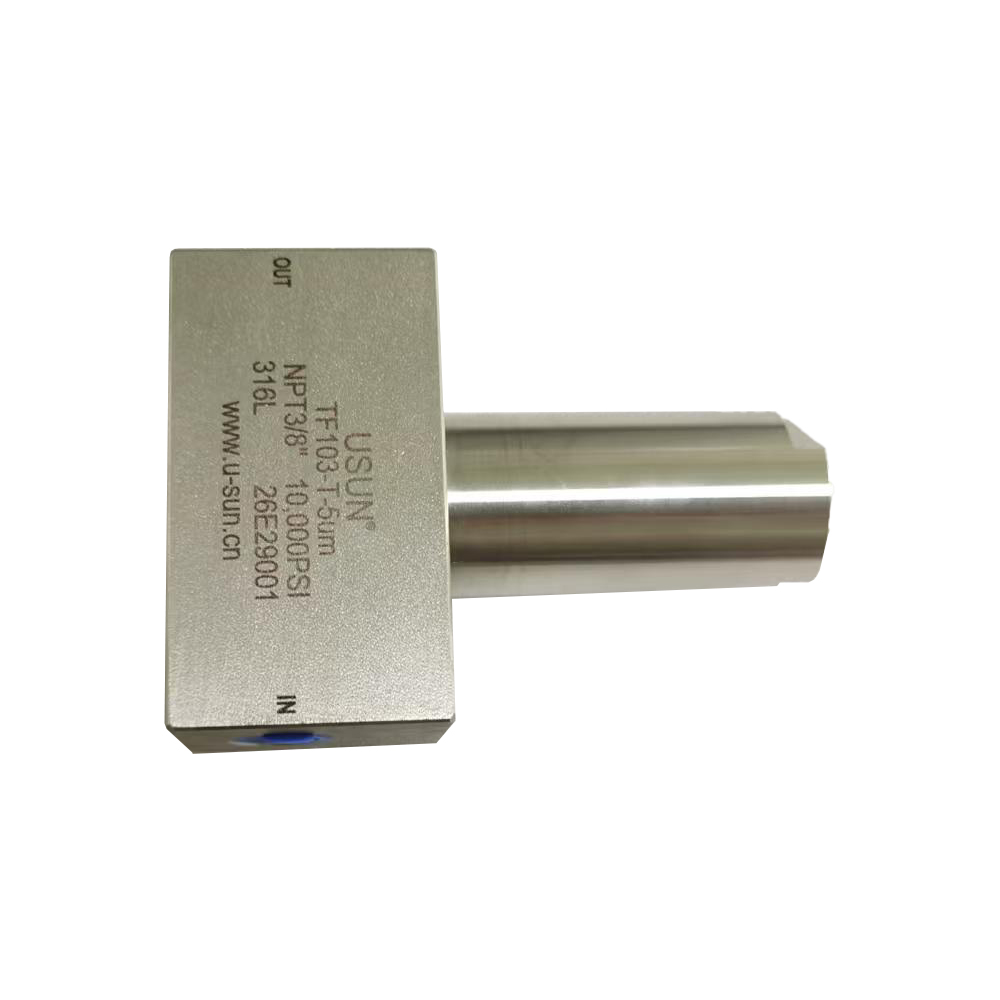

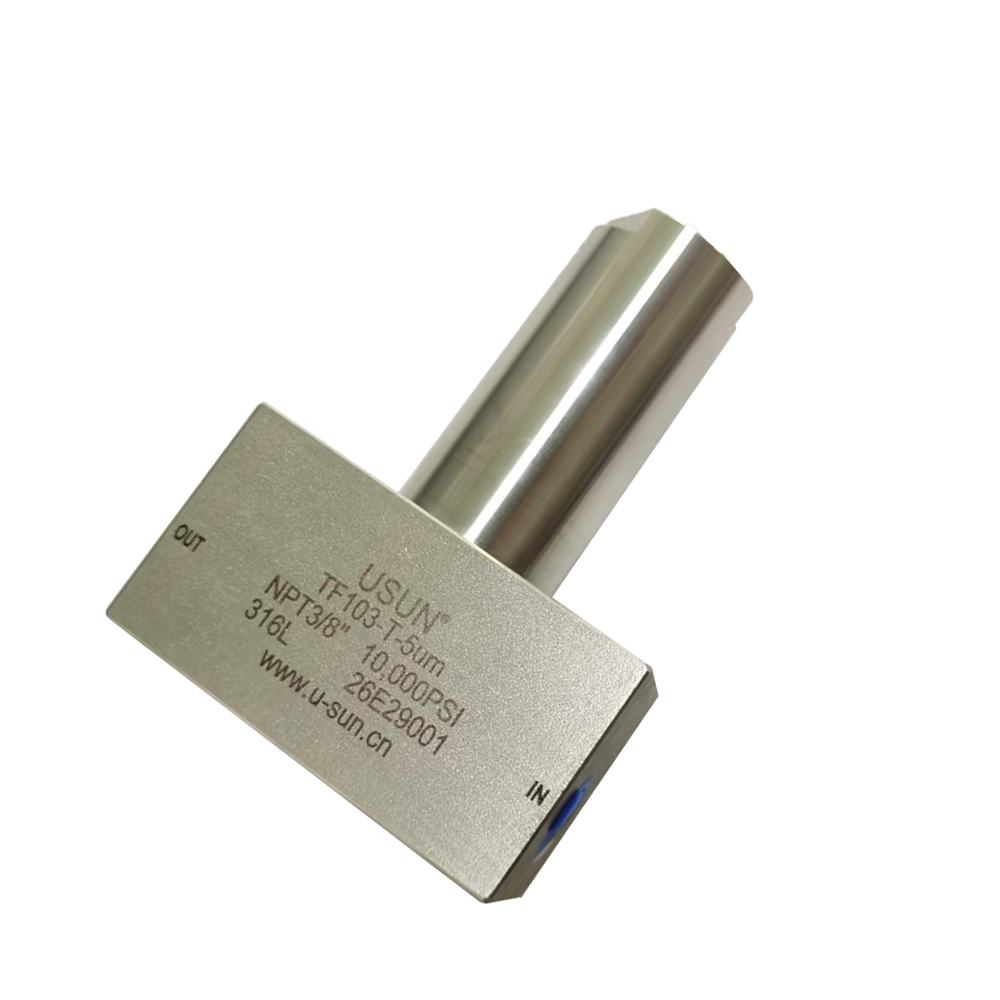

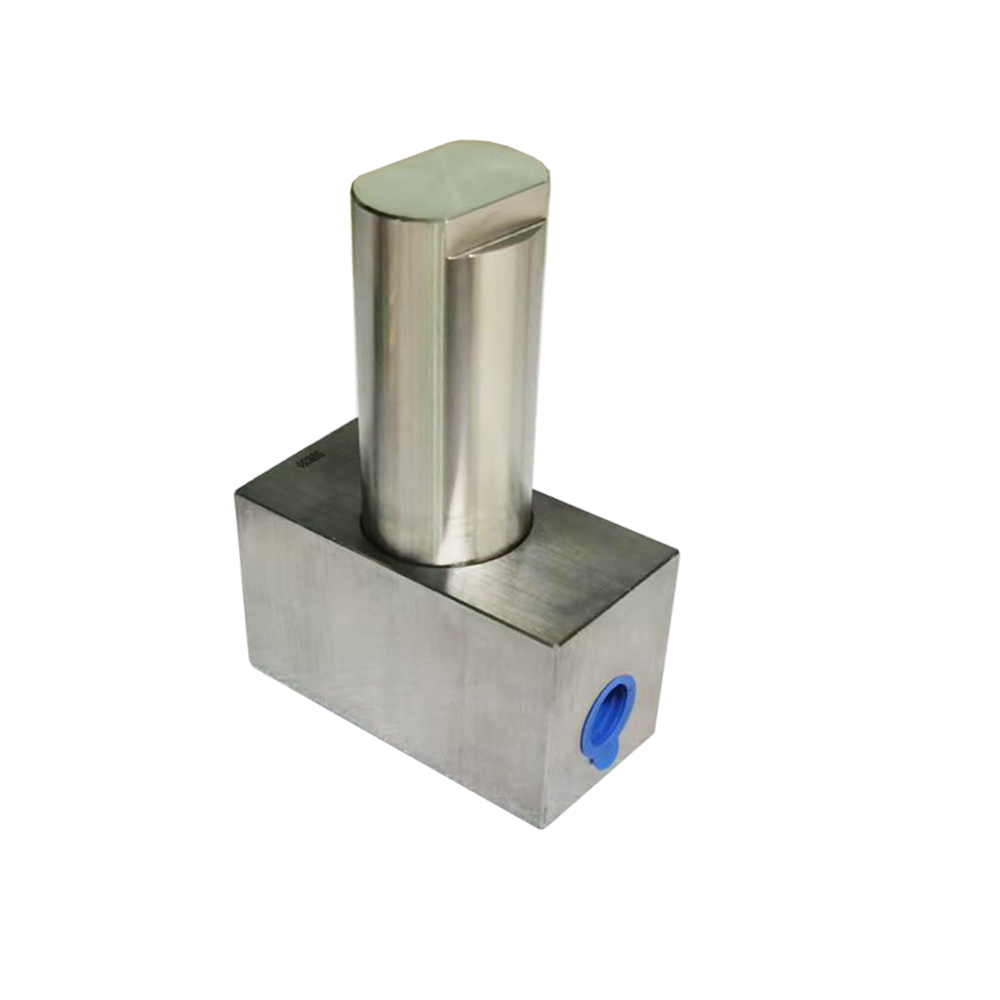

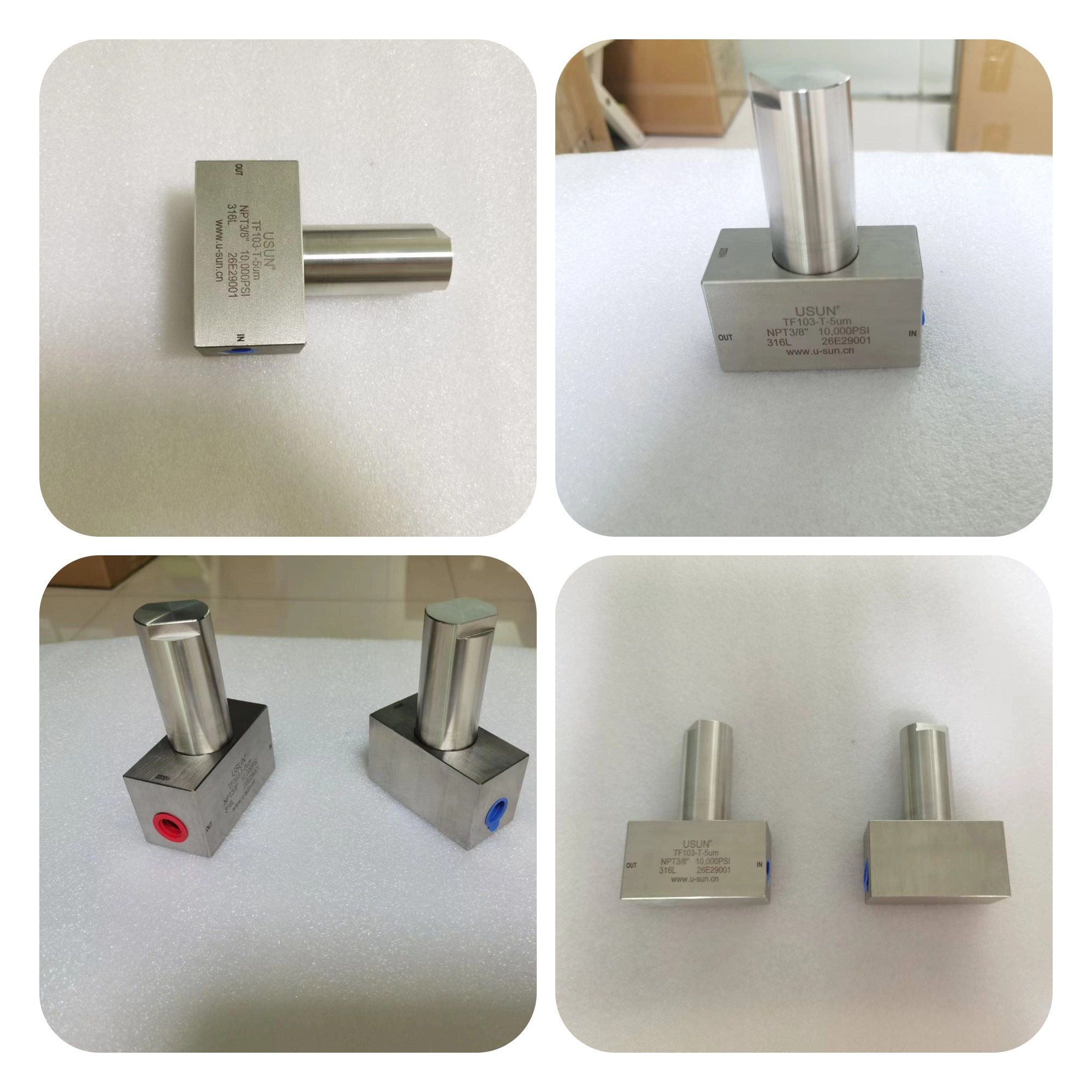

Real product photos:
