Model :US-2AGBD60
USUN
Model:US-2AGBD60

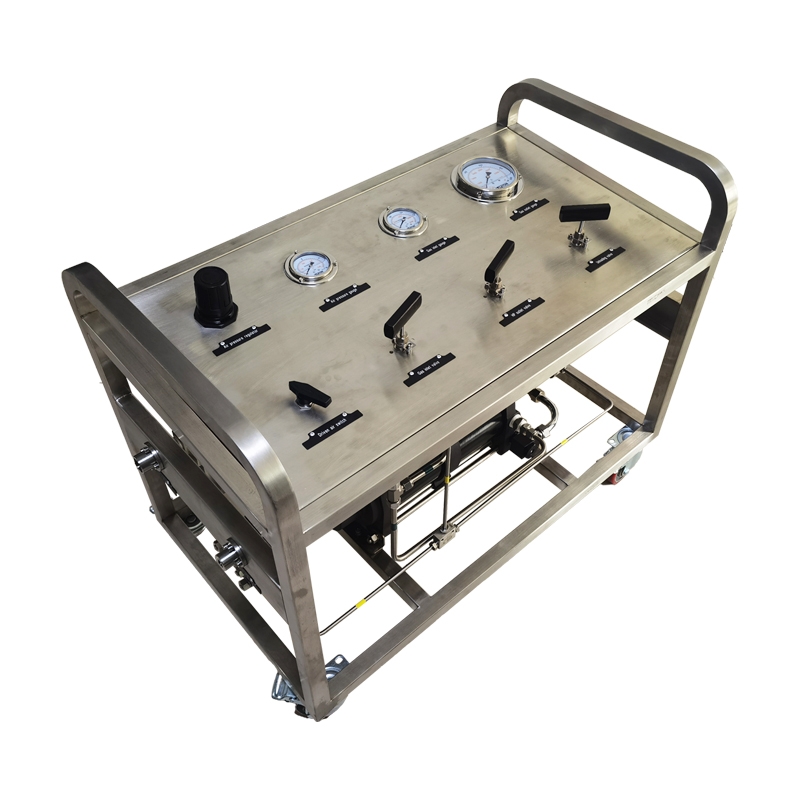

USUN Model :US-2AGBD60 Max. Rated Gas Supply 9000 PSI Double Drive Double Acting Air Driven Gas Pressure Pump System
USUN air driven gas boosters have wide range of models it is possible to select the optimum booster for each application.
Single stage, double acting or two stage boosters or a combination of these models can be used to achieve different operating pressures and flow capacities.
Single acting, single stage boosters are the base model.
Double acting, single stage provides twice the delivery of a single acting single stage booster.
Two stage models are used for high gas compression ratios.
Gas booster key features
1.Suitable for most gases (Air, N2, He, CO2, Ne, Ar, O2, H2,CH4,Natural Gas..).
2.Industrial gases like Argon, Helium and Nitrogen can be compressed to operating pressures of 25000 psig (1724 bar ),Oxygen to 5000 psig (345 bar), Hydrogen to 15000 psig bar (1034bar).
3.Single, double acting, and two-stage models.
4.Reliable, easy to maintain, compact and robust.
5.No heat, flame or spark risk.
6.Infinitely variable cycling speed and output.
7.Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosion proof areas.
8.Easy to apply automatic controls.
9.No limit or adverse affect to continuous stop/start applications.
10.Seal systems designed for long working life.
11.No airline lubricator required.
12.Separation between air and gas sections.
13.Built-in cooling.
14.Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat.
15.CE
16.There is no lubrication in the gas section. It will not pollute the gas and ensure the high purity of the gas.
17.The gas supply can be used to extremely low pressure, which improves the gas utilization.
Applications
1.Pressure test & leakage test with gas
2.Gas transfer
3.Charging of nitrogen accumulators
4.Supply for isolating gas systems
5.Gas assisted injection moulding
6.CO2 foaming
7.Transfer of oxygen cylinders
8.Life Support Gas Transfer and Charging
9.Gas recovery: Pressurize the remaining lower pressure gases in the cylinder or pipeline and fill the gases into a cylinder.
10.Compressed Natural Gas (CNG) Boosting for vehicle refueling stations.
11.Hydrogen refueling station compresses hydrogen for fuel cell.

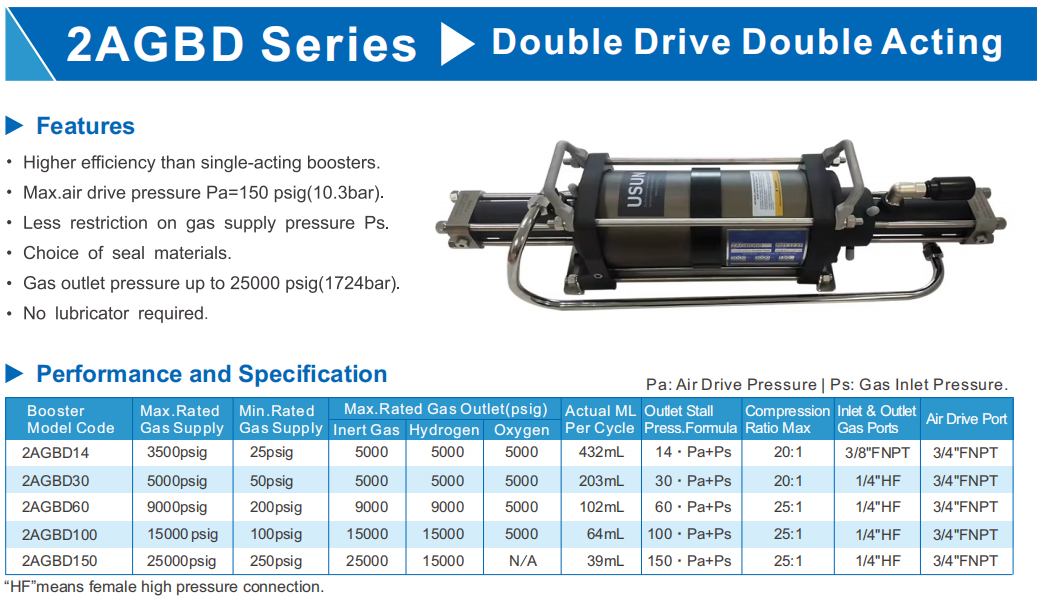

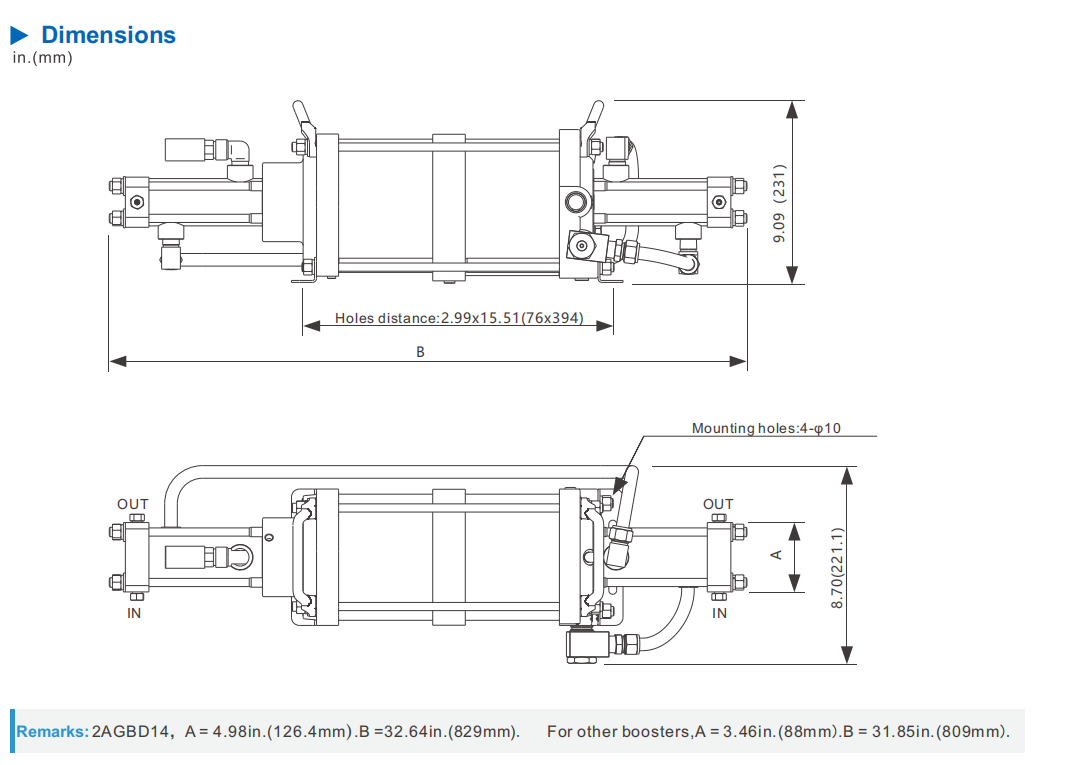

Main technical data for 2AGBD pump

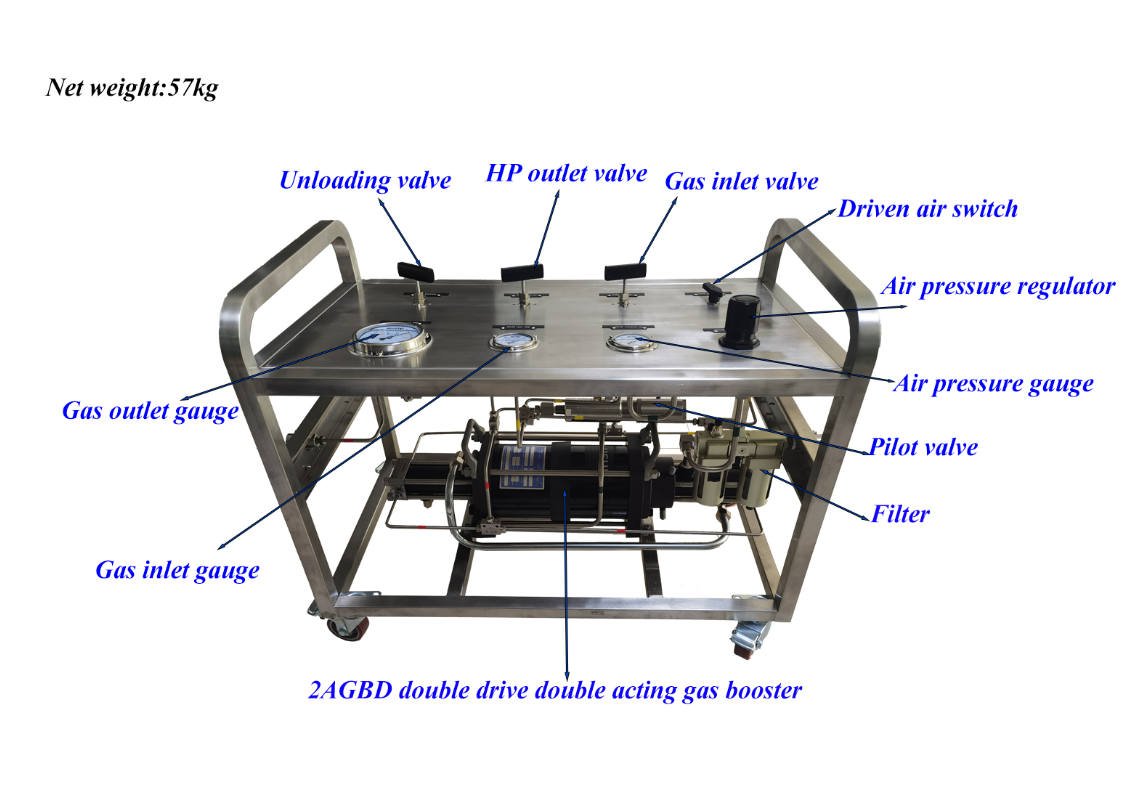

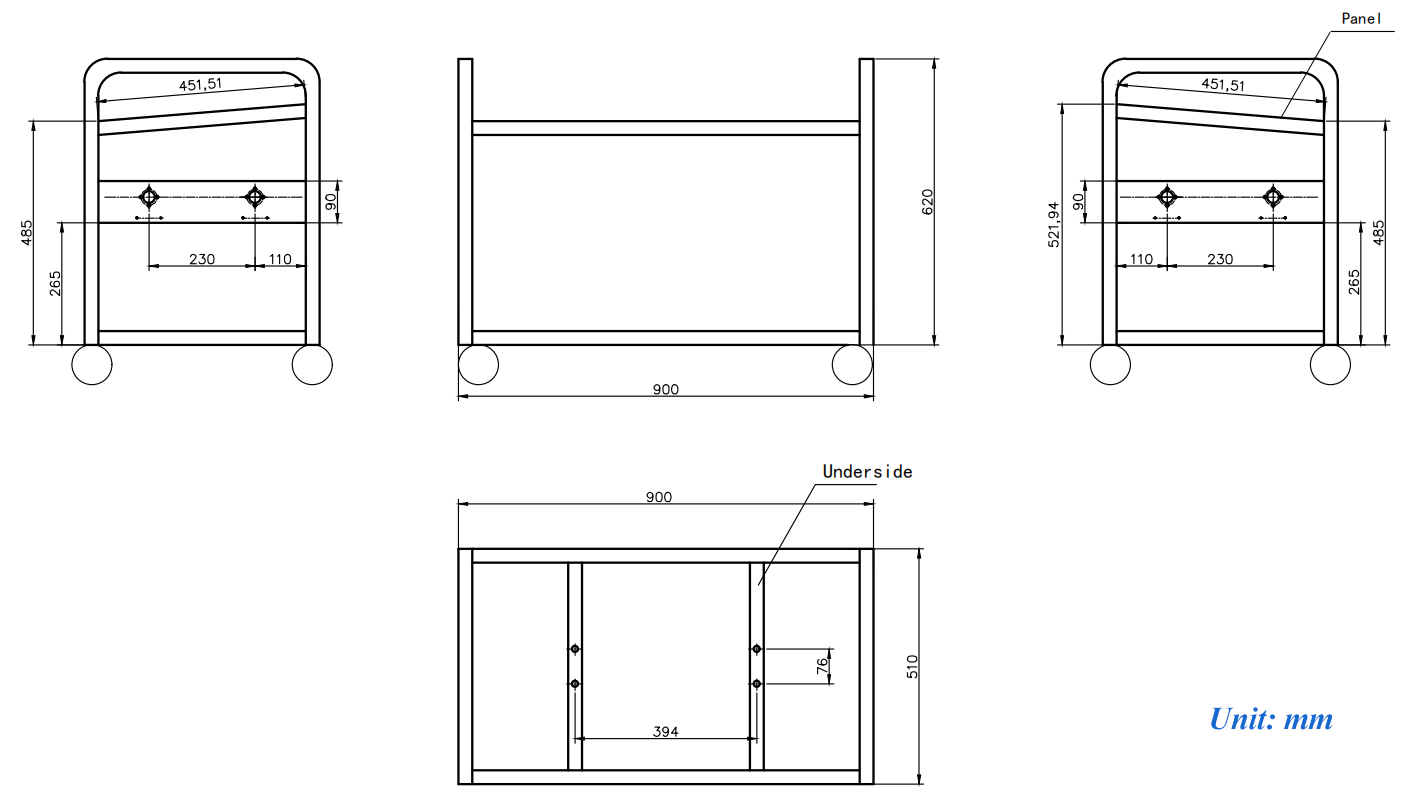

Stainless steel booster pump system layout drawing :

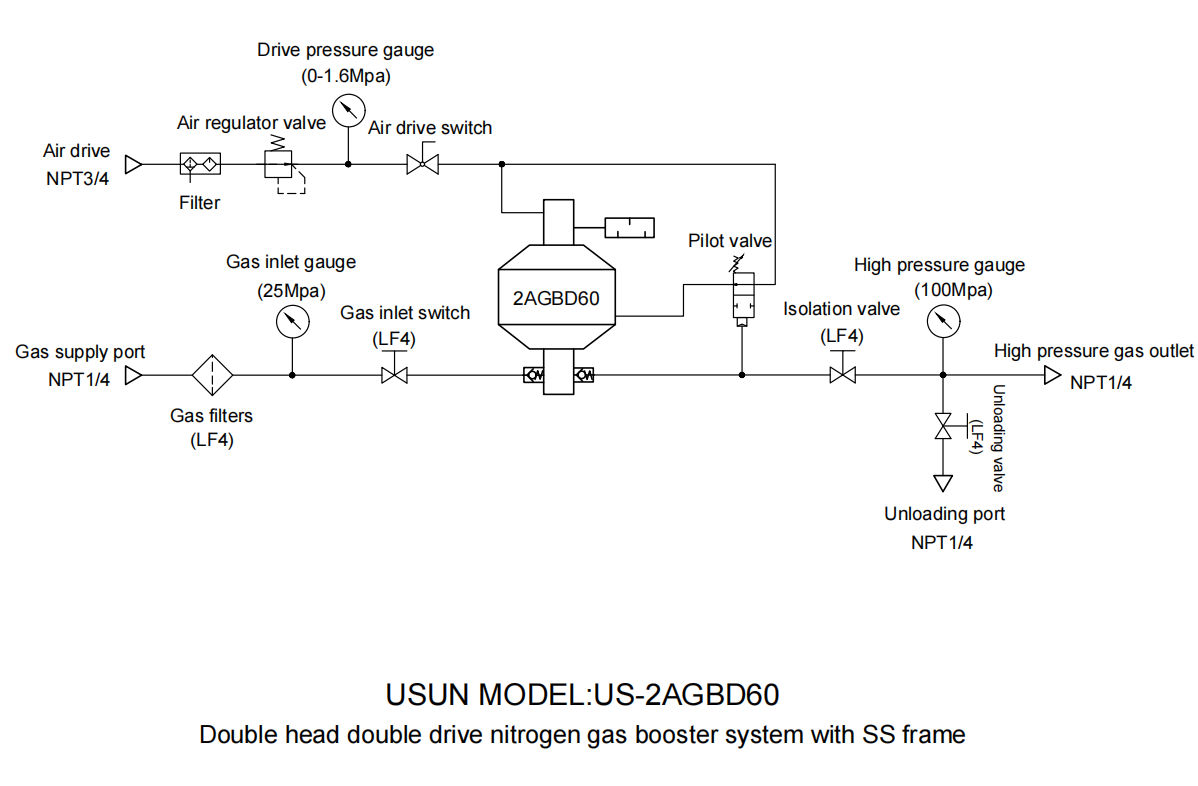

Stainless steel booster pump system Circuit :

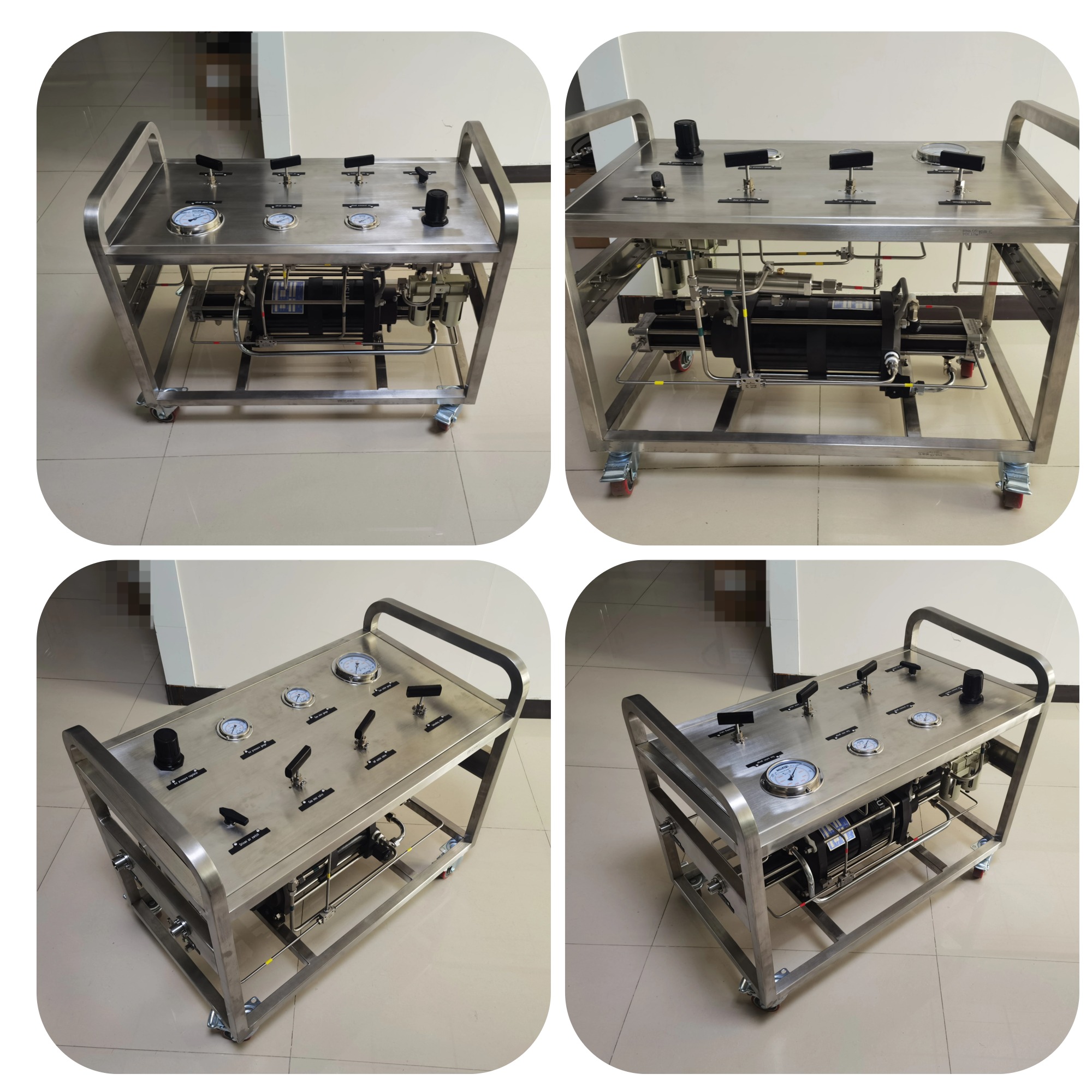

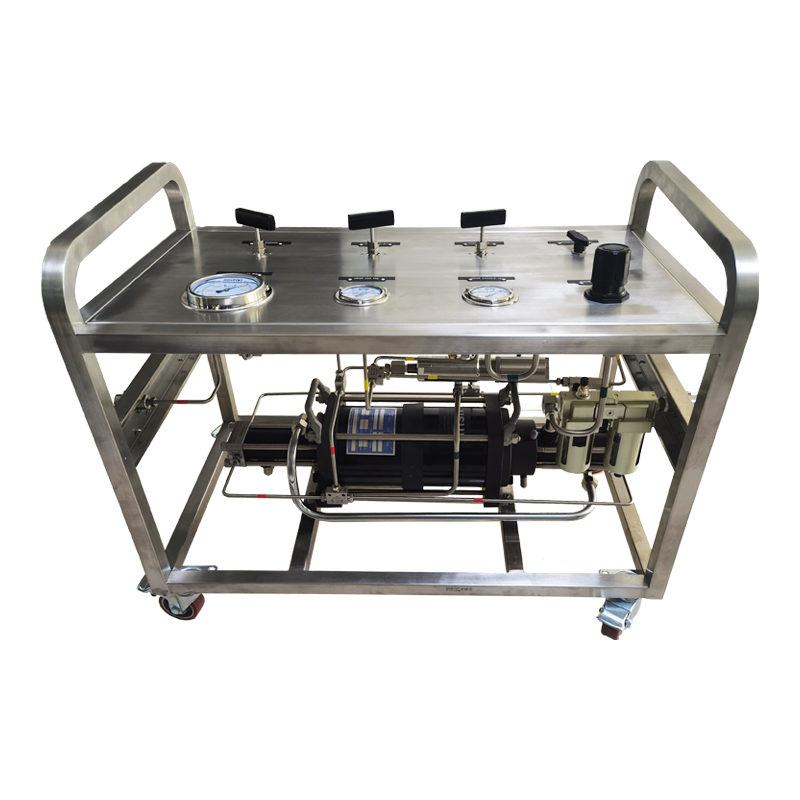

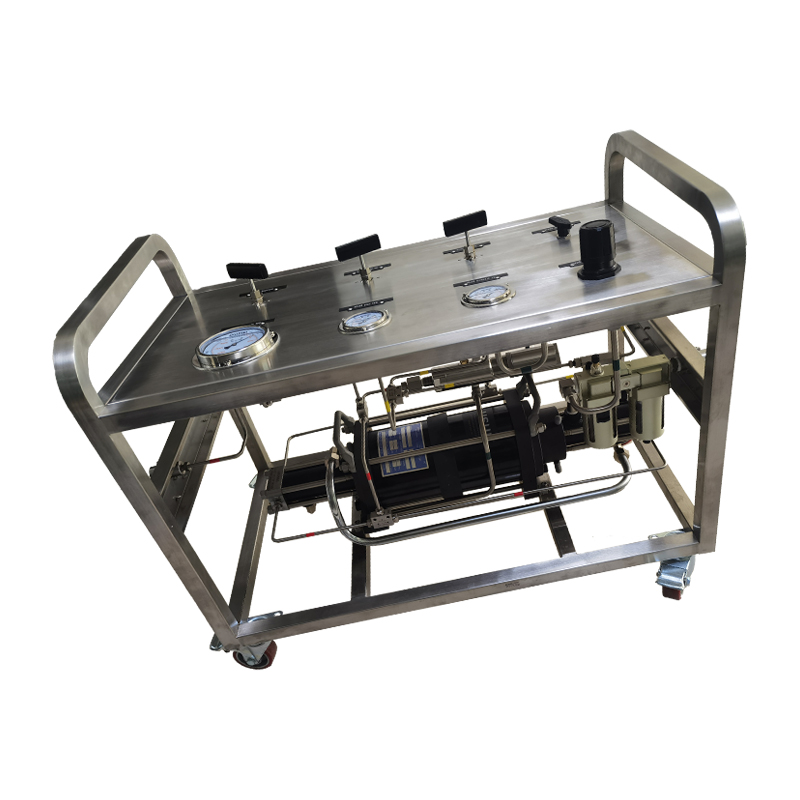

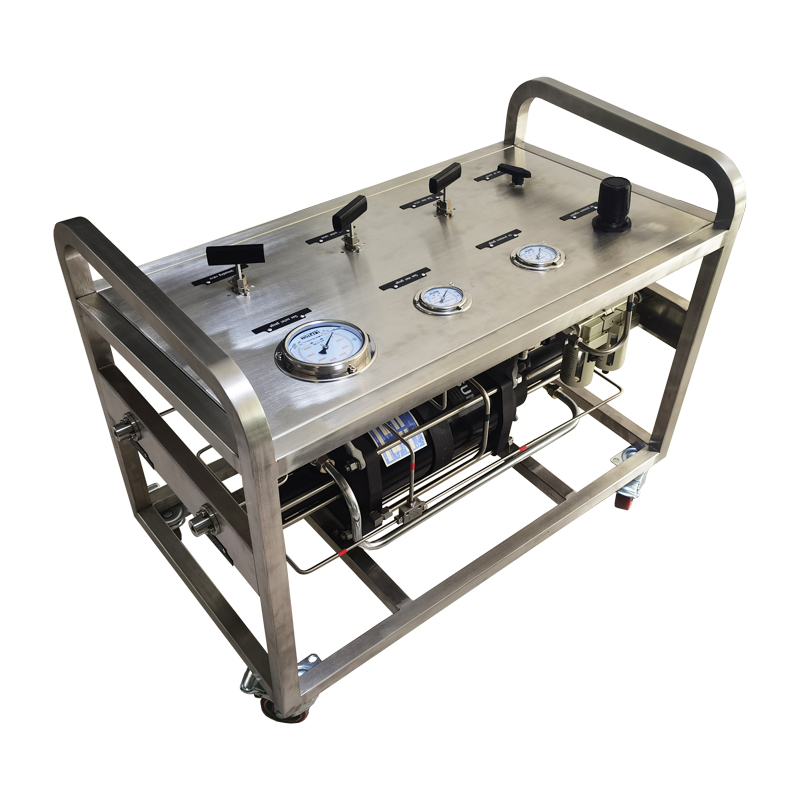

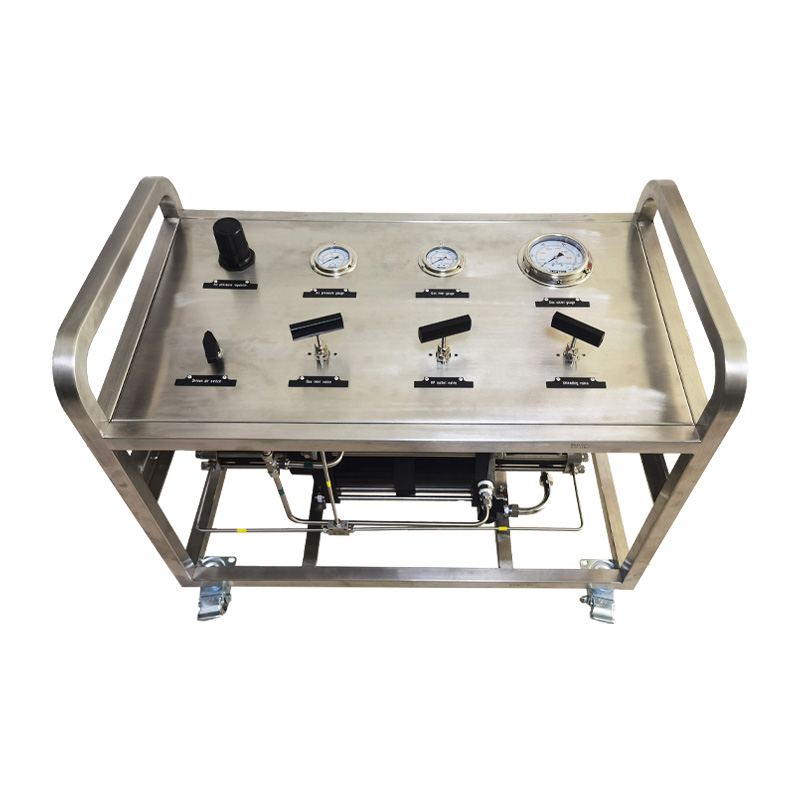

Gas booster pump system real photos:
