Model :US-2GBD80
USUN
Model:US-2GBD80
USUN Model :US-2GBD80 Max. pressure 640bar double action double driven gas booster pump system for Cylinder Refilling
Key features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable cycling speed and output
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. No limit or adverse affect to contineous stop/start applications
6.Seals system designed for long working life,No airline lubricated required
7.Built-in coupling system (Most models) and suitable for most gases boosting
Main technical data

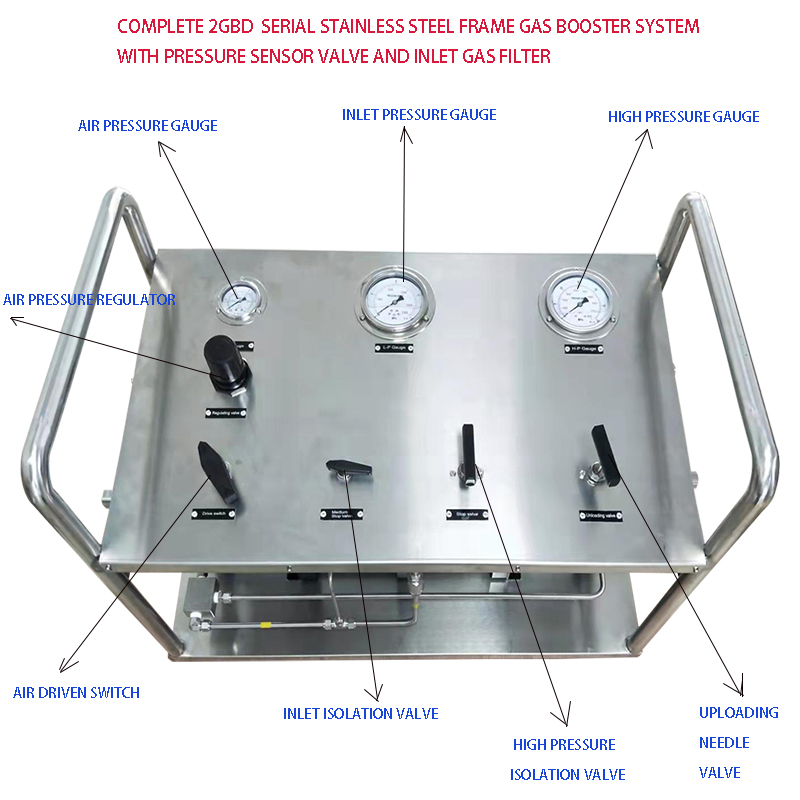

List items | Function |
1) Air regulator valve | Adjustable air regulator used to adjust the air driven pressure ( 0-10 bar) |
2) Air pressure gauge | Indicates the air driven pressure |
3) Gas inlet Pressure gauge | Indicates the inlet gas pressure supply |
4) Gas outlet pressure gauge | Indicates the outlet boosted pressure |
5) Hand drive switch | Used to adjust the system on/off |
6) Inlet needle valve | Used to stop the booster when supply pressure fails to the adjust set point ,can be optional . |
7) Outlet needle valve | Used to stop the booster when outlet pressure reaches the adjusted set point |
8) Uploading needle valve | Used to protect the booster and other components over pressurization and release the high pressure |
9) 2GBD double Stage gas booster pump | Used to increase the pressure from low pressure to high pressure |
10) Gas filter | Our standard system does not include such part ,if you need ,should inform in advance |
11) High pressure Buffer tank | It does include the system and should be informed if you need it |
12) High pressure safety valve on output | It does not include the standard system and should be informed if you need it |

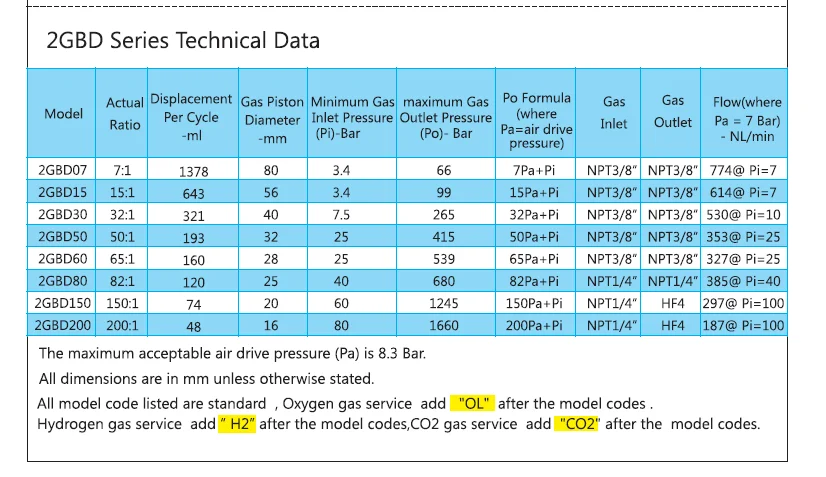

Typical technical data for air driven gas booster pump

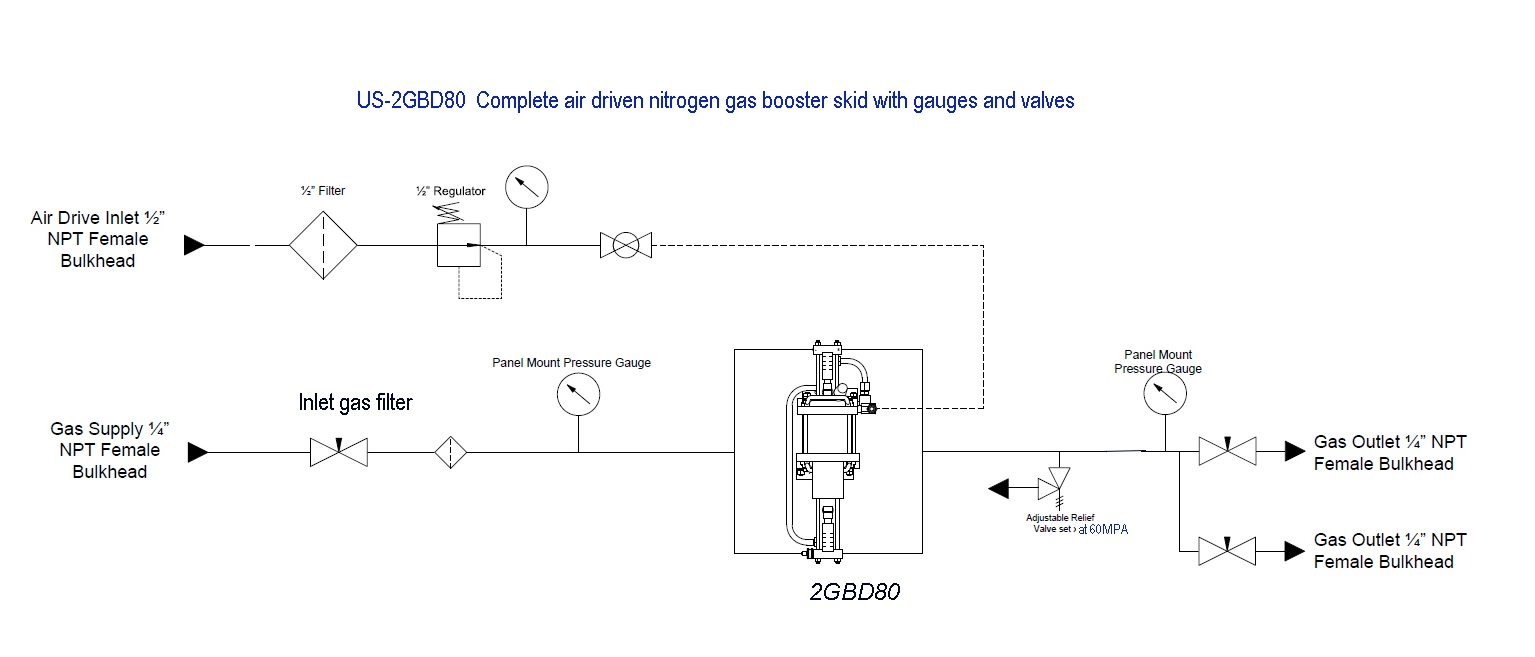

Typical circuit of such Pneumatic driven gas booster pump

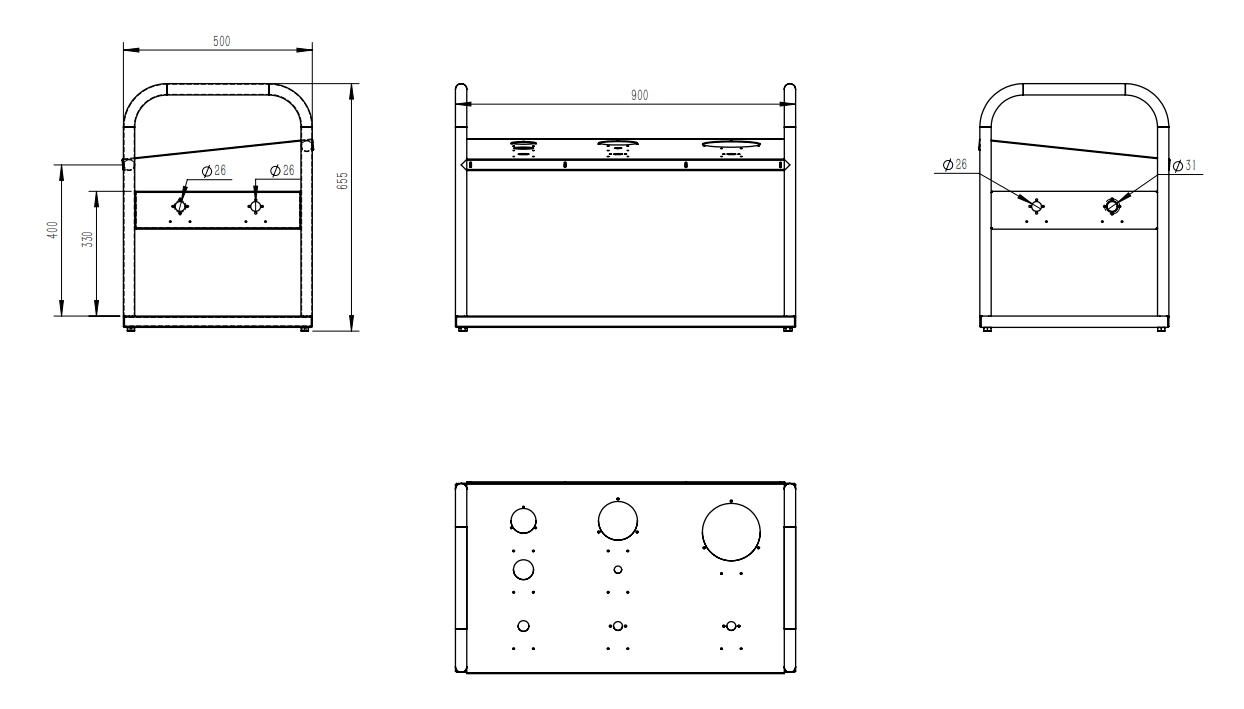

Product Outline Dimensional Drawing

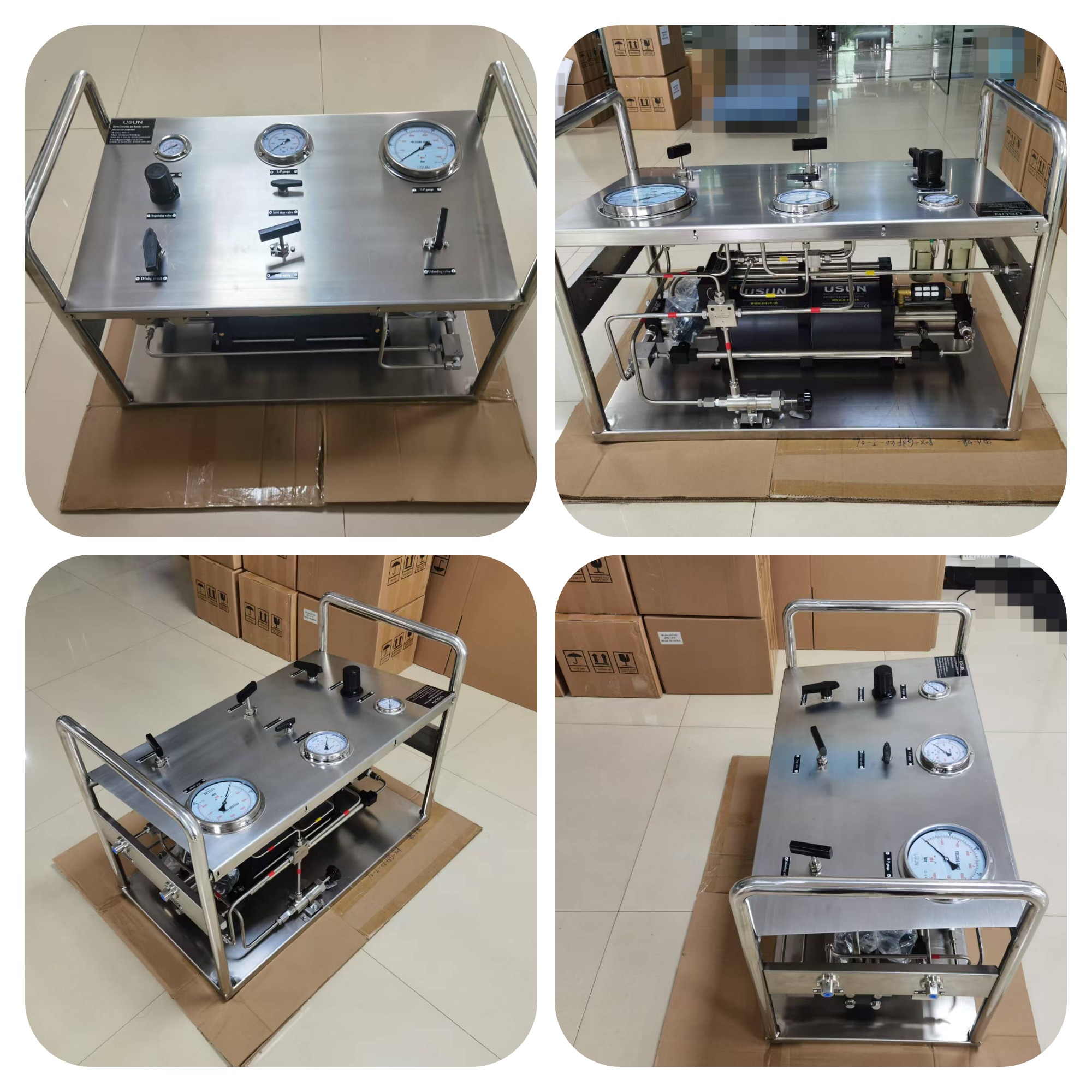

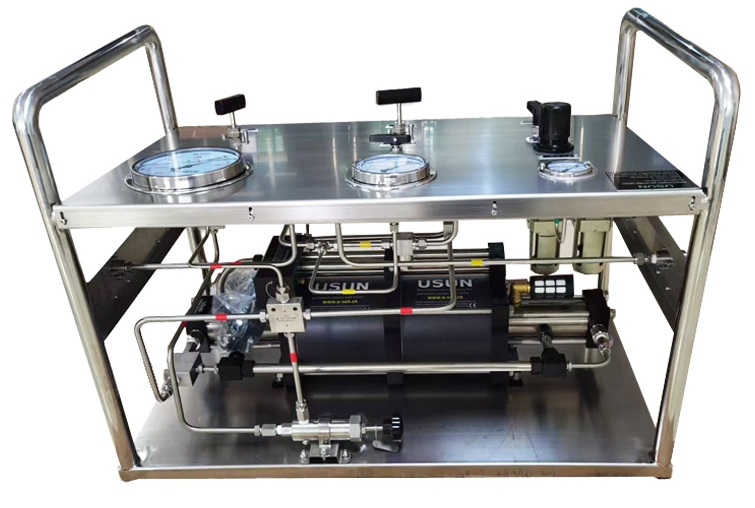

Real pictures of such dual oxygen gas booster pump unit
