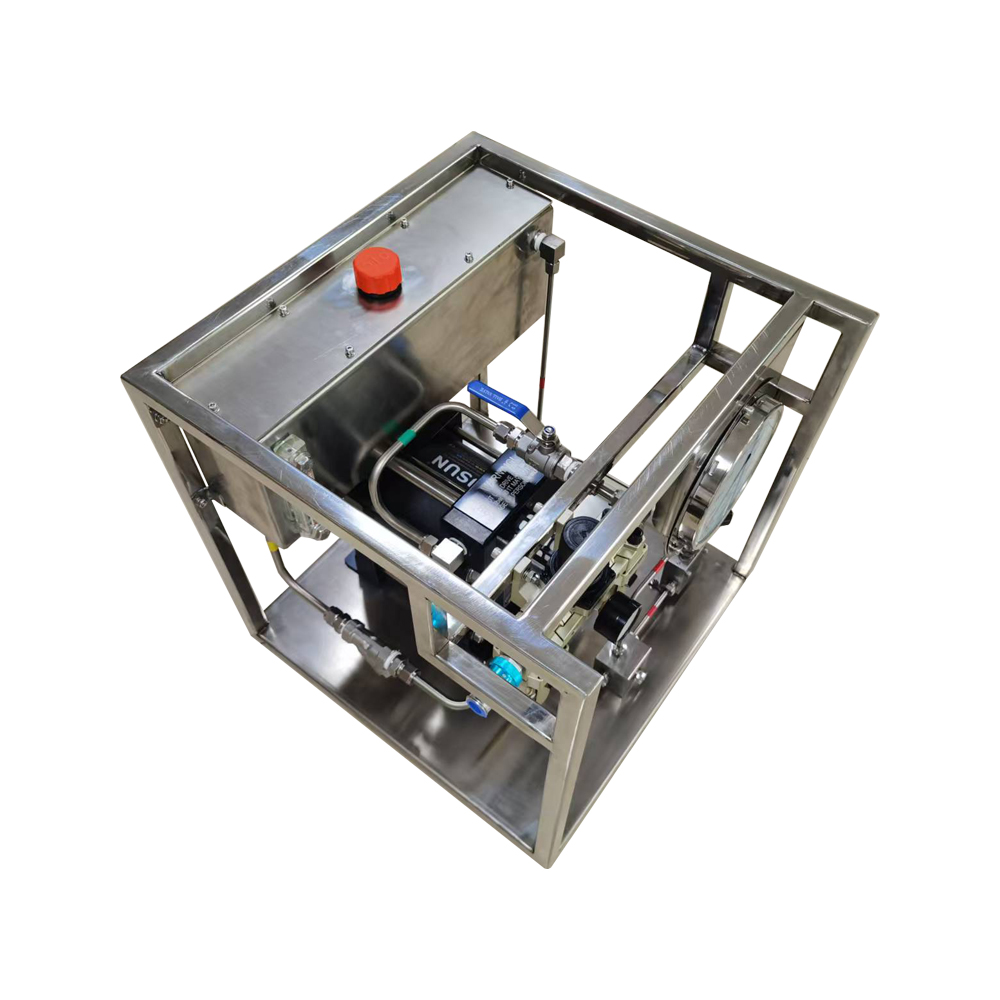

USUN Model:US-AH Customized stainlss steel frame pneumatic driven hydraulic pressure testing pump system
You are here: Home » Products » High pressure pump system » USUN Model:US-AH Customized stainlss steel frame pneumatic driven hydraulic pressure testing pump system

Product Detail

loading

Share to:
sharethis sharing button

USUN Model:US-AH Customized stainlss steel frame pneumatic driven hydraulic pressure testing pump system

51x5152CM
Availability:
Quantity:
  • Model :US-AH

  • USUN

  • Model :US-AH

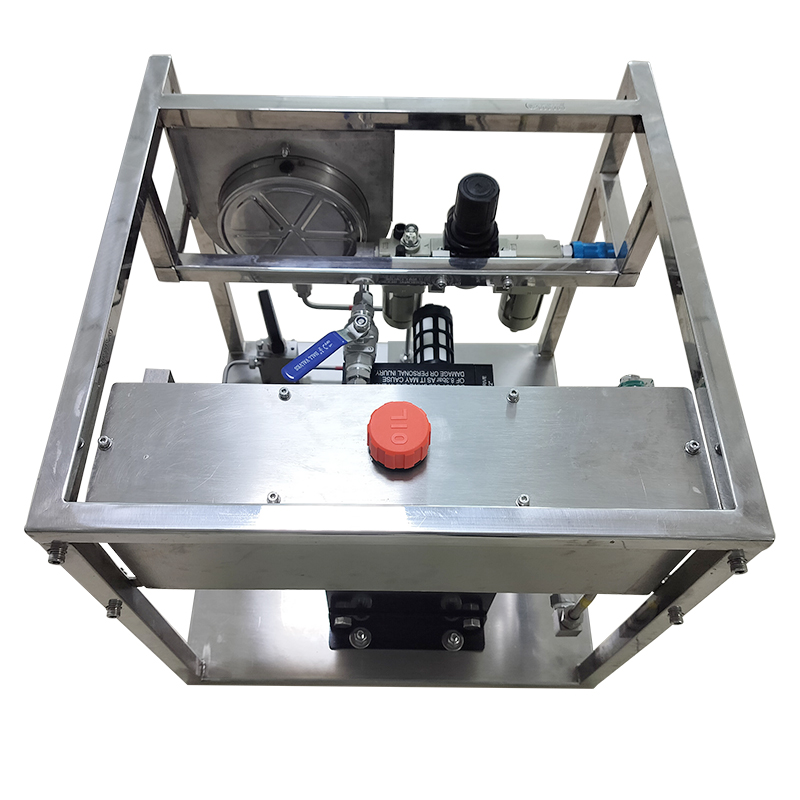

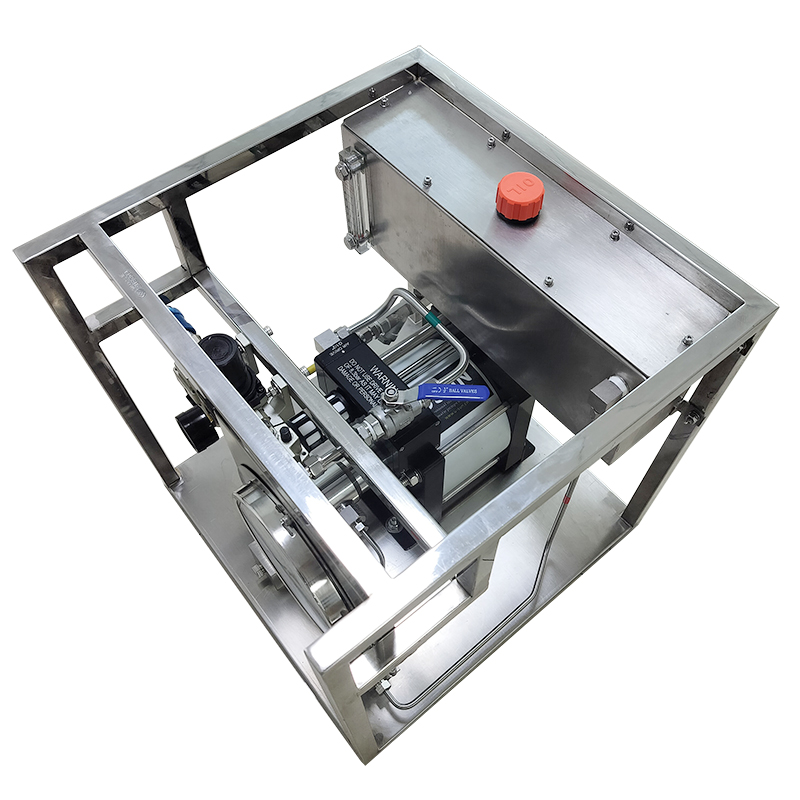

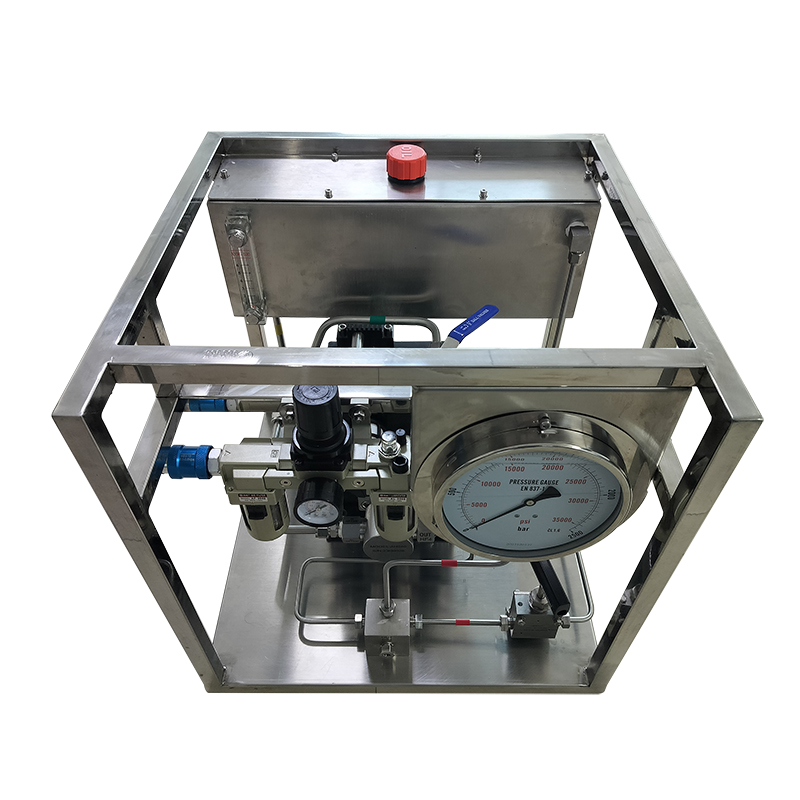

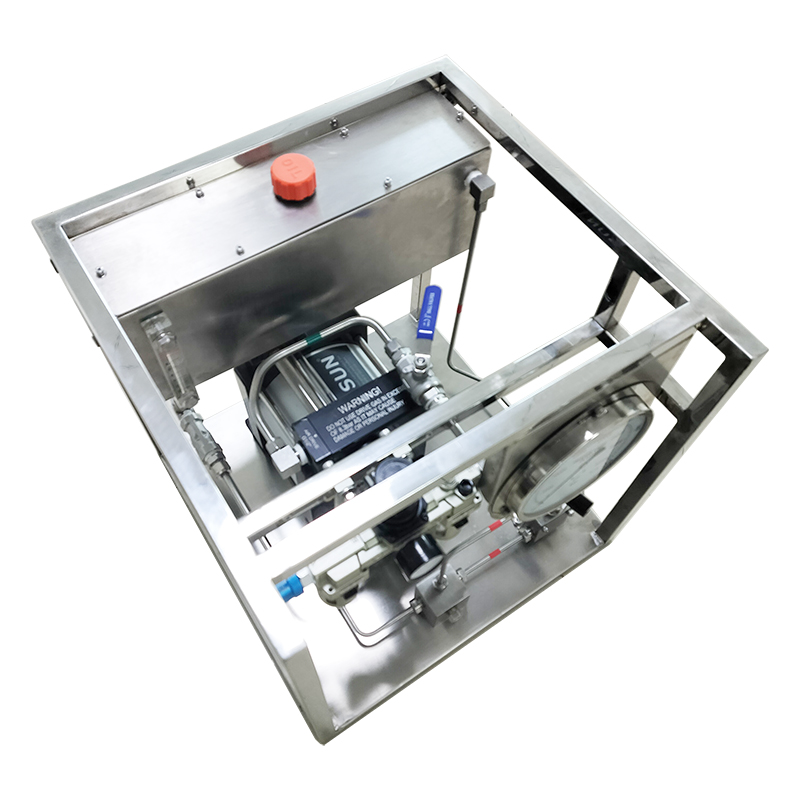

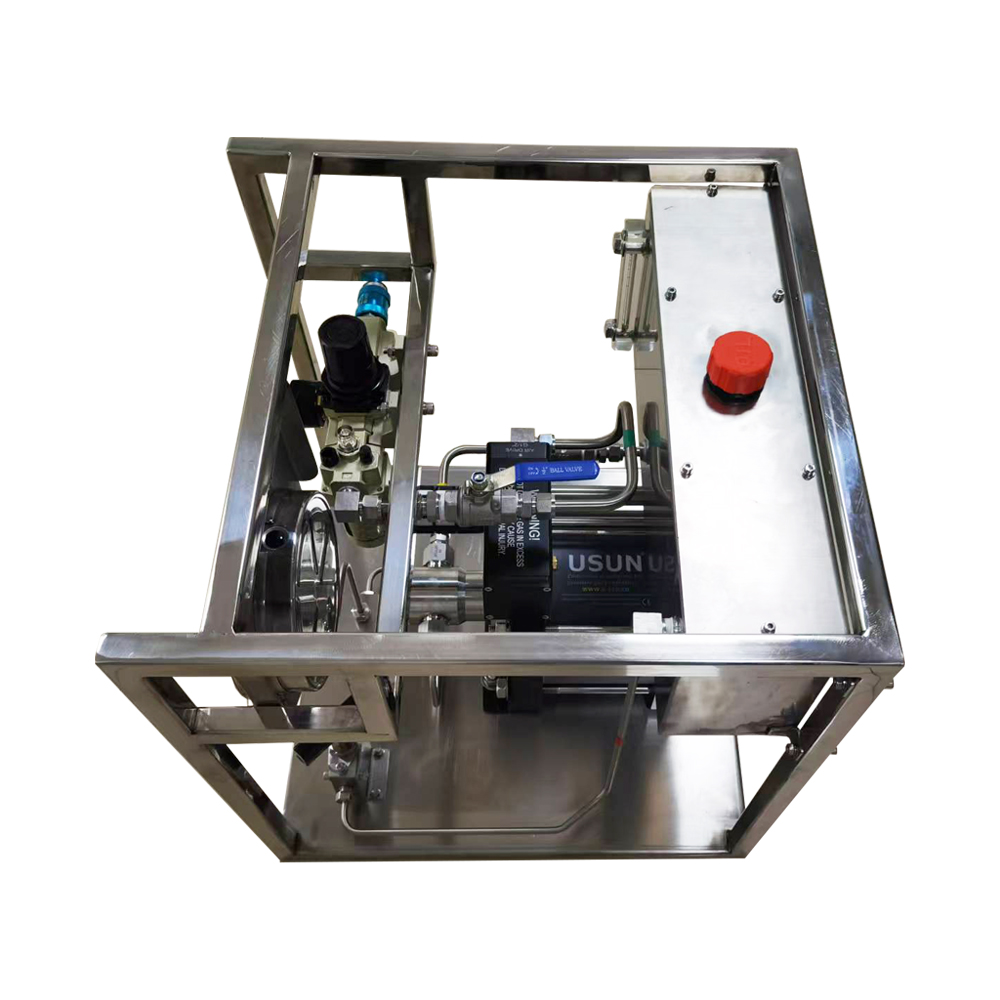

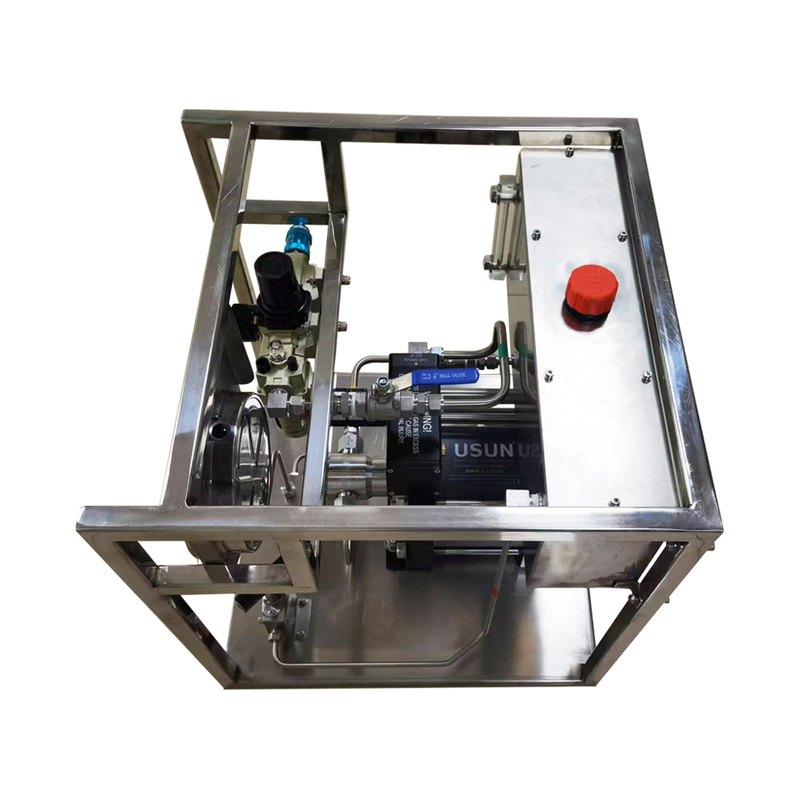

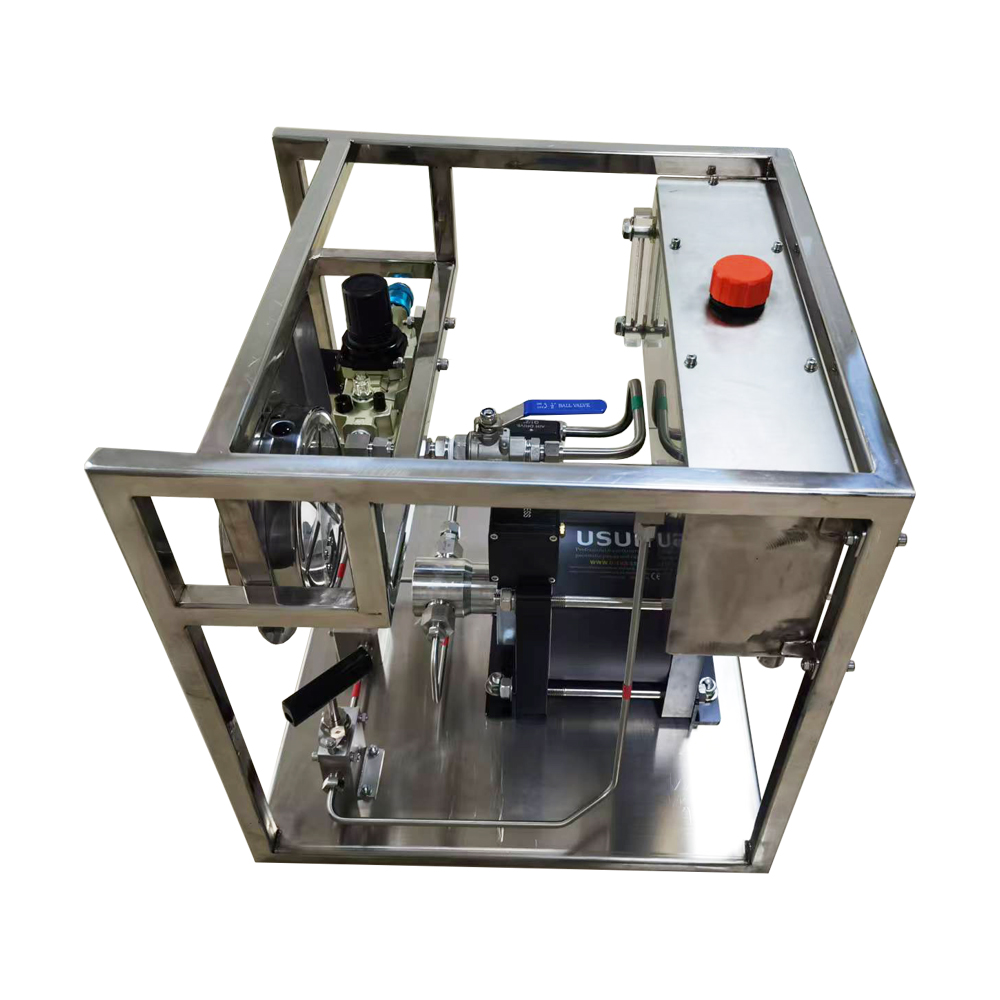

Our  Usun Model :US-AH type Customized stainless steel frame air driven hydraulic pressure pump system


with gauges and valves and stainless steel frame  .



General Information for Air driven liquid pumps



USUN air driven liquid  pumps are ratio devices that utilize low pressure compressed



air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller



hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.



Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data



indicates exact ratios.  The outlet stall pressure is easy to set by adjusting the air drive pressure



through a simple air pressure regulator.


By multiplying the pressure ratio by the available shop


air pressure, the nominal liquid pressure can be calculated.


Exmple ( Pump Model: M25 liquid pump)


Air drive piston area ( 80mm Ø)


Hydraulic plunger area (16mm Ø)


Actual ratio = 25:1



1.  AIR DRIVE SECTION



The air drive section consists of a light weight piston complete with seals running inside an



aluminum barrel. The diameter of the air piston is 80mm. When compressed air is supplied to



the pump the air pushes the air piston down on a compression stroke



( forces fluid out of the liquid end).



 Under the control of pilot pins (poppet valve) triggered at each end of the stroke



2. HYDRAULIC SECTION (Wetted End)



The hydraulic section of an air driven liquid pump consists of 4 main pieces, the hydraulic body,



the piston/plunger, the check valves and the main high pressure seal. The hydraulic



piston/plunger is  directly linked to the air piston and it is housed inside the hydraulic body and



its movement up and down creates the liquid flow into and out of the pump through the check



valves. The check valves are spring loaded and on the suction stroke the inlet check valve


 opens to the maximum allowing fluid into the hydraulic body and on the compression stroke the



inlet check valve closes and the discharge check valve opens forcing the pumped fluid into the



process.


The main high pressure seal is located within the hydraulic body and the piston/plunger seals



against this during operation. There are different materials and designs of high pressure seals



depending on the fluid being pumped and the maximum pressures of the pump, however the



standard seals are suitable for both water and hydraulic fluid use.



USUN air driven liquid pumps are self-priming, However, high ratio pumps are more difficult to



Prime and may require bleeding. In general, it is not recommended to use an air- line lubricator.



USUN  air driven liquid pumps cycle automatically  as the outlet pressure increases the



resistance  also increases and the cycle rate decreases until the pump stops automatically



when the output  pressure forces are equal. This is referred to as the stall condition.



The pump will restart with a slight drop in the outlet pressure or an increase in the air drive



pressure. Pump performance can be affected by a number of conditions, such as freezing of the



exhaust muffler or pilot valves (which is caused by moisture in air lines), inadequate inlet air-line



sizes and dirty filers. When operating the pumps on a continuous basis, we recommend you use



a maximum cycle rate of 50~60 cycles per minute.



This will both increase service intervals and assist in preventing ice forming



at the exhaust. An air supply dryer will also assist in reducing icing up.



To obtain best overall performance, it is recommended not to reduce the indicated port sizes



and consult We for flow conditions not shown in charts.



Typical applications for air driven Liquid pumps


Key features

One model available in 8 ratios

Compatibility with a variety of liquids

Safe pneumatic operation

Aluminum bodies and wetted materials of carbon steel or stainless steel

Rugged,compact,reliable and easy maintenance proven design

High quality seals, long service life available

No need for air line lubrication

Wide application with large range of pressure ratio

 Main technical data

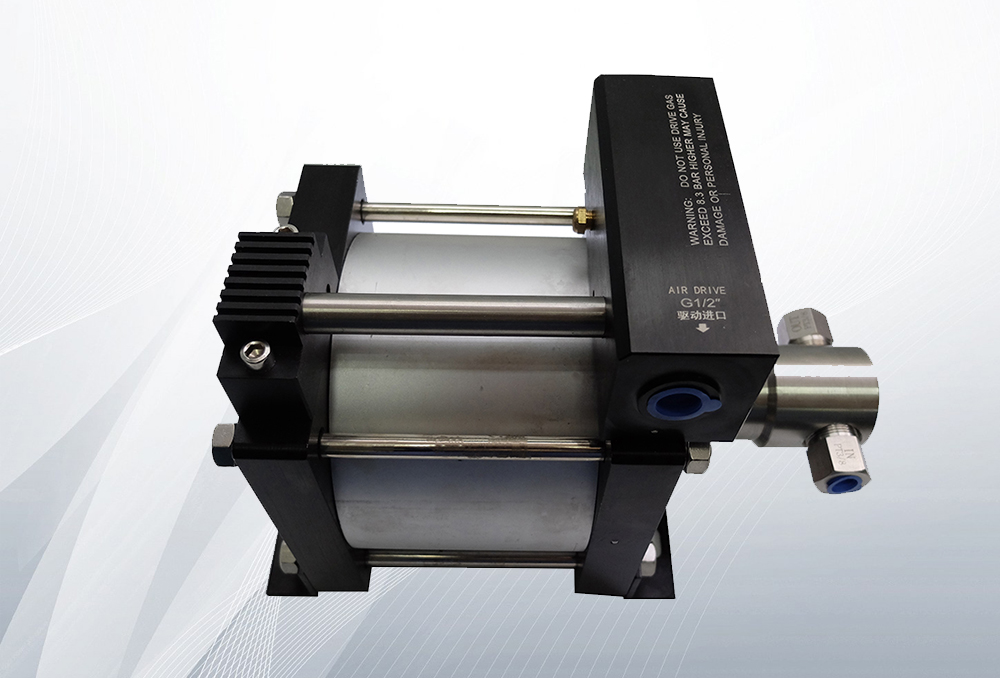

AH64-2

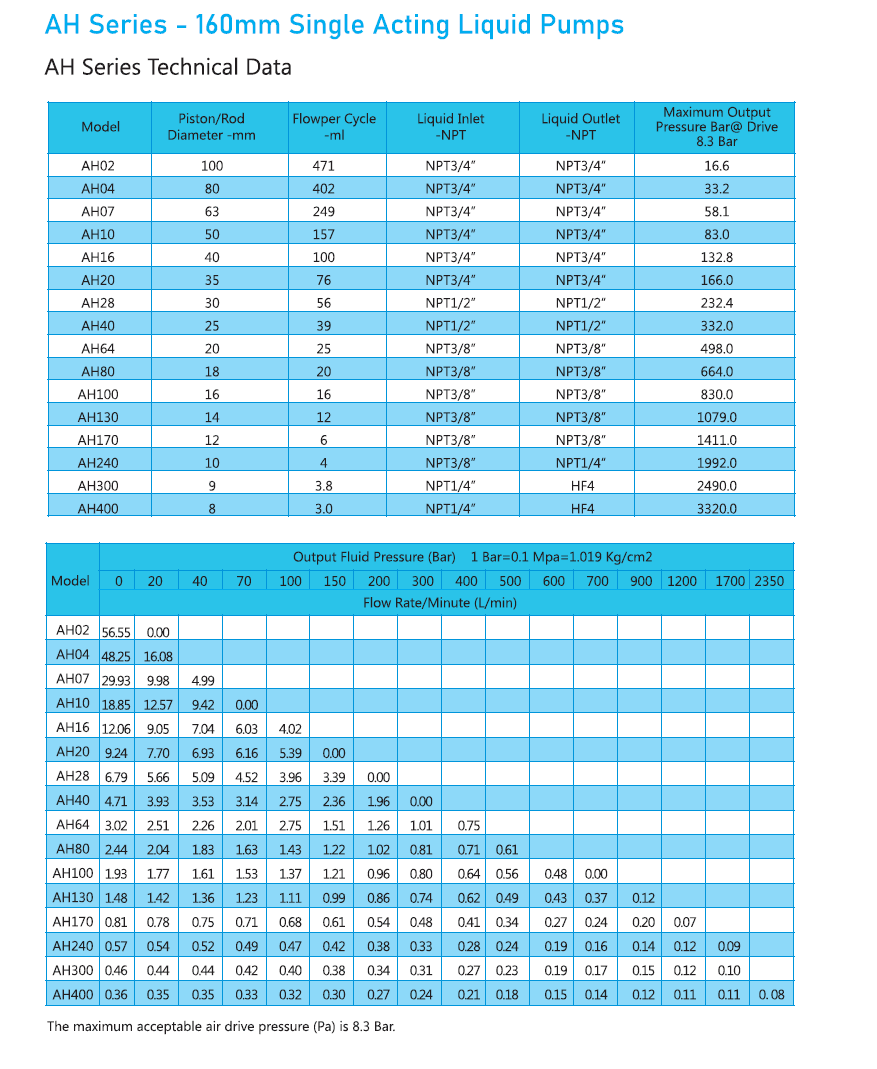

AH technical data -1



Typical technical data for air driven liquid pumps system


pump system-EN



List items

 Function

1)  Air regulator valve

Adjustable air regulator used to adjust the air driven pressure ( 0-10 bar)

2) Air pressure gauge

Indicates the air driven pressure

3) liquid outlet pressure gauge

Indicates the outlet  Liquid boosted pressure

4) Hand drive switch

Used to adjust the system on/off

5) Outlet needle valve

Used to stop the booster when outlet pressure reaches the adjusted set point

6) Uploading needle valve

Used to protect the booster and other components over pressurization and release the high pressure

7) AH type single action  Mini air driven hydraulic pump

Used to increase the pressure from low pressure to high pressure

8) Liquid  filter

 Our standard system does not include such part ,if you need ,should inform in advance

9)   Hydraulic tank (5L)

12 liters hydraulic tank for standard liquid pump system

10) Frame type

Stainless steel frame and it is esy to move with wheels

Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .


AH pump system drawing


WS-AH Drawing -1

Typical diagram of such air driven liquid pumps
