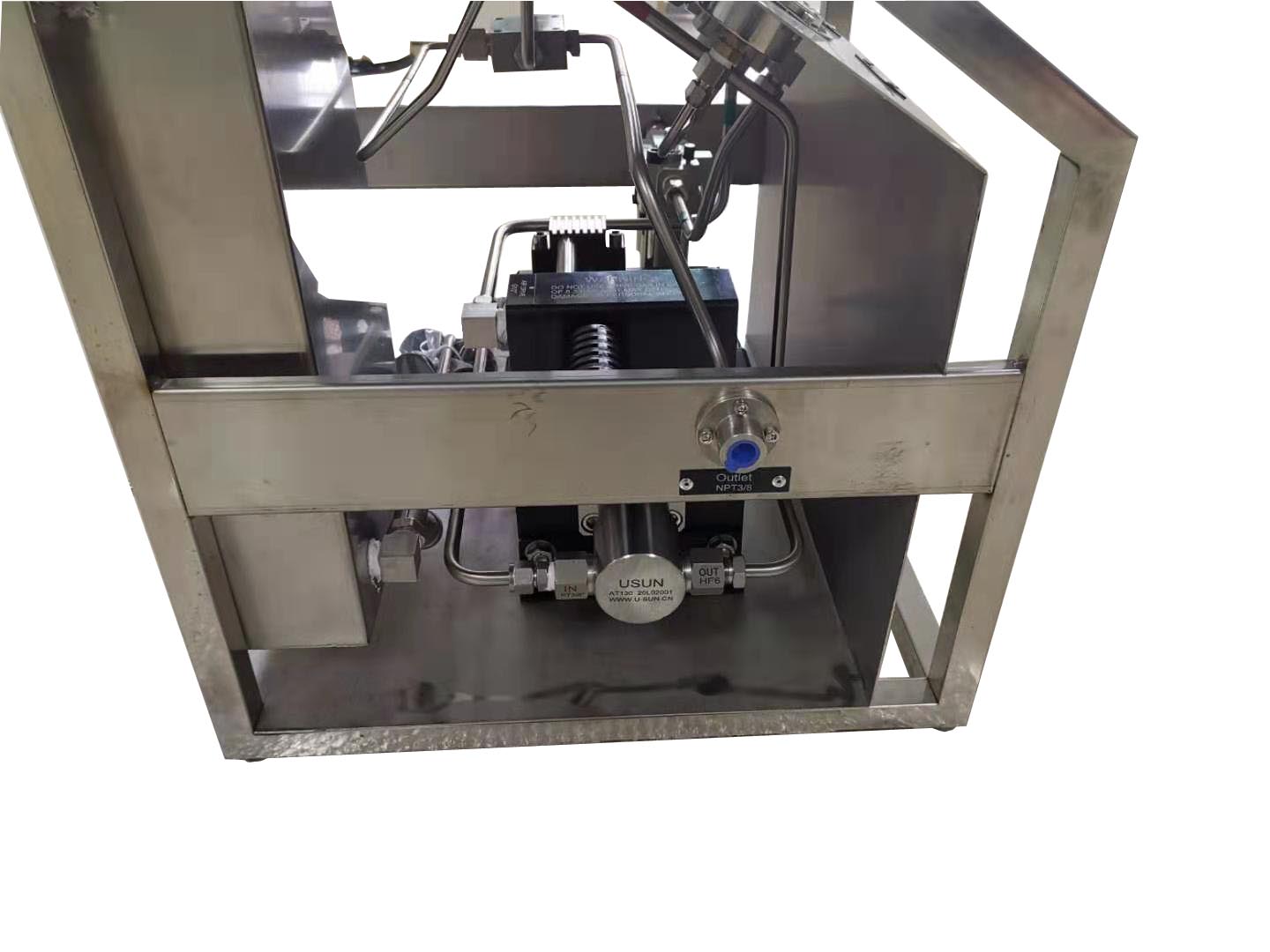

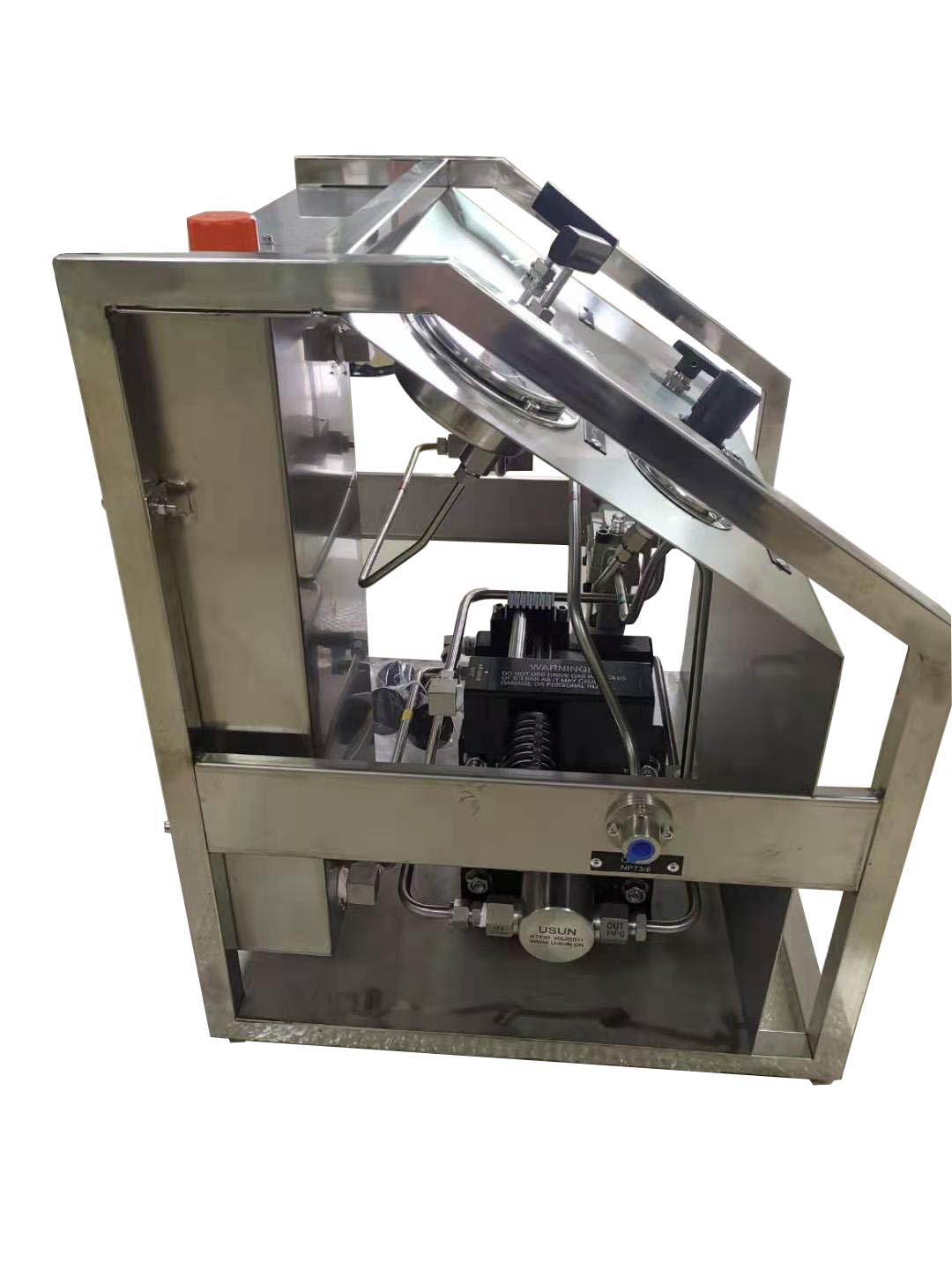

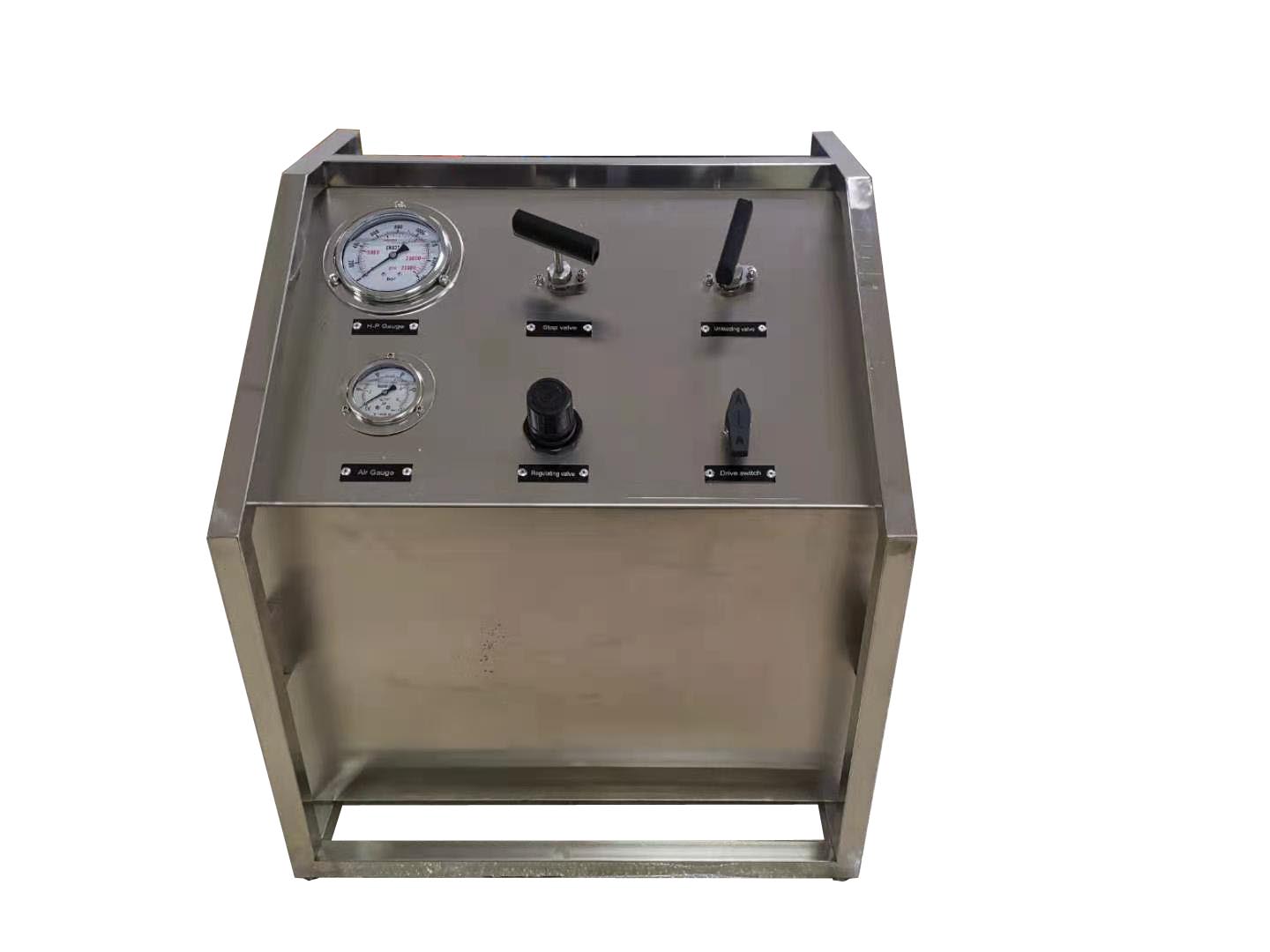

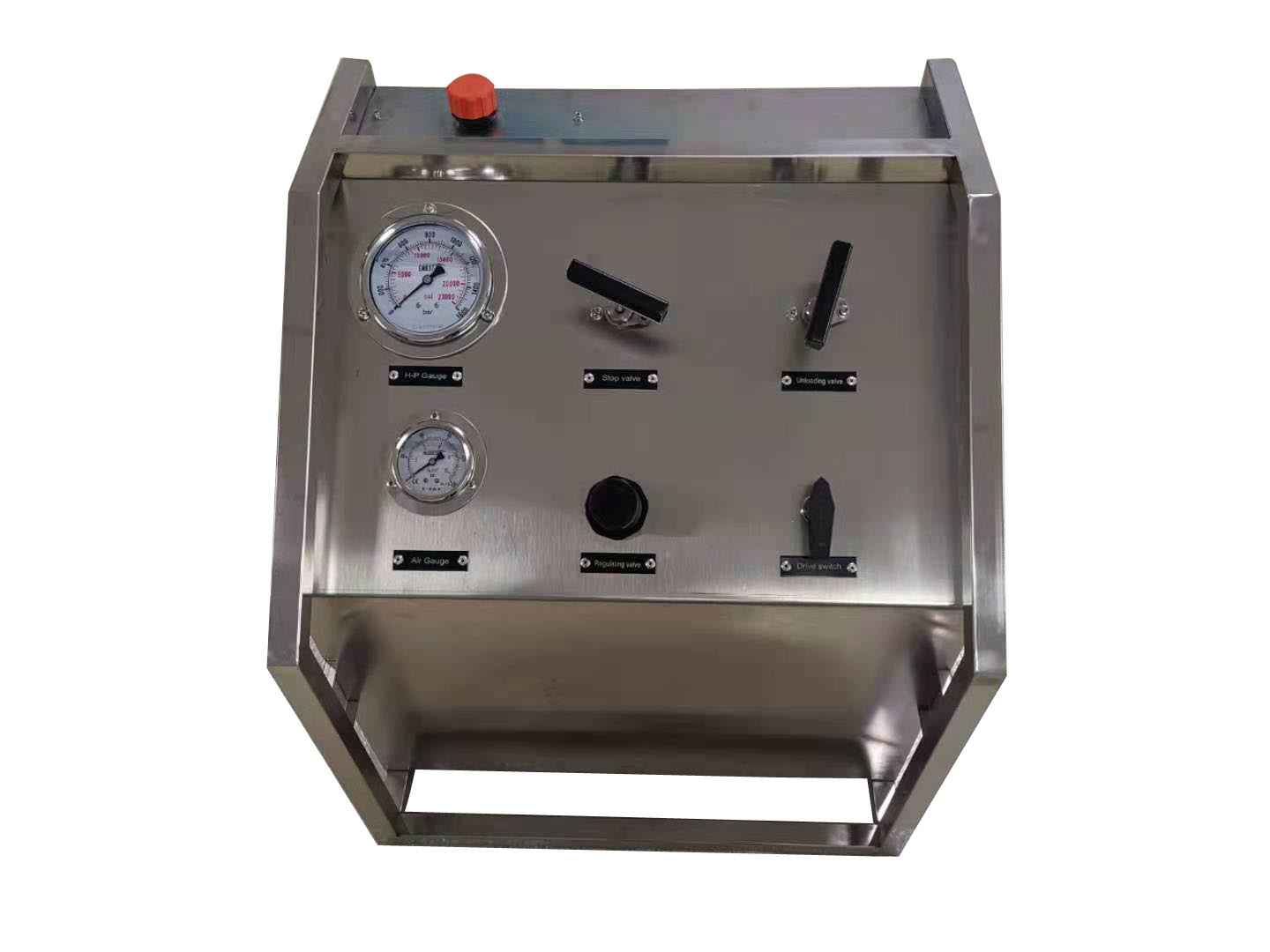

USUN Model:US-AT High Pressure Double Action Pneumatic Hydrostatic Testing Pressure Pump Station with Gauges And Valves And Fittings

Usun Model :US-AT type  160mm driven double acting air driven hydrostatic pressure testing pump system without  circular chart recorder

General Information for Air driven hydraulic pumps

USUN air driven liquid  pumps are ratio devices that utilize low pressure compressed air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.

Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data indicates exact ratios.

The outlet stall pressure is easy to set by adjusting the air drive pressure through a simple air pressure regulator.

By multiplying the pressure ratio by the available shop air pressure, the nominal liquid pressure can be calculated.

1.  AIR DRIVE SECTION

The air drive section consists of a light weight piston complete with seals running inside an aluminum barrel. The diameter of the air piston is 80mm. When compressed air is supplied to the pump the air pushes the air piston down on a compression stroke( forces fluid out of the liquid end).

Under the control of pilot pins (poppet valve) triggered at each end of the stroke

2. HYDRAULIC SECTION (Wetted End)

The hydraulic section of an air driven liquid pump consists of 4 main pieces, the hydraulic body,the piston/plunger, the check valves and the main high pressure seal. The hydraulic piston/plunger is directly linked to the air piston and it is housed inside the hydraulic body and its movement up and down creates the liquid flow into and out of the pump through the check valves. The check valves are spring loaded and on the suction stroke the inlet check valve opens to the maximum allowing fluid into the hydraulic body and on the compression stroke the inlet check valve closes and the discharge check valve opens forcing the pumped fluid into the process.

The main high pressure seal is located within the hydraulic body and the piston/plunger seals against this during operation. There are different materials and designs of high pressure seals depending on the fluid being pumped and the maximum pressures of the pump, however the standard seals are suitable for both water and hydraulic fluid use.

USUN air driven liquid pumps are self-priming, However, high ratio pumps are more difficult to Prime and may require bleeding. In general, it is not recommended to use an air- line lubricator.

USUN  air driven liquid pumps cycle automatically  as the outlet pressure increases the resistance  also increases and the cycle rate decreases until the pump stops automatically when the output  pressure forces are equal.

This is referred to as the stall condition.The pump will restart with a slight drop in the outlet pressure or an increase in the air drive pressure. Pump performance can be affected by a number of conditions, such as freezing of the exhaust muffler or pilot valves (which is caused by moisture in air lines), inadequate inlet air-line sizes and dirty filers. When operating the pumps on a continuous basis, we recommend you use a maximum cycle rate of 50~60 cycles per minute.

This will both increase service intervals and assist in preventing ice forming at the exhaust. An air supply dryer will also assist in reducing icing up.

To obtain best overall performance, it is recommended not to reduce the indicated port sizes

and consult We for flow conditions not shown in charts.

Typical applications for air driven Liquid pumps

Key features

1. Realiable ,Easy to Maintain ,compact and robust

2. No heat,flame or spark risk

3. Infinitely variable output pressure and flow capability

4. Air driven Models do not require electrical connection ,easy to apply automatic controls

5. Wide range of models and controls and options

6.Seals system designed for long working life,No airline lubricated required

7. Wide range of standard and customized liquid pump systems

Main technical data

Typical technical data for air driven liquid pumps

 Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using

of such pump ,we suggest that air driven pressure should be not more than 8 Bar  .

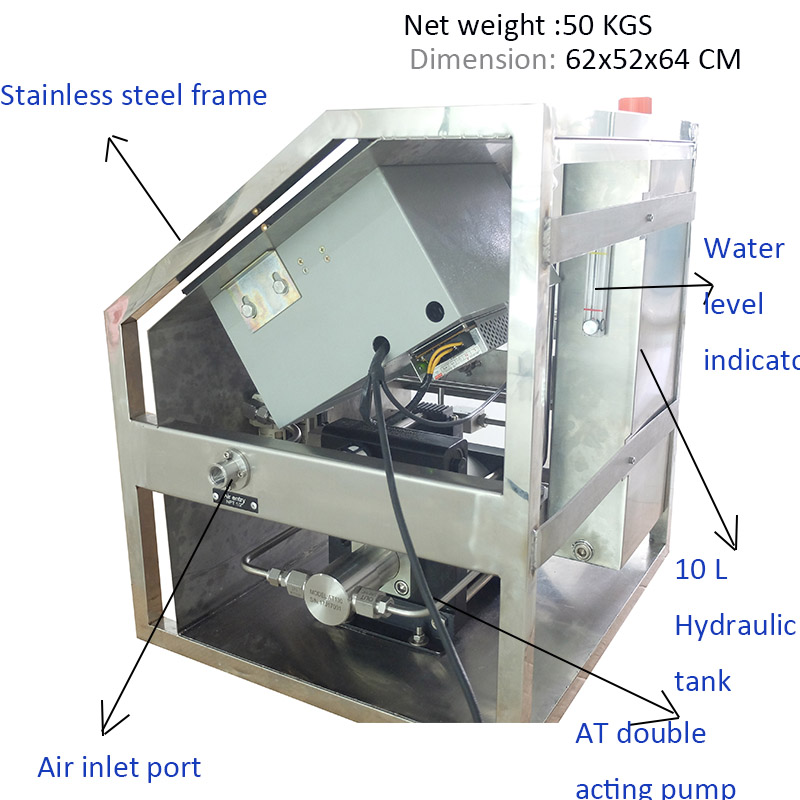

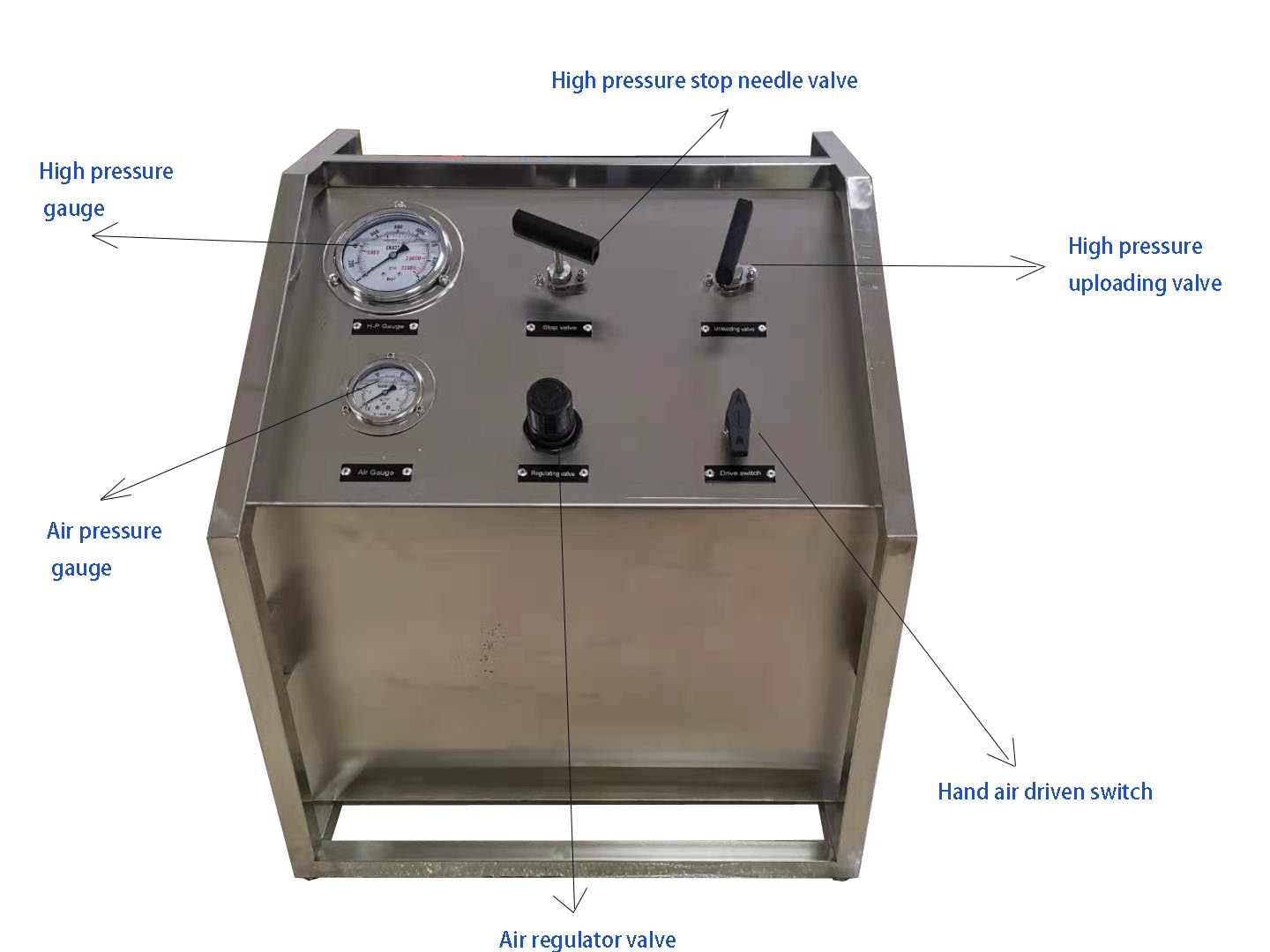

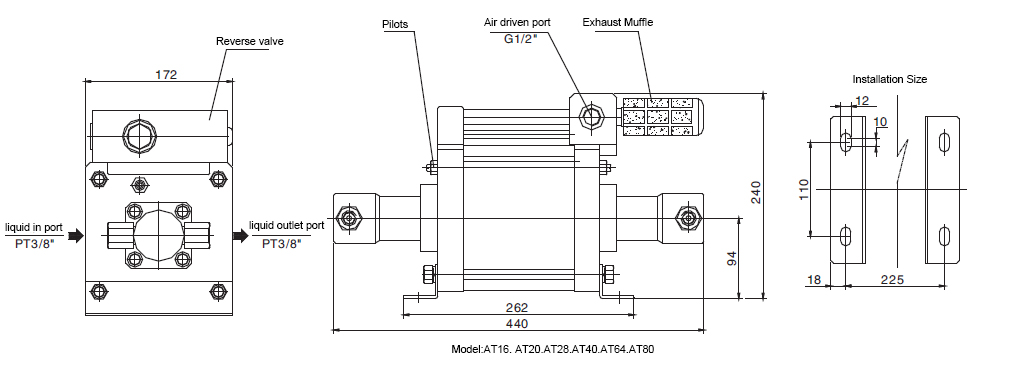

Typical diagram of such air driven hydrostatic testing pump system
