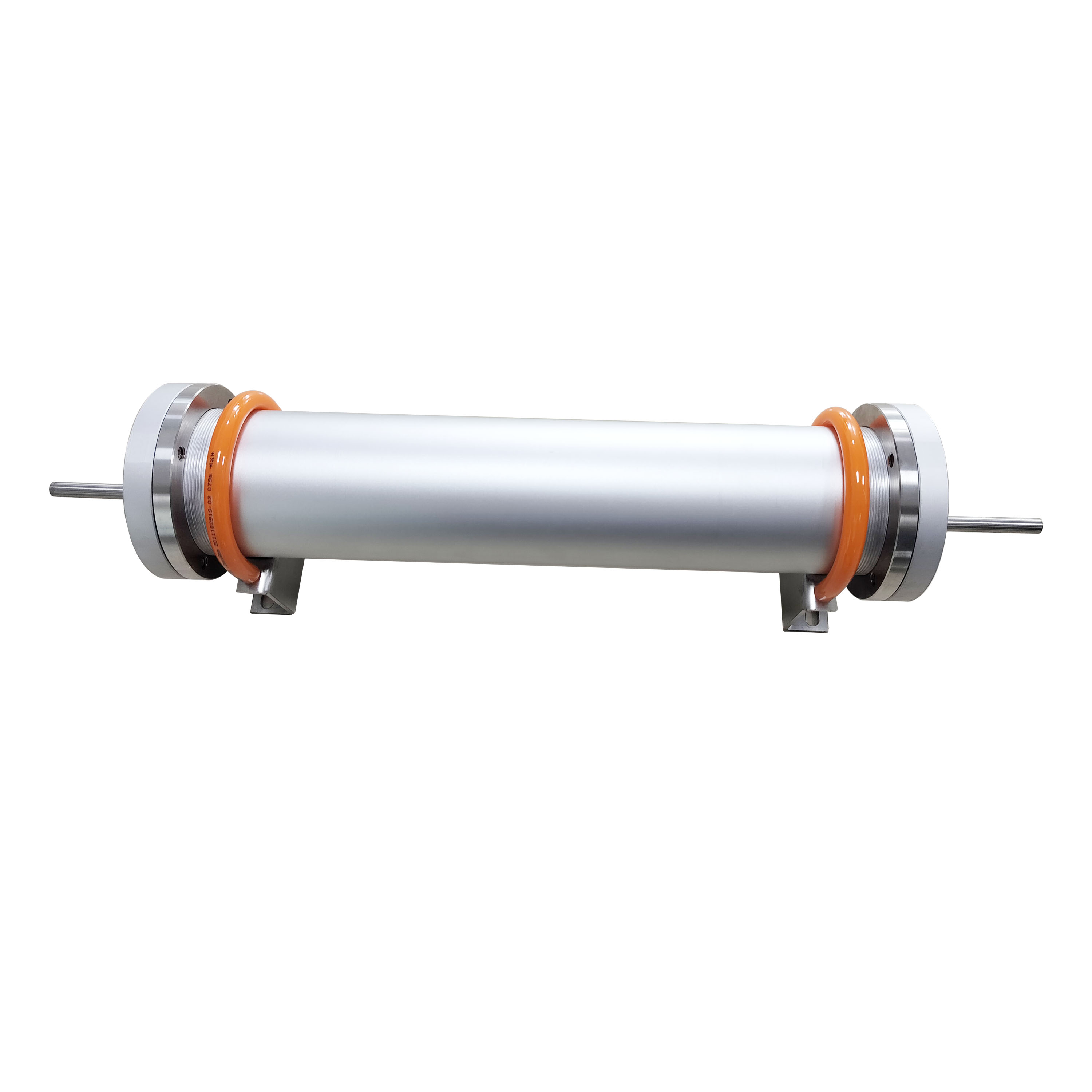

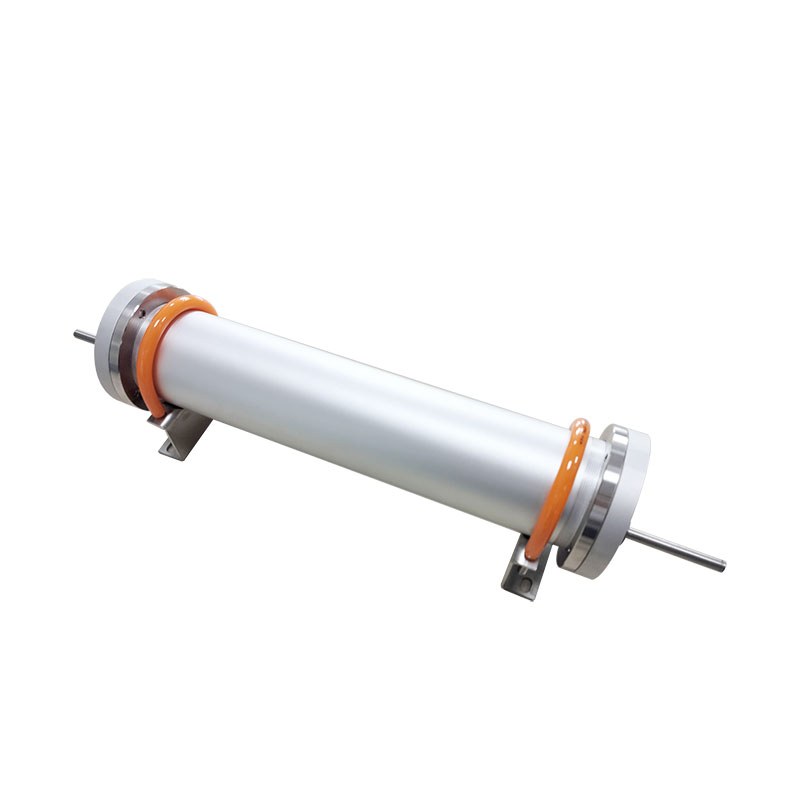

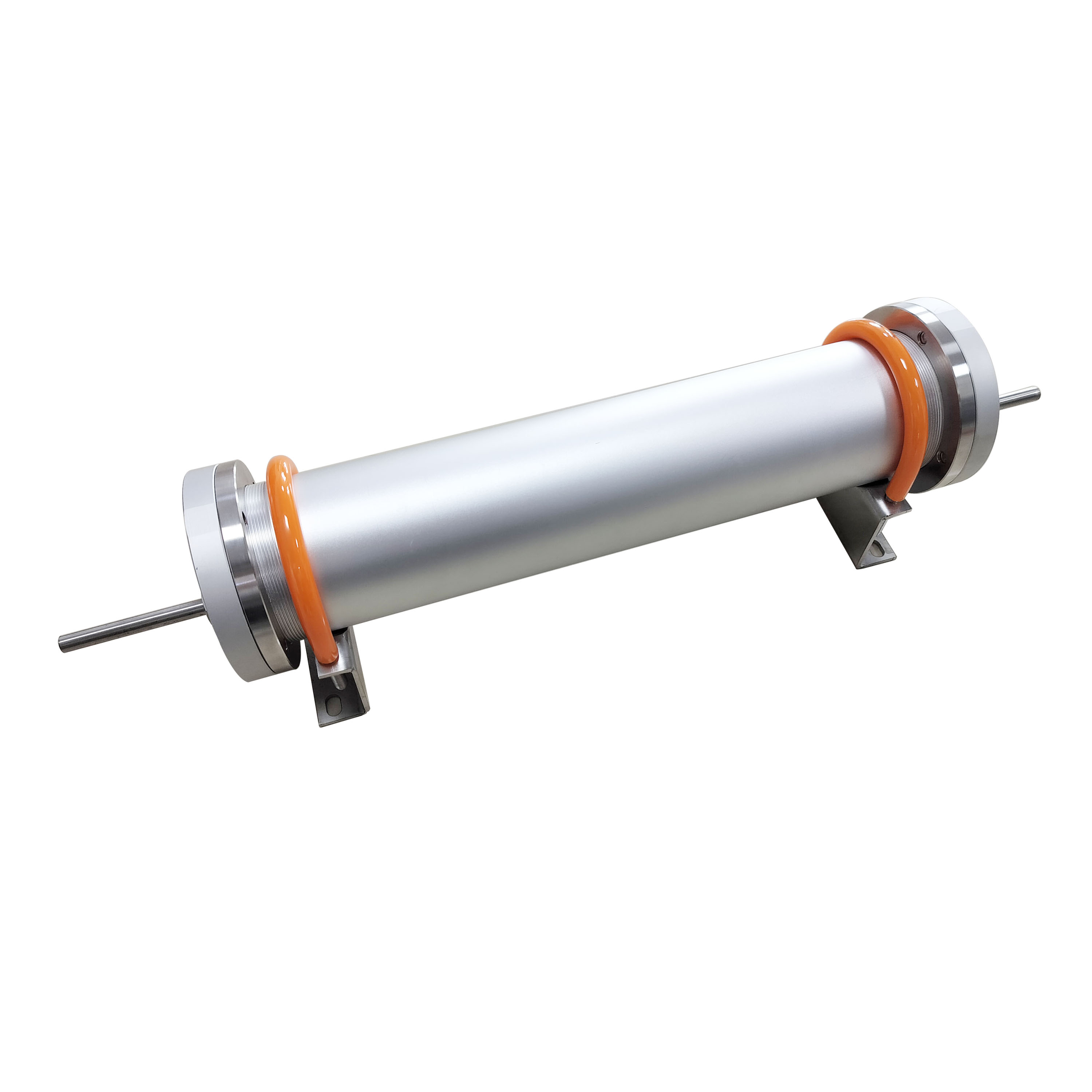

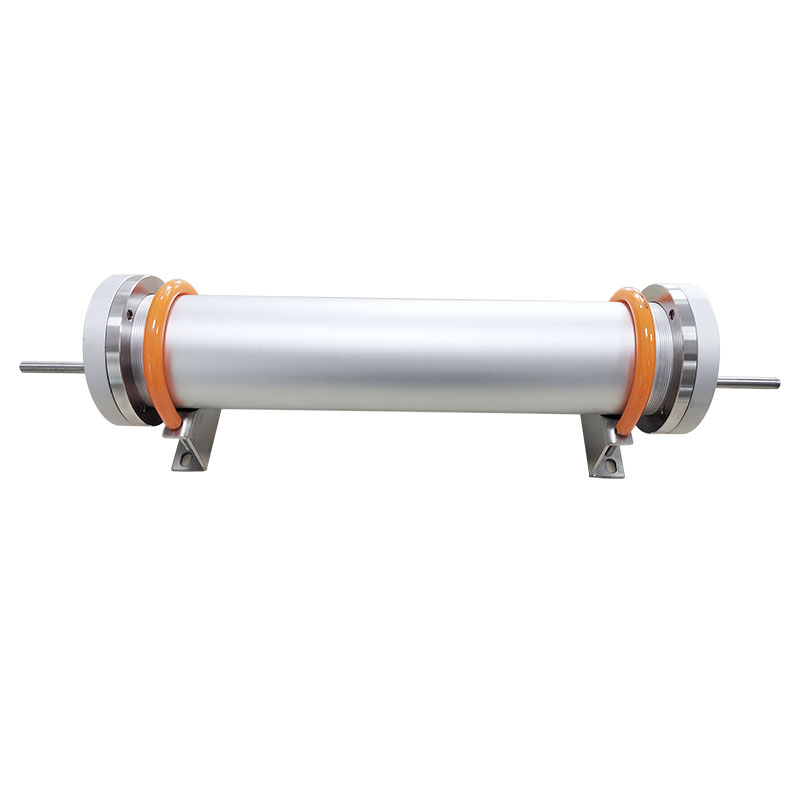

LQQ-6000-3/8-3000
USUN
Model :LQQ-20000-3/8-6000
USUN Model :US-GB02T-H2/US-GBT7/30-H2 160MM driven Closed cabinet dual Hydrogen gas
booster system with external High pressue Coiled cooler
Usun air driven gas booster pumps are ratio devices that utilize low pressure compressed
air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller
hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.
Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data
indicates exact ratios. The outlet stall pressure is easy to set by adjusting the air drive pressure
through a simple air pressure regulator. By multiplying the pressure ratio by the available shop
air pressure, the nominal gas pressure can be calculated.
Example ( Pump Model: GBD25 Gas booster pump)
Air drive piston area ( 160mm Ø)
Hydraulic plunger area (32mm Ø)
Actual ratio = 25:1
1. AIR DRIVE SECTION
The air drive section consists of a light weight piston complete with seals running inside an
aluminum barrel. The diameter of the air piston is 160mm. When compressed air is supplied to
the pump the air pushes the air piston down on a compression stroke
(forces as out of the gas end).
Under the control of pilot pins (poppet valve) triggered at each end of the stroke
2. GAS DRIVEN SECTION
The gas section of a USUN air driven gas booster consisit of 4 main pieces
,the gas barrel ,the piston the check valves and the main high pressure seals .
The gaspiston is directly linked to the air piston and it is housedinside the gas barrel
and its movements up and down creates the gas flow into and out of the booster through
the check valves .
The check valves are psring loaded and on the suction stroke .the inlet check valve
opens to the maximum allowing gas into the gas barrel and on the compression stroke
the inlet check valve closes the discharge check valve opens forcing the pumped gas
into the process .
The main high pressure seals is located on the gas piston and they seal agaist the gas
barrel during operation . and the maximum pressures of the pump ,however the
standard PTFE seals are suitable for both the vast majority of gases encountered .
Other materials of construction can be supplied to meet more aggresive services
.The standard serials of booster are not suitable for underground coal mine applications .
USUN DO Manufacture models of air driven gas boosters
that are not suitable for underground coal mine applications .
USUN Air driven gas boosters cycle automatically as the outlet pressure increass the
resistance also increases and the cycle rate decreases until the pump stops automatically
when the out put pressure forces are equal .This is refered to as the stall condition .
The pump will restart with a slight drop in the outllet pressure or an increase in the
air driven pressure .
Model selection for gas booster
It is very important to remember that the performance of any air driven device is very dependent on the air supply
conditions .Restrictions in the air supply can be caused by using a too small air compressor or airlines .
The FLOW CHARTS SHOWN in the technical data sheet are based on good conditions .
so please do not "design to the line " allow for losses and inefficiencies
The next question is wheather you want the booster to stall when an outlet pressure is reached
If so ,a simple airline pressure regulator will suffice ,but remember the flow drops off dramatically as the
booster reaches a stall condition .
If you need the pump to stop at a certain pressure ,prior to stall ,then an air pilor switches needs to be installed .
Key features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable cycling speed and output
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. No limit or adverse affect to contineous stop/start applications
6.Seals system designed for long working life,No airline lubricated required
7.Built-in coupling system (Most models) and suitable for most gases boosting
Main technical data
Technical data :
Ordering code :LQQ---- stands for cooler first 6000 stands for working pressure
3/8'' -----stands for connection size
3000---- stands for coiled tube length ( For example LQQ6000-3/8---3000)
Model | Working pressure | Working medium tube diameter( In) | Working medium tube length(M) | Exchange heating inlet& outlet port | High pressure connection type |
LQQ6000-3/8-3000 | 60,000 | 3/8 | 3 | PT1/2" | 3/8" double ferrule |
LQQ20000-3/8-3000 | 20,000 | 3/8 | 3 | PT1/2" | LF6 |
LQQ60000-3/8-6000 | 60,000 | 3/8 | 6 | PT1/2" | HF6 |
LQQ20000-9/16-6000 | 20,000 | 9/16 | 6 | G1" | LF9 |
LQQ30000-9/16-6000 | 30,000 | 9/16 | 6 | G1" | HF9 |
LQQ60000-9/16-6000 | 60,000 | 9/16 | 6 | G1" | HF9 |
LQQ20000-3/4-6000 | 20,000 | 3/4 | 6 | G1" | LF12 |
High Pressure cooler drawing
Model | Heating exchange port A | Cooling jacket port B | A(Can be adjustable) | B | C | D | E | F |
LQQ6000-3/8-3000 | PT1/2" | φ3/8" | 340 | 460 | 120 | 100 | 140 | 4-φ8.5*5 |
LQQ20000-3/8-3000 | PT1/2" | LF6 | 340 | 460 | 120 | 100 | 140 | 4-φ8.5*5 |
LQQ60000-3/8-6000 | PT1/2" | HF6 | 340 | 460 | 120 | 100 | 140 | 4-φ8.5*5 |
LQQ20000-9/16-6000 | G1" | LF9 | 480 | 700 | 200 | 160 | 210 | 4-φ10.5*10 |
LQQ30000-9/16-6000 | G1" | LF9 | 480 | 700 | 200 | 160 | 210 | 4-φ10.5*10 |
LQQ60000-9/16-6000 | G1" | LF9 | 480 | 700 | 200 | 160 | 210 | 4-φ10.5*10 |
LQQ20000-3/4-6000 | G1" | PT1/4" | 480 | 940 | 250 | 160 | 258 | 4-φ10.5*10 |
Typical technical data for air driven gas booster pump
Remark 1) Maxium outlet pressure are at an air driven pressure of 8 bar or 116 PSI ,for long life using
of such pump ,we suggest that air driven pressure should be not more than 8 Bar .
Typical application of such Pneumatic driven gas booster pump
