USUN Model:US-MS-H-C Customized Closed cabinet Stainless steel frame Mini air driven liquid pump system with manual handle

  USUN  Model :US-MS-H type  3 inch diameter driven  Mini stainless steel  air driven liquid pump

skid with manual handle and full closed cabinet

General Information for Air driven liquid pumps

USUN air driven liquid  pumps are ratio devices that utilize low pressure compressed

air driving a larger diameter piston (area x pressure) which is linearly connected to a smaller

hydraulic piston/plunger. Using this ratio principal, a higher hydraulic pressure can be generated.

Usun Pump model numbers reflect the pumps nominal pressure ratio, while the technical data

indicates exact ratios.  The outlet stall pressure is easy to set by adjusting the air drive pressure

through a simple air pressure regulator.

By multiplying the pressure ratio by the available shop

air pressure, the nominal liquid pressure can be calculated.

Exmple ( Pump Model: M21-S liquid pump)

Air drive piston area ( 80mm Ø)

Hydraulic plunger area (16mm Ø)

Actual ratio = 25:1

1.  AIR DRIVE SECTION

The air drive section consists of a light weight piston complete with seals running inside an

aluminum barrel. The diameter of the air piston is 80mm. When compressed air is supplied to

the pump the air pushes the air piston down on a compression stroke

( forces fluid out of the liquid end).

 Under the control of pilot pins (poppet valve) triggered at each end of the stroke

2. HYDRAULIC SECTION (Wetted End)

The hydraulic section of an air driven liquid pump consists of 4 main pieces, the hydraulic body,

the piston/plunger, the check valves and the main high pressure seal. The hydraulic

piston/plunger is  directly linked to the air piston and it is housed inside the hydraulic body and

its movement up and down creates the liquid flow into and out of the pump through the check

valves. The check valves are spring loaded and on the suction stroke the inlet check valve

 opens to the maximum allowing fluid into the hydraulic body and on the compression stroke the

inlet check valve closes and the discharge check valve opens forcing the pumped fluid into the

process.

The main high pressure seal is located within the hydraulic body and the piston/plunger seals

against this during operation. There are different materials and designs of high pressure seals

depending on the fluid being pumped and the maximum pressures of the pump, however the

standard seals are suitable for both water and hydraulic fluid use.

USUN air driven liquid pumps are self-priming, However, high ratio pumps are more difficult to

Prime and may require bleeding. In general, it is not recommended to use an air- line lubricator.

USUN  air driven liquid pumps cycle automatically  as the outlet pressure increases the

resistance  also increases and the cycle rate decreases until the pump stops automatically

when the output  pressure forces are equal. This is referred to as the stall condition.

The pump will restart with a slight drop in the outlet pressure or an increase in the air drive

pressure.

Typical applications for air driven Liquid pumps

Key features

One model available in 8 ratios

Compatibility with a variety of liquids

Safe pneumatic operation

Aluminum bodies and wetted materials of carbon steel or stainless steel

Rugged,compact,reliable and easy maintenance proven design

High quality seals, long service life available

No need for air line lubrication

Wide application with large range of pressure ratio

 Main technical data

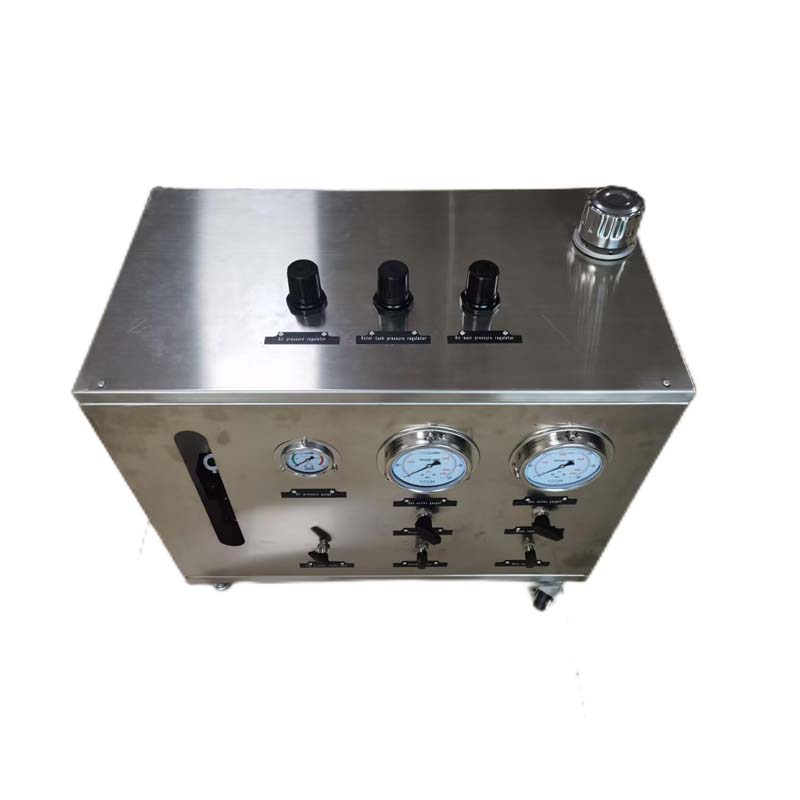

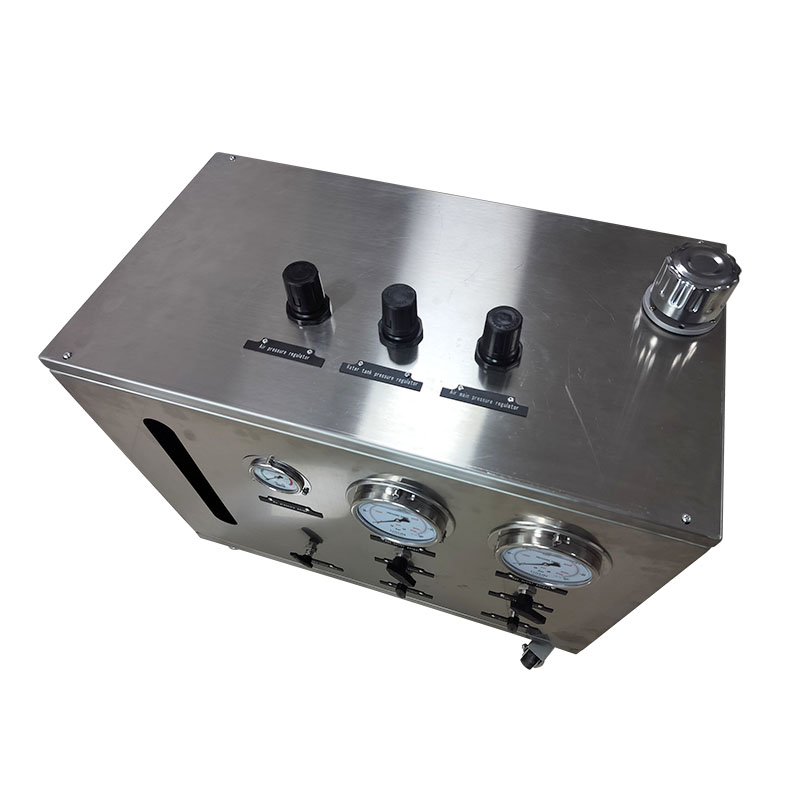

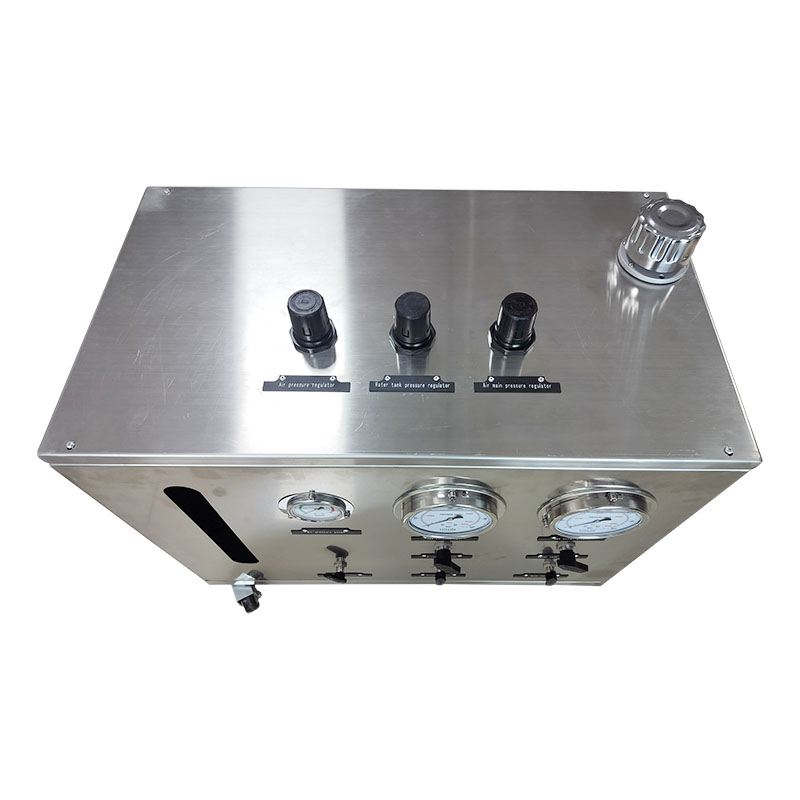

Complete stainless steel frame system :

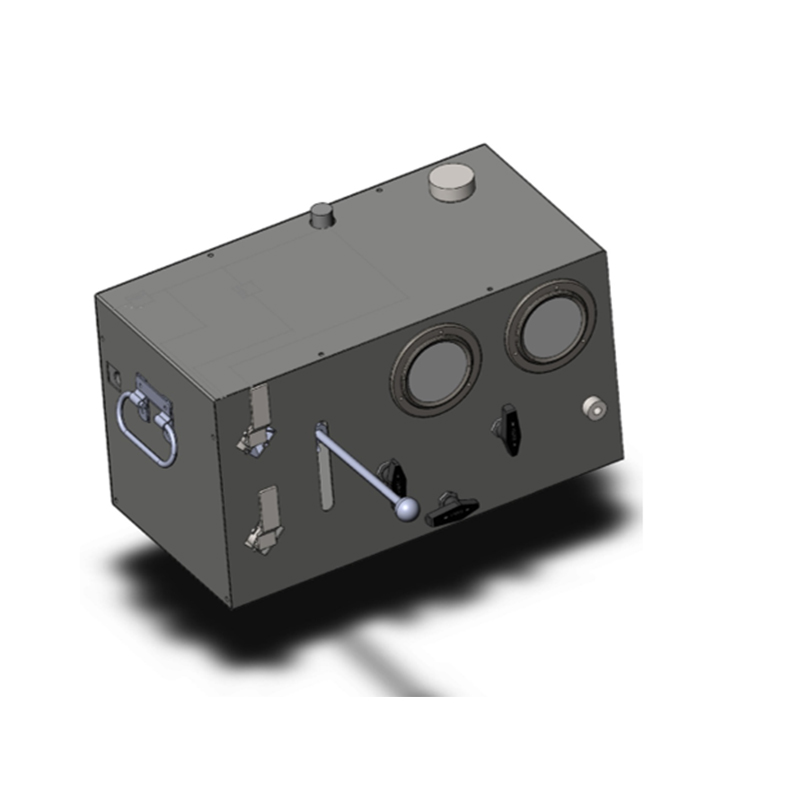

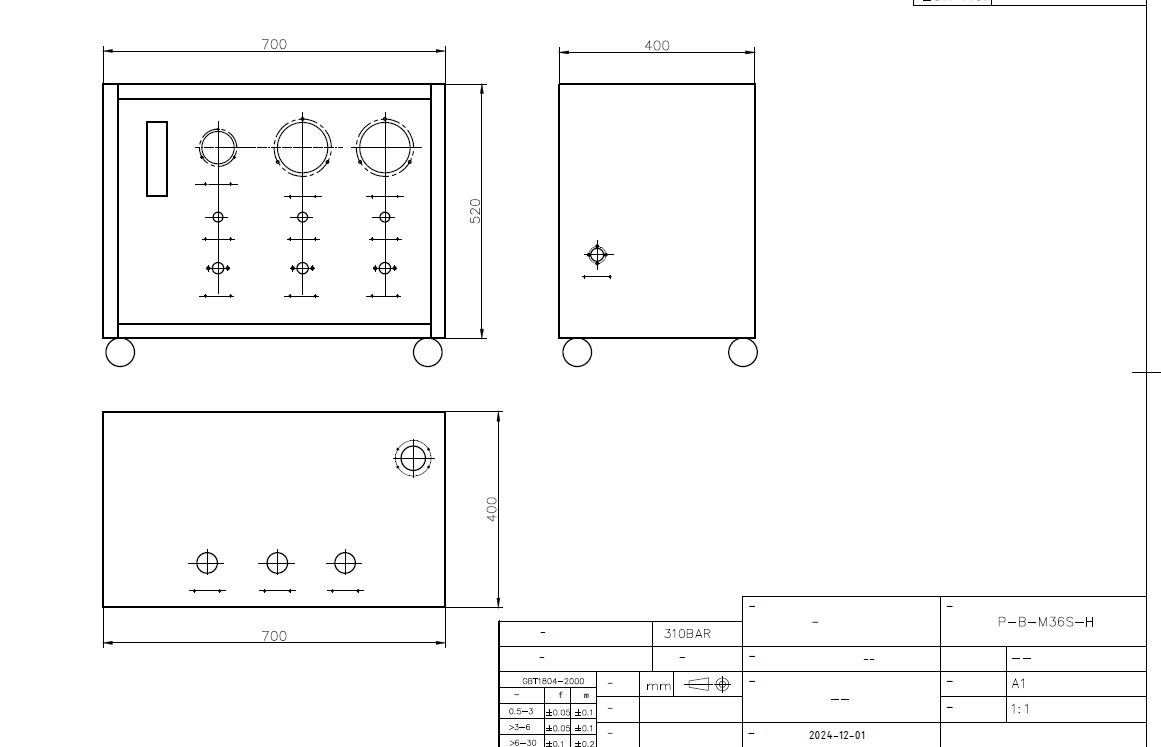

Customized  Stainless steel frame system Drawing  :

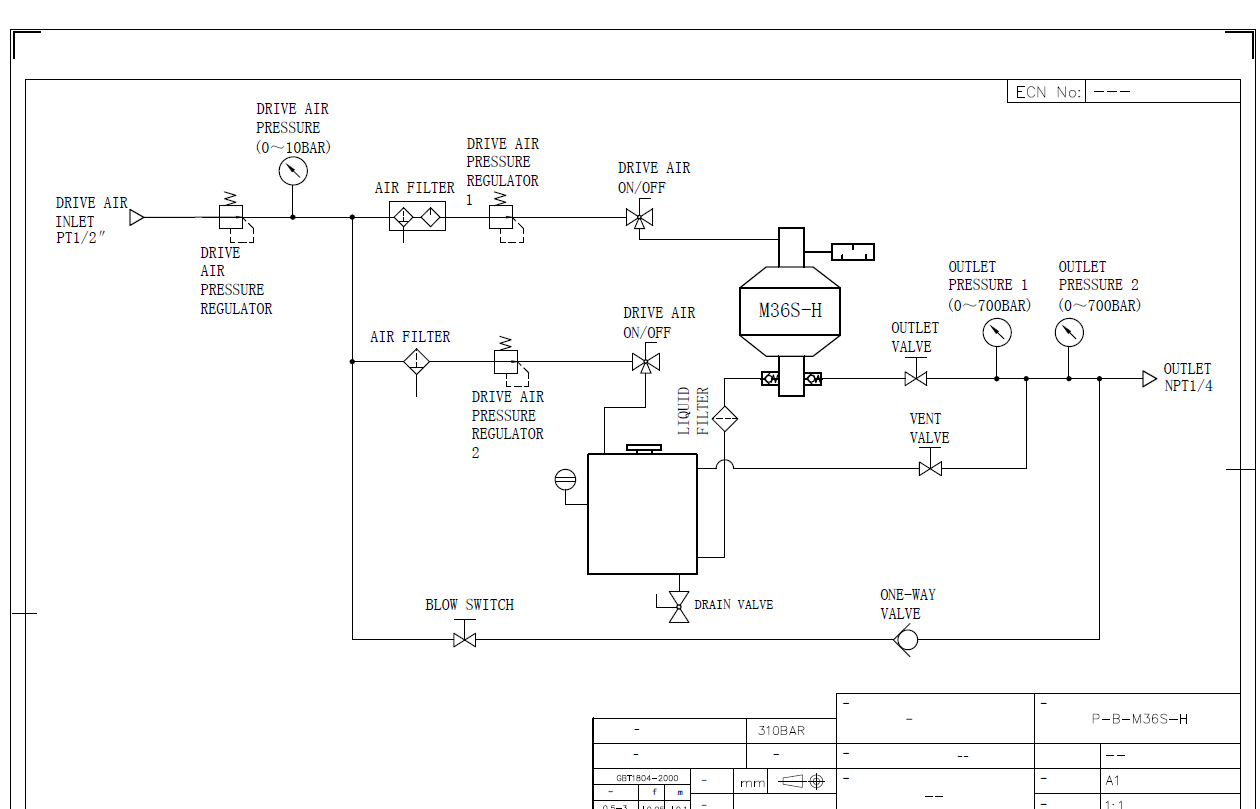

Customized  Complete stainless steel frame system Circuit :

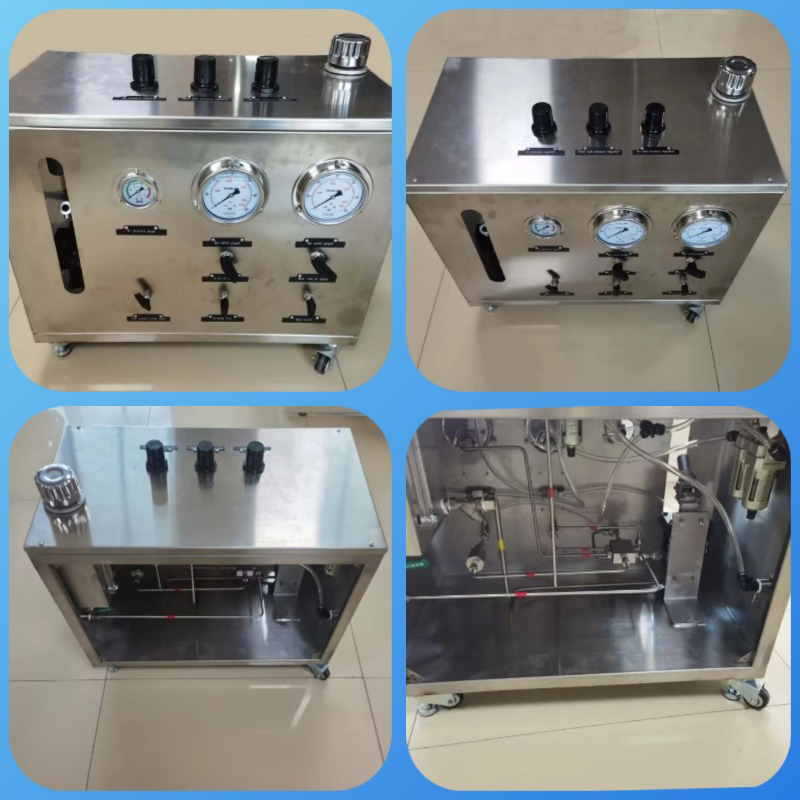

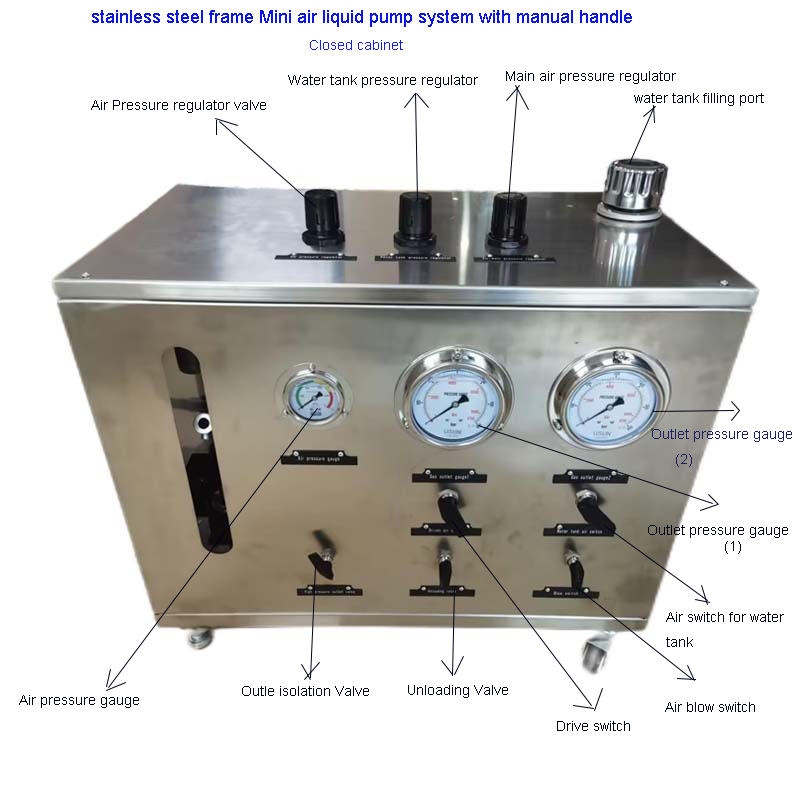

Complete pump system real photos
