Model :WS-2AH
USUN
Model :WS-2AH512/WS-2AH630/WS-2AH800

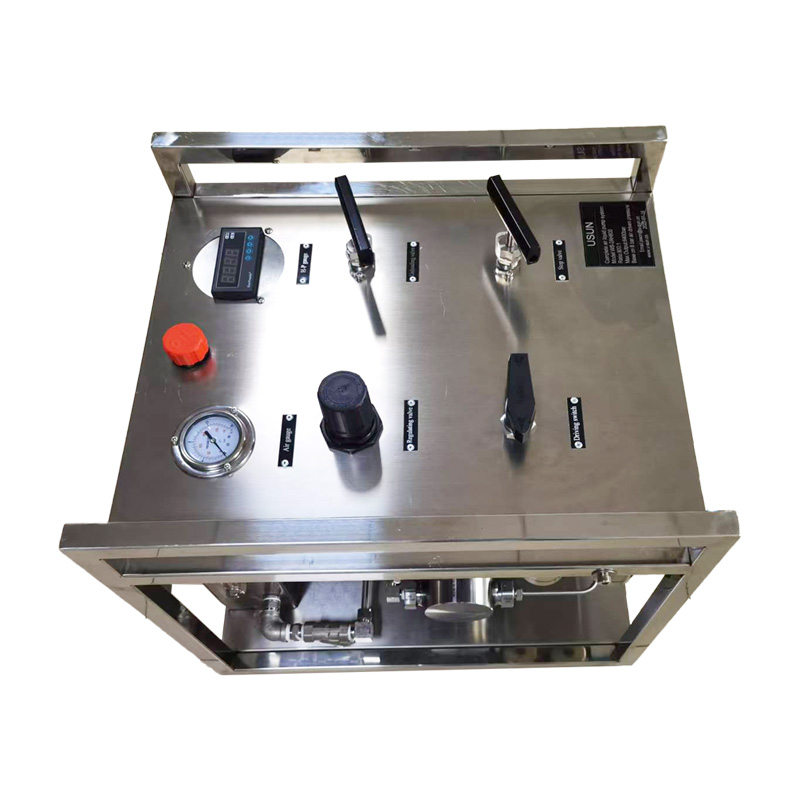

USUN Model:WS-2AH Middle Size 160MM Driven Double Head Single Acting UItra-high Pressure Air Driven Hydraulic Test System for Burst Testing Machine
| List items | Function |
| 1) Air regulator valve | Adjustable air regulator used to adjust the air driven pressure ( 0-10 bar) |
| 2) Air pressure gauge | Indicates the air driven pressure |
| 3) liquid outlet pressure gauge | Indicates the outlet Liquid boosted pressure |
| 4) Hand drive switch | Used to adjust the system on/off |
| 5) Outlet needle valve | Used to stop the booster when outlet pressure reaches the adjusted set point |
| 6) Uploading needle valve | Used to protect the booster and other components over pressurization and release the high pressure |

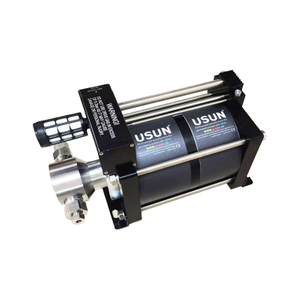

| 7) WS-2AH type single action booster | Used to increase the pressure from low pressure to high pressure |
| 8) Liquid filter | Our standard system does not include such part ,if you need ,should inform in advance |
| 9) Hydraulic tank | 12 liters hydraulic tank for standard liquid pump system |
| 10) Frame type | Stainless steel frame and it is esy to move with wheels |
General Information for Air driven hydraulic pumps
Typical applications for air driven hydraulic test pump
Key features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems

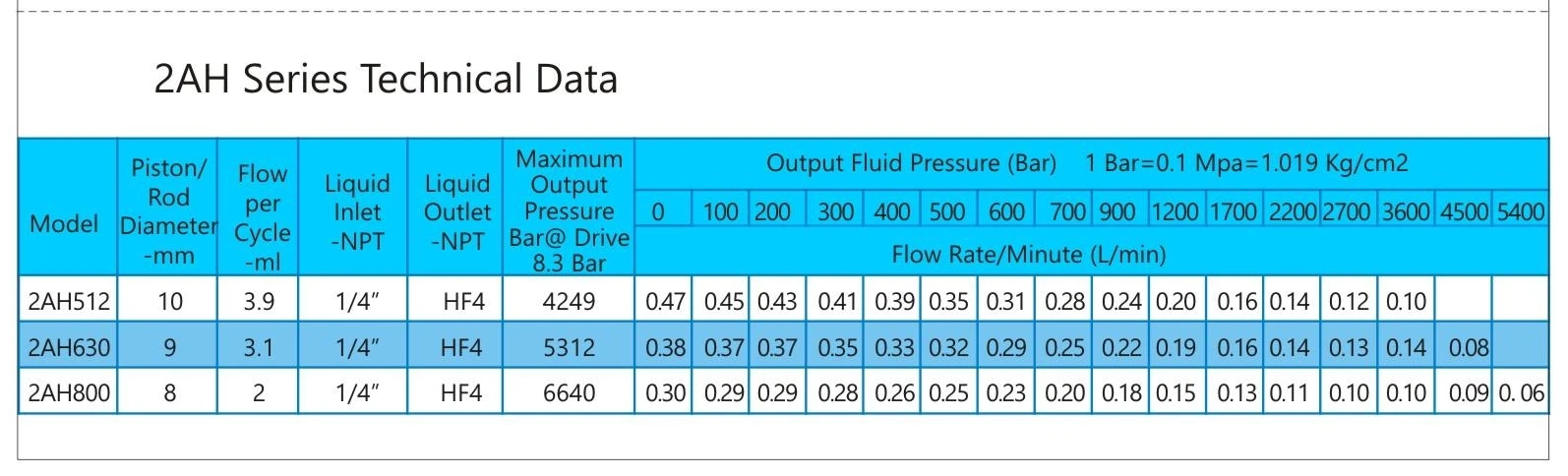

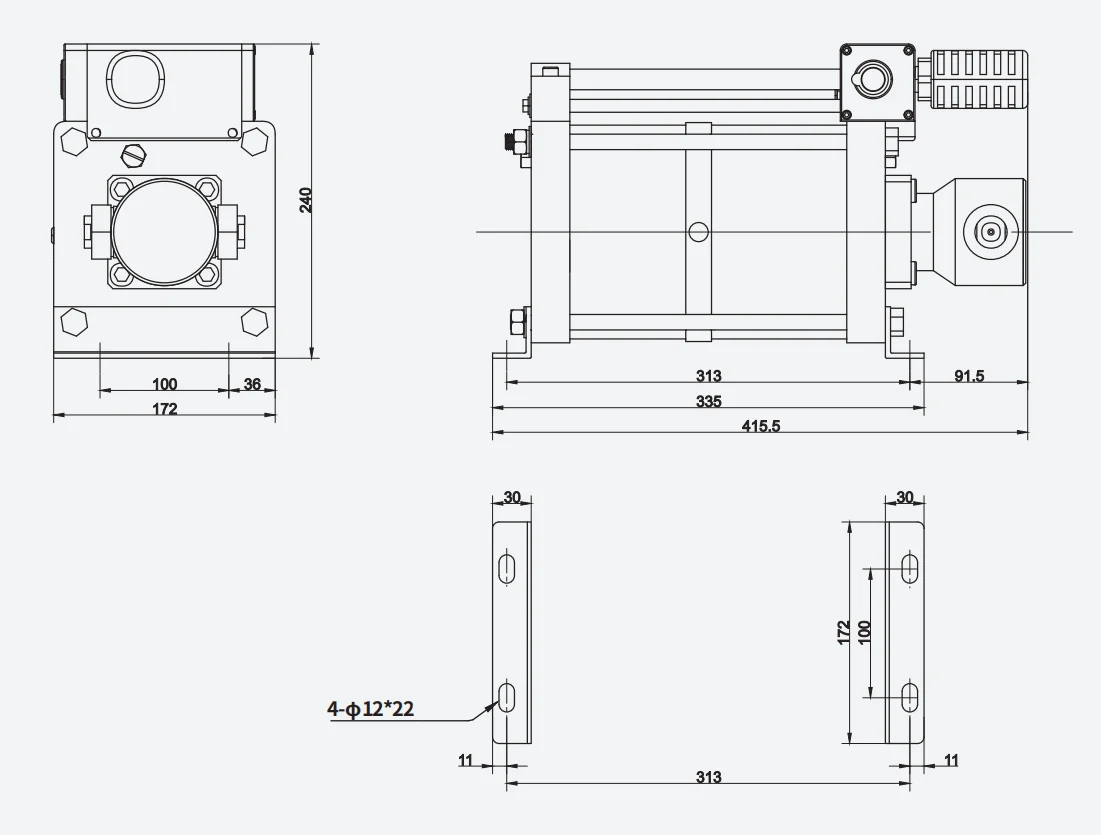

The air drive liquid pump technical parameter

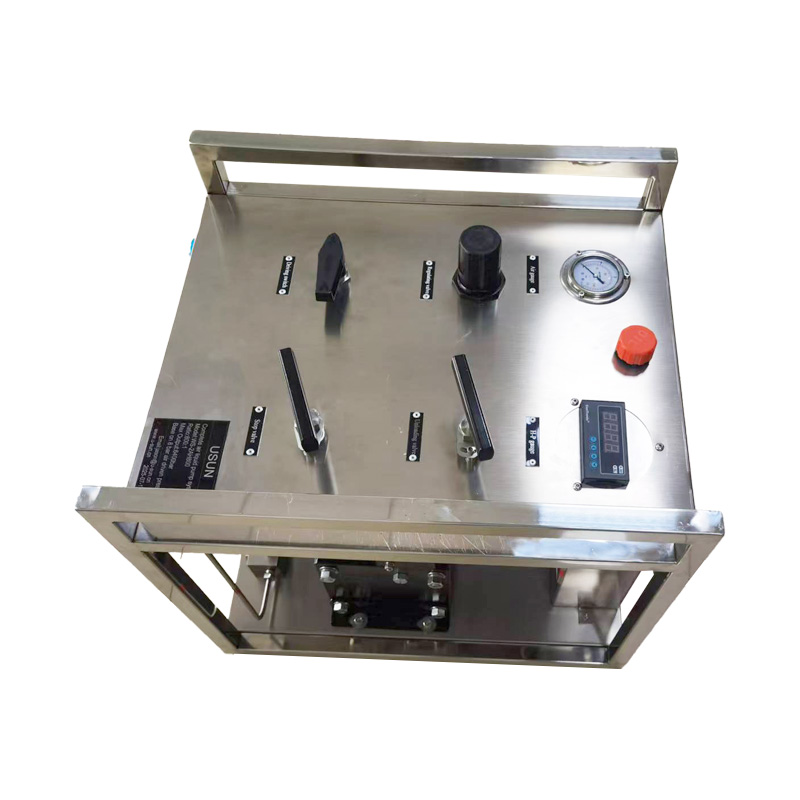

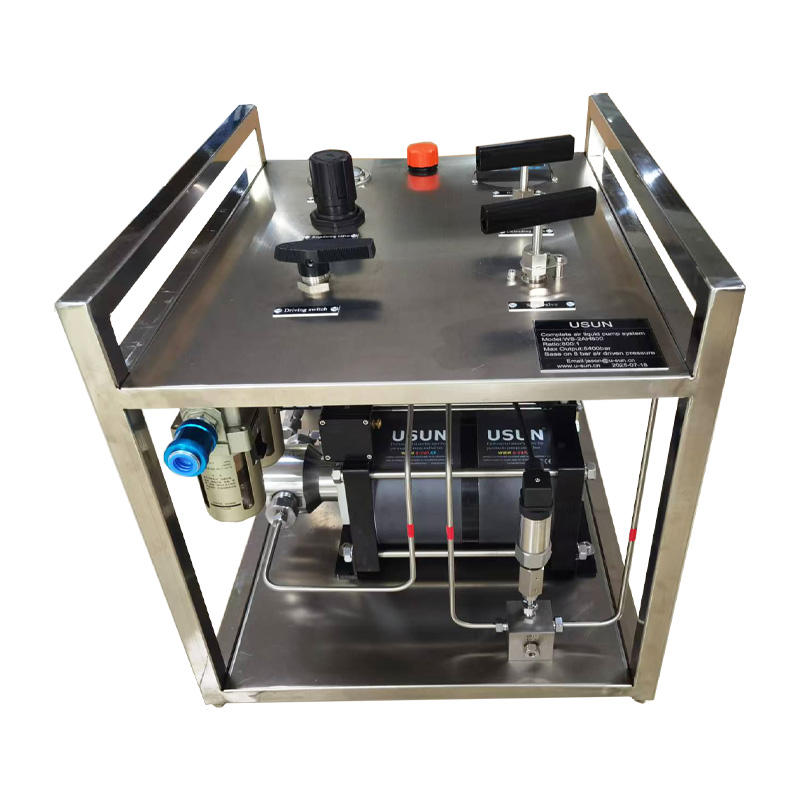

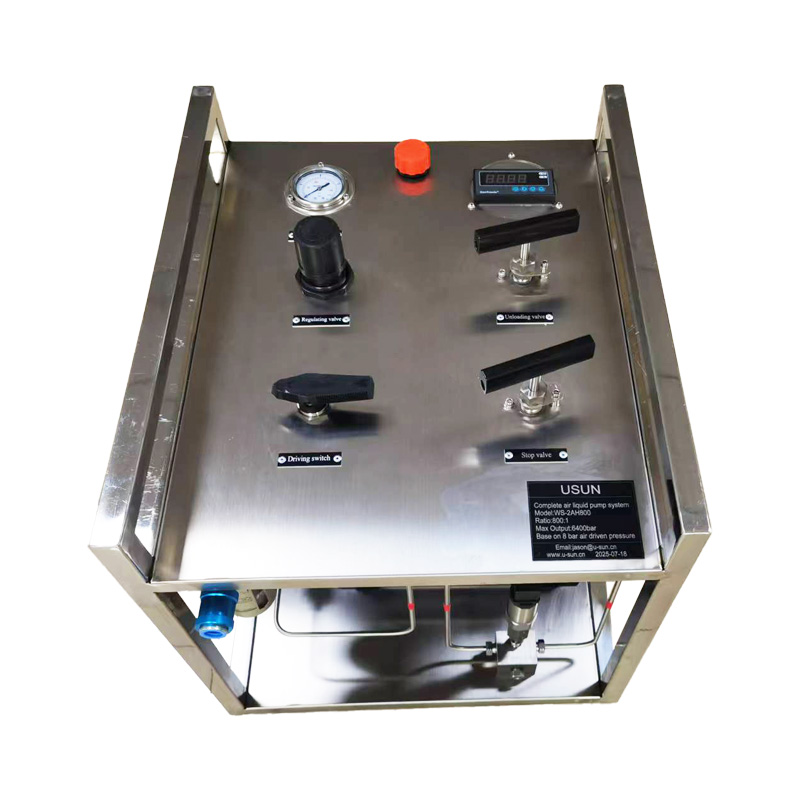

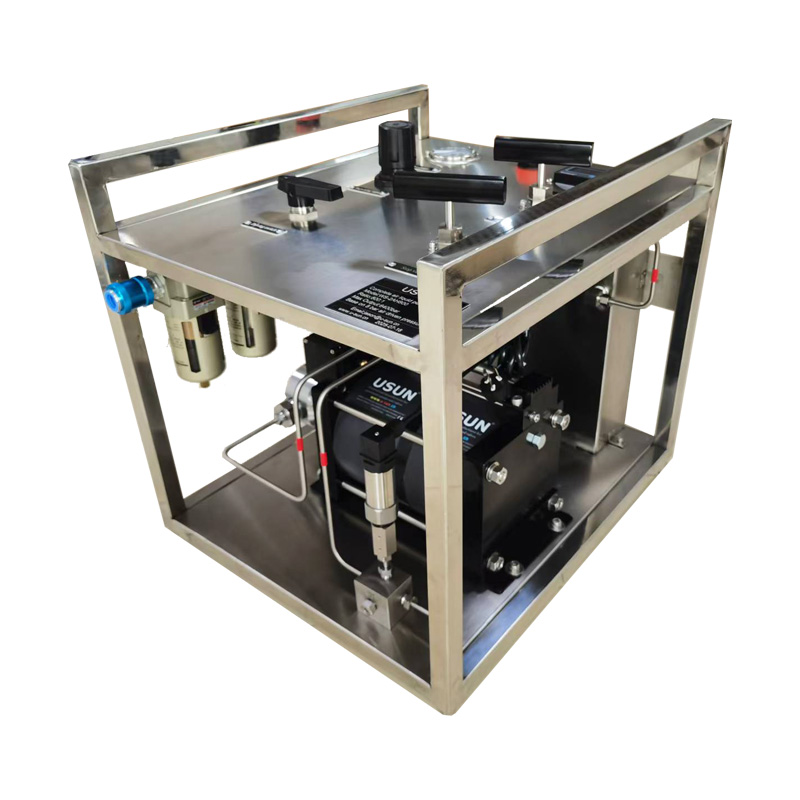

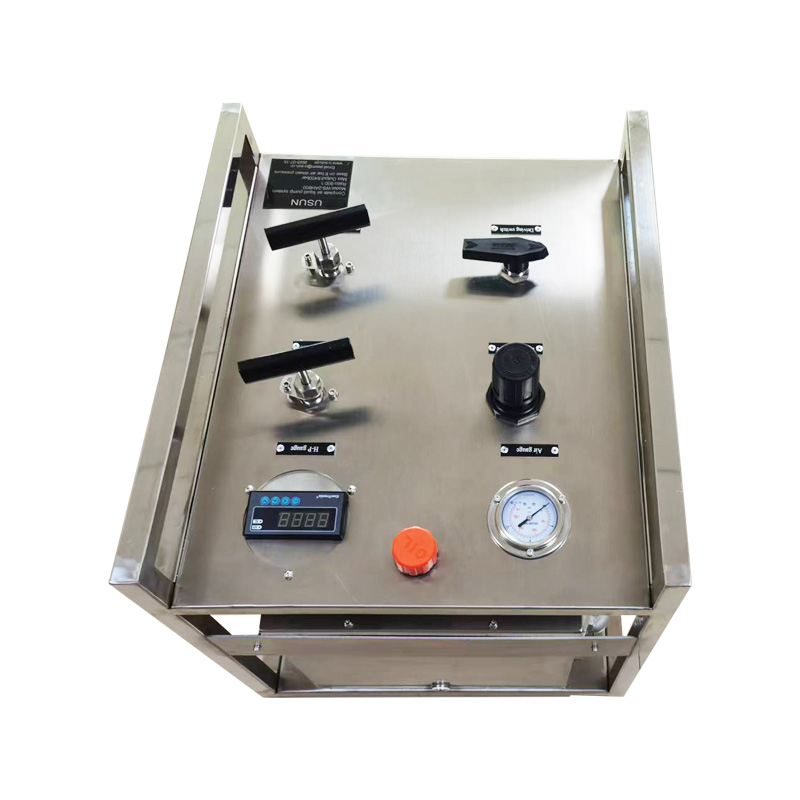

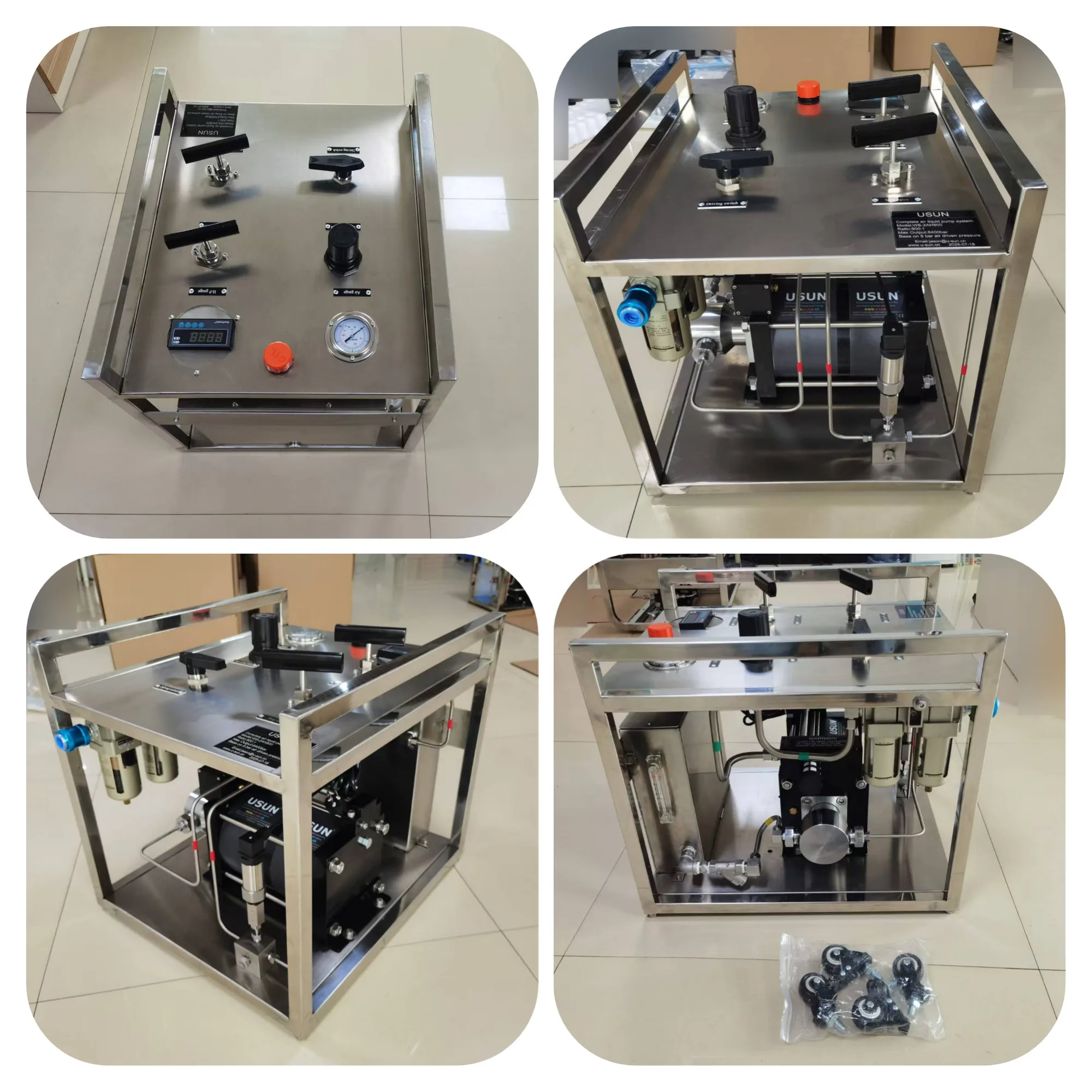

product real photos
USUN Model:WS-2AH Middle Size 160MM Driven Double Head Single Acting UItra-high Pressure Air Driven Hydraulic Test System for Burst Testing Machine
| List items | Function |
| 1) Air regulator valve | Adjustable air regulator used to adjust the air driven pressure ( 0-10 bar) |
| 2) Air pressure gauge | Indicates the air driven pressure |
| 3) liquid outlet pressure gauge | Indicates the outlet Liquid boosted pressure |
| 4) Hand drive switch | Used to adjust the system on/off |
| 5) Outlet needle valve | Used to stop the booster when outlet pressure reaches the adjusted set point |
| 6) Uploading needle valve | Used to protect the booster and other components over pressurization and release the high pressure |
| 7) WS-2AH type single action booster | Used to increase the pressure from low pressure to high pressure |
| 8) Liquid filter | Our standard system does not include such part ,if you need ,should inform in advance |
| 9) Hydraulic tank | 12 liters hydraulic tank for standard liquid pump system |
| 10) Frame type | Stainless steel frame and it is esy to move with wheels |
General Information for Air driven hydraulic pumps
Typical applications for air driven hydraulic test pump
Key features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems
The air drive liquid pump technical parameter
product real photos
